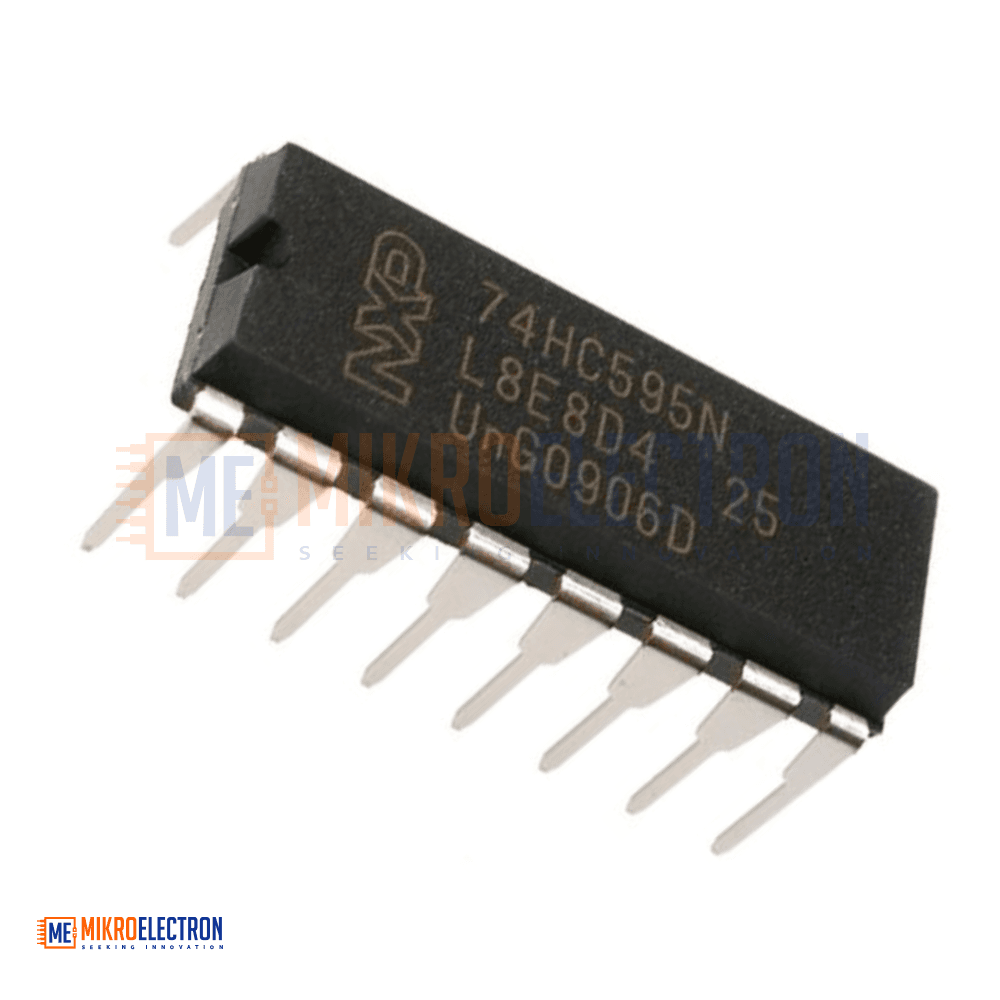

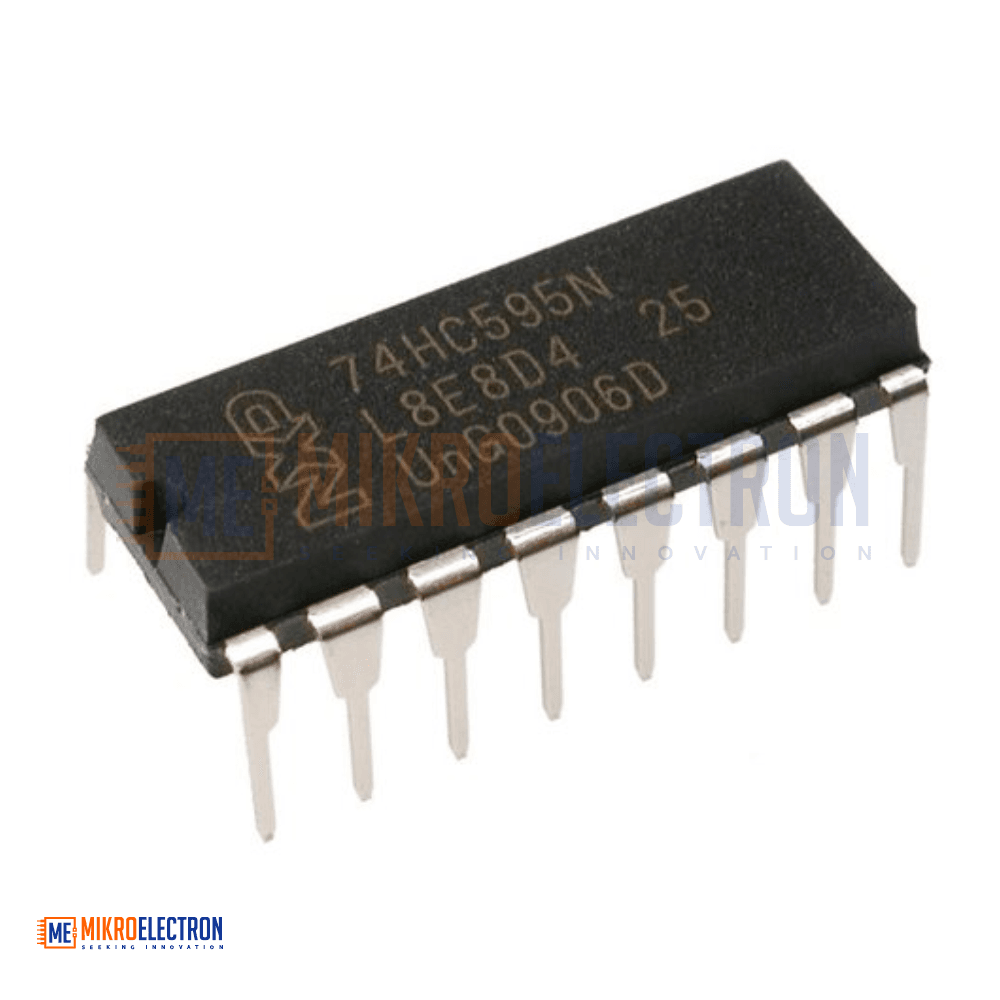

74HC595 8-Bit Serial to Serial/Parallel
The 74HC595 8-Bit Serial to Parallel Shift Register is a widely used integrated circuit designed to expand digital output pins in microcontroller projects. It converts serial data input into parallel output signals, allowing control of multiple devices using only a few microcontroller pins. Featuring 8-bit storage, 3-state outputs, and high-speed operation, the IC is ideal for LED control, displays, automation systems, and Arduino projects requiring efficient digital output expansion and synchronous serial communication.
الدائرة المتكاملة 74HC595 8-Bit Shift Register هي شريحة إلكترونية شائعة الاستخدام لتوسيع المخارج الرقمية في مشاريع المتحكمات الدقيقة. تقوم بتحويل البيانات التسلسلية إلى مخارج متوازية للتحكم بعدة أجهزة باستخدام عدد قليل من أطراف المتحكم. تتميز بسعة 8 بت ومخارج ثلاثية الحالة وسرعة تشغيل عالية، مما يجعلها مناسبة للتحكم في مصابيح LED والشاشات وأنظمة الأتمتة ومشاريع Arduino التي تحتاج إلى توسيع المخارج الرقمية بكفاءة.
The 74HC595 is an 8-bit serial-in, parallel-out shift register IC commonly used in digital electronics and microcontroller applications. It allows a microcontroller to control multiple output devices using only a few communication pins through synchronous serial communication.

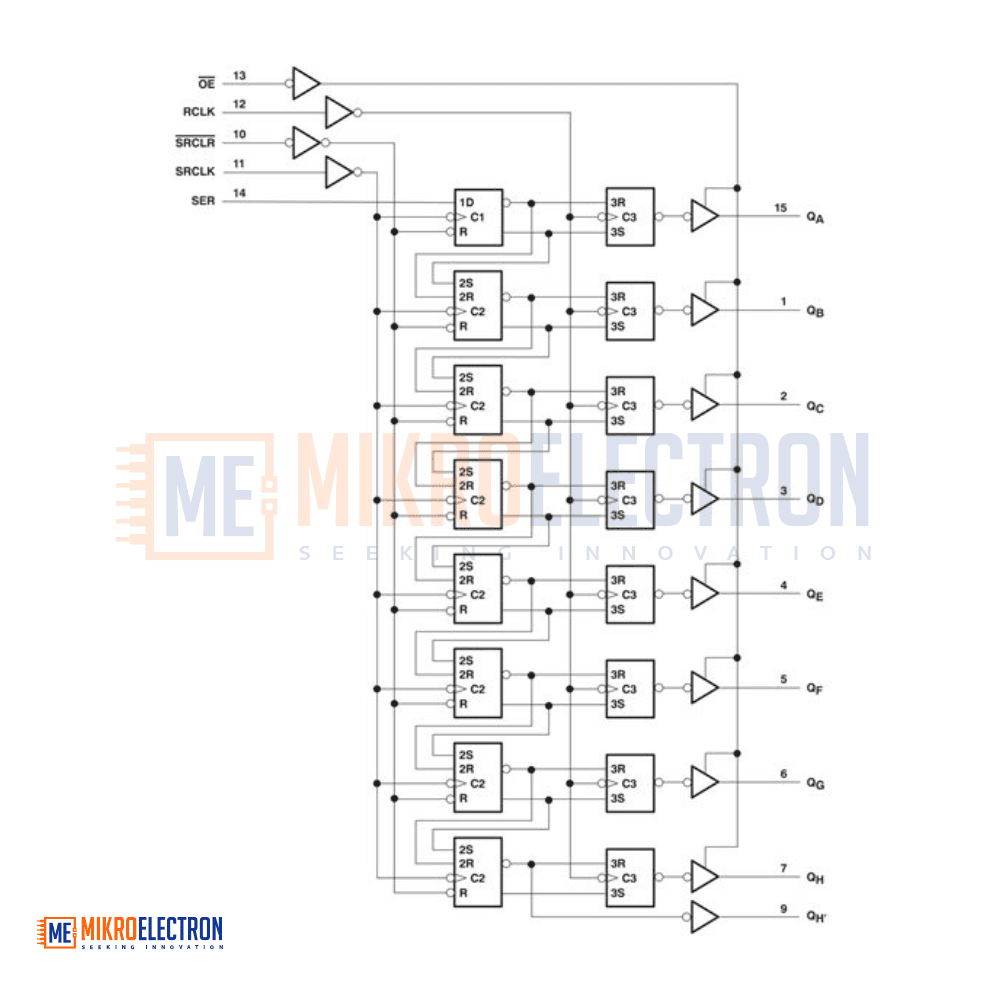

Data is shifted into the IC one bit at a time through the serial input line using a clock signal. Once all 8 bits are loaded, a latch signal transfers the data simultaneously to the parallel outputs, enabling efficient control of LEDs, displays, relays, and other digital components.
The IC features 3-state output capability, high-speed operation, and wide operating voltage support from 2V to 6V, making it compatible with most logic systems including Arduino, Raspberry Pi, STM32, and TTL/CMOS circuits.

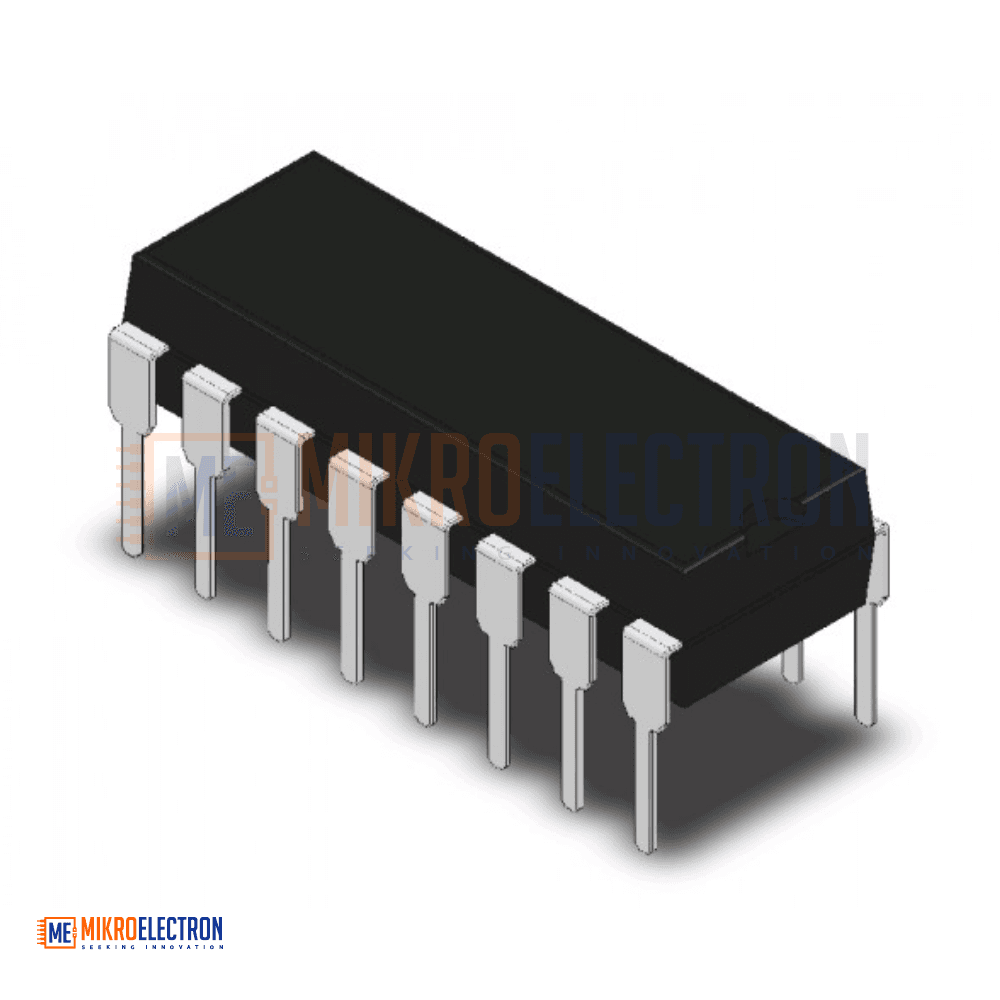

Its compact DIP package and reliable performance make it ideal for output expansion, LED matrix control, display driving, and embedded system applications.
Specifications
- Product Name: 74HC595 Shift Register IC
- Type: Serial-In Parallel-Out Shift Register
- Bit Width: 8-Bit
- Logic Family: HC
- Logical Function: Shift Register
- Output Type: 3-State Outputs
- Package Type: DIP
- Typical Operating Voltage: 5V
- Operating Voltage Range: 2V – 6V
- Propagation Delay Time: 265ns
- Operating Temperature Range: -40°C to +125°C
- Communication Method: Synchronous Serial Communication
Applications
- LED control systems
- LED matrix displays
- 7-segment display driving
- Arduino output expansion
- Embedded electronics projects
- Digital control circuits
- Automation systems
- Relay control modules
- DIY electronics projects
- Microcontroller-based systems
