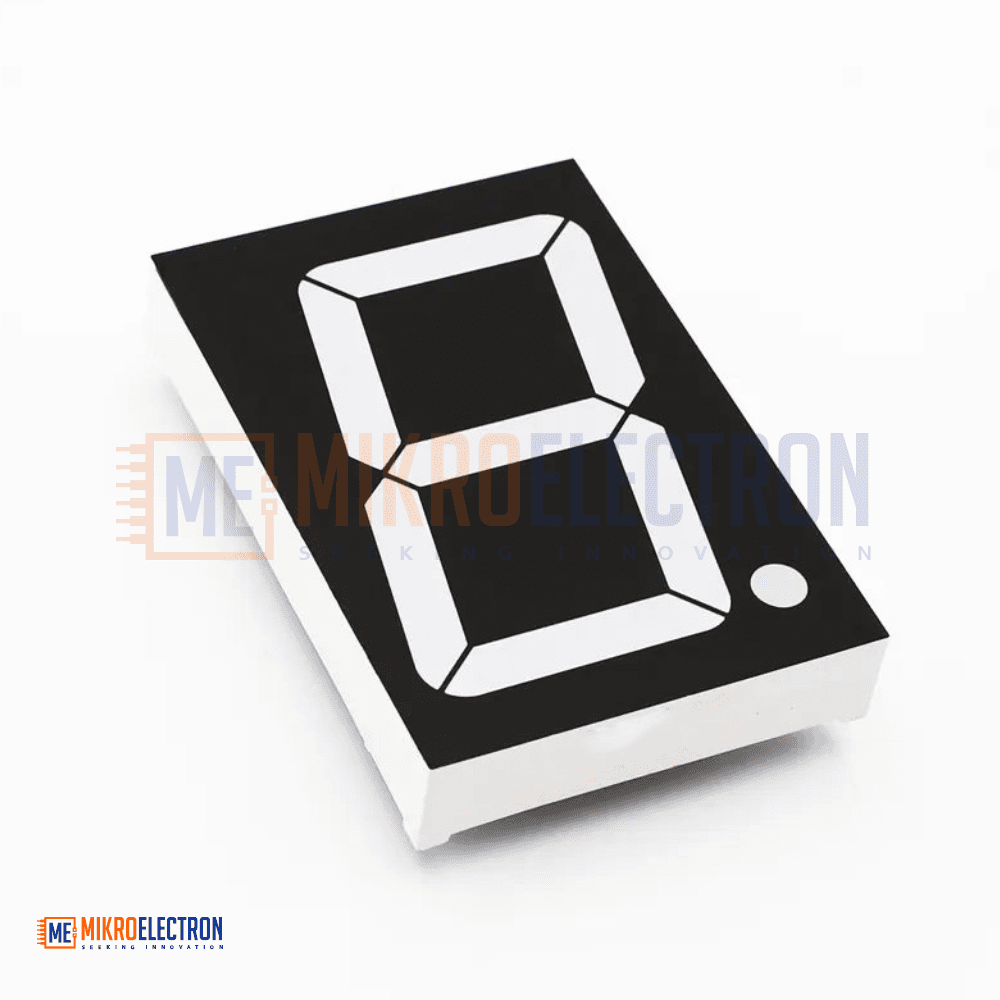

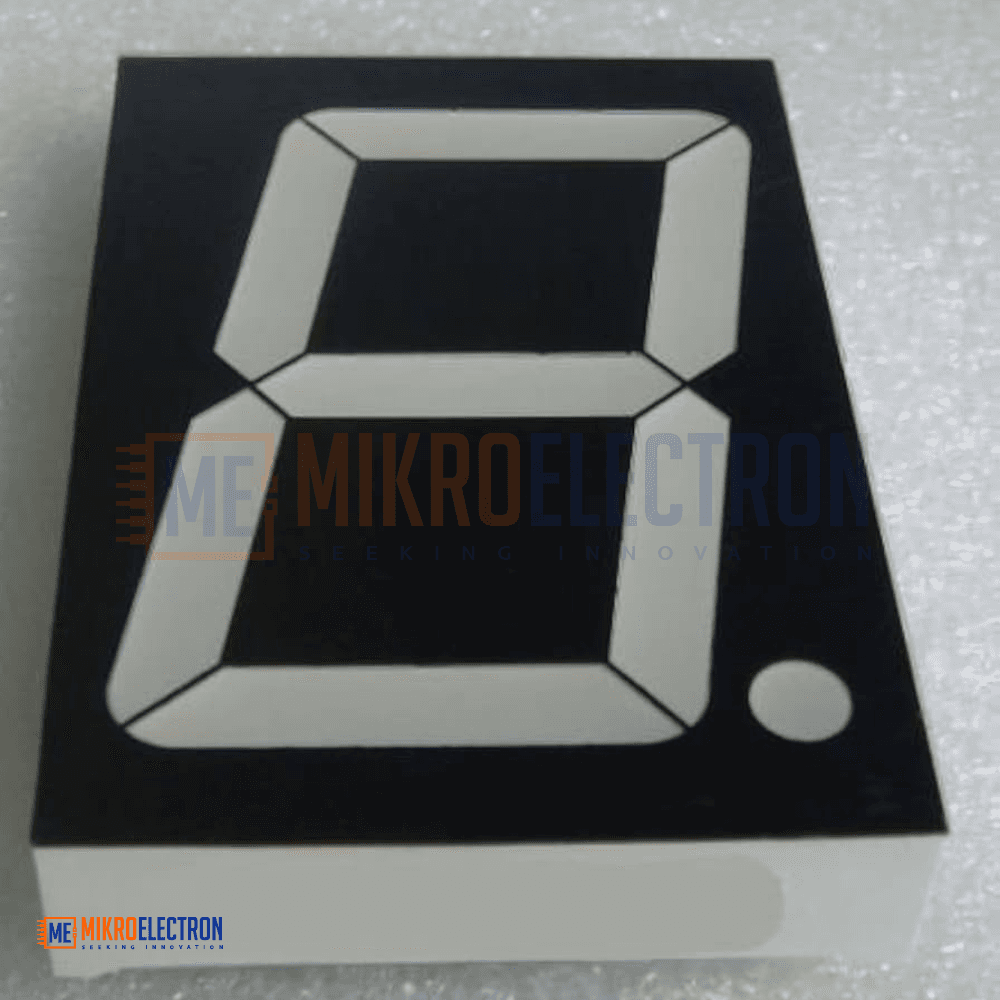

7 Segment LED display 2.3-inch CA
The 2.3-Inch 7 Segment LED Display CA is a large single-digit numeric display designed for clear and bright visual indication in electronic systems. Featuring high light output, low current operation, and excellent character visibility, it is suitable for counters, measurement devices, clocks, and industrial displays. The display supports common anode or common cathode configurations, includes a decimal point, and is compatible with standard IC control circuits for easy integration into embedded and digital electronics projects.
شاشة 7 Segment LED مقاس 2.3 بوصة CA هي شاشة رقمية كبيرة مكونة من خانة واحدة، مصممة لعرض الأرقام بوضوح وسطوع عالٍ في الأنظمة الإلكترونية. تتميز بإضاءة قوية واستهلاك منخفض للطاقة ووضوح ممتاز للأرقام، مما يجعلها مناسبة للعدادات وأجهزة القياس والساعات والشاشات الصناعية. تدعم توصيل Common Anode أو Common Cathode وتحتوي على نقطة عشرية، كما أنها متوافقة مع دوائر التحكم الإلكترونية لسهولة دمجها في المشاريع الإلكترونية المختلفة.

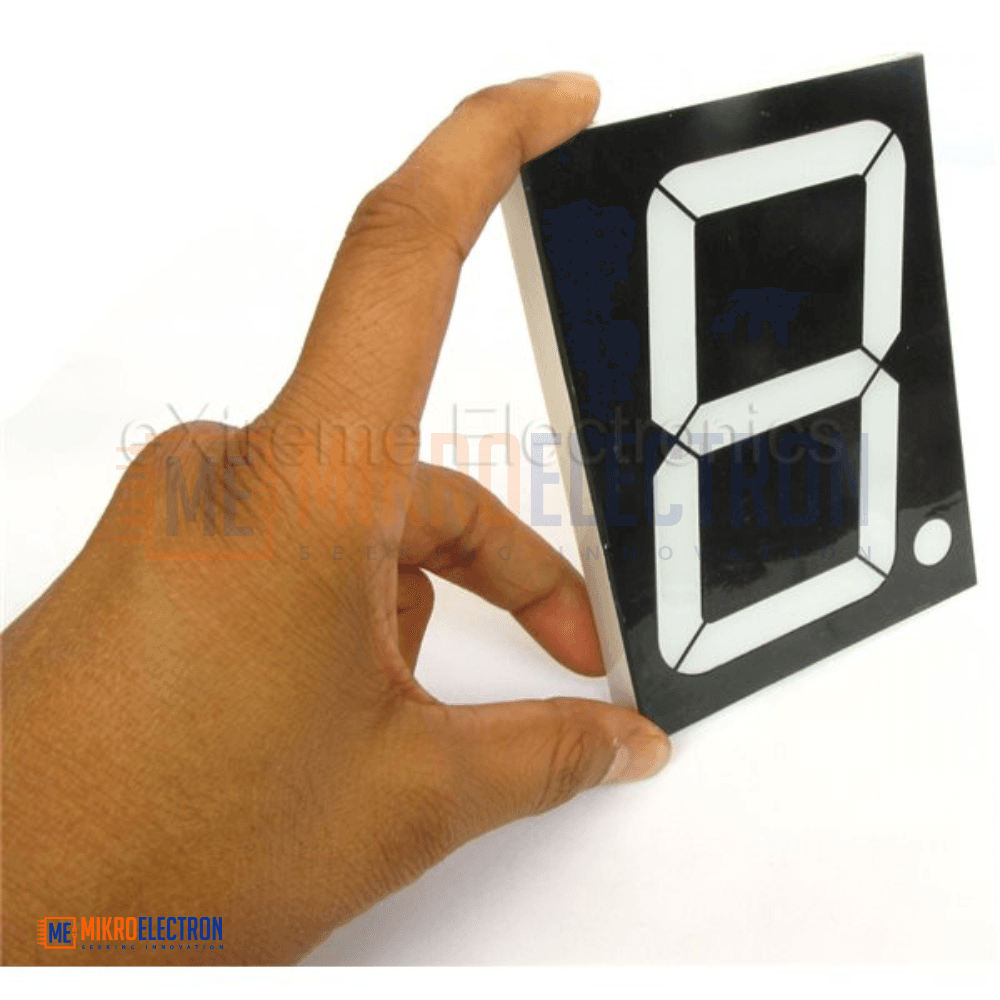

The 2.3-Inch 7 Segment LED Display is a high-brightness single-digit numeric display module designed for electronic indicators, counters, timers, and industrial display systems. With a large 2.30-inch digit height (56.80mm), it provides excellent visibility from long distances, making it suitable for both indoor and outdoor applications.
The display offers high light output, clear numeric appearance, and low current consumption for efficient operation. It is available in common anode (CA) or common cathode (CC) configurations and includes a single decimal point for displaying decimal values.
Designed for easy installation on PCBs or sockets, the display is IC compatible and supports multiple color options, including bi-color versions. Its rugged construction ensures reliable long-term performance in demanding electronic and industrial environments.
Specifications
- Product Name: 7 Segment LED Display
- Display Type: Single Digit Numeric Display
- Digit Size: 2.30 Inch

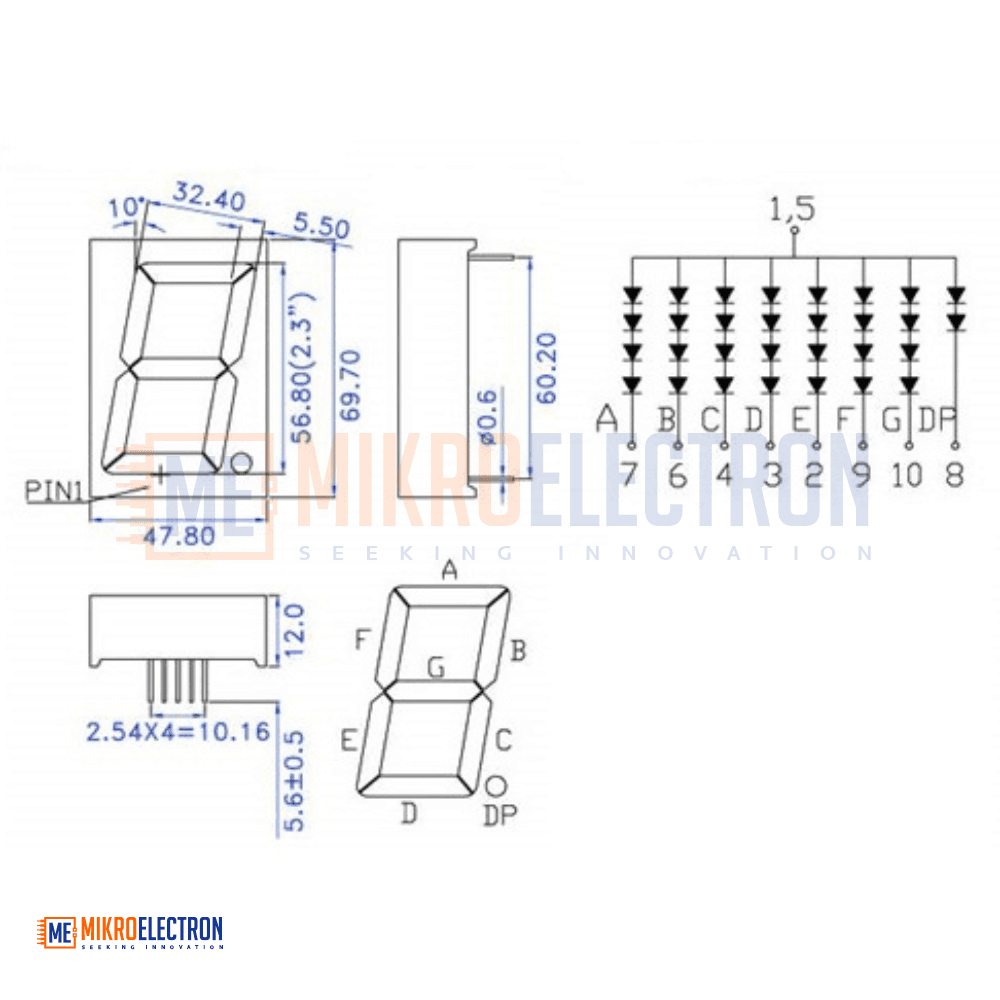

- Digit Height: 56.80 mm
- Dimensions: 47.80 × 69.70 mm
- Configuration: Common Anode (CA) / Common Cathode (CC)
- Decimal Point: Single Decimal Point
- Display Colors: Multi-color / Bi-color Options Available
- Operating Type: Low Current Operation
- Mounting Type: PCB or Socket Mounting
- IC Compatibility: Yes
- Brightness: High Light Output
- Mechanical Design: Technically Rugged Construction
Applications
- Digital counters
- Electronic clocks and timers
- Industrial display panels
- Measurement instruments
- Scoreboards
- Voltage and current displays
- Embedded electronics projects
- Arduino and microcontroller displays
- Information display systems
- DIY electronic projects
