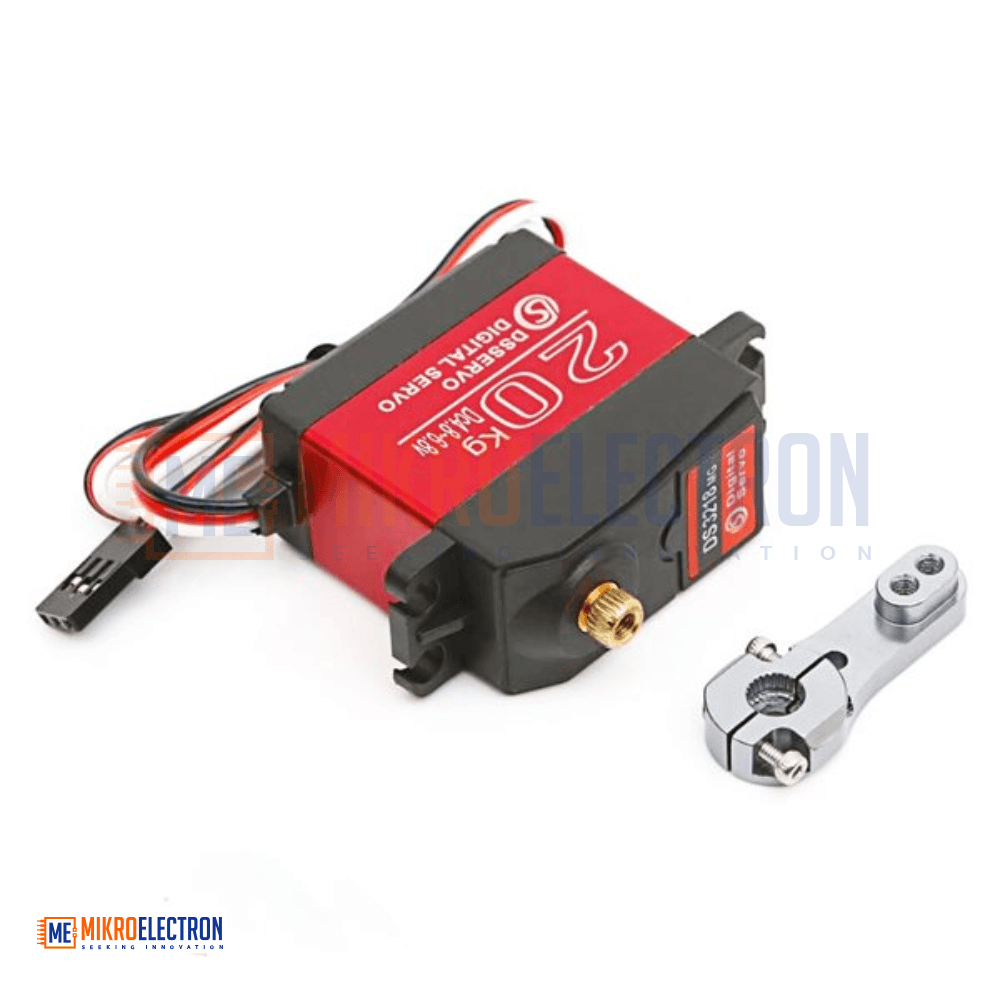

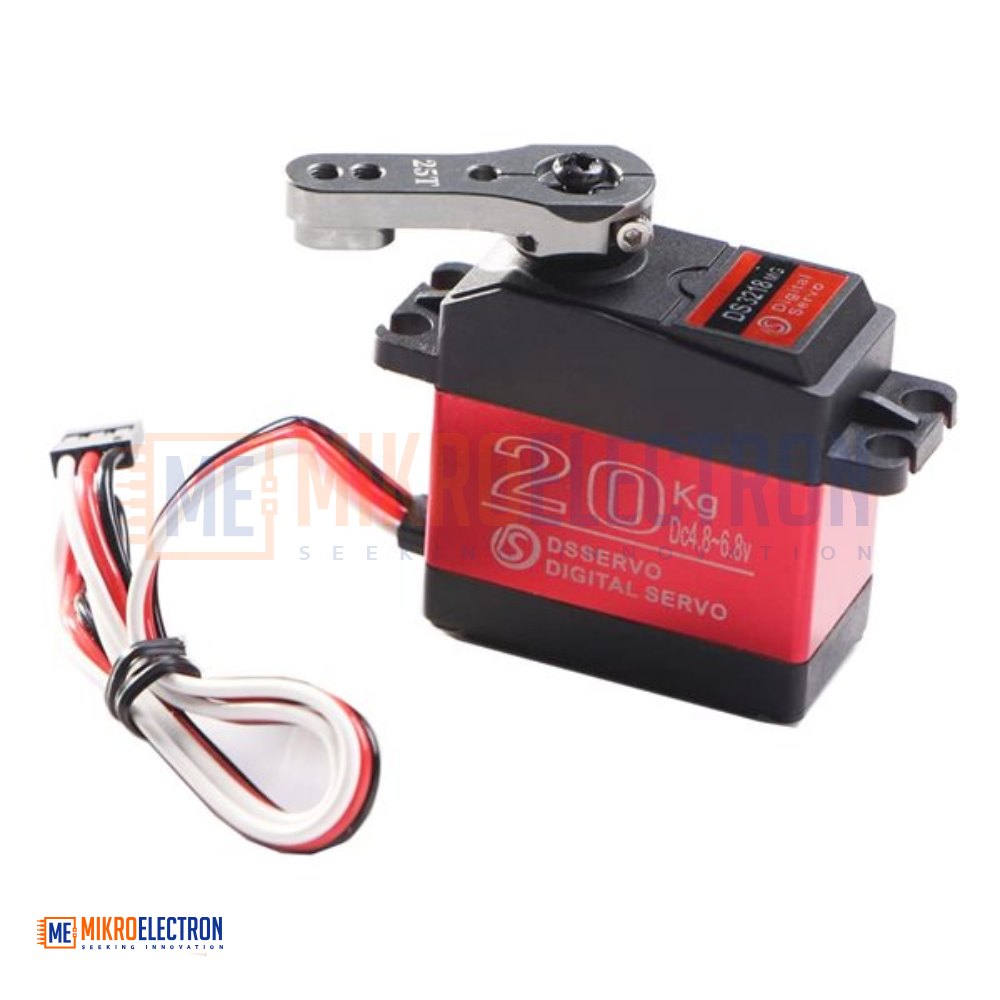

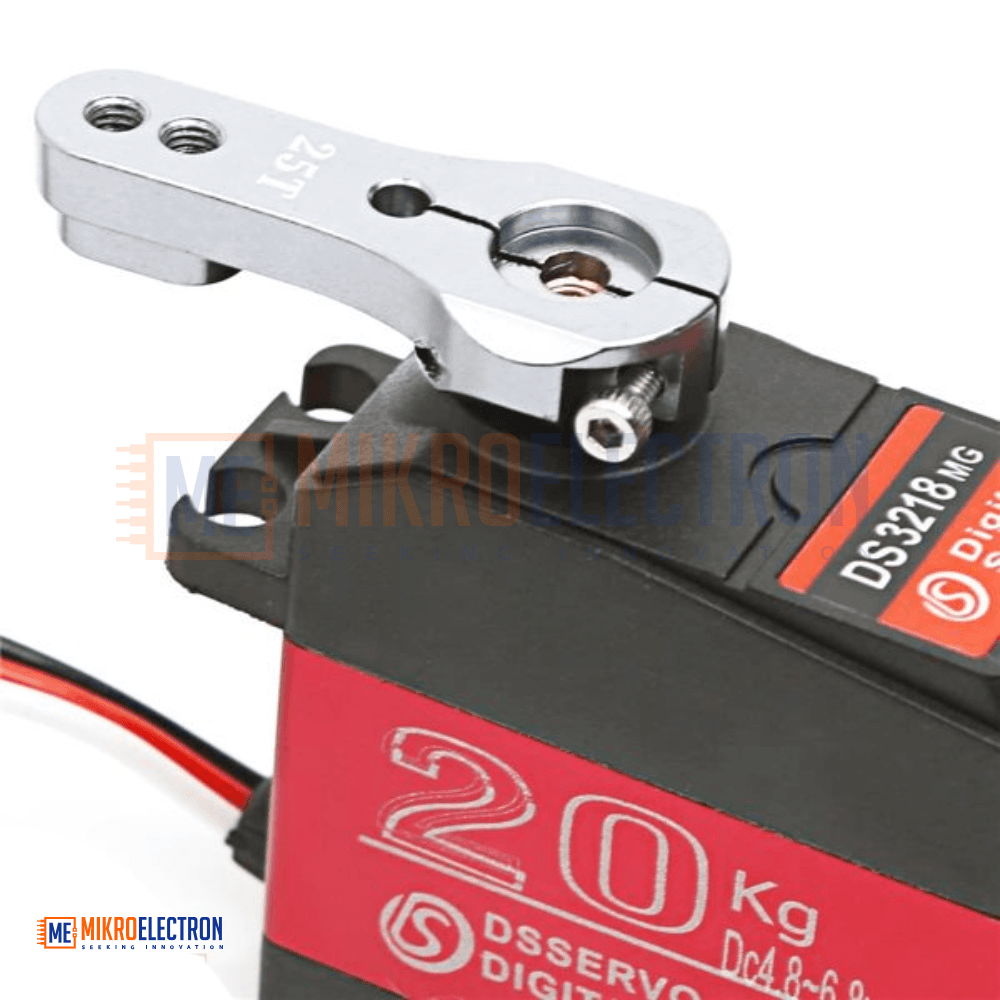

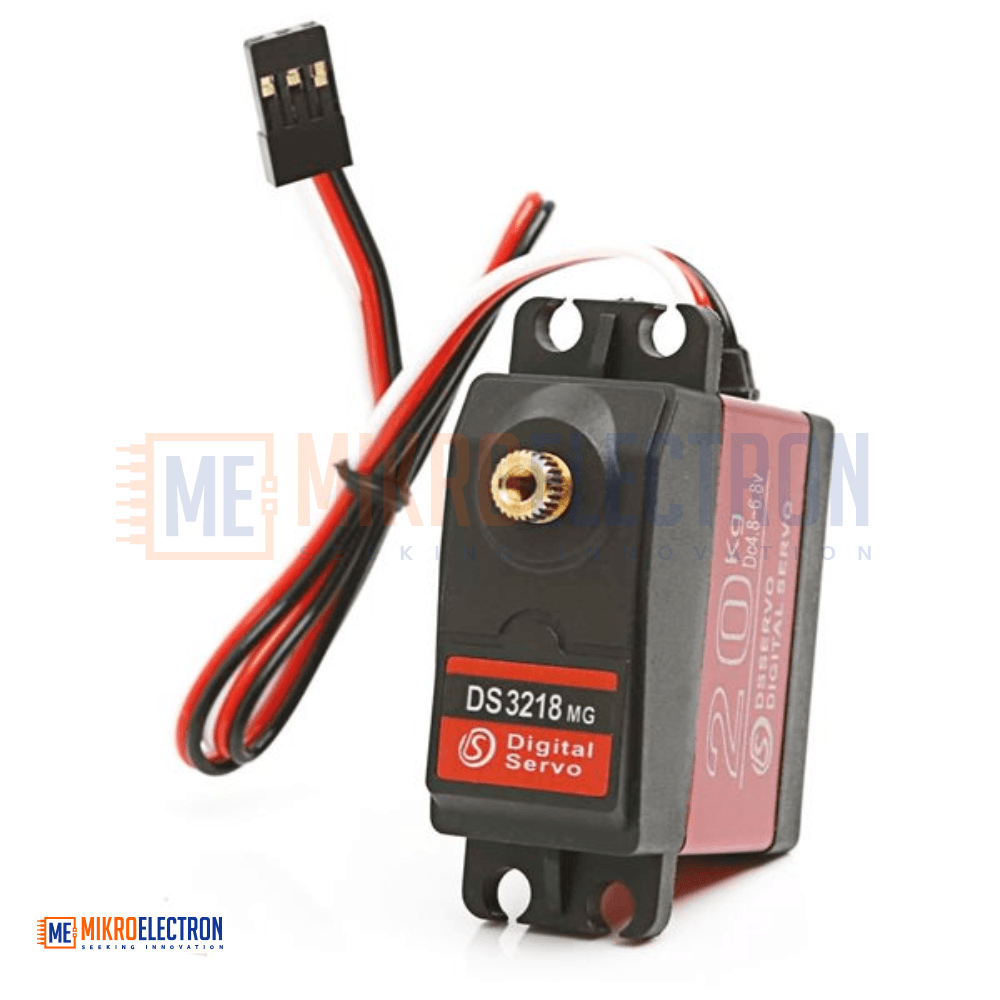

DS3218 Digital Servo 20KG 270 degrees
The DS3218 Digital Servo 20KG 270° is a high-torque metal gear servo motor designed for robotics, RC vehicles, and automation projects requiring precise positioning and strong mechanical performance. It delivers up to 21.5kg.cm torque with a wide 270-degree rotation range, fast response speed, and stable digital control. Featuring durable copper and aluminum gears, PWM compatibility, and robust construction, the DS3218 is suitable for Arduino, Raspberry Pi, robotic arms, smart mechanisms, and heavy-duty motion control systems.
سيرفو DS3218 الرقمي 20KG بزاوية 270° هو محرك سيرفو عالي العزم مزود بتروس معدنية، مصمم لمشاريع الروبوتات والمركبات اللاسلكية وأنظمة الأتمتة التي تحتاج إلى تحكم دقيق وأداء ميكانيكي قوي. يوفر عزماً يصل إلى 21.5 كجم/سم مع زاوية دوران واسعة تبلغ 270 درجة وسرعة استجابة عالية وتحكم رقمي ثابت. يتميز بتروس نحاسية وألومنيوم متينة ودعم إشارات PWM، مما يجعله مناسباً للأردوينو، والراسبيري باي، والأذرع الروبوتية، وأنظمة الحركة الثقيلة.
The DS3218 Digital Servo Motor is a high-performance and high-torque servo designed for demanding robotics and motion control applications. With a wide 270-degree rotation range and powerful torque output of up to 21.5kg.cm, it provides excellent precision, reliability, and smooth movement control.

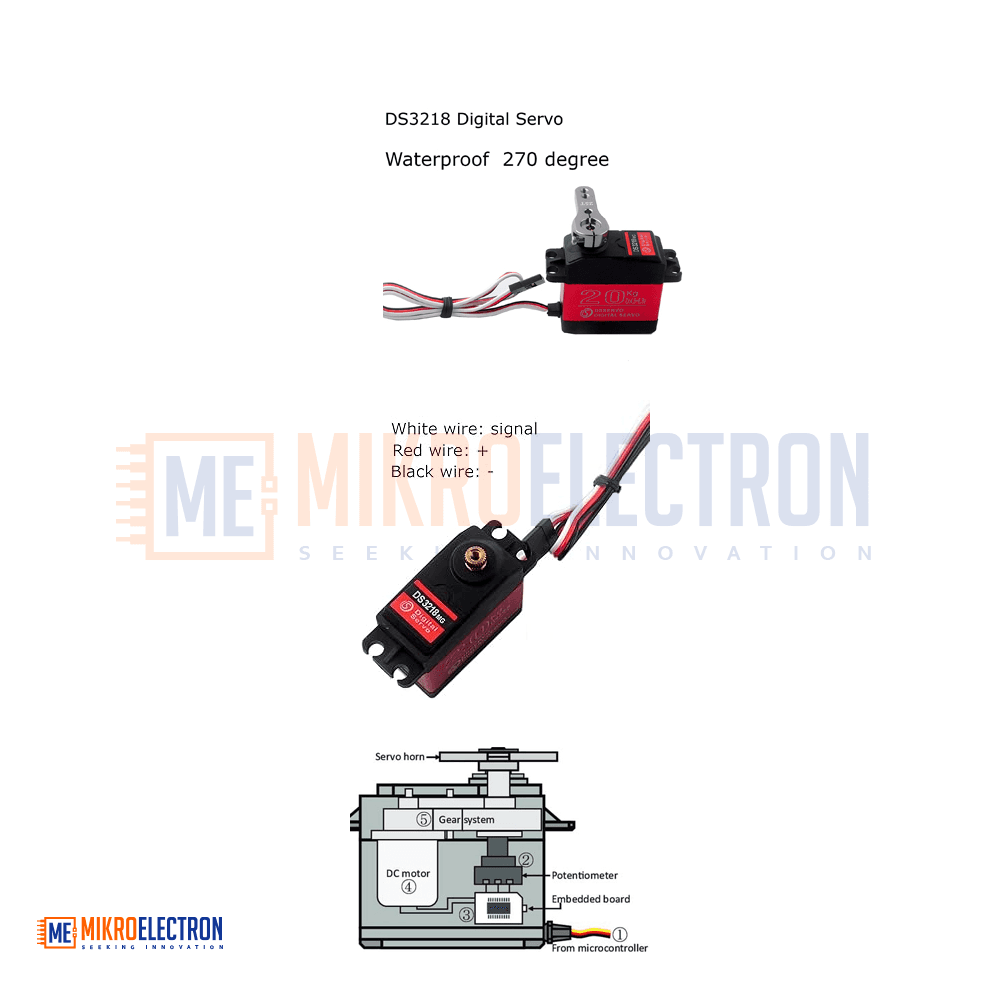

The servo uses a durable metal gear system made from copper and aluminum materials, offering improved wear resistance and long operational life under heavy mechanical loads. Its digital control system ensures fast response, stable positioning, and reduced dead band for accurate motion control.

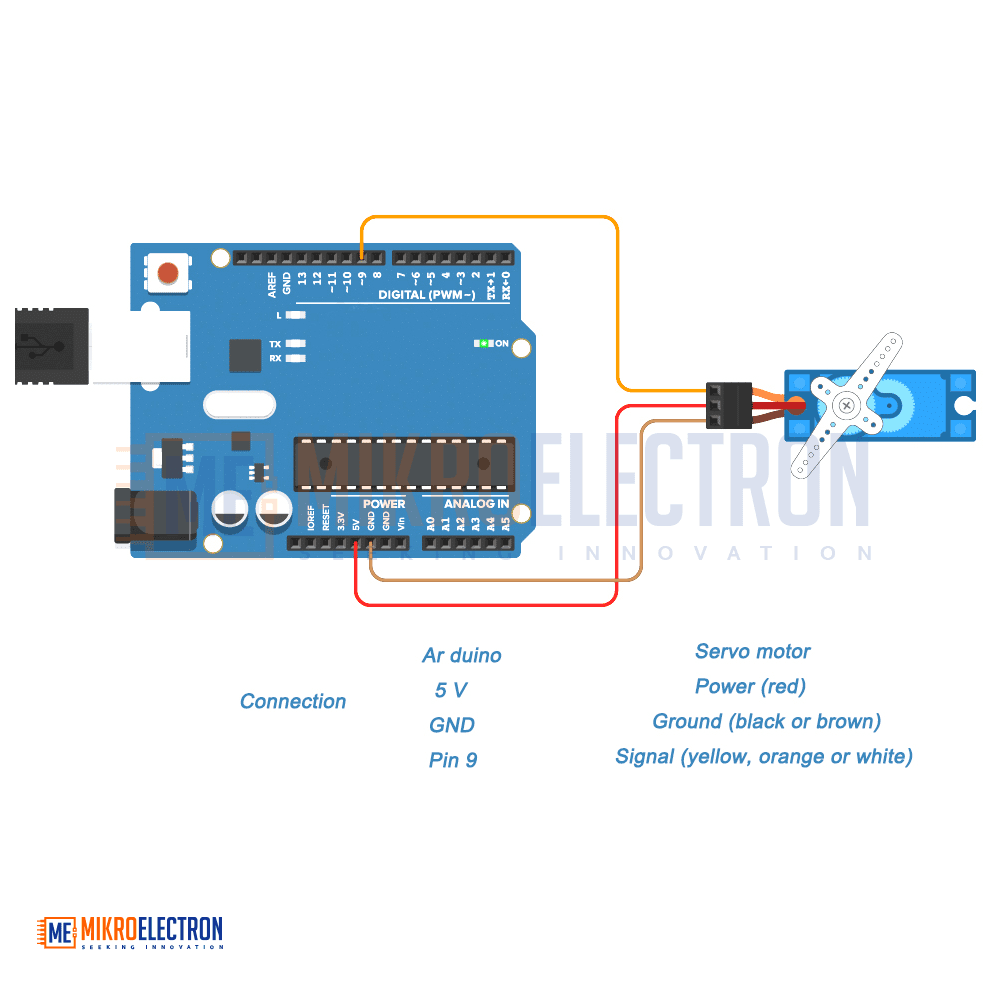

The DS3218 supports standard PWM control signals, making it fully compatible with popular development platforms such as Arduino, Raspberry Pi, STM32, and other microcontroller systems.
Its rugged housing, high torque capability, and precise movement make it ideal for robotic arms, RC vehicles, automation systems, smart mechanical projects, and industrial DIY applications.
Specifications
- Product Name: DS3218 Digital Servo Motor
- Rotation Angle: 270 Degrees
- Servo Type: Digital Servo
- Stall Torque at 5V: 19 kg/cm
- Stall Torque at 6.8V: 21.5 kg/cm
- Speed at 5V: 0.16 sec/60°
- Speed at 6.8V: 0.14 sec/60°
- Operating Voltage: 4.8V – 6.8V DC
- Dead Band Width: 3μs
- Working Frequency: 1520μs / 333Hz
- Motor Type: DC Motor
- Gear Material: Copper & Aluminum Metal Gears
- Weight: 60 g
- Dimensions: 40 × 20 × 40.5 mm
- Certification: CE Certified
Applications
- Robotic arms
- Heavy-duty robotics
- RC cars and trucks
- RC boats
- Automation systems
- Smart mechanical projects
- Arduino robotics projects
- Raspberry Pi control systems
- CNC and motion control systems
- Industrial DIY applications
