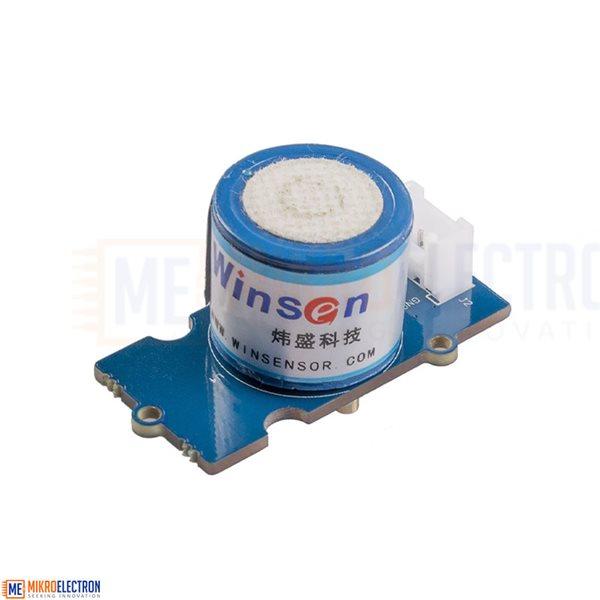

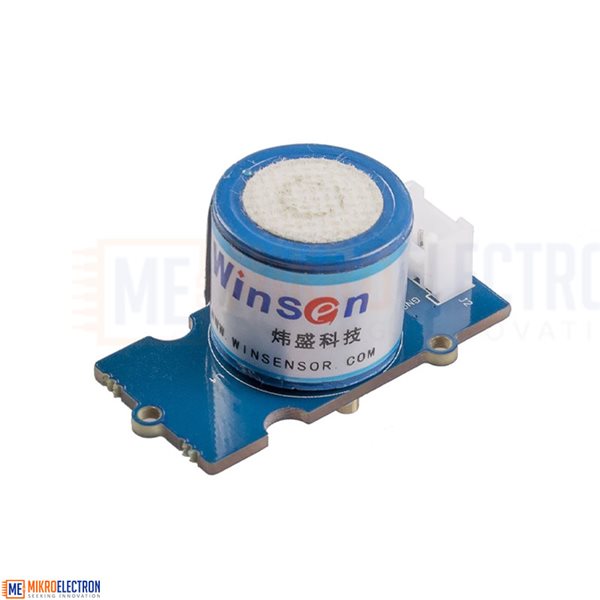

Oxygen O2 Sensor Module
The Oxygen O2 Sensor Module (ME2-O2-Ф20) is an analog electrochemical gas sensor designed to measure oxygen concentration in the air with high sensitivity and stable performance. It provides voltage output proportional to oxygen levels, making it ideal for monitoring and analysis applications. Compatible with Arduino and Raspberry Pi through Grove interfaces, the module supports oxygen detection from 0–25% volume concentration. It is suitable for environmental monitoring, air quality systems, oxygen analyzers, and educational electronics projects.
وحدة حساس الأكسجين O2 (ME2-O2-Ф20) هي حساس غازات تناظري يعمل بتقنية الخلية الكهروكيميائية لقياس تركيز الأكسجين في الهواء بدقة واستقرار عاليين. يوفر خرج جهد يتناسب مع مستوى الأكسجين، مما يجعله مناسباً لتطبيقات المراقبة والتحليل. يدعم العمل مع Arduino وRaspberry Pi عبر واجهات Grove، ويمكنه قياس تركيز الأكسجين من 0 إلى 25% حجماً. مناسب لمراقبة البيئة، أجهزة تنقية الهواء، محللات الأكسجين، والمشاريع التعليمية الإلكترونية.
The Grove Oxygen O2 Sensor Module (ME2-O2-Ф20) is a high-sensitivity analog gas sensor designed to detect and measure oxygen concentration in the surrounding air. It operates using an electrochemical cell principle, generating an analog voltage signal proportional to the oxygen concentration level.
This sensor is capable of measuring oxygen concentrations ranging from 0% to 25% Vol, with a maximum detectable concentration of 30% Vol. The output characteristics are linear, making it easy to integrate with microcontrollers and data acquisition systems for accurate oxygen monitoring and analysis.
The module is designed for easy use with Arduino Uno, Raspberry Pi, and other Grove-compatible development platforms. It can be connected using a Grove Base Shield or Grove Pi+ interface together with a Grove cable.
Its compact size, stable performance, and simple analog output make it suitable for educational projects, environmental monitoring systems, air quality devices, and oxygen analysis applications.
Specifications
- Product Name: Oxygen O2 Sensor Module
- Model: ME2-O2-Ф20
- Sensor Type: Electrochemical Oxygen Sensor
- Output Type: Analog Voltage Output
- Oxygen Detection Range: 0 – 25% Vol
- Maximum Detectable Concentration: 30% Vol
- Input Voltage: 3.3V / 5V
- Interface: Grove Compatible

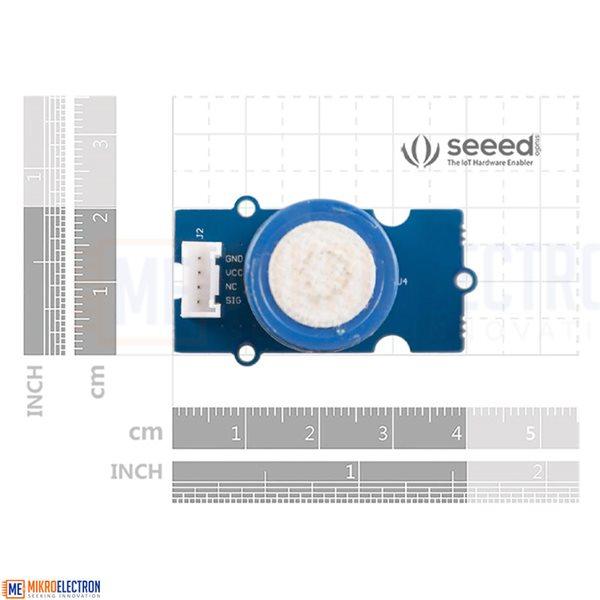

- Dimensions: 20 × 40 × 20 mm
- Weight: 0.033 g
- Compatible Platforms:
- Arduino Uno
- Raspberry Pi
- Grove Pi+
- Grove Base Shield
Applications
- Oxygen analyzers
- Air purifier systems
- Environmental monitoring
- Air quality detection
- Arduino projects
- Raspberry Pi projects
- Smart sensing systems
- Educational electronics experiments
- Laboratory gas monitoring
- DIY gas detection systems
