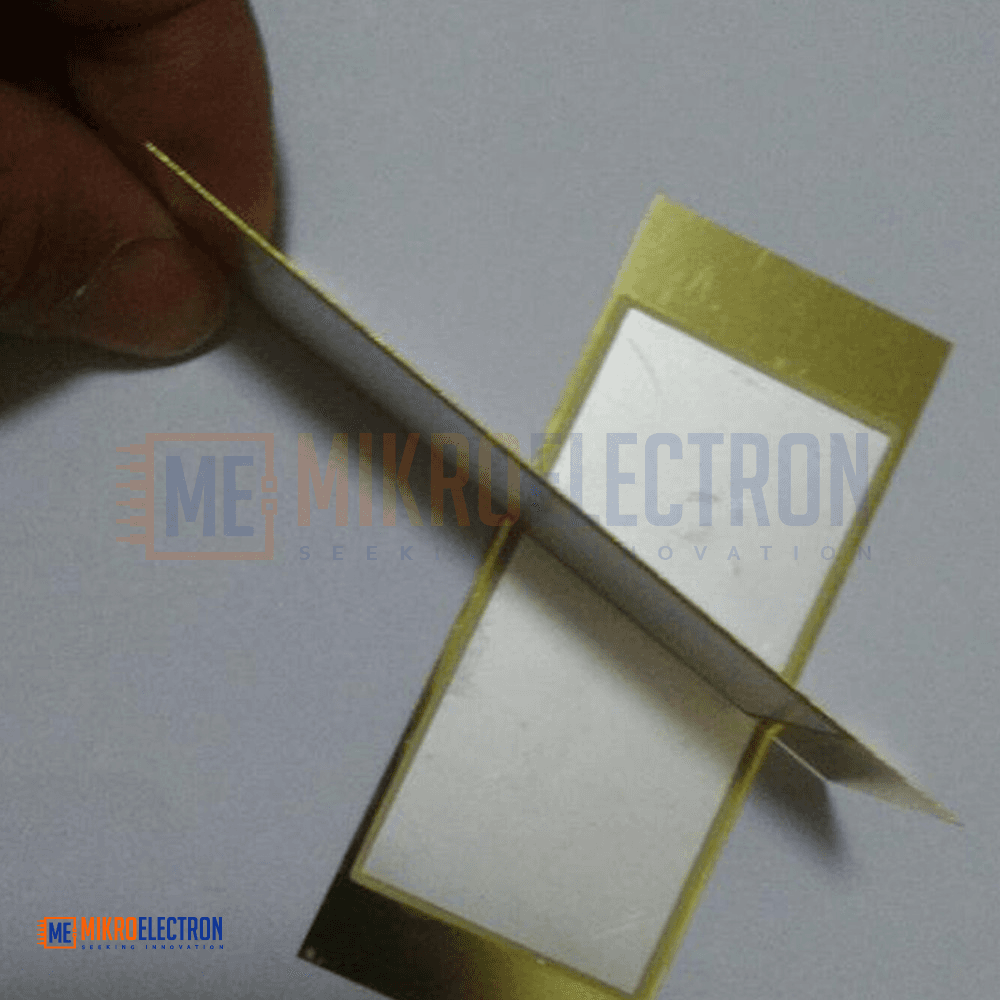

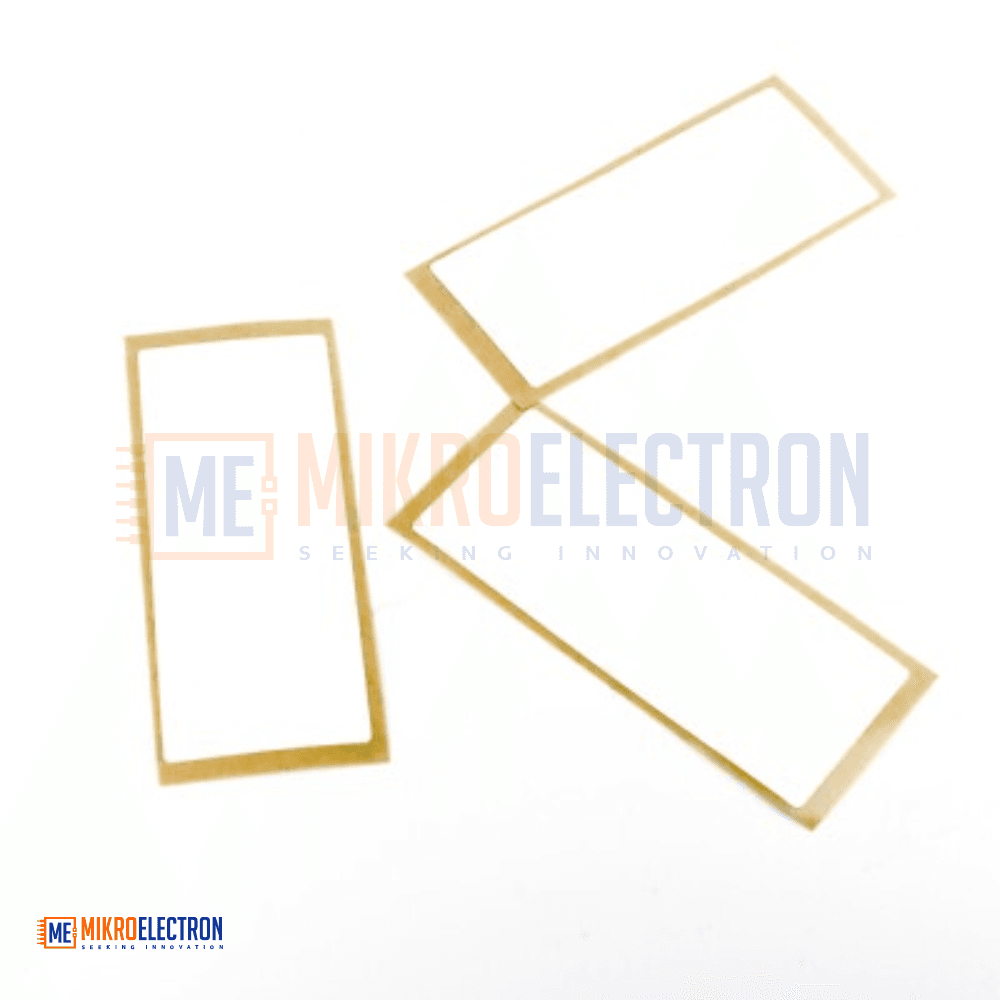

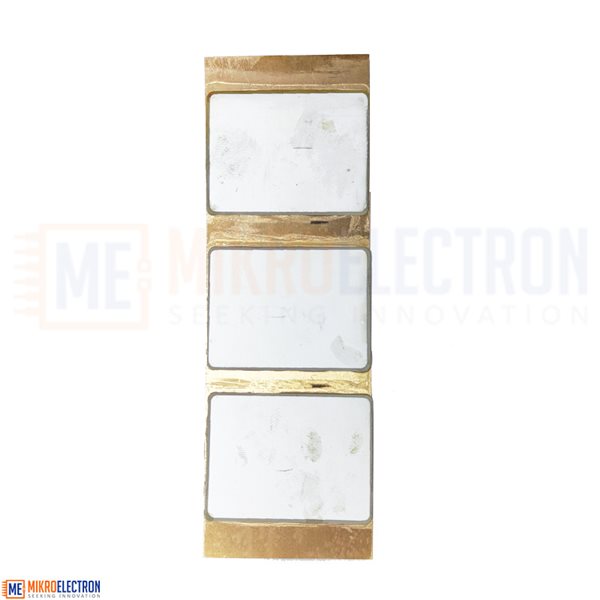

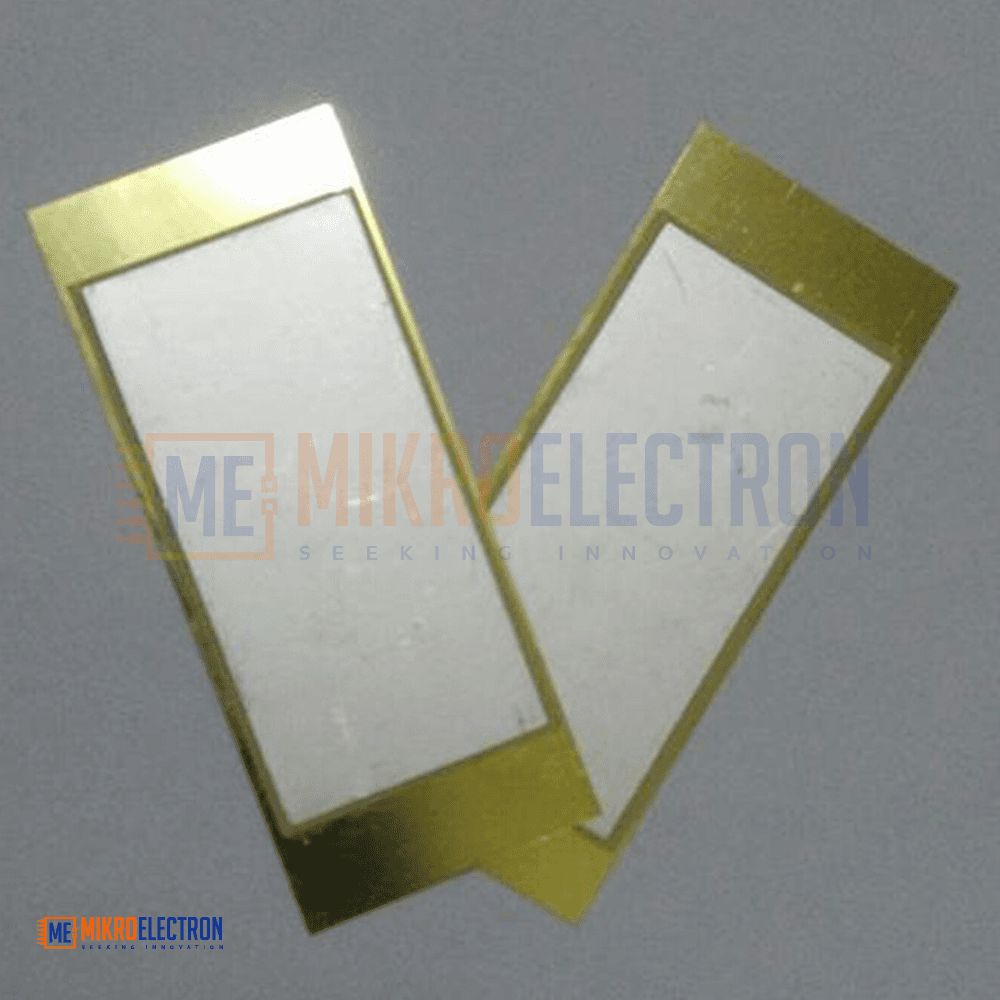

piezoelectric ceramic power generator 120 * 40mm
Out Of Stock
The 120×40mm Piezoelectric Ceramic Power Generator is an energy harvesting module that converts mechanical vibration, pressure, or movement into electrical energy using the piezoelectric effect. It can generate an output voltage ranging from 0 to 60V DC with a current up to 30mA, depending on applied force and vibration intensity. Built with high-quality piezoelectric ceramic material (P5-16C) and a durable copper substrate, it offers high efficiency and stability. This module is commonly used in energy harvesting systems, vibration-based power generation, sensors, and experimental renewable energy projects where small-scale electrical energy is required from mechanical motion.
يُعد مولد الطاقة السيراميكي الكهروضغطي بحجم 120×40 مم وحدة متخصصة في حصاد الطاقة، حيث يقوم بتحويل الاهتزازات أو الضغط أو الحركة الميكانيكية إلى طاقة كهربائية باستخدام تأثير الكهروضغطية. يمكنه إنتاج جهد يتراوح من 0 إلى 60 فولت DC مع تيار يصل إلى 30 ملي أمبير حسب قوة الاهتزاز أو الضغط. يتم تصنيعه من مادة سيراميكية عالية الجودة P5-16C مع قاعدة من النحاس لضمان الكفاءة والمتانة. يُستخدم في تطبيقات توليد الطاقة من الاهتزازات، الحساسات الذكية، والمشاريع التجريبية للطاقة المتجددة.
The 120×40mm Piezoelectric Ceramic Power Generator is an energy harvesting device designed to convert mechanical energy into electrical energy through the piezoelectric effect. When mechanical stress, vibration, or bending is applied to the ceramic material, it generates an electrical charge proportional to the applied force.
This module is built using high-performance piezoelectric ceramic (P5-16C) mounted on a high-grade beryllium copper substrate, ensuring durability and efficient energy conversion. It is suitable for experimental power generation systems and sensor applications where small electrical energy can be harvested from environmental vibrations or mechanical movement.
The device is commonly used in research projects, vibration-based sensors, and low-power energy harvesting applications. Due to its high open-circuit voltage, proper rectification and voltage regulation circuits are required for practical use in powering electronic devices.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Piezoelectric Energy Generator |
| Dimensions | 120 × 40 mm |
| Output Voltage | 0 – 60V DC (dependent on vibration) |
| Output Current | 0 – 30 mA |
| Resonant Impedance | < 80 Ω |
| Capacitance | 525 – 695 nF |
| Piezo Material | P5-16C Ceramic |
| Substrate Material | Beryllium Copper (CW615N) |
| Piezoelectric Constant (D33) | > 680 × 10⁻¹² C/N |
| Coupling Factor (Kp) | > 0.53 |
| Efficiency Parameters | High energy conversion efficiency |
| Thickness (T/t) | 0.15 mm / 0.20 mm |
Applications
- Energy harvesting from vibration sources
- Experimental renewable energy systems
- Piezoelectric wind or mechanical blades
- Self-powered sensors
- Low-power electronic devices
- Smart structural monitoring systems
- Research and laboratory experiments
- Wireless sensor networks (energy harvesting)
- Industrial vibration energy recovery
- Educational physics and electronics projects
