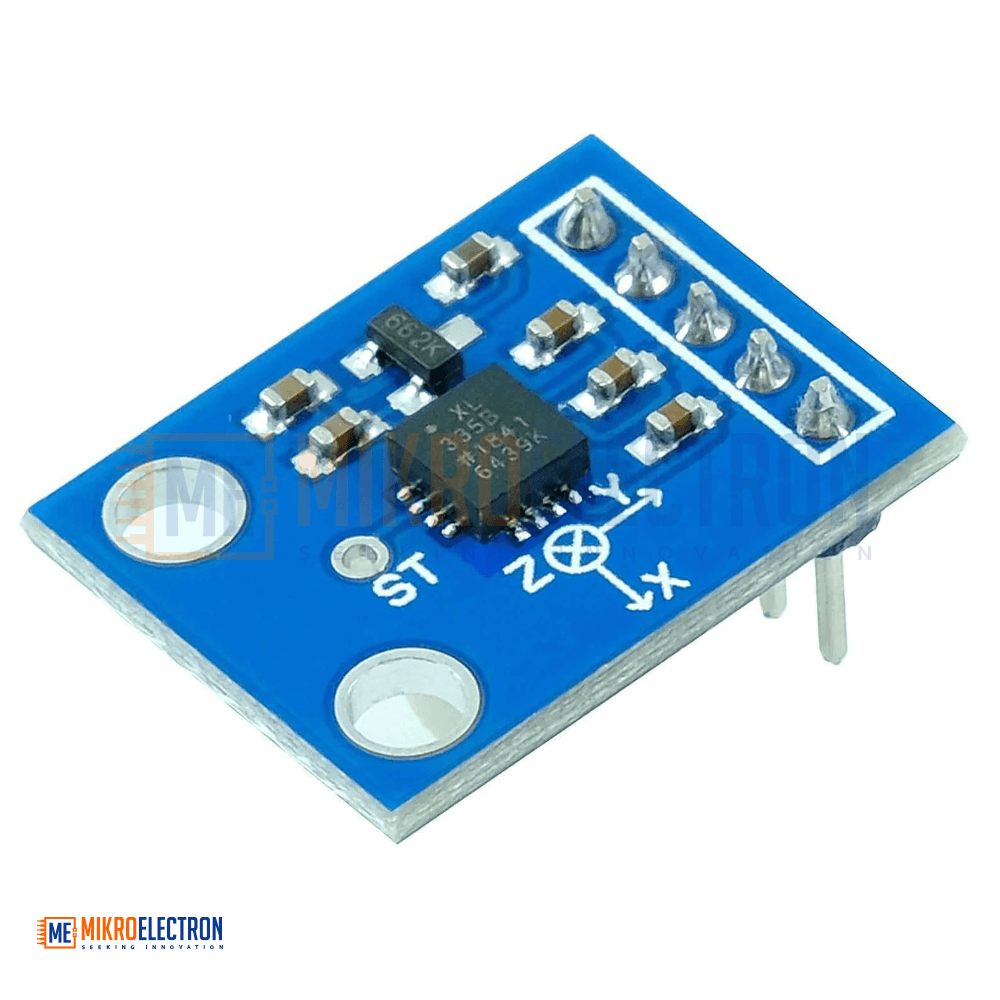

3-Axis Accelerometer Module GY-61 DXL335

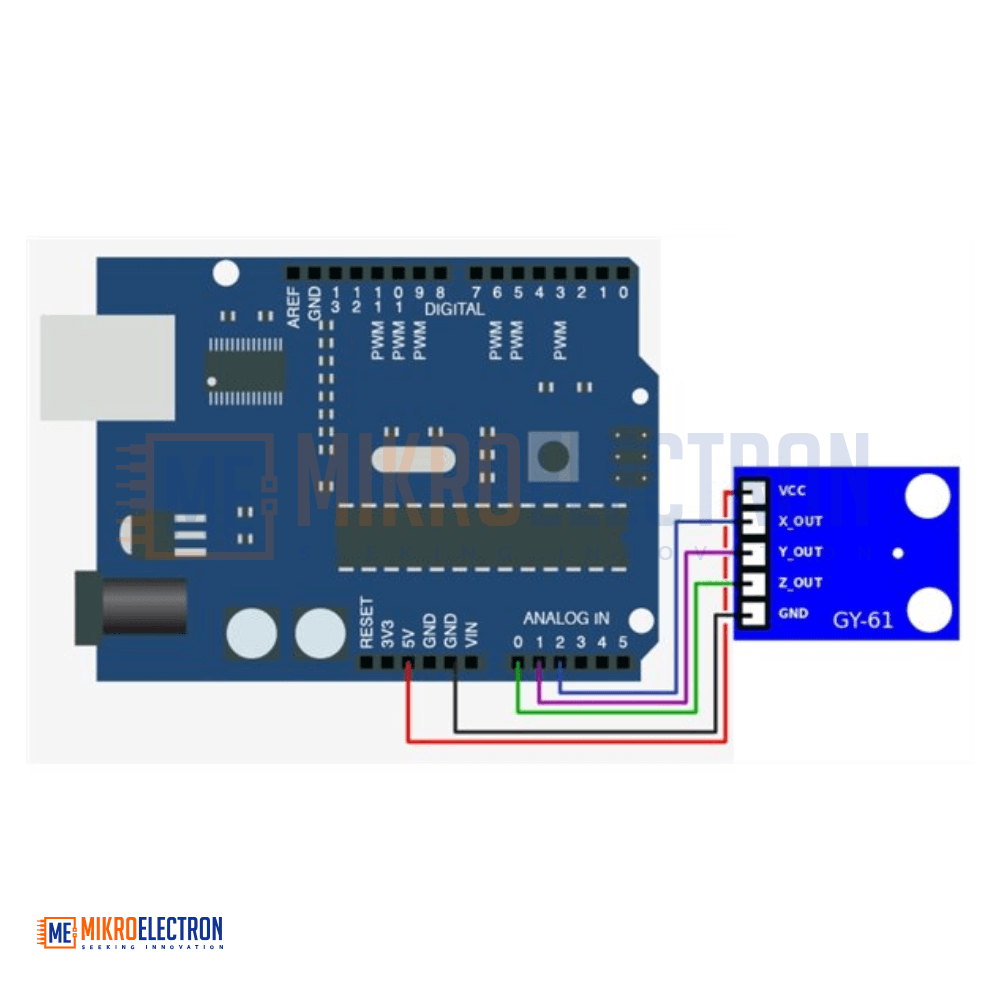

The GY-61 ADXL335 3-Axis Accelerometer Module is a compact motion sensor designed to measure acceleration along the X, Y, and Z axes. Based on the ADXL335 low-power MEMS accelerometer, it provides highly accurate readings for both static tilt detection and dynamic motion sensing such as vibration, shock, and movement. The module has a measuring range of ±3g and outputs analog voltage signals proportional to acceleration. With an onboard 3.3V voltage regulator, it can operate on supply voltages from 3V to 5V, making it compatible with both 3.3V and 5V microcontroller systems like Arduino. It is widely used in robotics, motion tracking, and smart devices.
وحدة GY-61 ADXL335 مقياس التسارع ثلاثي المحاور هي حساس حركة صغير يستخدم لقياس التسارع على المحاور X وY وZ. تعتمد على شريحة ADXL335 منخفضة الاستهلاك للطاقة وتوفر قراءات دقيقة لكل من الميل الساكن والحركة الديناميكية مثل الاهتزاز والصدمات. تعمل ضمن مدى قياس يصل إلى ±3g وتخرج إشارات تناظرية تتناسب مع مقدار الحركة. تحتوي على منظم جهد داخلي 3.3 فولت، مما يسمح بتشغيلها بجهد من 3 إلى 5 فولت، وهي متوافقة مع أنظمة 3.3V و5V مثل Arduino. تُستخدم في الروبوتات وتتبع الحركة والتطبيقات الذكية.
The GY-61 ADXL335 3-Axis Accelerometer Module is a MEMS-based motion sensing device designed for detecting acceleration in three-dimensional space. It is built around the ADXL335 sensor IC, known for its low noise, low power consumption, and stable performance.
This module measures both static acceleration (tilt and orientation relative to gravity) and dynamic acceleration (movement, vibration, and shock). It provides analog voltage outputs for each axis, making it easy to interface with microcontrollers that support ADC inputs.
The onboard 3.3V regulator allows the module to be powered from a wider voltage range (3V–5V), increasing its flexibility in different embedded systems. It is widely used in robotics, motion tracking, gaming controllers, vibration monitoring, and orientation-based applications.
Specifications
| Parameter | Value |
|---|---|
| Sensor IC | ADXL335 |
| Axes | 3-Axis (X, Y, Z) |
| Measurement Range | ±3g |
| Output Type | Analog Voltage |
| Sensitivity | ~300 mV/g (typical) |
| Center Voltage | ~1.65V |
| Supply Voltage | 3V – 5V DC |
| Onboard Regulator | 3.3V Voltage Regulator |
| Interface Type | Analog |
| Operating Temperature | Standard industrial range |
Applications
- Robotics motion and balance control
- Tilt and orientation detection systems
- Vibration and shock monitoring
- Gaming and motion control devices
- Smart wearable devices
- Drone and UAV stabilization systems
- Car and vehicle motion detection
- Human motion tracking systems
- Industrial vibration analysis
- Arduino and embedded system projects
