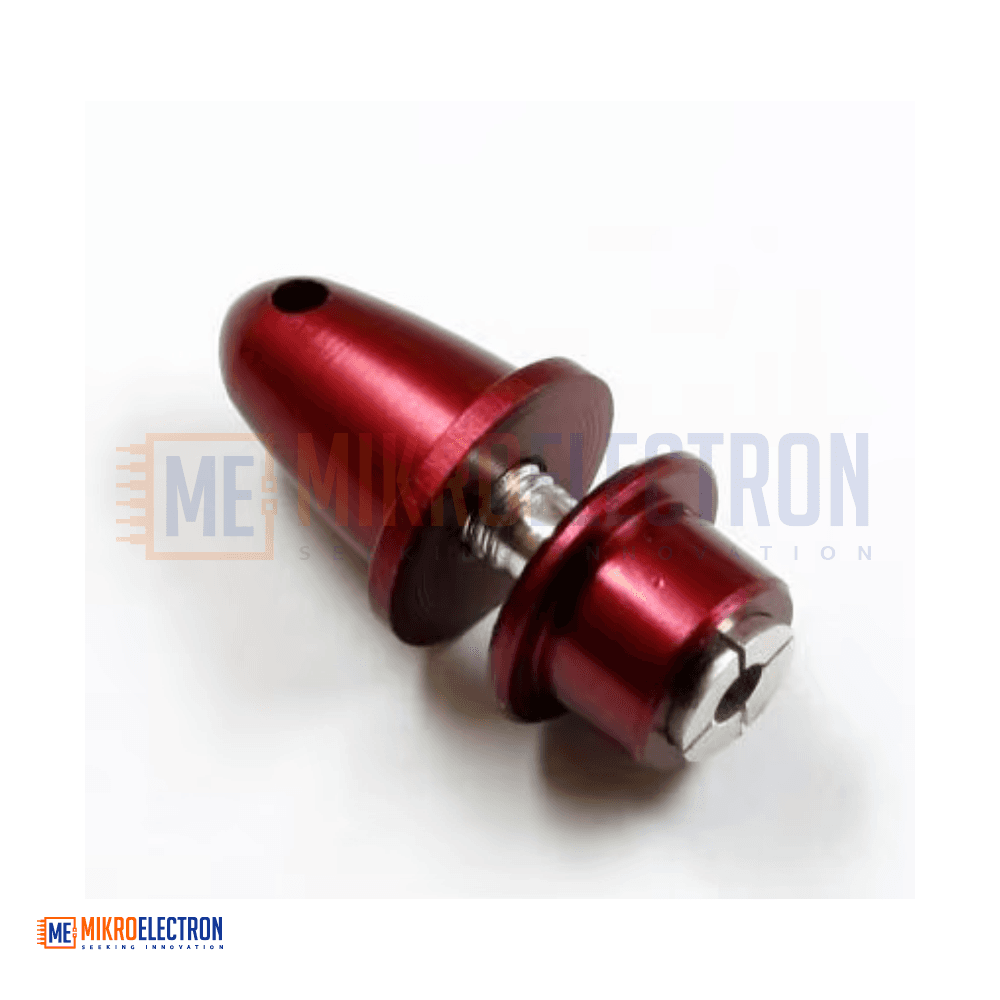

Prop Adapter 3mm Motor Shaft 5mm Prop Collet Type
Prop Adapter Collet Type 3mm to 5mm is a precision-machined adapter designed to securely mount propellers onto brushless or electric motors with a 3mm motor shaft. The adapter converts the motor shaft to a 5mm propeller mounting shaft, allowing compatibility with a wide range of propellers. Supplied with a collet, bullet cone, and retaining nut, it provides a secure and balanced connection for efficient power transfer. Lightweight and durable, this adapter is ideal for RC airplanes, drones, UAVs, and other electric propulsion systems.
مهايئ المروحة Collet Type من 3 مم إلى 5 مم هو قطعة ميكانيكية مصممة لتثبيت المراوح على المحركات الكهربائية ذات عمود دوران بقطر 3 مم. يقوم بتحويل قطر العمود إلى 5 مم ليتوافق مع مجموعة واسعة من المراوح. يأتي مع مخروط تثبيت (Bullet)، وقبضة Collet، وصامولة تثبيت لضمان اتصال آمن ومتزن بين المحرك والمروحة. يتميز بخفة الوزن والمتانة، مما يجعله مناسبًا للطائرات اللاسلكية والطائرات بدون طيار ومشاريع الدفع الكهربائي المختلفة.
The 3mm to 5mm Collet Type Prop Adapter is a reliable mounting solution for securing propellers to electric motors. Designed specifically for motors with a 3mm output shaft, the adapter uses a collet clamping mechanism that tightens securely around the motor shaft when the retaining nut is tightened.
The adapter provides a 5mm propeller shaft, enabling the installation of propellers with larger mounting holes while maintaining accurate alignment and minimizing vibration during operation.
The assembly includes a bullet-shaped spinner cone, a precision collet, and a locking nut. As the nut is tightened, the collet compresses onto the motor shaft, creating a strong friction fit that ensures stable operation even at high rotational speeds.
Its lightweight construction helps minimize additional rotating mass while maintaining excellent strength and durability. This adapter is widely used in RC aircraft, multirotor drones, model airplanes, and other hobby-grade electric propulsion systems.
Specifications
| Specification | Details |
|---|---|
| Product Type | Propeller Collet Adapter |
| Motor Shaft Diameter | 3 mm |
| Propeller Shaft Diameter | 5 mm |
| Propeller Shaft Length | 18 mm |
| Mounting Method | Collet Clamp |
| Included Parts | Collet, Bullet Cone, Retaining Nut |
| Weight | 10 g |
| Application | Propeller Mounting |
| Compatibility | Electric and Brushless Motors with 3mm Shaft |
Applications
- RC airplanes
- Electric model aircraft
- Quadcopters and multirotor drones
- UAV propulsion systems
- Brushless motor installations
- DIY flying projects
- Educational aerospace projects
- Hobby aircraft upgrades
- Remote-controlled vehicles with propeller drive
- Experimental propulsion systems
