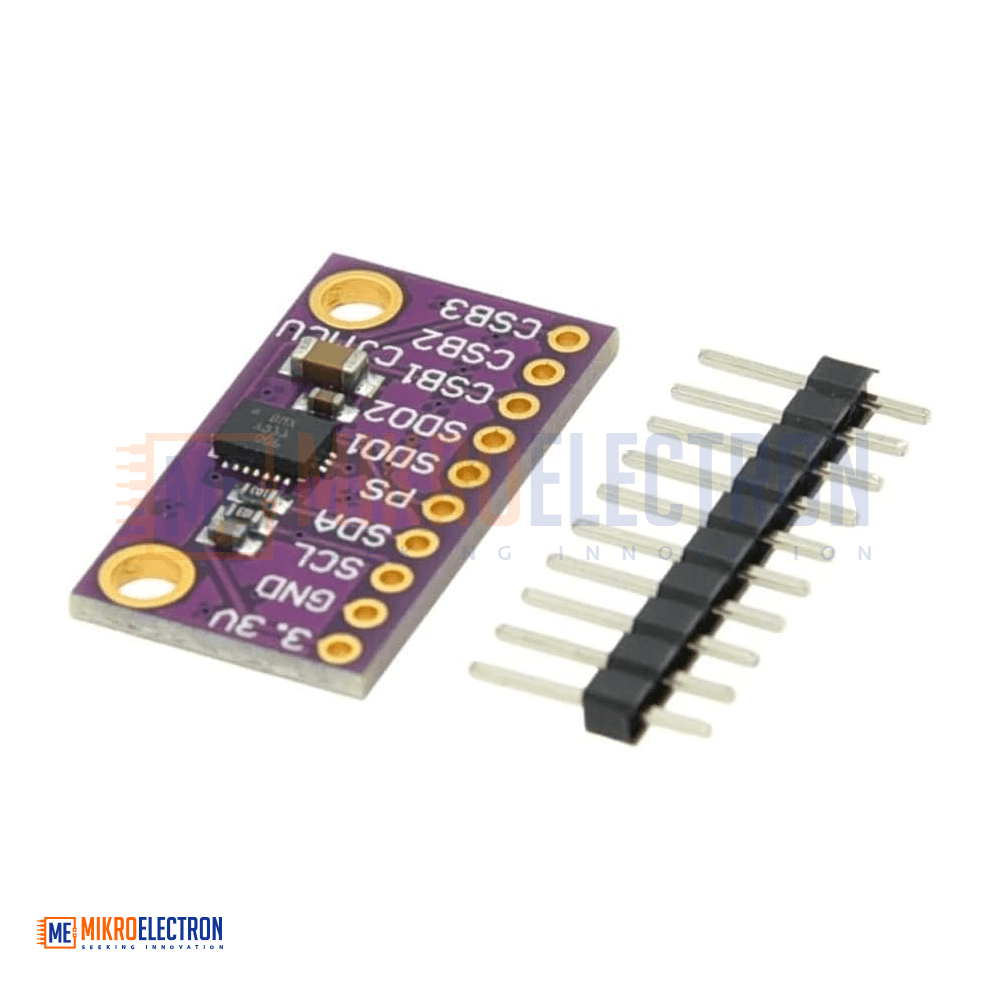

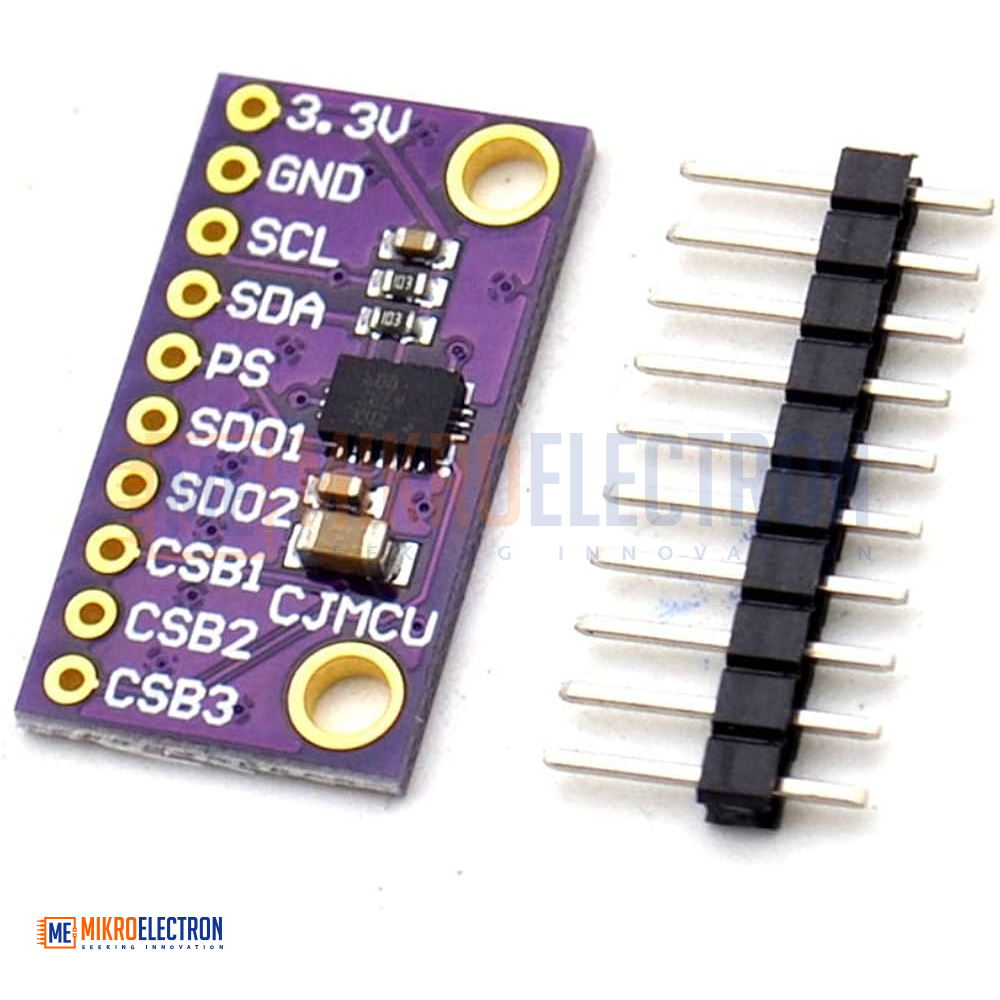

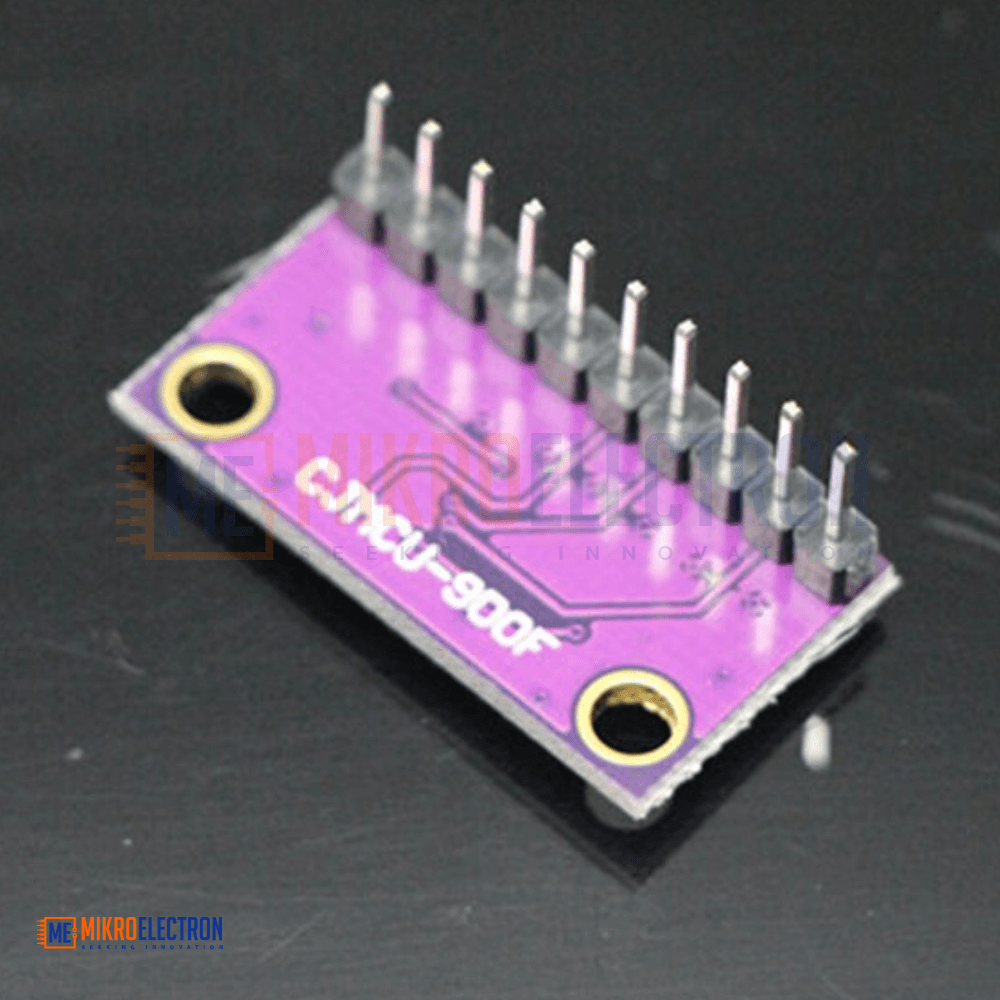

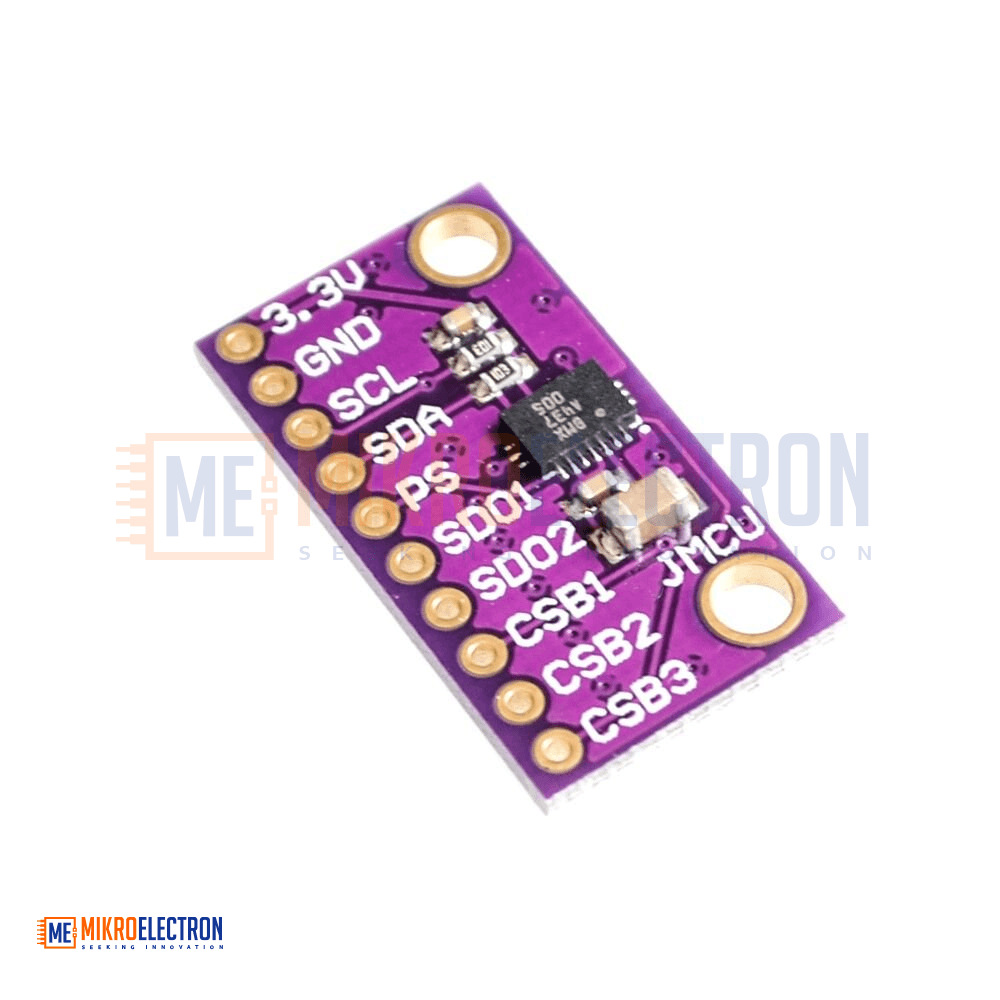

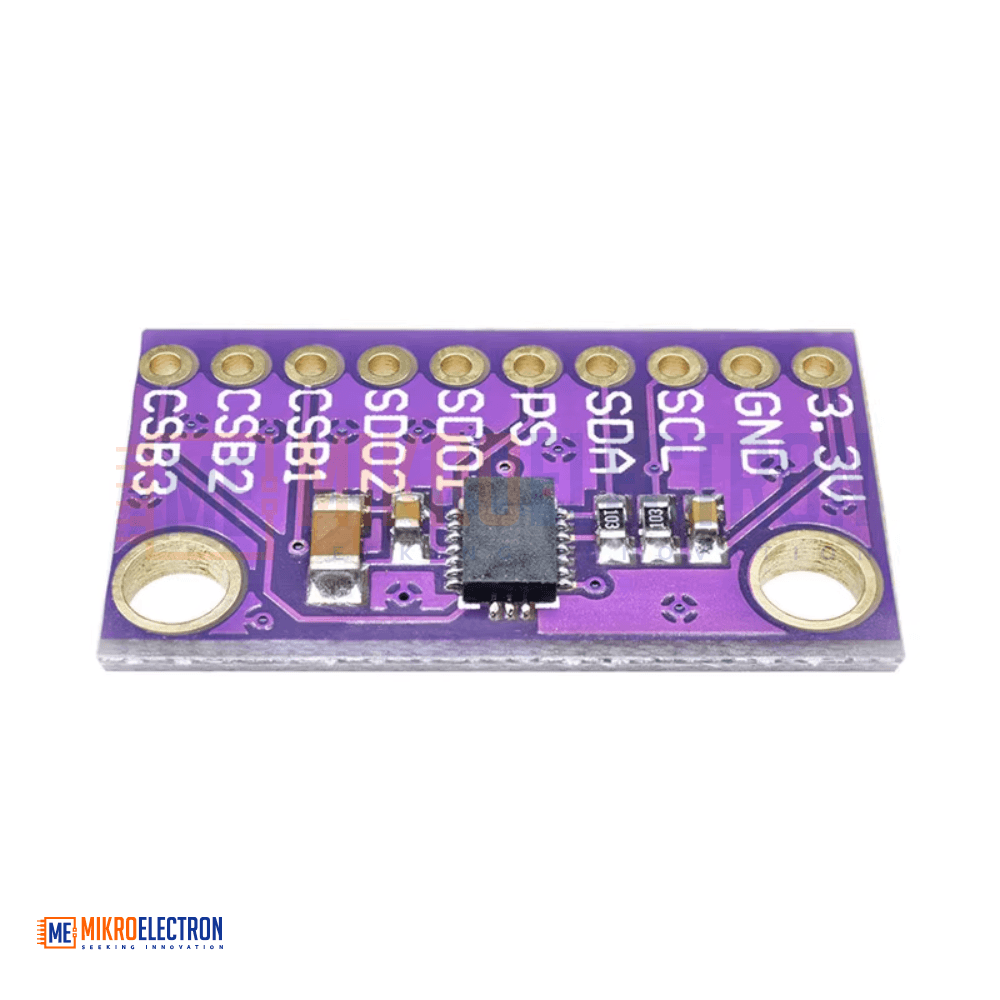

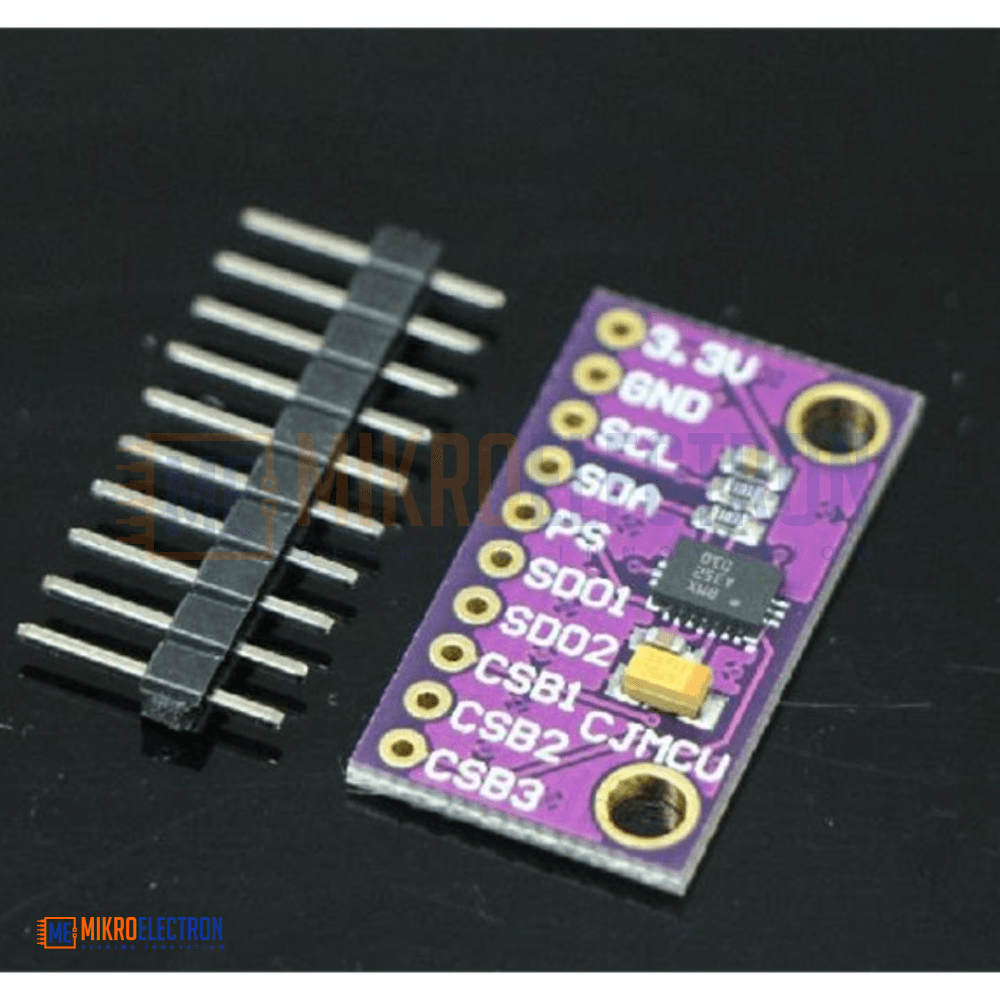

BMX055 IMU sensor 9DoF
BMX055 9DoF IMU Sensor Module is a high-precision motion sensing solution that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis geomagnetic sensor (magnetometer) into a single compact module. Based on the original Bosch BMX055 chipset, it provides accurate motion, orientation, and heading measurements for robotics, drones, IoT devices, and embedded systems. Supporting both SPI and I²C communication interfaces, the module can be easily integrated into various microcontroller platforms. Its compact size, low power consumption, and reliable performance make it ideal for attitude detection, navigation, stabilization, and motion-tracking applications.
تُعد وحدة BMX055 IMU 9DoF مستشعرًا متقدمًا للحركة والاتجاه يجمع بين مقياس تسارع ثلاثي المحاور وجيروسكوب ثلاثي المحاور ومستشعر مغناطيسي ثلاثي المحاور في وحدة واحدة مدمجة. تعتمد الوحدة على شريحة Bosch BMX055 الأصلية وتوفر قياسات دقيقة للحركة والاتجاه والملاحة. تدعم واجهات الاتصال SPI وI²C مما يسهل دمجها مع المتحكمات الدقيقة والمنصات المدمجة المختلفة. تعتبر خيارًا مثاليًا للروبوتات والطائرات بدون طيار وأنظمة التوازن وتتبع الحركة وتطبيقات إنترنت الأشياء.
The BMX055 IMU Sensor Module is a complete 9 Degrees of Freedom (9DoF) inertial measurement solution designed for advanced motion sensing and orientation detection applications. The module integrates three sensing technologies into a single package:
- 3-axis Accelerometer for measuring linear acceleration and tilt.
- 3-axis Gyroscope for measuring angular velocity and rotational movement.
- 3-axis Magnetometer (Compass) for measuring magnetic field direction and heading.
Built around the original Bosch Sensortec BMX055 chipset, the sensor provides highly accurate motion and orientation data while maintaining low power consumption and compact dimensions.
The module supports both SPI and I²C communication protocols, allowing seamless integration with popular development platforms such as Arduino, STM32, ESP32, Raspberry Pi, and other embedded systems.
Its ability to measure acceleration, rotation, and magnetic heading simultaneously makes it suitable for robotics, drone flight control, navigation systems, wearable electronics, virtual reality devices, and industrial motion monitoring applications.
Specifications
| Specification | Details |
|---|---|
| Model | BMX055 |
| Manufacturer | Bosch Sensortec |
| Sensor Type | 9DoF Inertial Measurement Unit (IMU) |
| Accelerometer | 3-Axis |
| Gyroscope | 3-Axis |
| Magnetometer (Compass) | 3-Axis |
| Total Axes | 9 Axes |
| Communication Interface | SPI, I²C |
| Technology | MEMS Sensor |
| Output Data | Acceleration, Angular Velocity, Magnetic Field |
| Power Consumption | Low Power Design |
| Application Category | Motion Sensing and Orientation Detection |
| Customization | Yes |
Applications
- Robotics navigation and balancing systems
- Drone flight stabilization and attitude control
- Autonomous vehicle navigation
- Motion tracking systems
- Electronic compass applications
- Virtual reality (VR) and augmented reality (AR) devices
- Wearable motion sensing devices
- Industrial equipment monitoring
- IoT and smart device development
- Research and educational projects
- Gesture recognition systems
- Position and orientation measurement
