Thyristor MCR 22-6

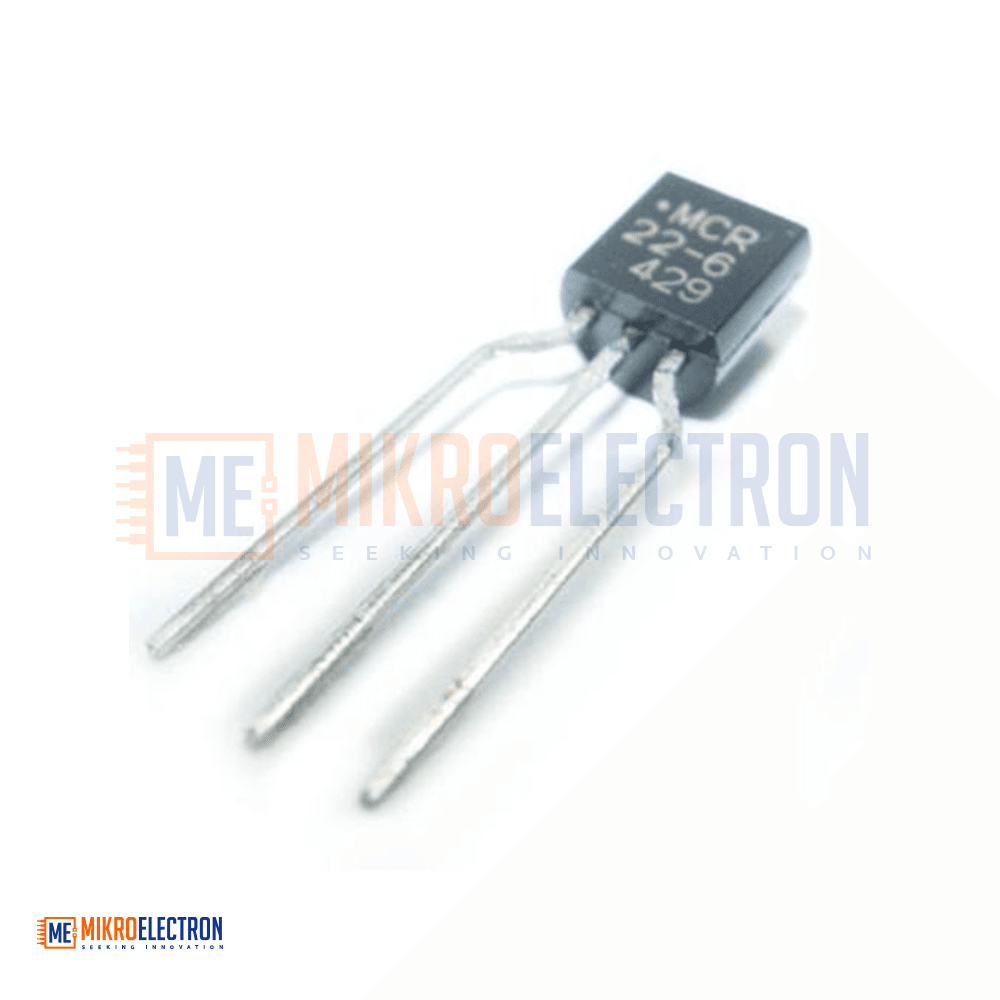

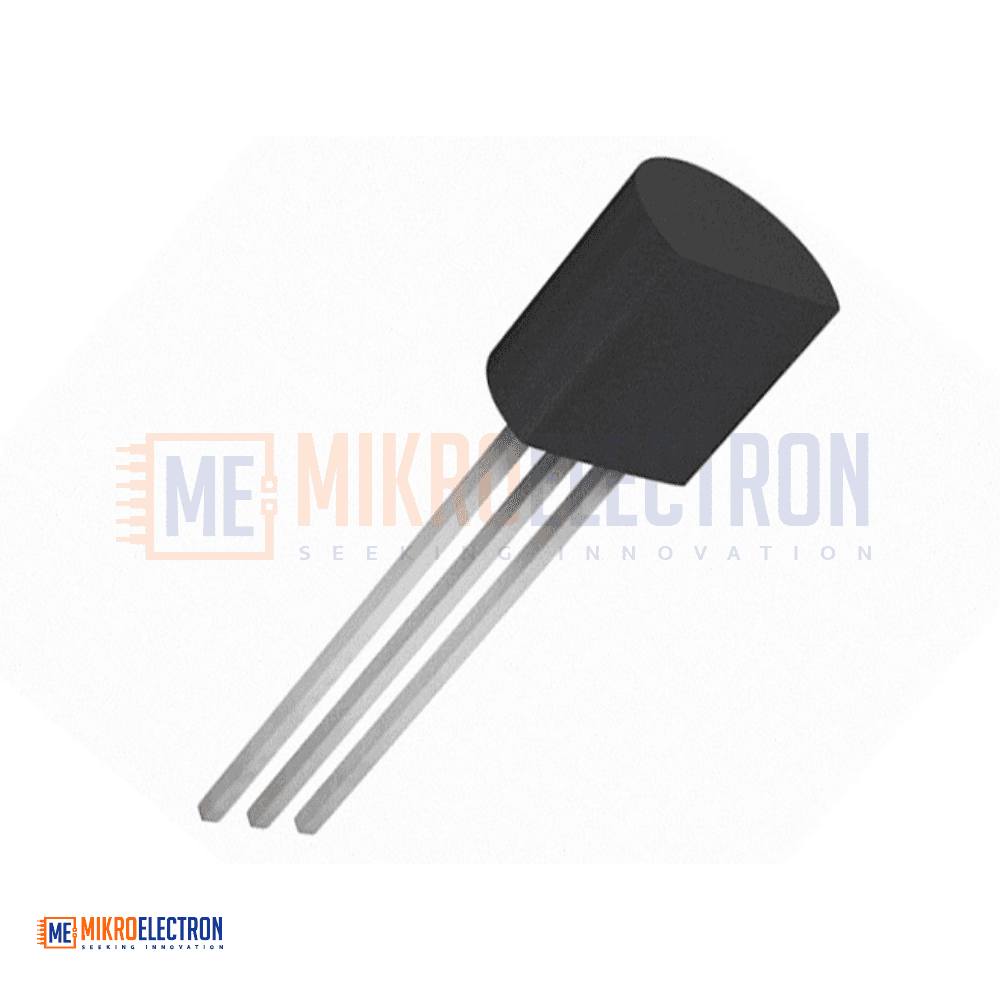

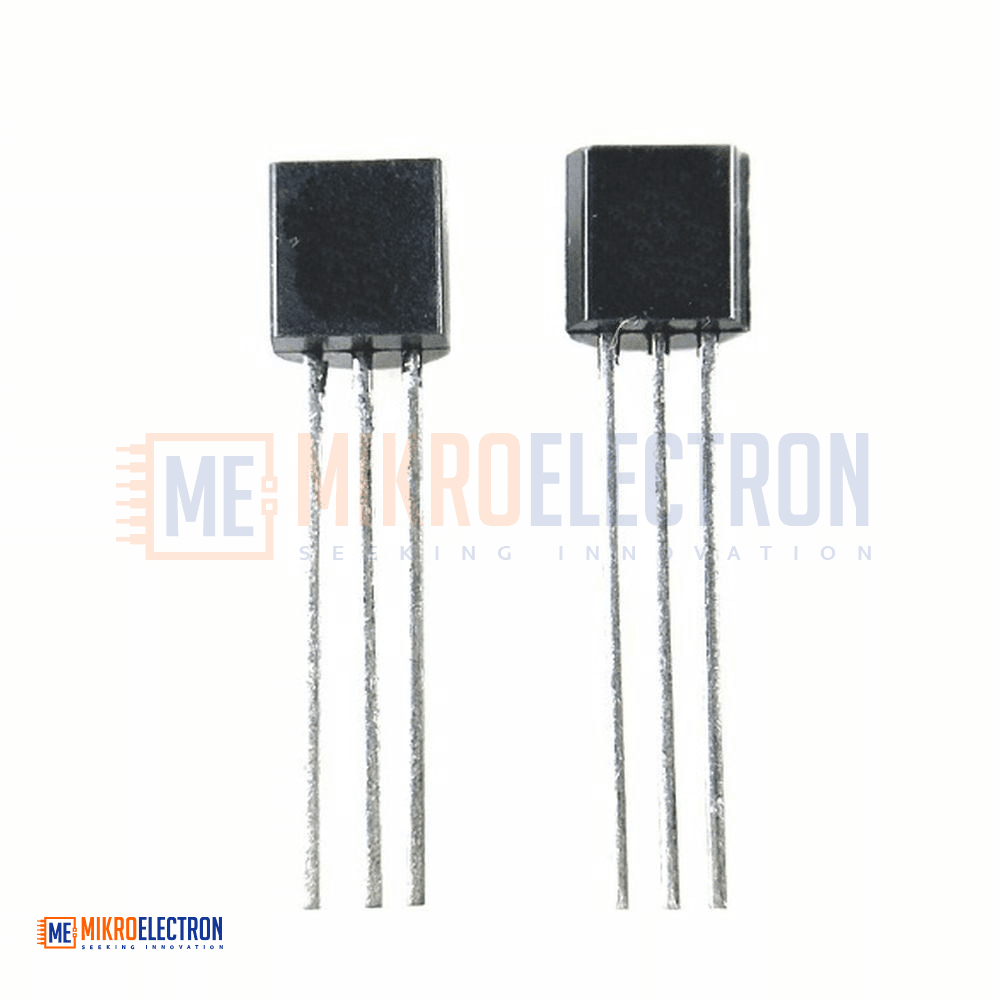

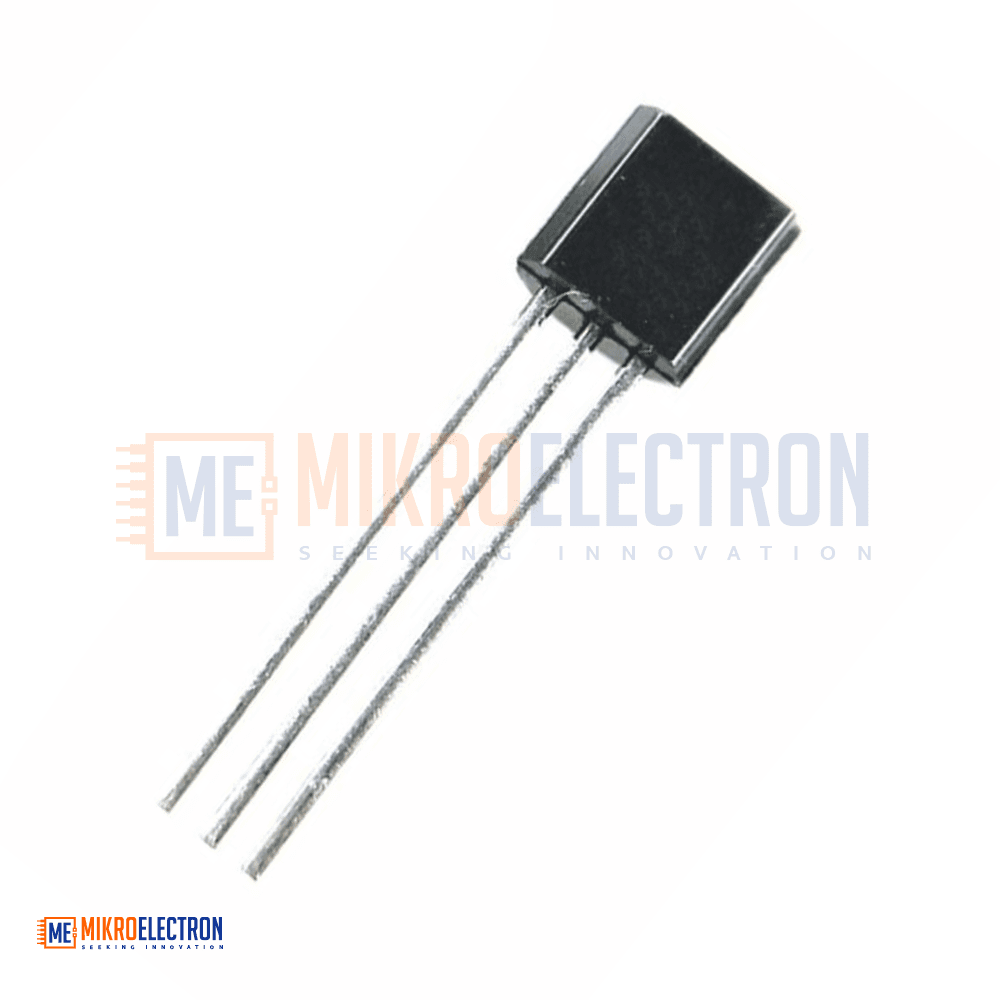

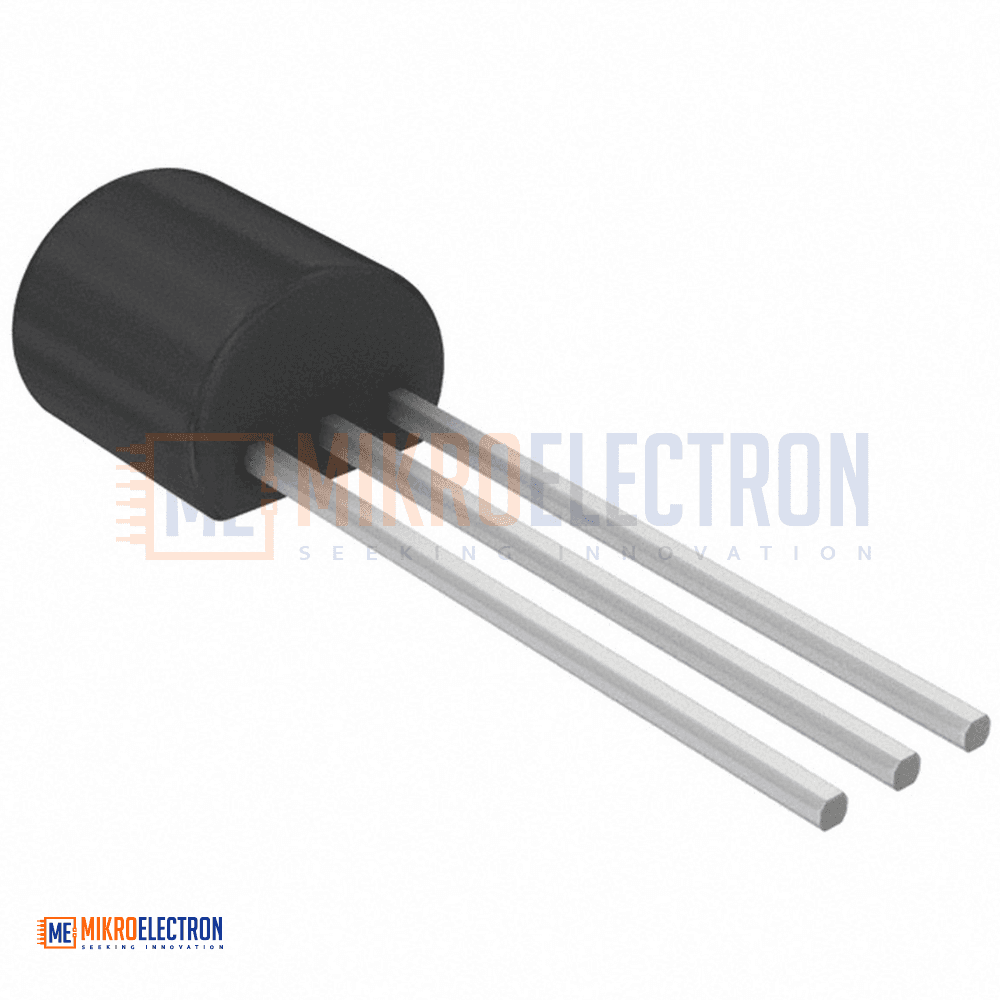

MCR22-6 Thyristor (SCR) is a compact and cost-effective semiconductor switching device designed for low-power control and switching applications. Housed in a TO-226 (TO-92) package, it offers reliable performance with high dv/dt capability, low forward on-state voltage, and a 150A surge current safe area for 2 microseconds. The device is suitable for use in power control circuits, triggering applications, motor controls, lighting systems, and industrial electronics. Its small package size, dependable switching characteristics, and efficient current handling make it an excellent choice for a wide range of electronic designs.
يُعتبر الثايرستور MCR22-6 (SCR) عنصرًا إلكترونيًا مدمجًا واقتصاديًا مصممًا لتطبيقات التحكم والتبديل الكهربائية منخفضة القدرة. يأتي ضمن حزمة TO-226 (TO-92) الصغيرة ويوفر أداءً موثوقًا بفضل تحمله العالي لمعدل تغير الجهد (dv/dt) وانخفاض جهد التوصيل الأمامي وقدرته على تحمل تيار اندفاع يصل إلى 150 أمبير لمدة 2 ميكروثانية. يُستخدم في دوائر التحكم بالطاقة، وأنظمة الإضاءة، والتحكم بالمحركات، والأنظمة الإلكترونية الصناعية، مما يجعله خيارًا مناسبًا للعديد من التطبيقات الإلكترونية المختلفة.
The MCR22-6 Thyristor is a silicon-controlled rectifier (SCR) designed for efficient switching and power control in electronic circuits. It is widely used in applications requiring controlled rectification, switching, and triggering functions.
This device features a high dv/dt rating, allowing it to withstand rapid voltage changes without unintended triggering. Its low forward on-state voltage minimizes power losses during conduction, improving overall circuit efficiency.
The MCR22-6 can safely handle surge currents up to 150A for 2 microseconds, making it suitable for transient conditions commonly found in industrial and consumer electronics. Packaged in a compact TO-226 (TO-92) enclosure, it provides a cost-effective solution for space-constrained designs while maintaining reliable electrical performance.
The device is commonly utilized in motor control circuits, lamp dimmers, relay drivers, battery chargers, power supplies, and general switching applications.
Specifications
| Specification | Details |
|---|---|
| Model | MCR22-6 |
| Device Type | Thyristor (SCR) |
| Manufacturer | onsemi |
| Package Type | TO-226 (TO-92) |
| Surge Current Safe Area | 150A for 2µs |
| dv/dt Capability | High |
| Forward On-State Voltage | Very Low |
| Mounting Type | Through-Hole |
| Technology | Silicon Controlled Rectifier |
| Lead-Free Option | Available (Pb-Free Versions) |
Applications
- AC power control circuits
- Motor speed control systems
- Light dimmer circuits
- Relay and solenoid drivers
- Battery charging equipment
- Switching power supplies
- Industrial control electronics
- Overvoltage protection circuits
- Triggering and pulse control systems
- General-purpose electronic switching
