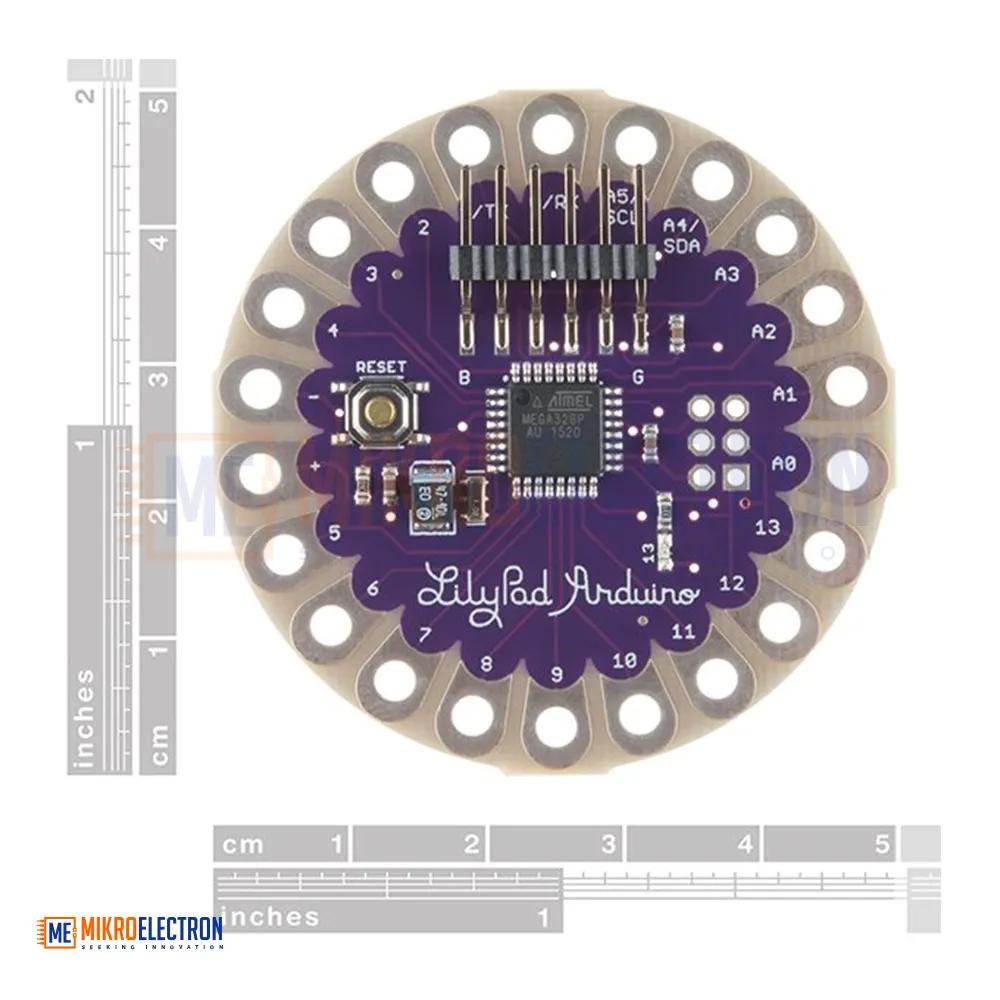

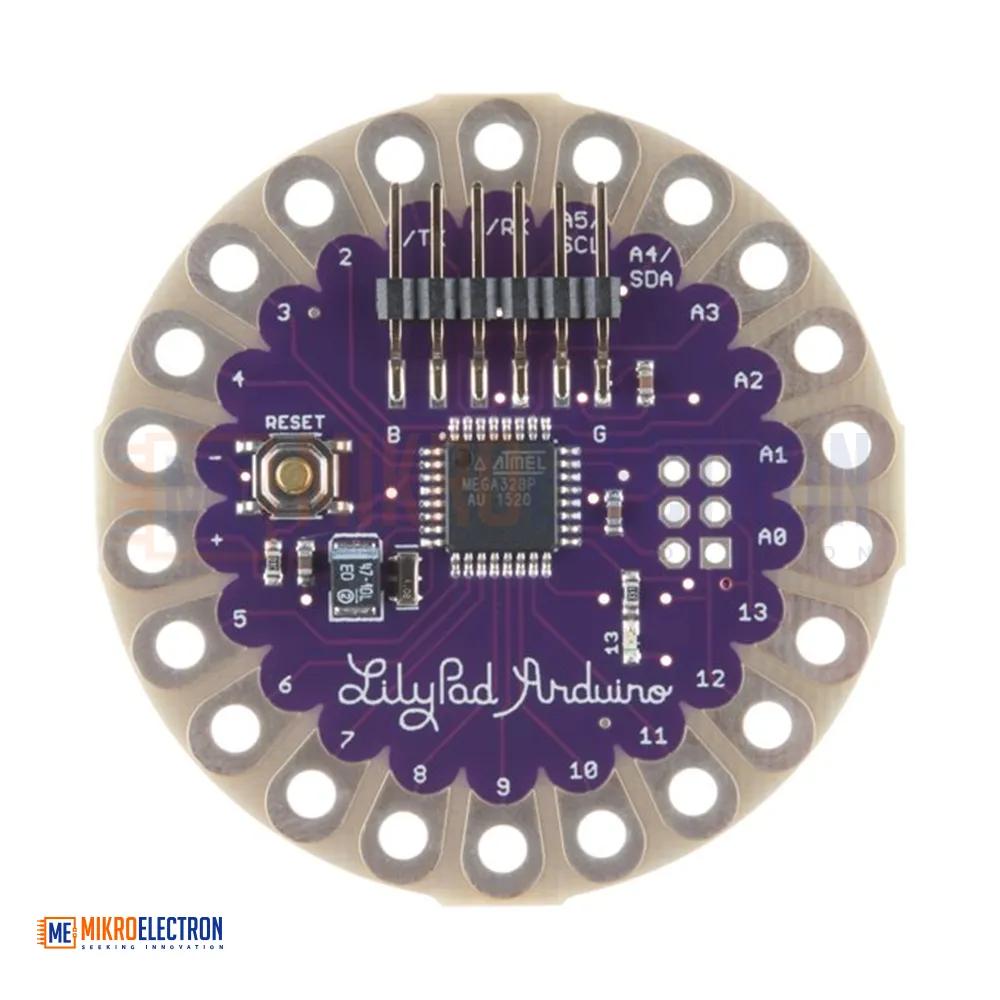

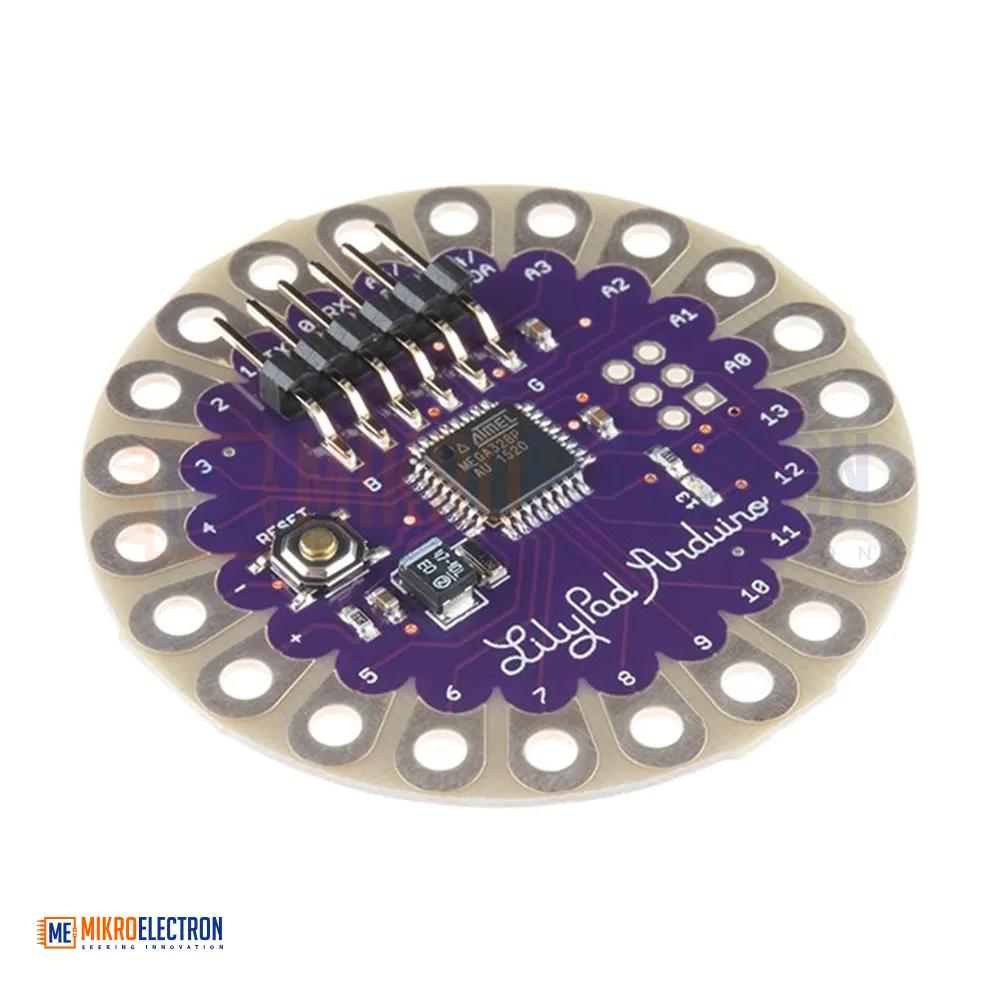

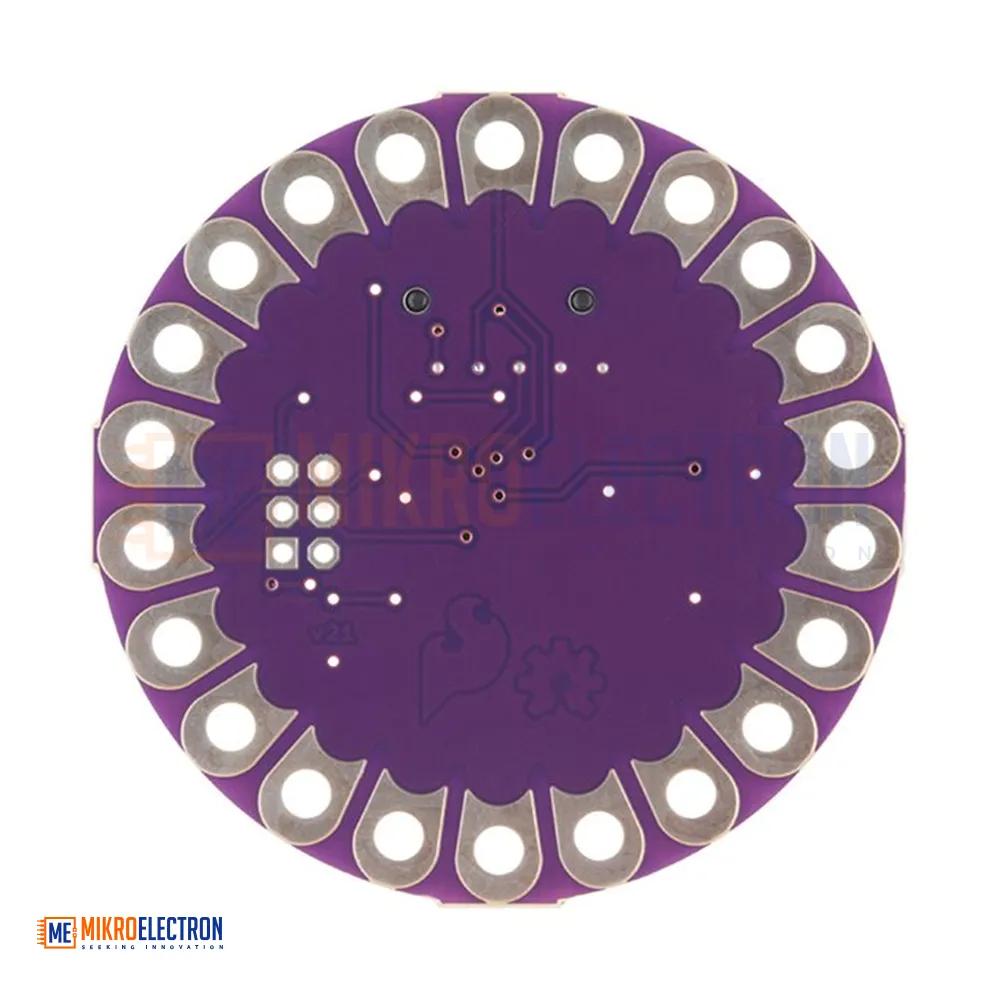

LilyPad Arduino 328 Main Board
The LilyPad Arduino 328 Main Board is a compact, sewable microcontroller board designed specifically for wearable electronics and e-textile projects. Based on the ATmega328P microcontroller, it provides the same core functionality as a traditional Arduino while featuring a lightweight, circular design with large sewable pads for conductive thread connections. Operating at 5V with a 16 MHz clock speed, it supports digital and analog inputs, PWM outputs, and compatibility with the Arduino IDE. Its low-profile construction makes it ideal for integration into clothing, accessories, interactive textiles, educational projects, and creative wearable technology applications.
لوحة LilyPad Arduino 328 Main Board هي لوحة متحكم دقيق قابلة للخياطة تم تصميمها خصيصًا لمشاريع الإلكترونيات القابلة للارتداء والمنسوجات الذكية. تعتمد على المتحكم ATmega328P وتوفر نفس الوظائف الأساسية الموجودة في لوحات أردوينو التقليدية، ولكن بتصميم دائري خفيف الوزن ومزود بنقاط توصيل كبيرة مناسبة للخيوط الموصلة. تعمل بجهد 5 فولت وتردد 16 ميجاهرتز، وتدعم المداخل والمخارج الرقمية والتناظرية بالإضافة إلى مخارج PWM. يتيح تصميمها النحيف دمجها بسهولة في الملابس والإكسسوارات والمشاريع التعليمية والفنية، مما يجعلها خيارًا مثاليًا لتطوير التطبيقات التفاعلية القابلة للارتداء والتقنيات النسيجية الحديثة.
The LilyPad Arduino 328 Main Board is a specialized wearable microcontroller platform developed for e-textile and wearable technology applications. Unlike traditional Arduino boards, the LilyPad features a circular, low-profile PCB with large conductive pads that can be sewn directly into fabrics using conductive thread.
Powered by the ATmega328P microcontroller, the board includes the Arduino bootloader, allowing users to program it easily through the Arduino IDE. It supports a wide range of sensors, LEDs, switches, motors, and other electronic components commonly used in wearable and interactive textile projects.
Its lightweight design, thin PCB construction, and sewable connection points make it suitable for integrating electronics into clothing, costumes, accessories, soft robotics, and educational STEM projects. The board is designed to minimize snagging and discomfort when incorporated into wearable designs while maintaining the flexibility and functionality expected from an Arduino-compatible platform.
The LilyPad ecosystem includes numerous compatible sensor, power, and output modules, enabling users to create sophisticated wearable systems with minimal hardware complexity.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | LilyPad Arduino 328 Main Board |
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Input Voltage Range | 2V – 5V |
| Clock Speed | 16 MHz |
| Digital I/O Pins | 14 |
| PWM Channels | 6 |
| Analog Input Pins | 6 |
| Flash Memory | 32 KB |
| Bootloader Memory Usage | 2 KB |
| PCB Diameter | 50 mm |
| PCB Thickness | 0.8 mm |
| Programming Environment | Arduino IDE |
| Reset Button | On-board |
| Voltage Regulator | On-board |
| Connection Method | Sewable conductive pads |
Applications
- Wearable electronics projects
- Smart clothing and garments
- Interactive fashion designs
- E-textile development
- LED clothing and accessories
- Wearable sensor systems
- Educational STEM projects
- Interactive costumes and cosplay
- Health and fitness monitoring prototypes
- Soft robotics applications
- Art installations and creative electronics
- DIY maker and Arduino projects
- Textile-based user interfaces
- Smart accessories and bags
