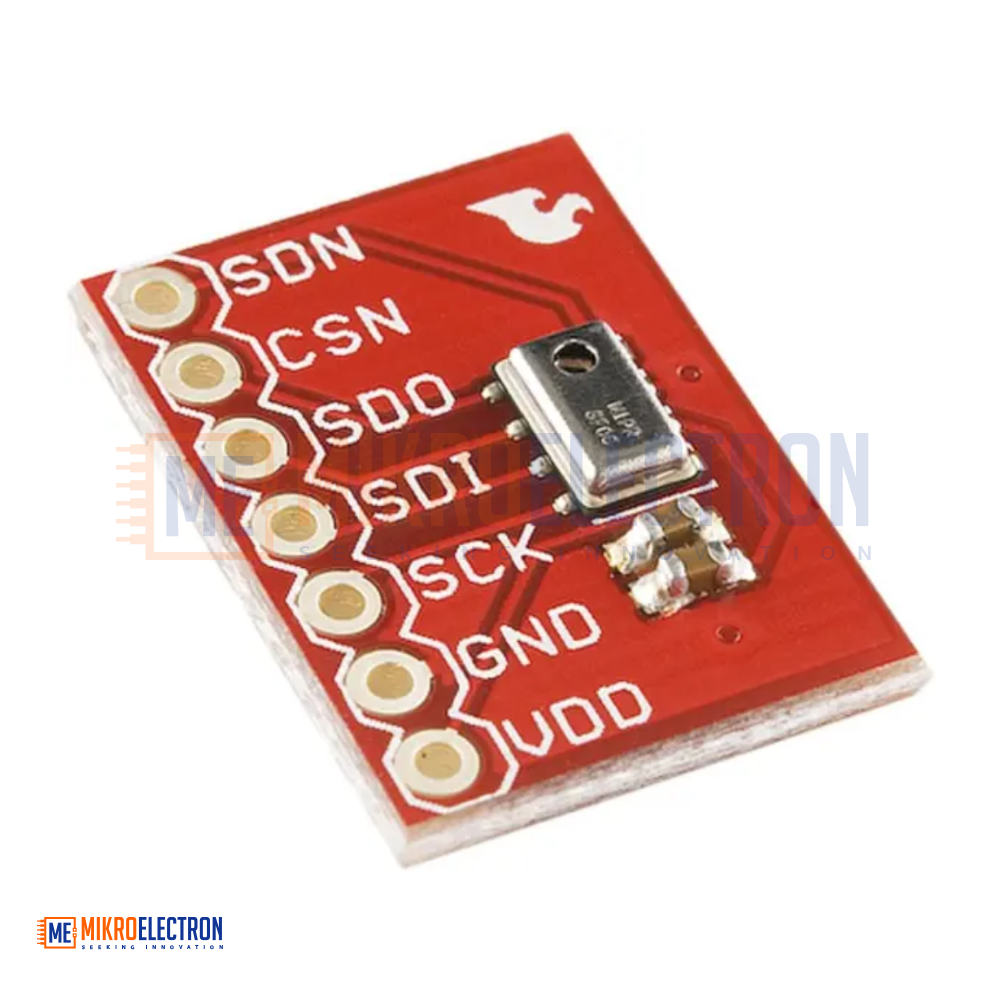

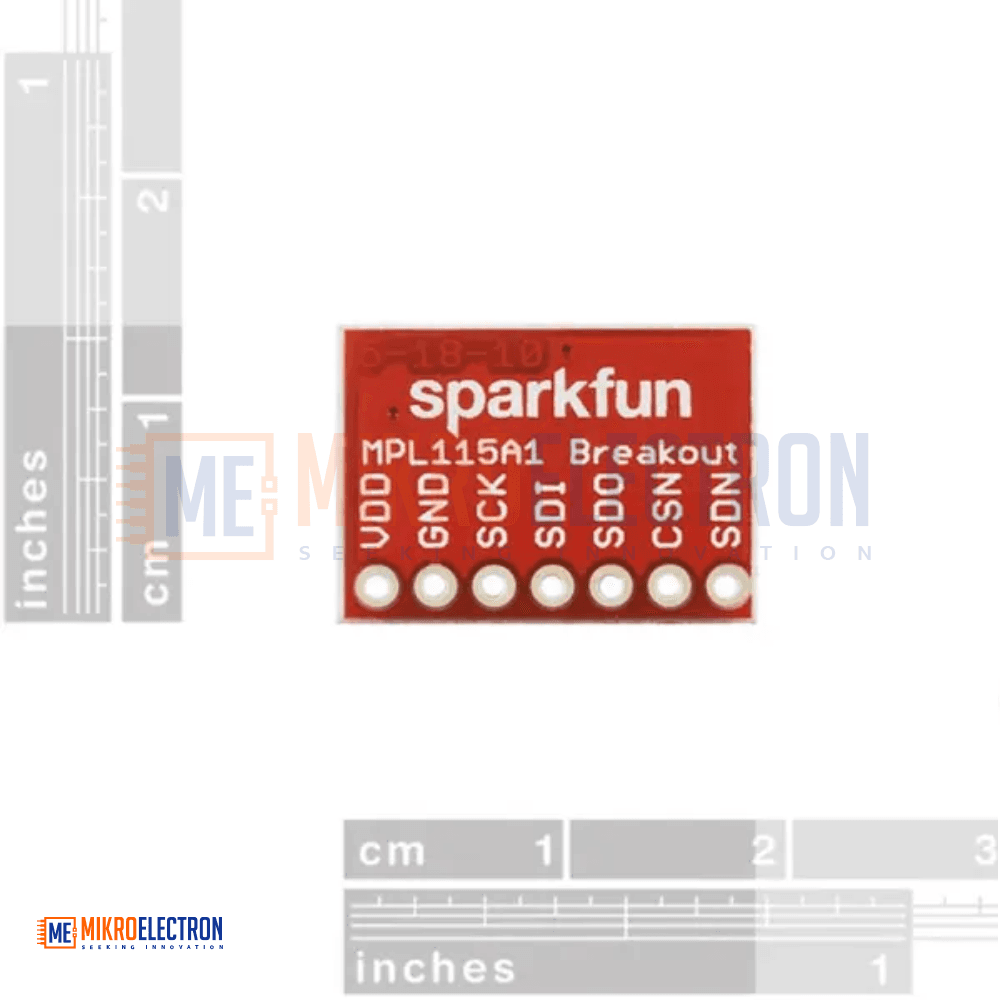

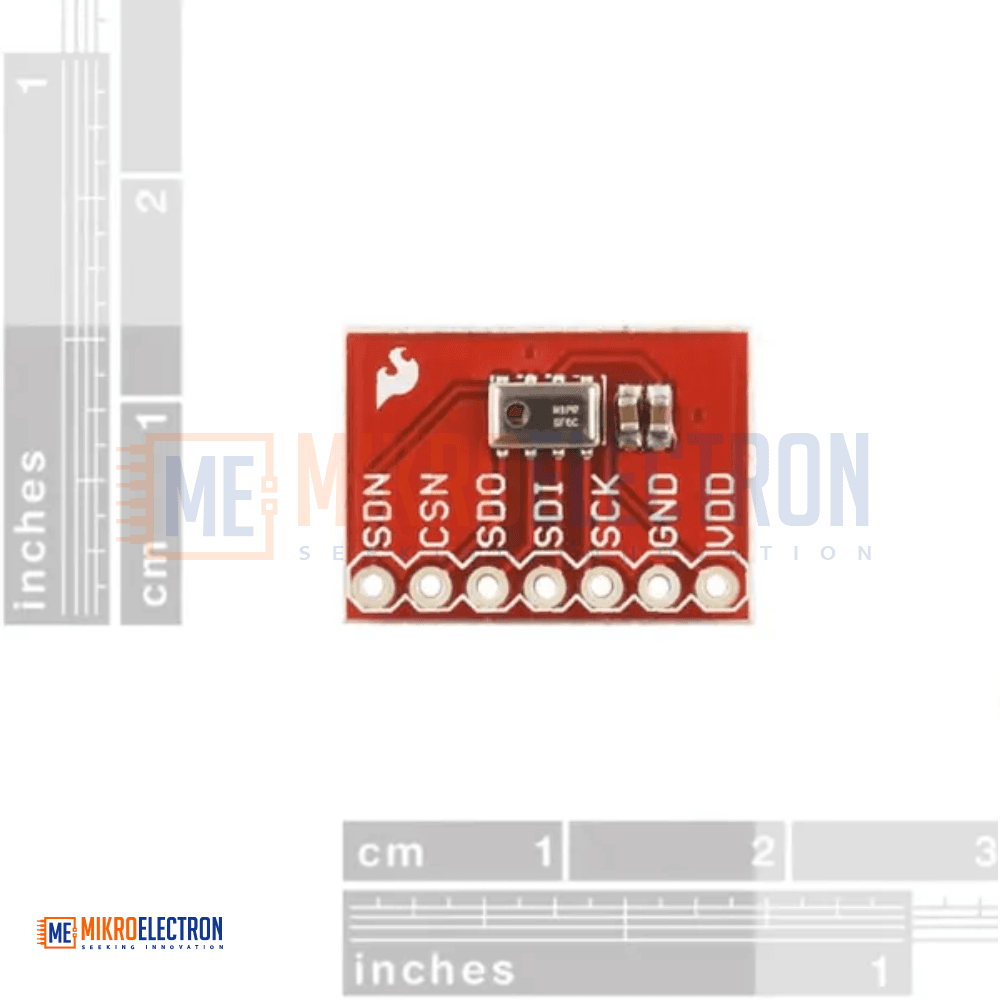

SparkFun Barometric Pressure Sensor Breakout - MPL115A1
Out Of Stock
The SparkFun Barometric Pressure Sensor Breakout - MPL115A1 is a compact digital pressure sensor module designed for accurate atmospheric pressure and temperature measurements. Based on the MPL115A1 MEMS barometric sensor, it measures pressures from 50 kPa to 115 kPa and communicates through a standard SPI interface. The sensor provides both pressure and temperature data while maintaining extremely low power consumption, making it ideal for portable and battery-powered applications. Its small footprint and wide operating temperature range make it suitable for weather stations, altitude estimation, environmental monitoring, and embedded sensing projects.
وحدة SparkFun Barometric Pressure Sensor Breakout - MPL115A1 هي مستشعر ضغط جوي رقمي مدمج مصمم لقياس الضغط الجوي ودرجة الحرارة بدقة عالية. تعتمد على مستشعر MPL115A1 بتقنية MEMS وتوفر نطاق قياس للضغط من 50 إلى 115 كيلو باسكال مع واجهة اتصال SPI سهلة الاستخدام. توفر الوحدة بيانات الضغط ودرجة الحرارة في الوقت نفسه مع استهلاك طاقة منخفض جدًا، مما يجعلها مناسبة للأجهزة المحمولة والتطبيقات المعتمدة على البطاريات. بفضل حجمها الصغير ونطاق درجات الحرارة الواسع، تعد خيارًا مثاليًا لمحطات الطقس وأنظمة قياس الارتفاع ومراقبة البيئة والمشاريع الإلكترونية المدمجة.
The SparkFun MPL115A1 Barometric Pressure Sensor Breakout is a compact sensor board that provides precise atmospheric pressure and temperature measurements for embedded and environmental monitoring applications.
The board is based on the MPL115A1 MEMS barometric pressure sensor, which combines advanced micro-electromechanical technology with digital signal processing to deliver accurate pressure readings over a wide operating range. The sensor communicates through an SPI interface, allowing simple integration with microcontrollers such as Arduino, STM32, ESP32, AVR, PIC, and other embedded platforms.
In addition to pressure measurement, the sensor provides temperature data that can be used for compensation and environmental monitoring. The low average current consumption of approximately 10 µA at one measurement per second makes it highly suitable for battery-powered devices and remote sensing applications.
The breakout board format simplifies prototyping and system integration while maintaining the small footprint of the original sensor.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | SparkFun Barometric Pressure Sensor Breakout |
| Sensor Model | MPL115A1 |
| Sensor Type | Digital MEMS Barometric Pressure Sensor |
| Pressure Measurement Range | 50 kPa to 115 kPa |
| Output Data | Pressure and Temperature |
| Communication Interface | SPI |
| Operating Temperature Range | -40°C to +105°C |
| Average Current Consumption | 10 µA (1 measurement/second) |

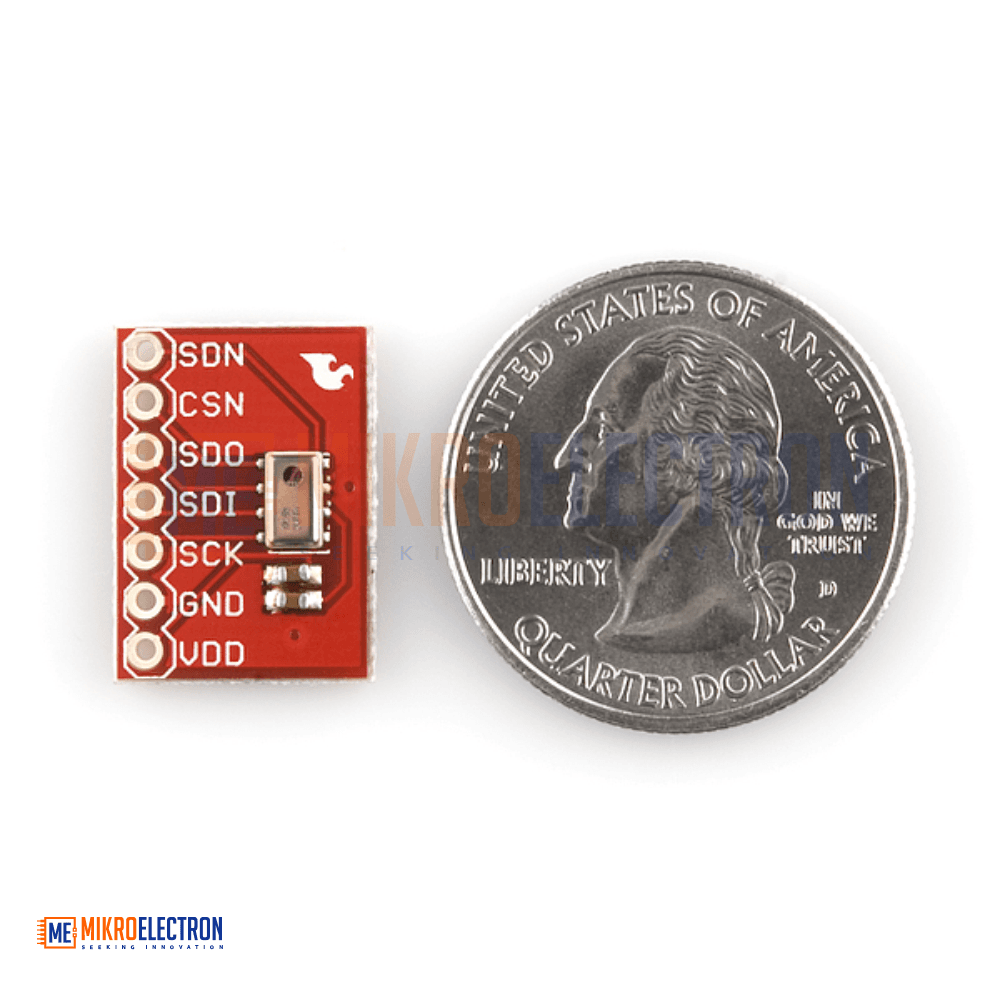

| Sensor Dimensions | 5 mm × 3 mm × 1.2 mm |
| Header Pitch | 0.1 inch (2.54 mm) |
| Technology | MEMS Pressure Sensing |
| Mounting Type | Breakout Board |
Applications
- Weather stations
- Atmospheric pressure monitoring
- Altitude estimation systems
- Portable environmental sensors
- Data logging systems
- IoT monitoring devices
- Battery-powered sensing applications
- Scientific measurement projects
- Drone and UAV systems
- Outdoor monitoring equipment
- Embedded sensor platforms
- Educational electronics projects
