Raspberry Pi 7 inch 1024x600 LCD Touch Monitor + Driver Board Controller HDMI
The Raspberry Pi 7 Inch 1024×600 LCD Touch Monitor with HDMI Driver Board is a compact and versatile display designed for Raspberry Pi and other multimedia devices. Featuring a 7-inch TFT LCD panel with a 1024×600 resolution and touch screen support, it delivers clear visuals and responsive interaction. The display supports multiple input options including HDMI, VGA, and AV, making it compatible with a wide range of systems and applications. Powered by a 5V DC supply, it offers plug-and-play operation and is ideal for embedded projects, digital signage, multimedia systems, vehicle displays, and portable computing solutions.
شاشة Raspberry Pi 7 Inch 1024×600 LCD Touch Monitor مع لوحة تحكم HDMI هي شاشة مدمجة ومتعددة الاستخدامات مصممة خصيصًا لمشاريع Raspberry Pi والتطبيقات الإلكترونية المختلفة. تتميز بلوحة TFT LCD مقاس 7 بوصات ودقة عرض 1024×600 مع دعم شاشة اللمس لتوفير تجربة استخدام تفاعلية وسلسة. تدعم الشاشة عدة منافذ إدخال تشمل HDMI وVGA وAV مما يجعلها مناسبة للعديد من الأجهزة والأنظمة. تعمل بجهد 5 فولت DC وتتميز بسهولة التوصيل والتشغيل، مما يجعلها مثالية للمشاريع المدمجة، وأنظمة الوسائط المتعددة، والشاشات داخل المركبات، وإطارات الصور الرقمية، وتطبيقات العرض المختلفة.

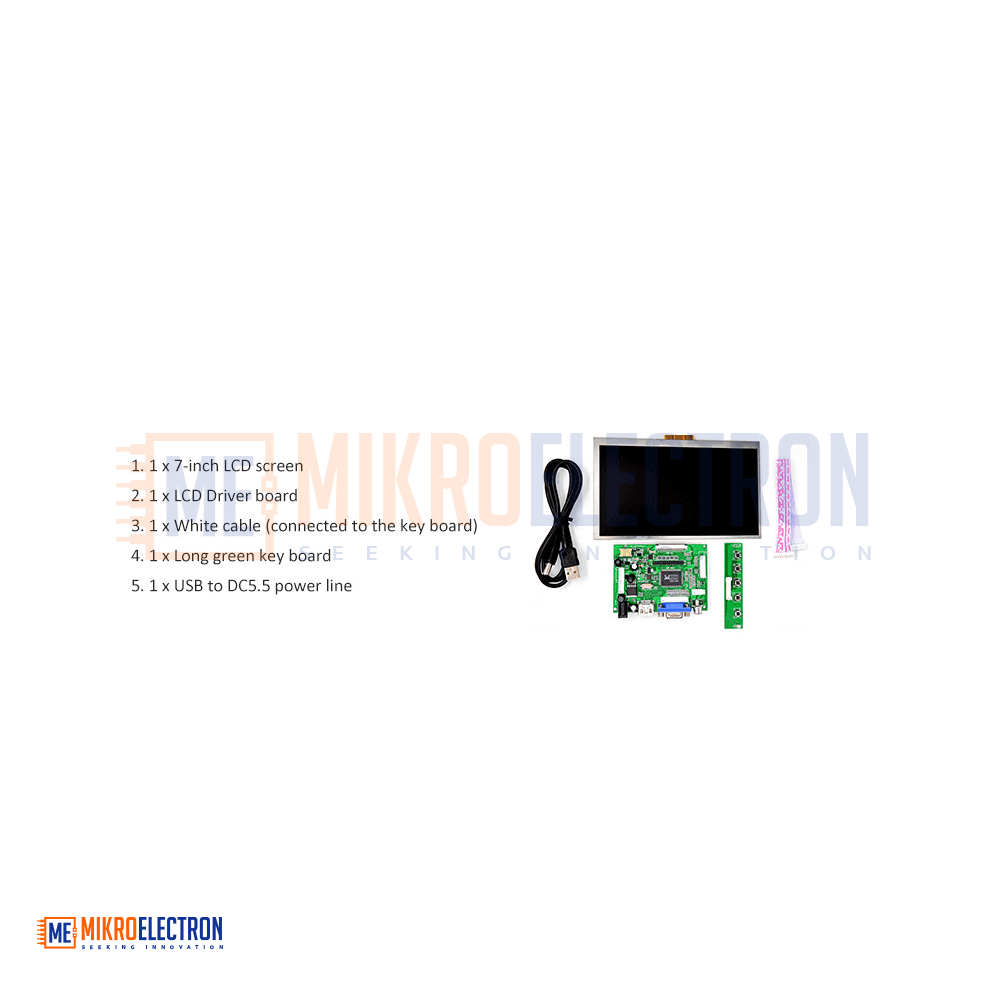

The Raspberry Pi 7 Inch 1024×600 LCD Touch Monitor + HDMI Driver Board Controller is a high-quality display solution designed for Raspberry Pi development boards and a variety of multimedia applications. Equipped with a 7-inch TFT LCD panel, the display provides sharp image quality and responsive touch functionality in a compact form factor.
The included driver board supports HDMI, VGA, and AV video inputs, allowing the display to connect easily to Raspberry Pi boards, mini PCs, media players, automotive systems, surveillance devices, and other embedded platforms. The plug-and-play design minimizes setup time and simplifies integration into projects.
With a native resolution of 1024×600 pixels, LED backlighting, and a 500:1 contrast ratio, the display delivers bright and clear images suitable for graphical user interfaces, video playback, monitoring systems, and interactive applications.
The monitor operates from a standard 5V DC power source, making it compatible with USB power adapters, power banks, and regulated vehicle power systems. Its compact dimensions and low power consumption make it ideal for portable and embedded display projects.

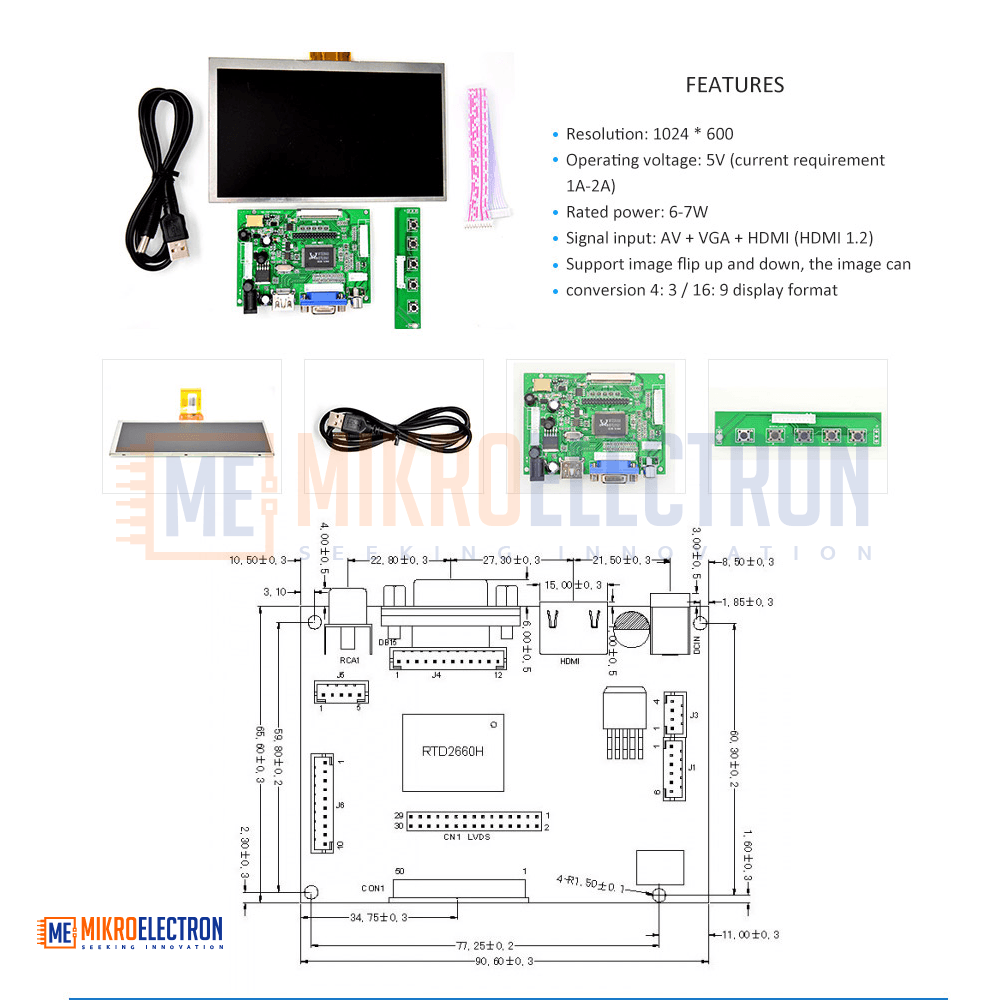

Specifications
| Parameter | Specification |
|---|---|
| Product Name | Raspberry Pi 7 Inch LCD Touch Monitor |
| Display Size | 7 Inch |
| Display Type | TFT LCD |
| Touch Screen | Supported |
| Resolution | 1024 × 600 Pixels |
| Pixel Configuration | 1024 × 3 (RGB) × 600 |
| Display Colors | 262K Colors |
| Contrast Ratio | 500:1 |
| Brightness | 220 cd/m² |
| Viewing Angle | Left 70°, Right 70°, Up 50°, Down 60° |
| Viewing Area | 154.08 × 85.92 mm |
| Pixel Pitch | 0.05 × 0.15 mm |
| Backlight Type | LED |
| Interface Type | Digital |
| LCD Connector | 50-Pin Digital (TTL) TCON |
| Signal Inputs | HDMI 1.2, VGA, AV |
| Operating Voltage | 5V DC |
| Current Requirement | 1A – 2A |
| Rated Power | 6W – 7W |
| Dimensions | 165 × 100 × 5 mm |
| Power Source Options | USB Adapter, Power Bank, Regulated 5V Supply |
Applications
- Raspberry Pi projects
- Embedded systems
- Portable computing devices
- Industrial control panels
- Smart home interfaces
- Digital photo frames
- Automotive display systems
- Multimedia players
- DIY touchscreen terminals
- Monitoring and surveillance systems
- Human-machine interface (HMI) applications
- Educational and development projects
- Point-of-sale (POS) systems
- IoT control dashboards
Technical Support:
https://wiki.52pi.com/index.php?title=Z-0051
