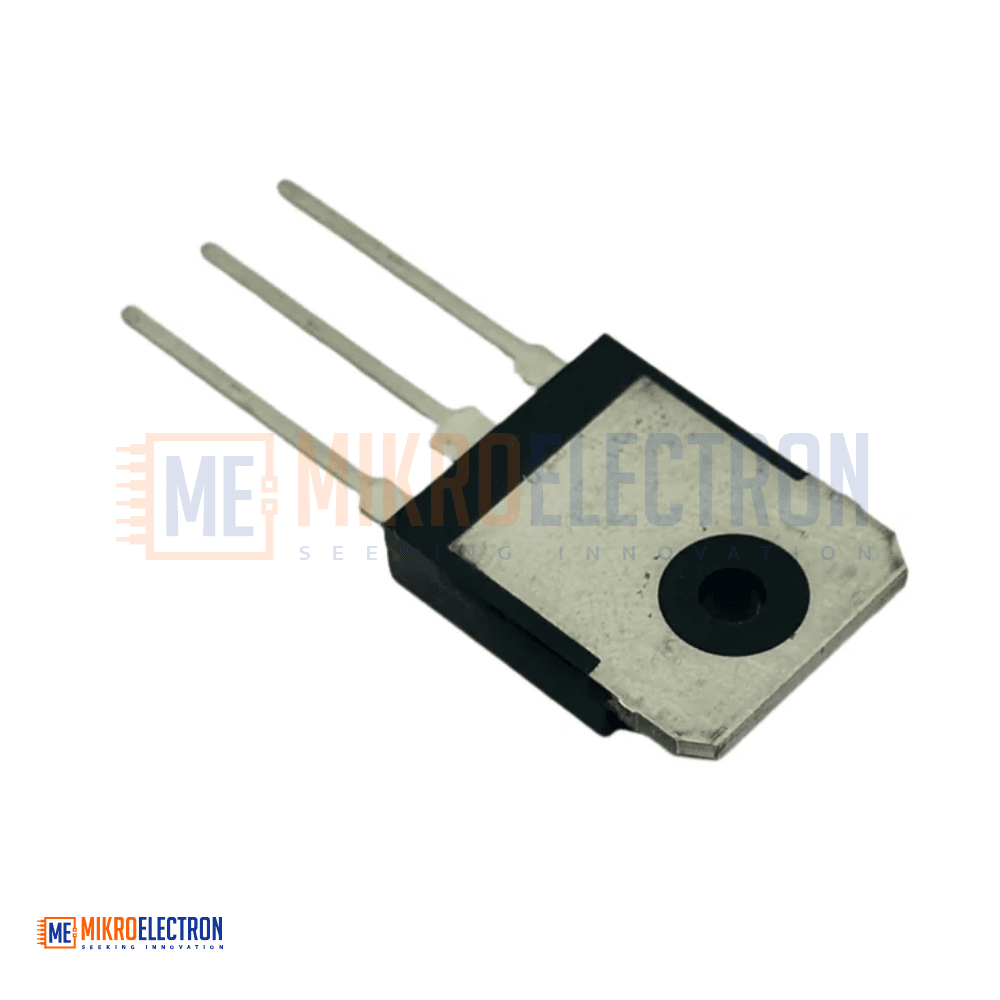

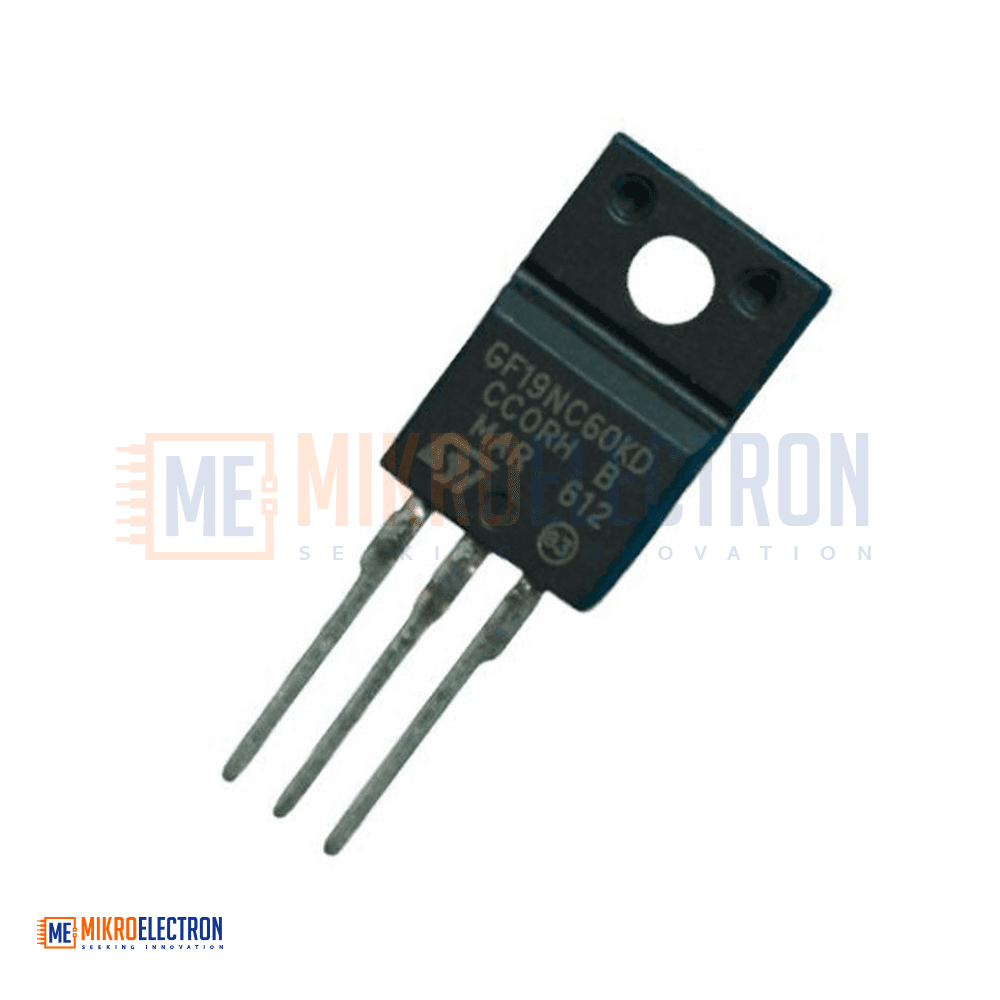

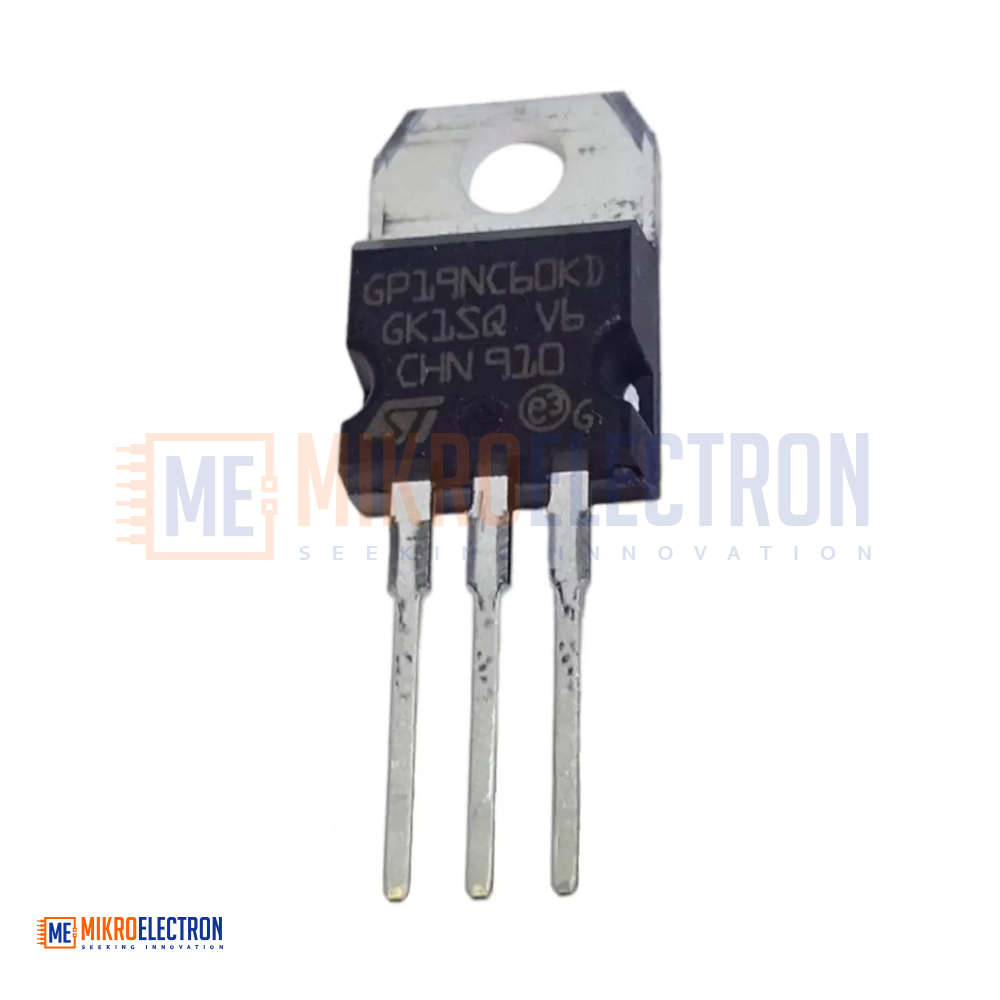

IGBT Transistor 20A 600v (19NC60W)
Out Of Stock

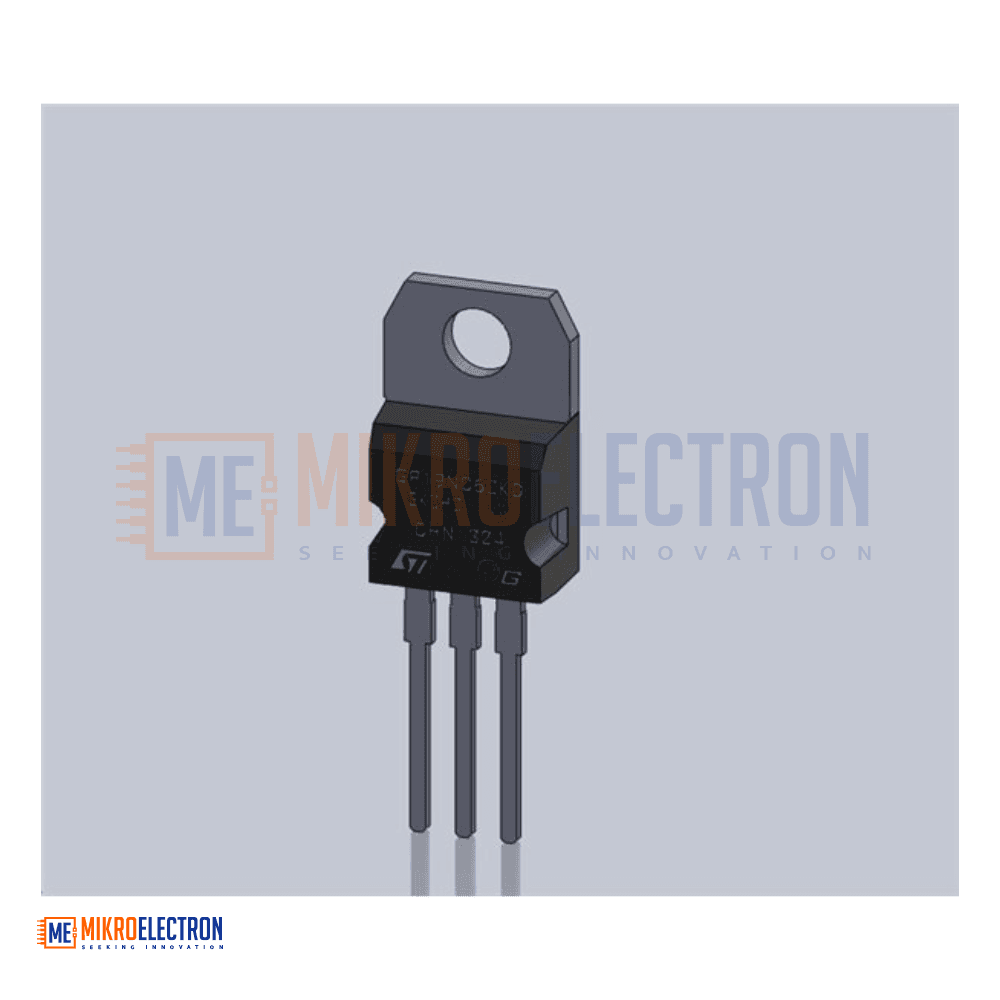

The STGP19NC60W IGBT Transistor is a high-performance 600V, 20A Insulated Gate Bipolar Transistor (IGBT) designed for high-frequency power switching applications. Built using STMicroelectronics PowerMESH™ technology, it offers low switching losses, high efficiency, and excellent reliability in demanding power electronics systems. The "W" series is specifically optimized for very high-frequency operation, making it suitable for switch-mode power supplies, power factor correction circuits, motor drives, UPS systems, and inverters. Packaged in a standard TO-220 case, the STGP19NC60W combines the easy gate-drive characteristics of a MOSFET with the high-current capability of a bipolar transistor.
يعتبر STGP19NC60W IGBT ترانزستور قدرة عالي الأداء بجهد 600 فولت وتيار يصل إلى 20 أمبير، وهو مصمم خصيصًا لتطبيقات التبديل السريع وعالية التردد. يعتمد على تقنية PowerMESH™ المتقدمة من شركة STMicroelectronics والتي توفر خسائر تبديل منخفضة وكفاءة عالية واعتمادية ممتازة في دوائر القدرة الإلكترونية. تم تحسين هذه النسخة ذات الرمز W للعمل في التطبيقات عالية التردد مثل مزودات الطاقة التبديلية (SMPS)، وأنظمة تصحيح معامل القدرة (PFC)، والمحولات (Inverters)، وأنظمة UPS، ووحدات التحكم بالمحركات. يأتي ضمن حزمة TO-220 القياسية لسهولة التركيب والتبريد.
The STGP19NC60W is a high-voltage Insulated Gate Bipolar Transistor (IGBT) developed by STMicroelectronics using advanced PowerMESH™ technology. This technology utilizes a patented strip-layout structure that enhances switching performance while reducing conduction and switching losses.
The device is designed for applications requiring efficient high-frequency switching and high-voltage operation. It combines the advantages of a power MOSFET's voltage-controlled gate with the low conduction losses of a bipolar transistor, making it ideal for modern power conversion systems.
The "W" series has been optimized specifically for high-frequency applications such as switch-mode power supplies, resonant converters, power factor correction circuits, and inverter systems. Its fast switching characteristics help improve overall system efficiency while reducing heat generation.
Packaged in a robust TO-220 enclosure, the device offers easy mounting and effective thermal management for industrial and commercial power electronics designs.
Specifications
| Parameter | Specification |
|---|---|
| Part Number | STGP19NC60W |
| Device Type | IGBT (Insulated Gate Bipolar Transistor) |
| Technology | PowerMESH™ |
| Package | TO-220 |
| Collector-Emitter Voltage (VCEO) | 600 V |
| Continuous Collector Current (IC @ 25°C) | 20 A |
| Collector Current (IC @ 100°C) | 12 A |
| Pulsed Collector Current (ICM) | 80 A |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Maximum Power Dissipation | 160 W |
| Thermal Resistance Junction-Case | 1 °C/W |
| Thermal Resistance Junction-Ambient | 62.5 °C/W |
| Operating Junction Temperature | -55°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Packaging Type | Tube |
Applications
- High-frequency motor control systems
- DC-AC inverters
- Uninterruptible Power Supplies (UPS)
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) circuits
- Resonant converters
- Industrial power control systems
- Solar power inverters
- Battery charging systems
- Welding equipment
- High-voltage switching applications
- Energy conversion systems
Pin Configuration (TO-220 Package)
| Pin | Function |
|---|---|
| 1 | Gate (G) |
| 2 | Collector (C) |
| 3 | Emitter (E) |
| Tab | Collector (Connected Internally) |
Advantages
- Efficient high-frequency switching performance
- Reduced power losses
- Improved system efficiency
- Compact TO-220 package
- Suitable for industrial and commercial power applications
- Reliable operation under demanding electrical conditions
