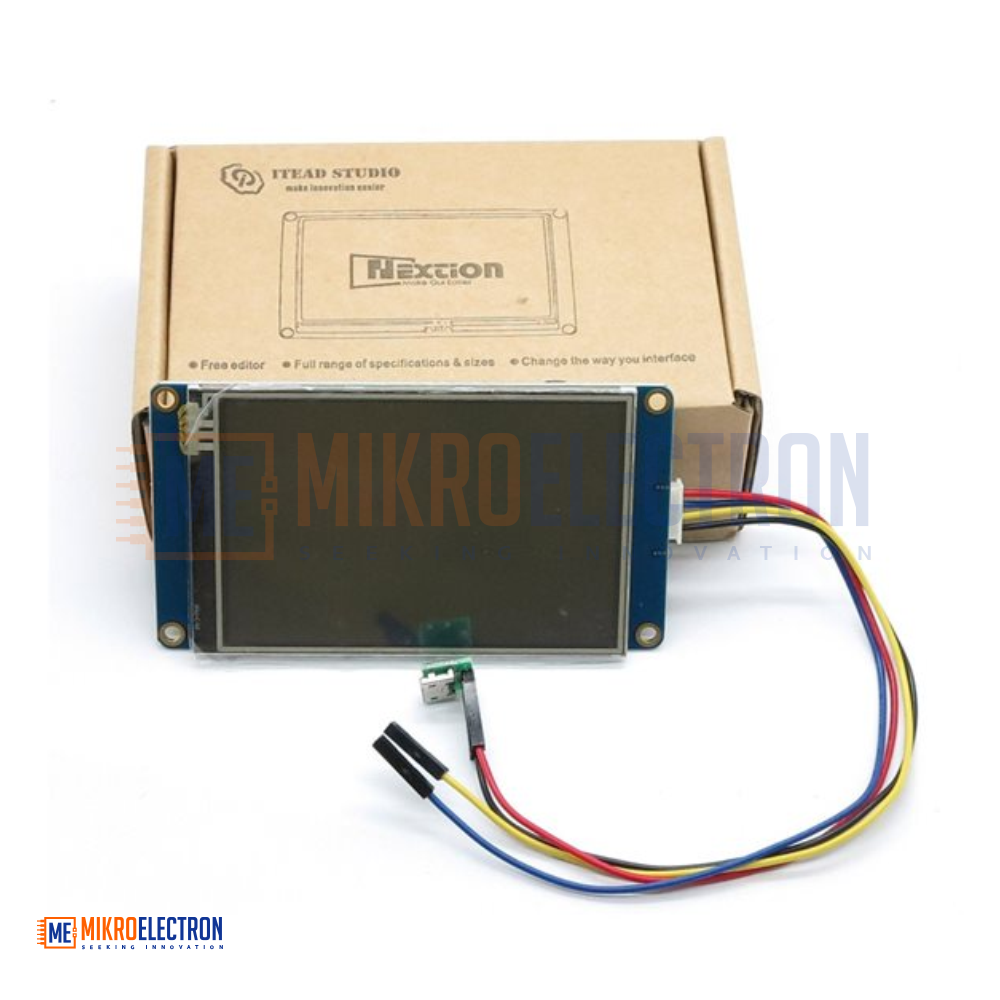

Nextion NX4832T035 - 3.5 inch HMI TFT LCD Touch Display Module
The Nextion NX4832T035 3.5-Inch HMI TFT LCD Touch Display Module is an intelligent Human Machine Interface (HMI) display designed to simplify graphical user interface development for embedded systems. Featuring a 3.5-inch TFT LCD touchscreen, 480 × 320 resolution, and 65K color display, it communicates through a simple TTL serial interface, reducing wiring complexity and development time. The module combines powerful hardware with the Nextion Editor software, allowing users to create professional interfaces using drag-and-drop components. With onboard flash memory, a microSD card slot for firmware upgrades, and resistive touch functionality, it is ideal for automation, IoT, and control applications.
وحدة Nextion NX4832T035 3.5 Inch HMI TFT LCD Touch Display Module هي شاشة ذكية مخصصة لتطبيقات واجهة الإنسان والآلة (HMI)، وتساعد على تطوير واجهات رسومية احترافية بسهولة وسرعة. تحتوي على شاشة TFT مقاس 3.5 بوصة بدقة 480 × 320 بكسل مع دعم اللمس المقاوم وألوان تصل إلى 65 ألف لون. تعتمد على الاتصال التسلسلي UART مما يقلل من تعقيد التوصيلات البرمجية والعتادية. توفر ذاكرة فلاش داخلية وسهولة التحديث عبر بطاقة microSD، بالإضافة إلى برنامج Nextion Editor الذي يتيح تصميم الواجهات بطريقة السحب والإفلات، مما يجعلها مناسبة للمشاريع الصناعية والتعليمية وأنظمة التحكم الذكية.
The Nextion NX4832T035 is a smart Human Machine Interface (HMI) display module designed to provide a simple and efficient graphical interface between users and embedded systems. Unlike traditional LCD displays that require significant programming effort, the Nextion display handles graphics processing internally and communicates with a host controller through a single UART serial connection.

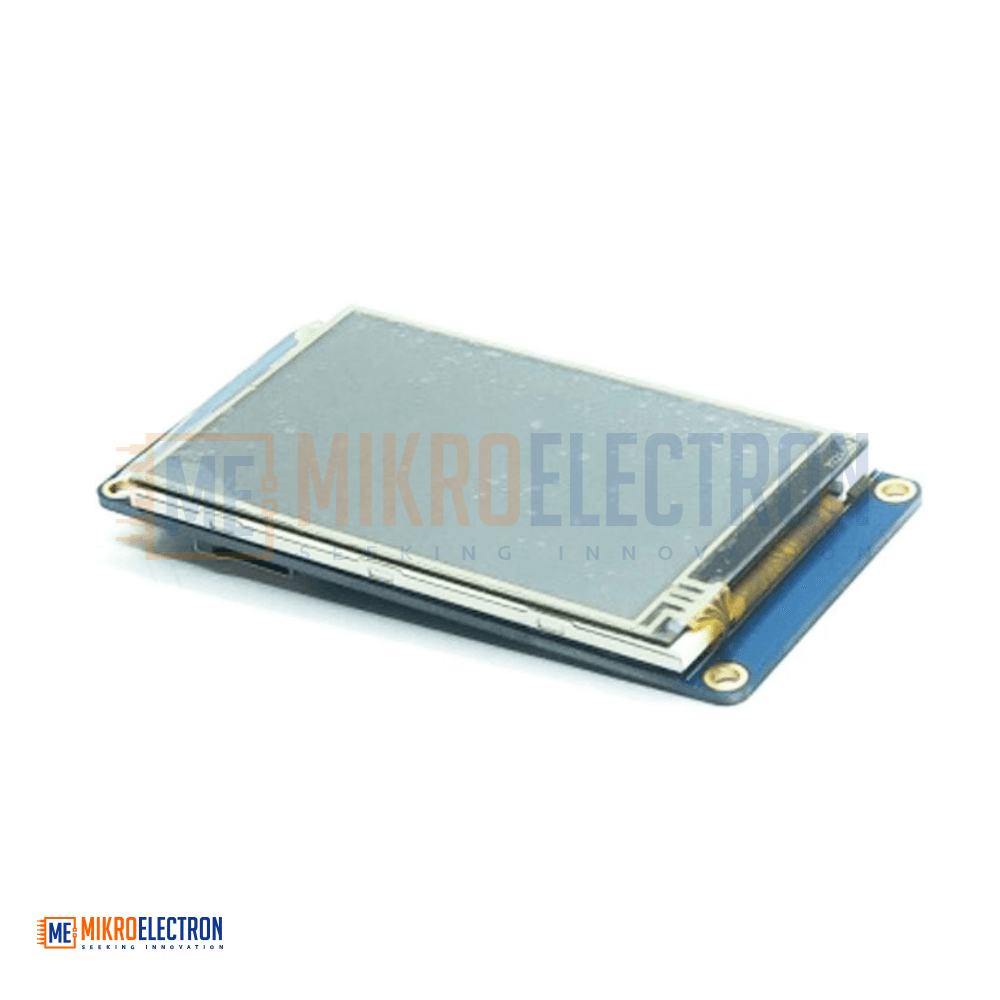

The module features a 3.5-inch TFT LCD touchscreen with a 480 × 320 pixel resolution, providing sharp graphics and clear text rendering. The integrated 4-wire resistive touch panel allows direct user interaction, making it suitable for control panels, monitoring systems, industrial equipment, and IoT devices.
The accompanying Nextion Editor software enables developers to build sophisticated user interfaces using drag-and-drop components such as buttons, text boxes, gauges, sliders, progress bars, and other graphical elements. This significantly reduces development time and programming complexity.

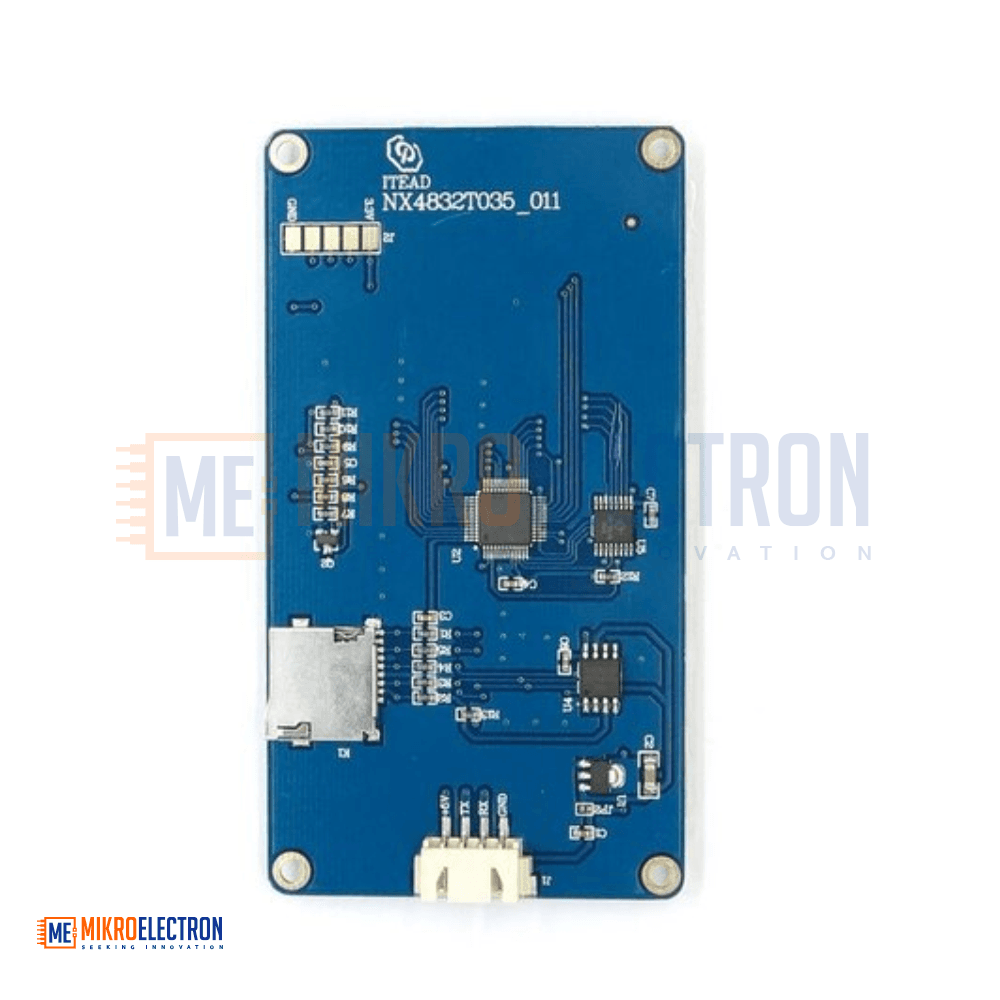

With 16MB Flash memory, 3.5KB RAM, adjustable brightness, and onboard microSD card support for firmware upgrades, the NX4832T035 offers a complete HMI solution for professional and hobbyist projects alike.
Specifications
| Parameter | Specification |
|---|---|
| Model | NX4832T035 |
| Display Size | 3.5 Inch |
| Display Type | TFT LCD |
| Touch Type | 4-Wire Resistive Touch Panel |
| Resolution | 480 × 320 Pixels |
| Display Colors | 65K Colors |
| Flash Memory | 16 MB |
| RAM | 3.5 KB |
| Communication Interface | TTL UART Serial |
| Visual Area | 73.44 mm × 48.96 mm |
| Brightness | 0 – 180 nits |
| Brightness Adjustment | 1% Increment Steps |
| Operating Voltage | 5V DC |
| Current Consumption | 145 mA |
| Firmware Upgrade | microSD Card |
| GUI Development Tool | Nextion Editor |
| Color Depth | RGB 65K True Colors |
Applications
- Industrial control panels
- Home automation systems
- Smart appliance interfaces
- IoT device control displays
- Arduino projects
- ESP32 and ESP8266 projects
- STM32 embedded systems
- Raspberry Pi serial interface projects
- Machine monitoring systems
- Data visualization dashboards
- HVAC control systems
- Robotics control panels
- Medical equipment interfaces
- Educational embedded projects
Advantages
- Simplifies HMI development
- Minimizes MCU processing load
- Reduces wiring complexity
- Easy GUI creation with WYSIWYG editor
- Fast deployment in embedded projects
- Reliable serial communication
- Suitable for both beginners and professionals
