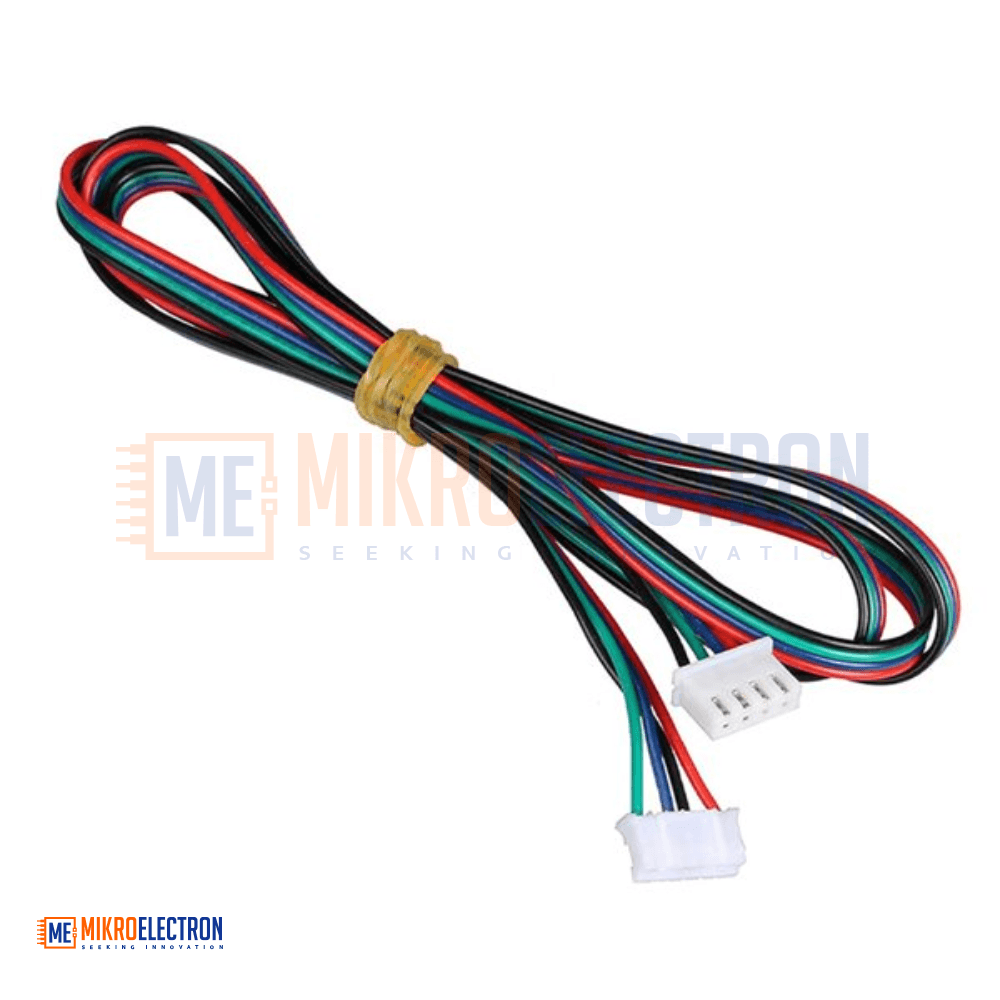

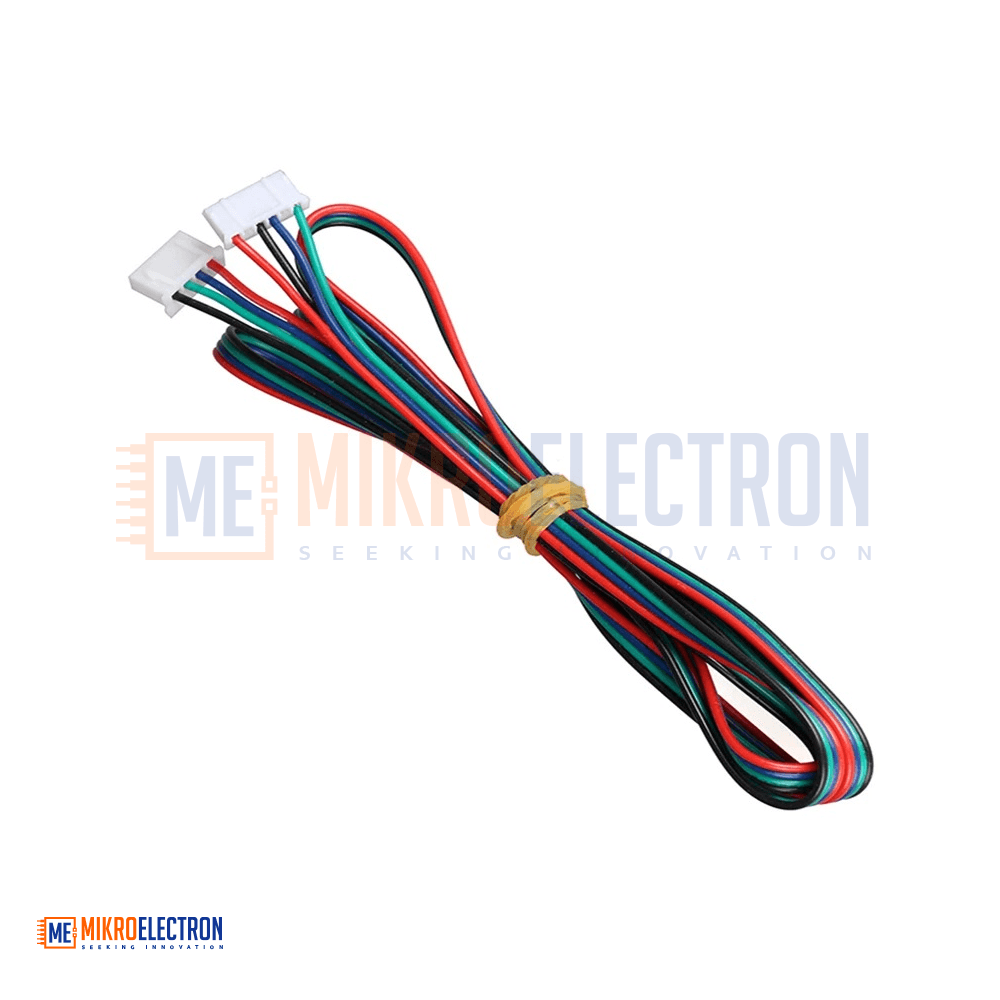

17 Stepper Motor Cable 4Pin XH2.54 To 6Pin PH2.0 Stepping Motor Cable 1meter
The 17 Stepper Motor Cable 4Pin XH2.54 to 6Pin PH2.0 is a high-quality connection cable designed for interfacing NEMA 17 stepper motors with compatible controller boards and driver modules. Featuring a 4-pin XH2.54 connector on one end and a 6-pin PH2.0 connector on the other, it provides a reliable and convenient wiring solution for CNC machines, 3D printers, robotics, and automation equipment. With a cable length of 1 meter, it offers flexibility during installation while maintaining secure signal and power transmission between the motor and control system.
يُستخدم كابل محرك الخطوات 4Pin XH2.54 إلى 6Pin PH2.0 بطول متر واحد لتوصيل محركات الخطوات، وخاصة محركات NEMA 17، بلوحات التحكم ووحدات التشغيل المتوافقة. يحتوي الكابل على موصل XH2.54 بأربعة أطراف من جهة وموصل PH2.0 بستة أطراف من الجهة الأخرى، مما يوفر حلاً جاهزًا وسهل التركيب لمشاريع الطباعة ثلاثية الأبعاد والروبوتات وأنظمة التحكم الآلي. يتيح طول الكابل البالغ 1 متر مرونة كبيرة أثناء التركيب والتنظيم داخل الأجهزة مع ضمان نقل موثوق للطاقة والإشارات بين المحرك ووحدة التحكم.
The 17 Stepper Motor Cable 4Pin XH2.54 to 6Pin PH2.0 is a dedicated motor connection cable designed to simplify the wiring of stepper motors and controller boards. It is commonly used with NEMA 17 stepper motors found in 3D printers, CNC machines, laser engravers, robotic systems, and other motion-control applications.

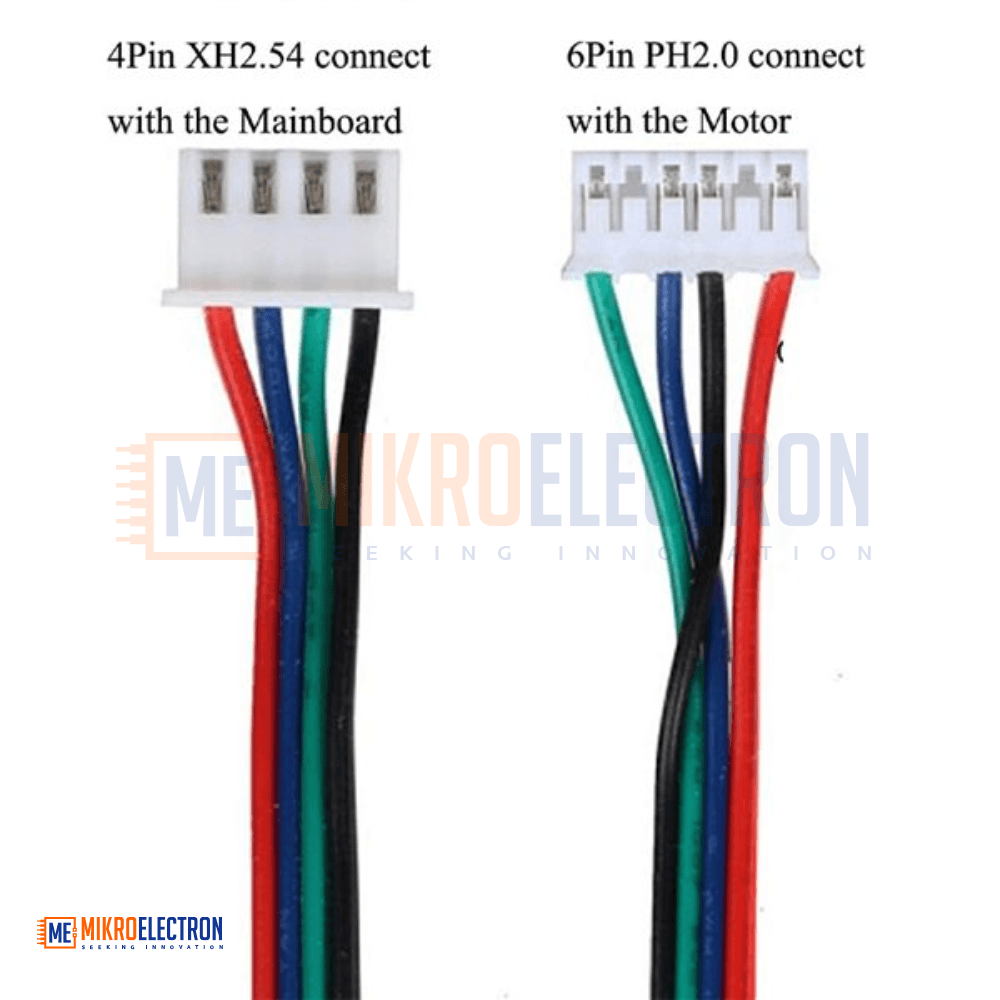

One end of the cable features a 4-pin XH2.54 connector intended for connection to the controller or mainboard, while the opposite end uses a 6-pin PH2.0 connector for direct motor connection. The pre-assembled design eliminates the need for manual crimping or custom wiring, reducing installation time and improving reliability.

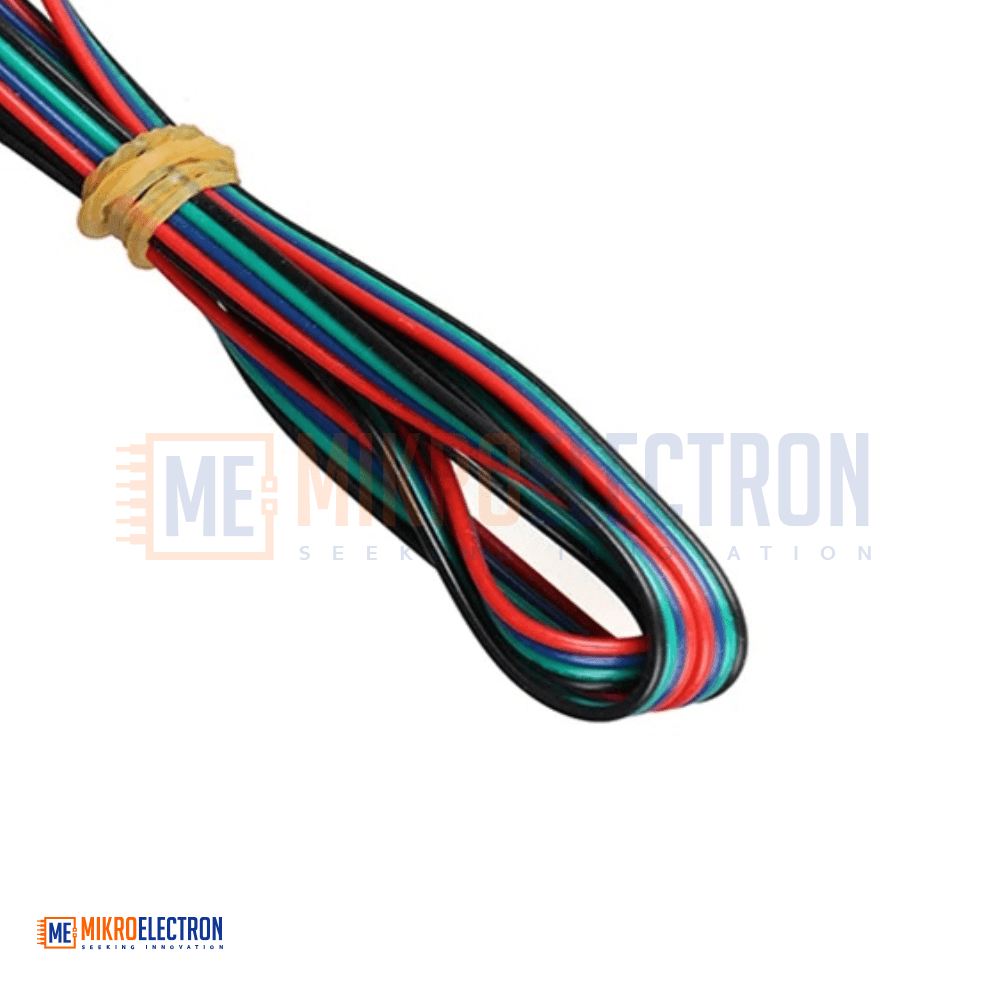

With a 1-meter cable length, the assembly provides sufficient reach for most machine layouts while maintaining neat cable management and dependable electrical connectivity.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 17 Stepper Motor Cable |
| Connector A | 4-Pin XH2.54 |
| Connector B | 6-Pin PH2.0 |
| Cable Length | 1 Meter |
| Application | Stepper Motor Connection |
| Compatible Motors | NEMA 17 and compatible stepper motors |
| Installation Type | Plug-and-Play Connection Cable |
| Signal Type | Motor Power and Control Signals |
Applications
- 3D printers
- CNC machines
- Laser engraving systems
- NEMA 17 stepper motor installations
- Robotics projects
- Automation equipment
- Motion control systems
- DIY electronics projects
- Industrial control systems
- Educational engineering projects
