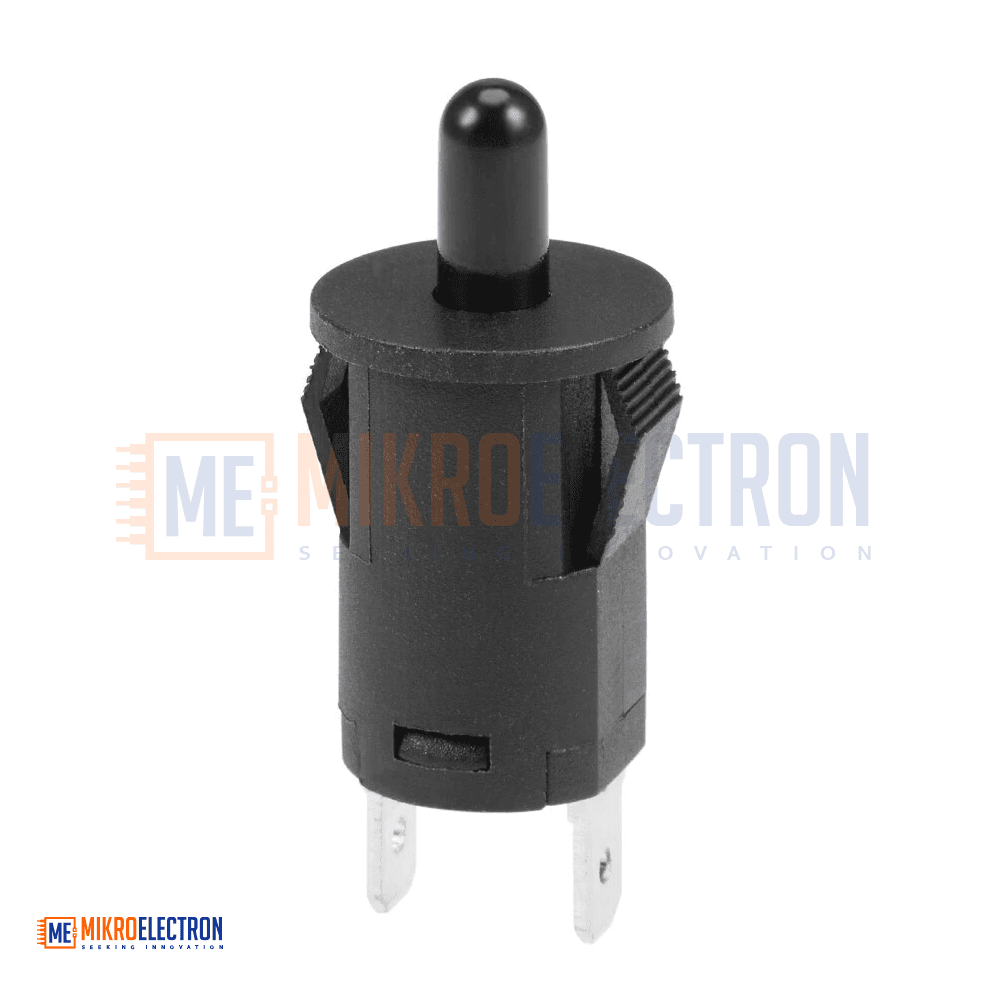

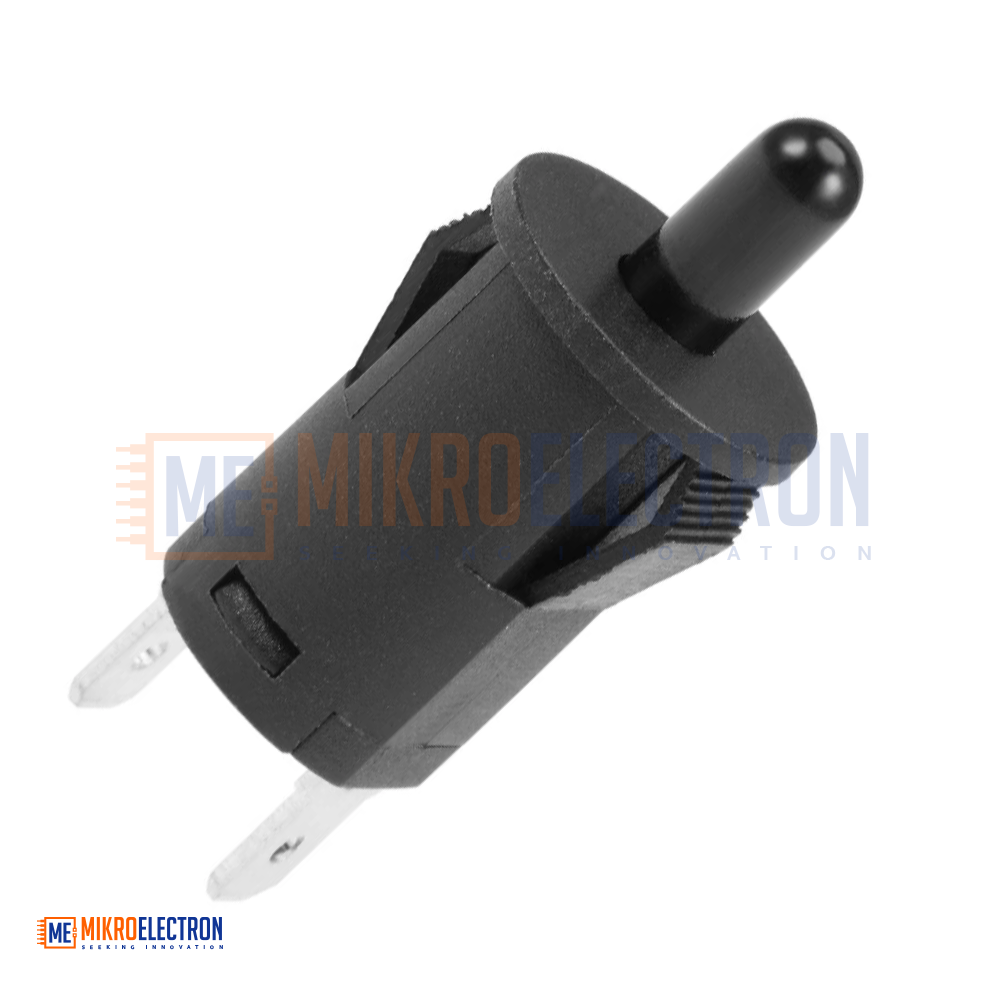

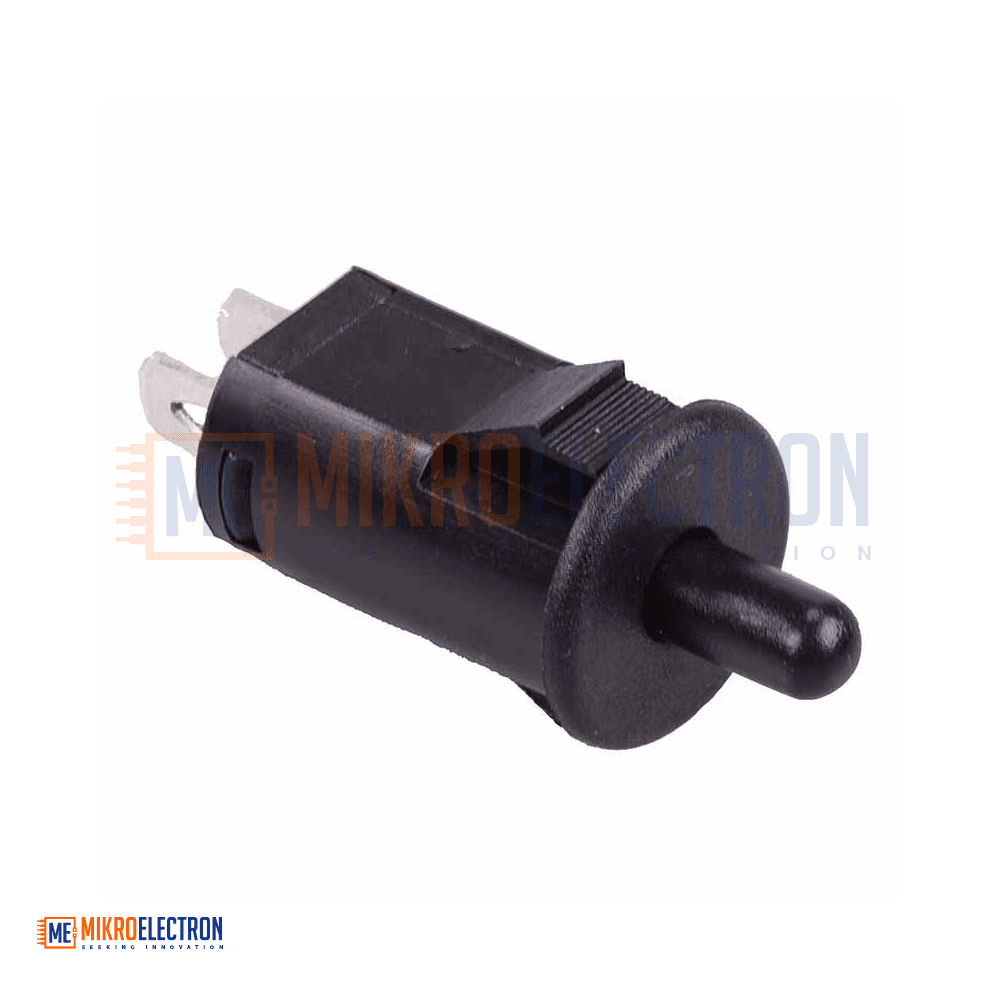

Limit Switch Push Button Switches (RL5-2-L1-)
The RL5-2-L1- Limit Switch Push Button is a reliable electromechanical switch designed for position detection, motion control, and safety monitoring in industrial and automation systems. It provides stable switching performance with a contact resistance of ≤20mΩ and insulation resistance of ≥100MΩ, ensuring dependable electrical operation. The switch is built to withstand demanding environments with an operating temperature range of -40°C to 125°C and a dielectric strength of 2000VAC. With a mechanical life of 10,000 cycles, it is suitable for machinery, control panels, robotics, automated equipment, and various industrial applications requiring accurate limit detection.
يعد مفتاح الحد الحركي RL5-2-L1- من المفاتيح الكهروميكانيكية الموثوقة المستخدمة في اكتشاف المواضع والتحكم بالحركة وأنظمة السلامة في التطبيقات الصناعية وأنظمة الأتمتة. يتميز بأداء كهربائي مستقر بفضل مقاومة تلامس لا تتجاوز 20 ملي أوم ومقاومة عزل لا تقل عن 100 ميجا أوم، مما يضمن تشغيلًا موثوقًا. صُمم للعمل في البيئات القاسية ضمن نطاق درجات حرارة يتراوح بين -40°C و125°C مع قدرة تحمل جهد تصل إلى 2000 فولت متردد. كما يوفر عمرًا تشغيليًا يصل إلى 10,000 دورة، مما يجعله مناسبًا للآلات الصناعية، الروبوتات، لوحات التحكم، وأنظمة التشغيل الآلي المختلفة.
The RL5-2-L1- Limit Switch Push Button is a compact and durable switching device designed to detect the presence, position, or movement of mechanical components within industrial and automated systems. It functions as a control and safety component by providing a reliable switching signal when actuated.
Engineered for demanding environments, the switch offers excellent electrical insulation, low contact resistance, and high dielectric strength. Its robust construction allows operation across a wide temperature range from -40°C to 125°C, making it suitable for indoor and outdoor applications exposed to varying environmental conditions.
With a rated mechanical life of 10,000 operating cycles, the RL5-2-L1- delivers dependable performance for machinery, automation equipment, robotic systems, conveyors, and industrial control systems where precise limit detection is required.

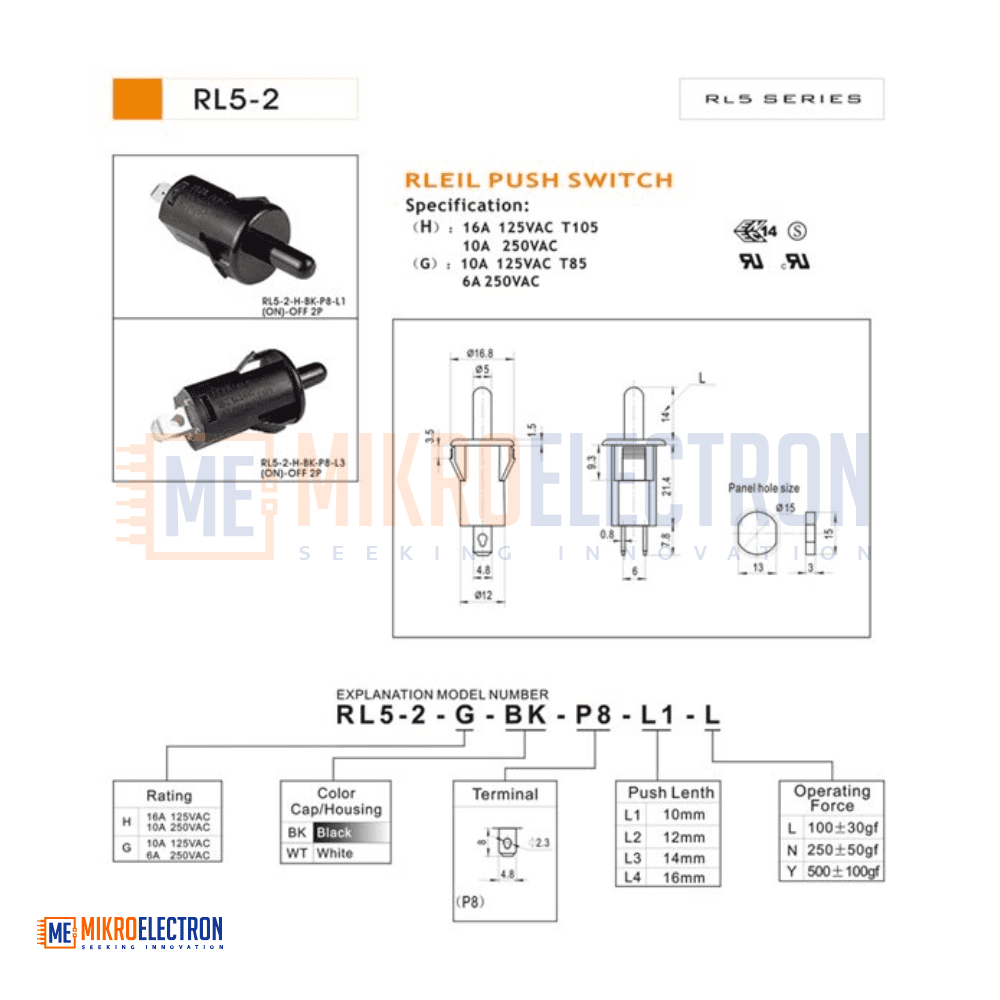

Specifications
| Parameter | Specification |
|---|---|
| Model | RL5-2-L1- |
| Product Type | Limit Switch Push Button |
| Contact Resistance | ≤ 20mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Withstand Voltage | 2000VAC |
| Operating Temperature Range | -40°C to 125°C |
| Environmental Temperature | -40°C to 125°C |
| Environmental Humidity | 45% to 95% RH |
| Mechanical Lifetime | 10,000 Cycles |
Applications
- Industrial automation systems
- Factory machinery and equipment
- Position and travel limit detection
- Robotic systems
- Conveyor control systems
- Safety interlock mechanisms
- Control panels and switch cabinets
- Packaging and processing machines
- Material handling equipment
- Motion control applications
