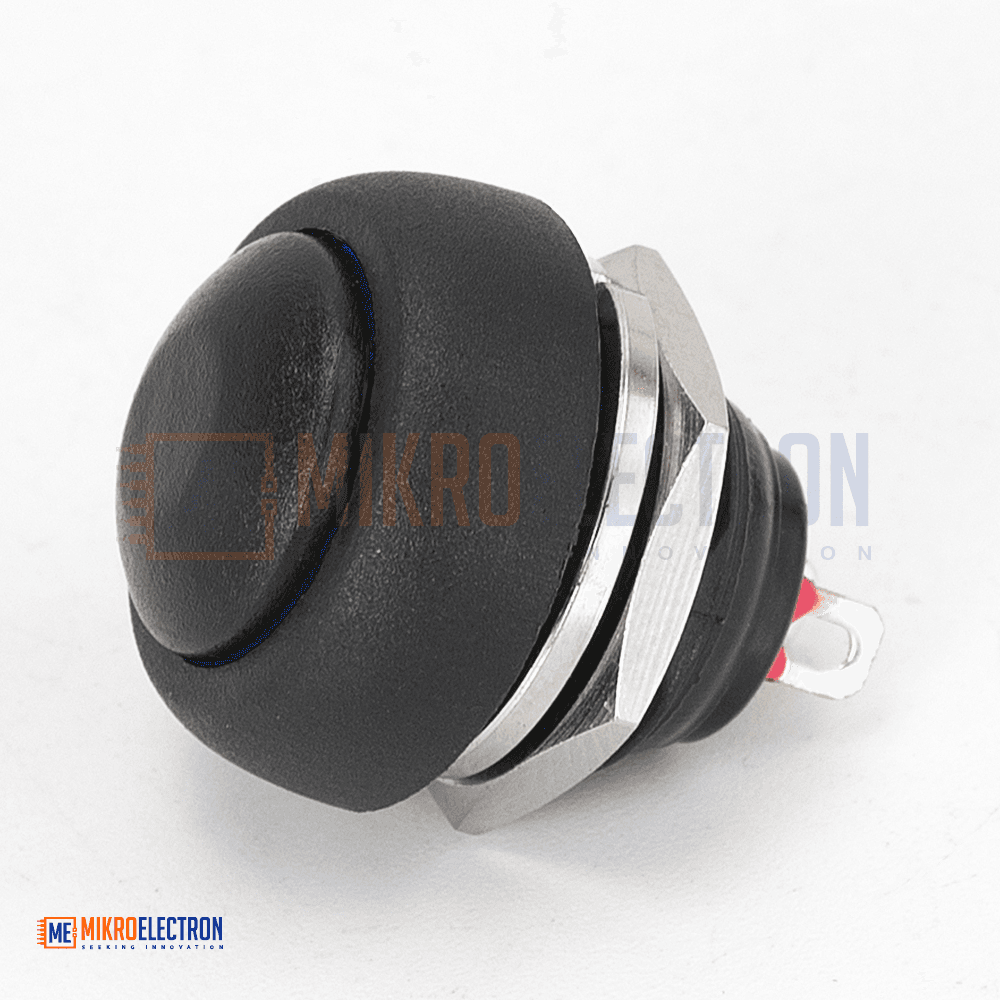

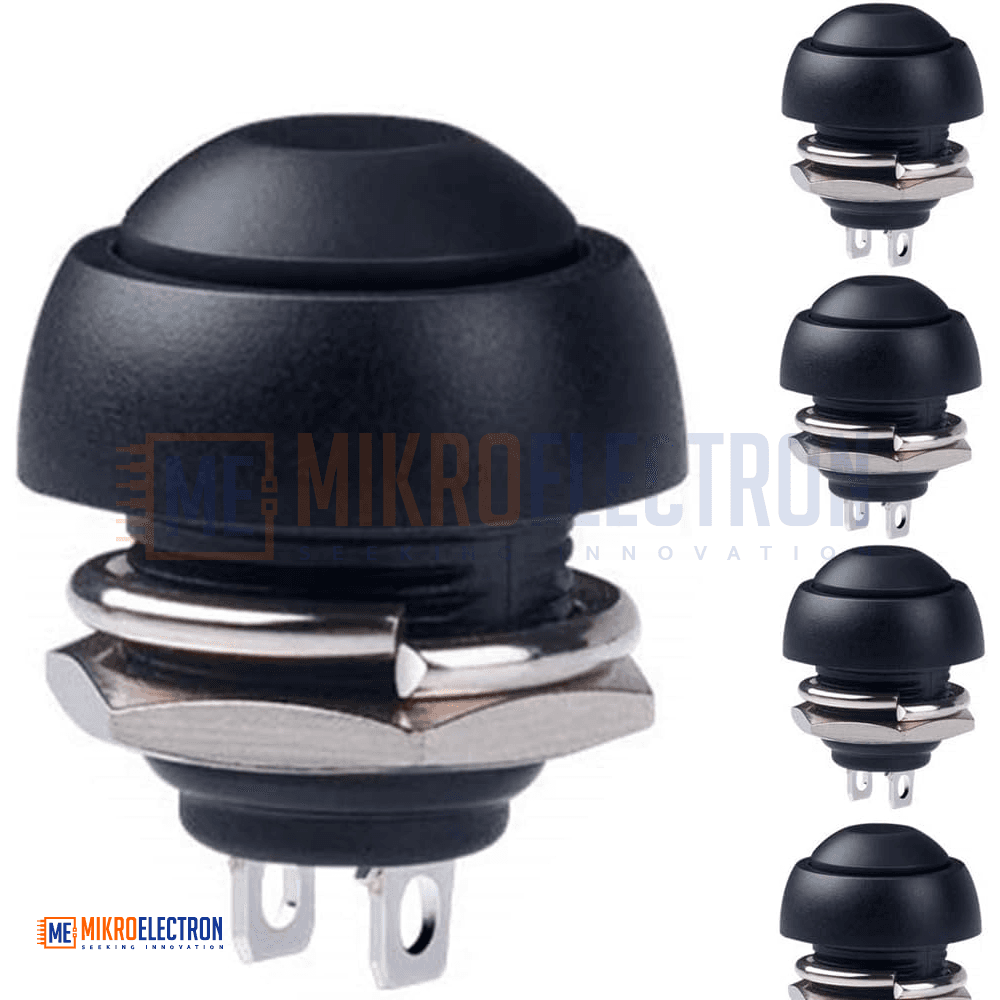

Push Button Waterproof Self-Reset Switch Round Lockless PBS-33B 12mm

The PBS-33B Waterproof Push Button Switch is a high-quality self-reset momentary switch designed for electronic control systems and industrial applications. The switch operates using a Push-to-ON (OFF-ON) mechanism, automatically returning to its original state after release.

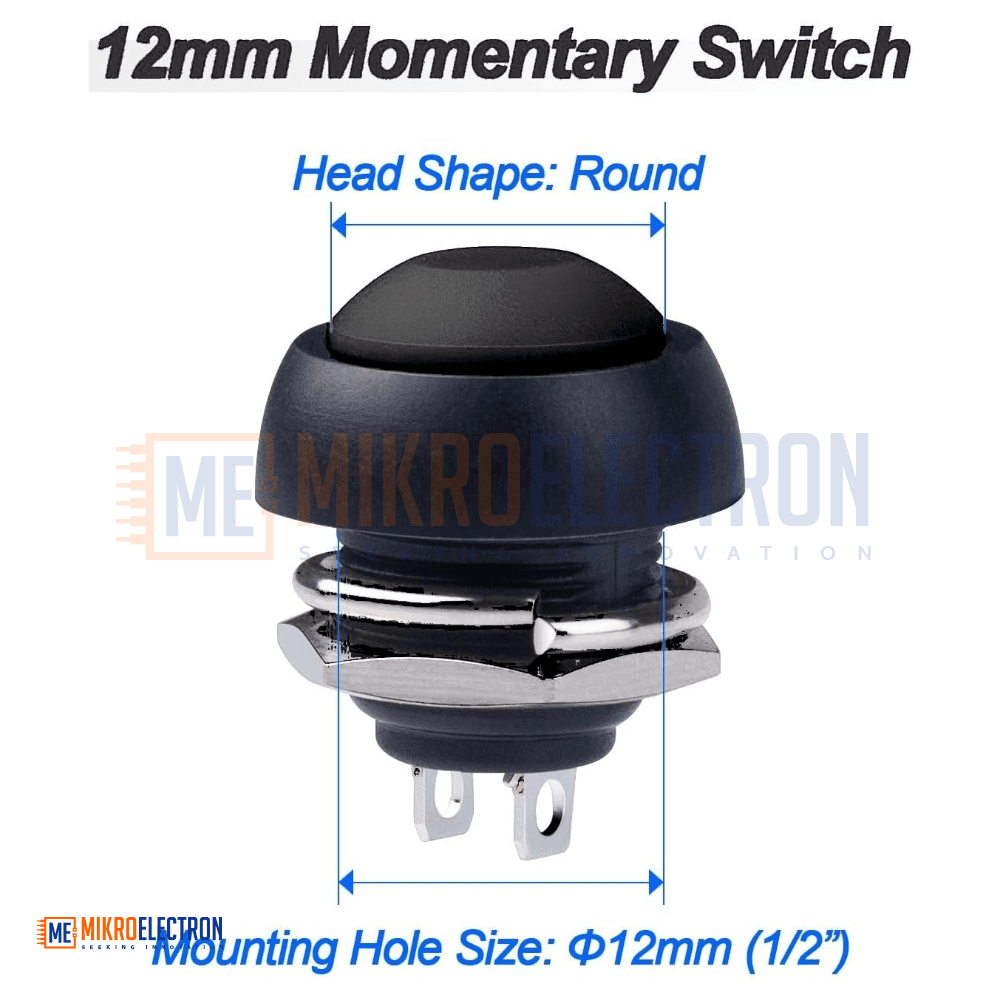

Its 12mm mounting hole size allows easy installation on control panels, electronic enclosures, and equipment housings. The waterproof construction enhances durability and reliability in environments exposed to moisture, dust, and frequent usage.

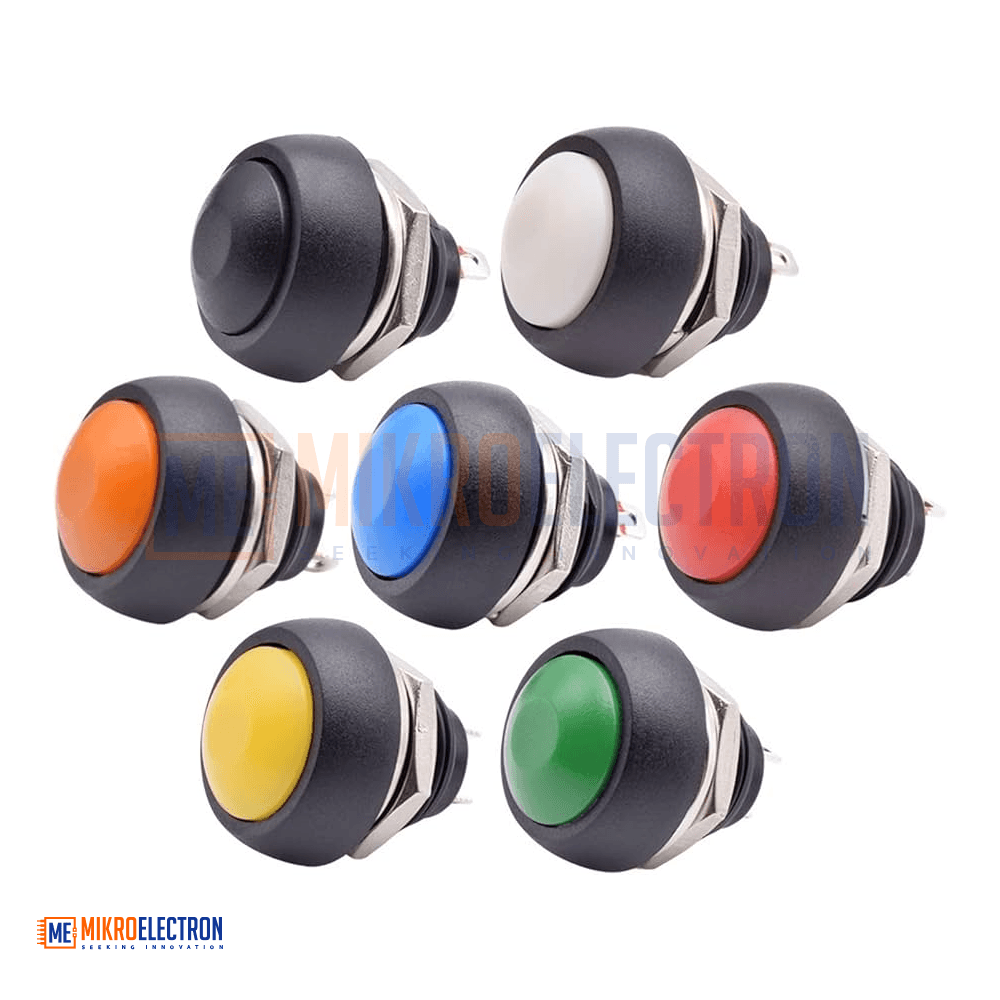

The switch is available in multiple colors including red, yellow, green, blue, white, and black, making it suitable for color-coded control systems and user interfaces.

Built for long-lasting performance, the PBS-33B supports more than 10,000 operating cycles and provides stable electrical conductivity with low contact resistance.

Specifications

• Model: PBS-33B
• Switch Type: Waterproof Push Button Switch
• Operation Type: Momentary Self-Reset (OFF-ON)

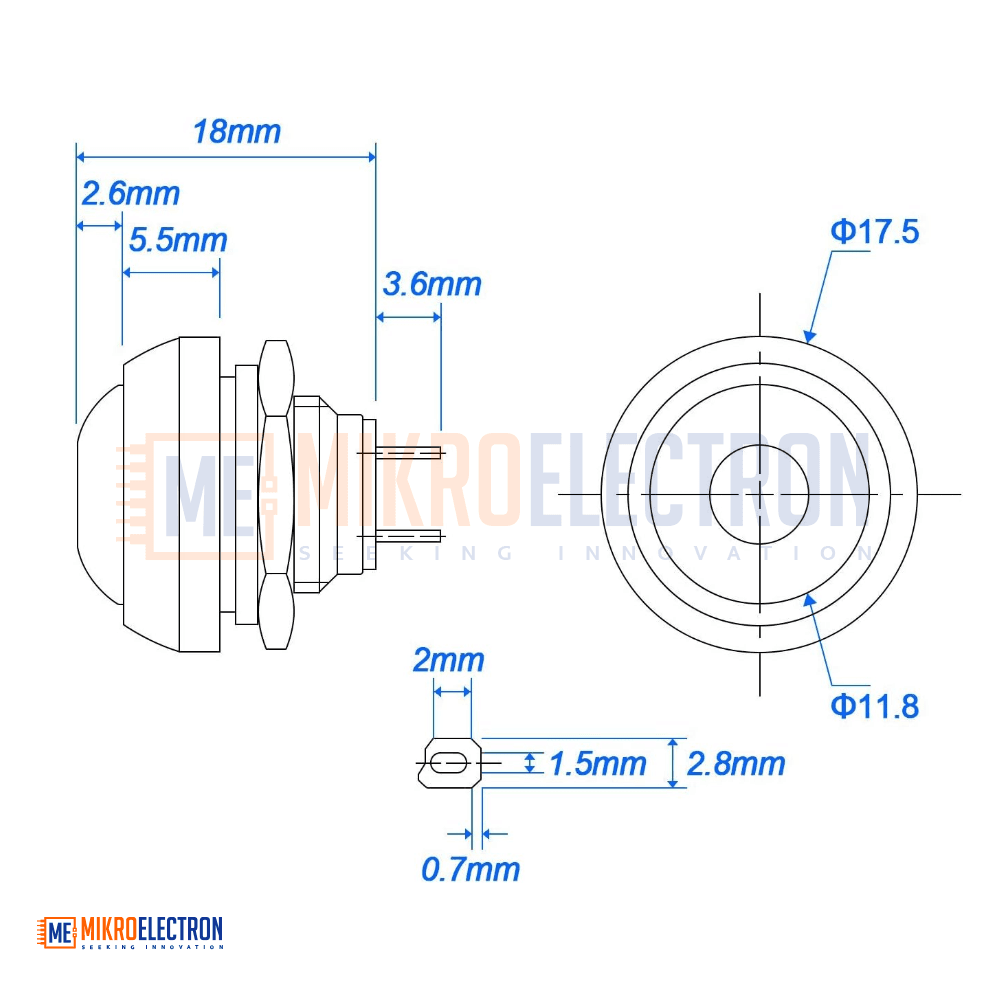

• Mounting Hole Size: 12 mm
• Contact Type: NO (Normally Open)
• Rated Voltage: 125V 3A / 250VAC 1A
• Dielectric Strength: 1500VAC / 1 Minute
• Mechanical Life: More than 10,000 Cycles
• Operating Temperature: -25°C to +85°C
• Contact Resistance: < 50mΩ
• Insulation Resistance: > 100MΩ
• Available Colors: Red, Yellow, Green, Blue, White, Black

Applications

• Industrial control panels
• Electronic equipment
• DIY electronics projects
• Automotive control systems
• Machinery control buttons
• Arduino and microcontroller projects
• Automation systems
• Power and function control circuits
