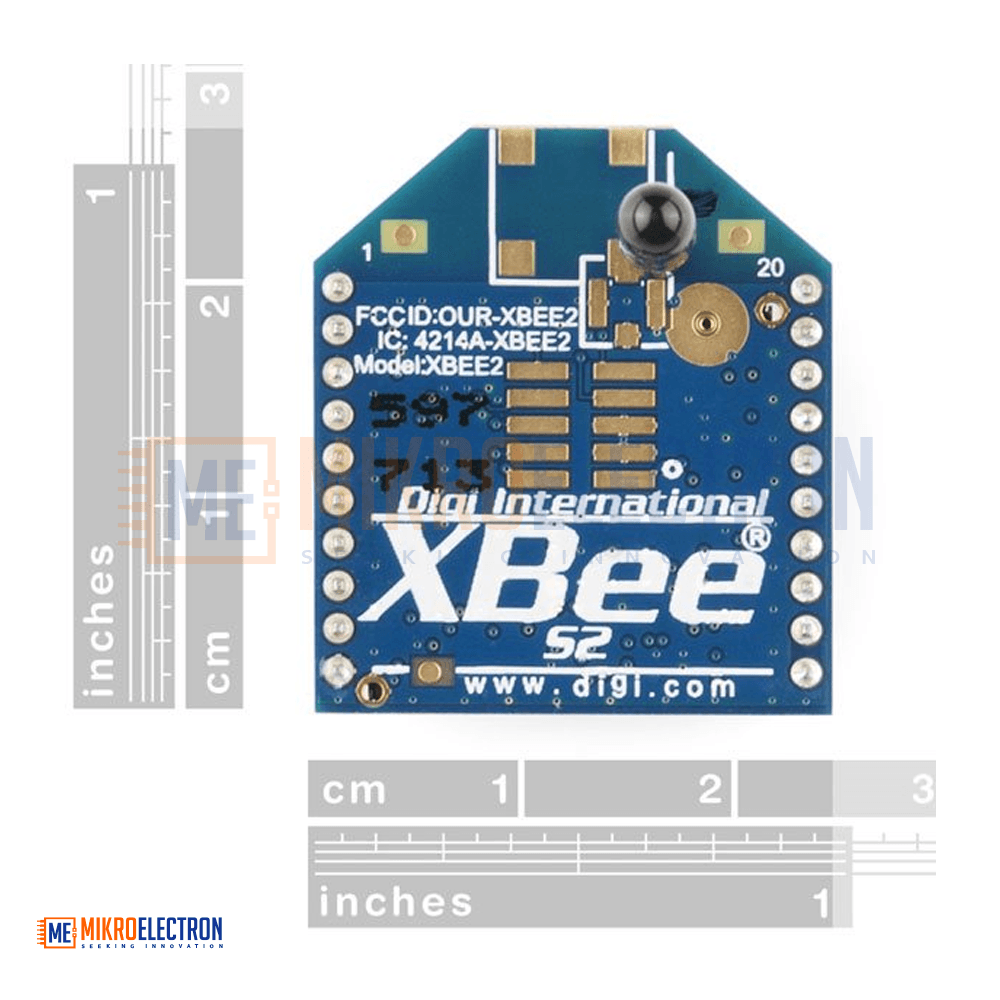

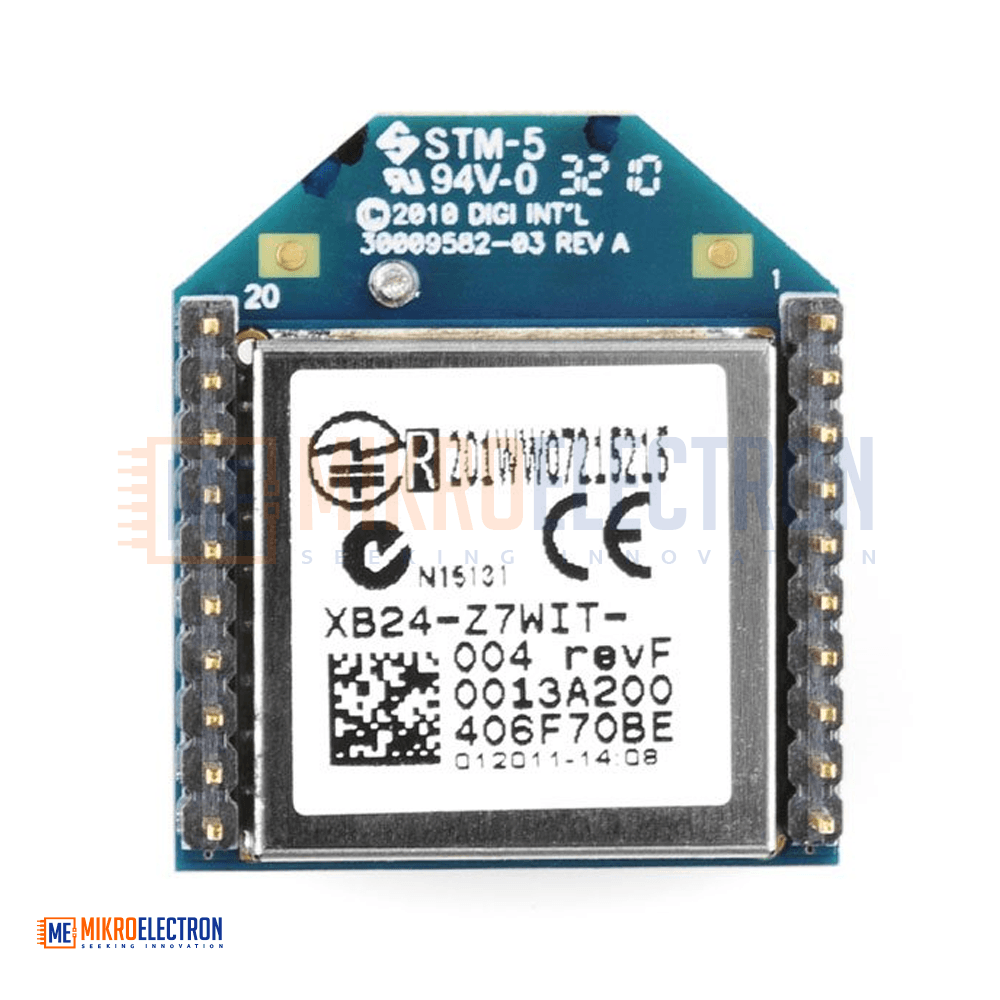

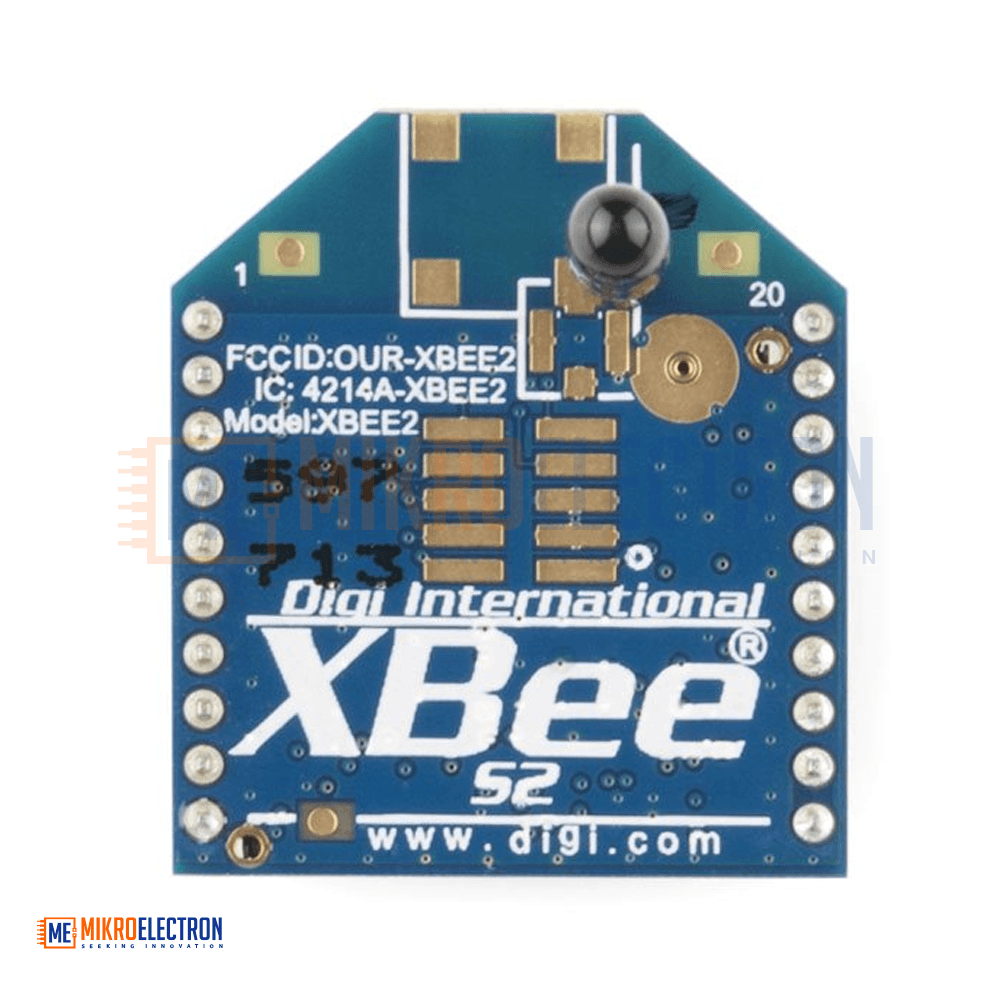

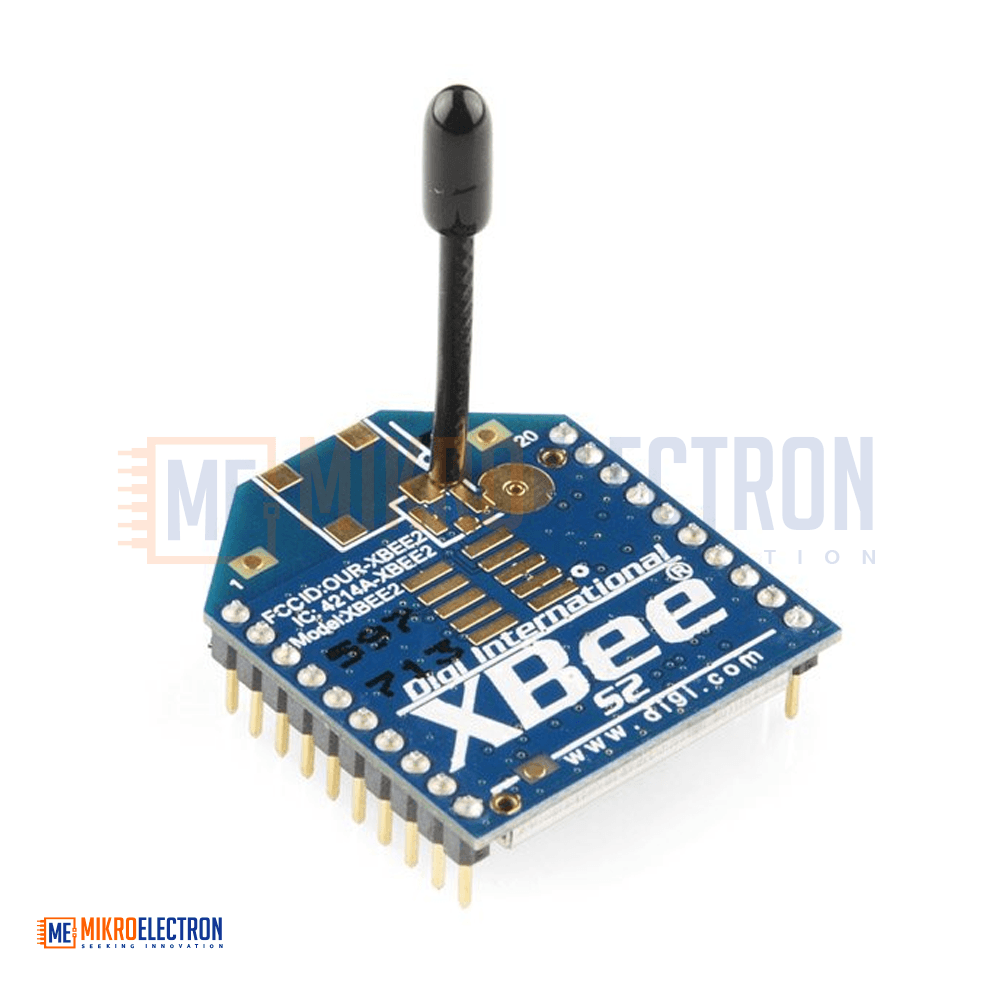

XBee 2mW S2 Wire Antenna - (ZigBee Mesh)
Out Of Stock
The XBee 2mW S2 Wire Antenna Module is a compact wireless communication solution based on the ZigBee mesh networking protocol. Designed for reliable low-power data transmission, it enables seamless communication between microcontrollers, computers, sensors, and embedded systems. Featuring Series 2 ZigBee firmware, the module supports advanced mesh networking capabilities, allowing devices to automatically route data through multiple nodes for improved network coverage and reliability. With a built-in wire antenna, 250kbps data rate, and support for secure encrypted communication, the XBee S2 is ideal for wireless sensor networks, industrial monitoring, home automation, and IoT applications.
تُعد وحدة XBee 2mW S2 المزودة بهوائي سلكي حلاً لاسلكيًا متطورًا يعتمد على بروتوكول ZigBee لإنشاء شبكات اتصال موثوقة ومنخفضة استهلاك الطاقة. تتيح الوحدة التواصل السلس بين المتحكمات الدقيقة وأجهزة الاستشعار والحواسيب والأنظمة المدمجة عبر شبكات Mesh الذكية. تدعم تقنية التوجيه التلقائي للبيانات بين العقد المختلفة، مما يزيد من مدى التغطية وموثوقية الاتصال. تتميز بمعدل نقل بيانات يصل إلى 250 كيلوبت في الثانية، ودعم التشفير الآمن، وهوائي مدمج، وإمكانيات إدخال وإخراج متعددة. تعد خيارًا مثاليًا لتطبيقات إنترنت الأشياء، والمنازل الذكية، والمراقبة الصناعية، وشبكات الاستشعار اللاسلكية.
The XBee XB24-Z7WIT-004 Series 2 Wireless Module from Digi is a powerful ZigBee-based communication module designed for creating reliable and scalable wireless mesh networks. Utilizing ZigBee Mesh firmware, the module allows devices to communicate through point-to-point, point-to-multipoint, and mesh network topologies.
Series 2 XBee modules provide advanced routing capabilities, enabling data packets to automatically find the most efficient communication path across a network. This significantly improves network reliability and coverage compared to traditional point-to-point wireless systems.
The module features a built-in wire antenna, low power consumption, and secure 128-bit encryption for protected wireless communication. It supports both local and over-the-air configuration, making deployment and maintenance simple even in large-scale installations.
With multiple digital I/O lines and analog inputs, the XBee S2 can function not only as a communication device but also as a remote monitoring and control node. It is widely used in wireless sensor networks, industrial automation, smart agriculture, home automation, robotics, and Internet of Things (IoT) systems.
Specifications
Model: XB24-Z7WIT-004
Series: XBee Series 2 (S2)
Network Protocol: ZigBee Mesh
Operating Voltage: 3.3V DC
Current Consumption: 40mA
RF Output Power: 2mW (+3dBm)
Maximum Data Rate: 250kbps
Communication Range: Up to 400ft (120m)
Antenna Type: Integrated Wire Antenna
Security: 128-bit Encryption
Analog Inputs: 6 × 10-bit ADC Channels
Digital I/O Pins: 8
Configuration Methods:
- Local Configuration
- Over-the-Air Configuration
Command Modes:
- AT Command Set
- API Command Set
Certification: Fully FCC Certified
Applications
- ZigBee mesh networking
- Wireless sensor networks
- Smart home automation
- Industrial automation systems
- Remote monitoring and control
- Internet of Things (IoT) projects
- Smart agriculture systems
- Environmental monitoring
- Building automation
- Energy management systems
- Robotics communication networks
- Embedded wireless communication projects
