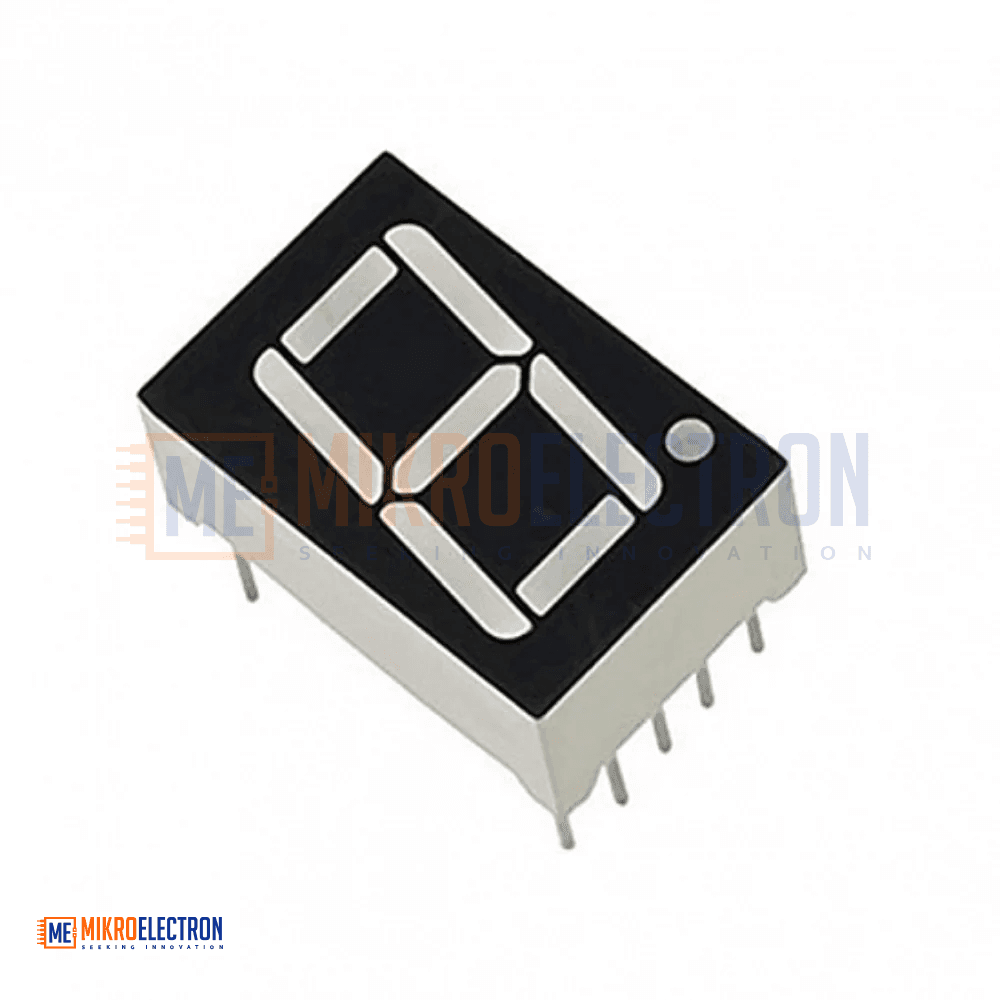

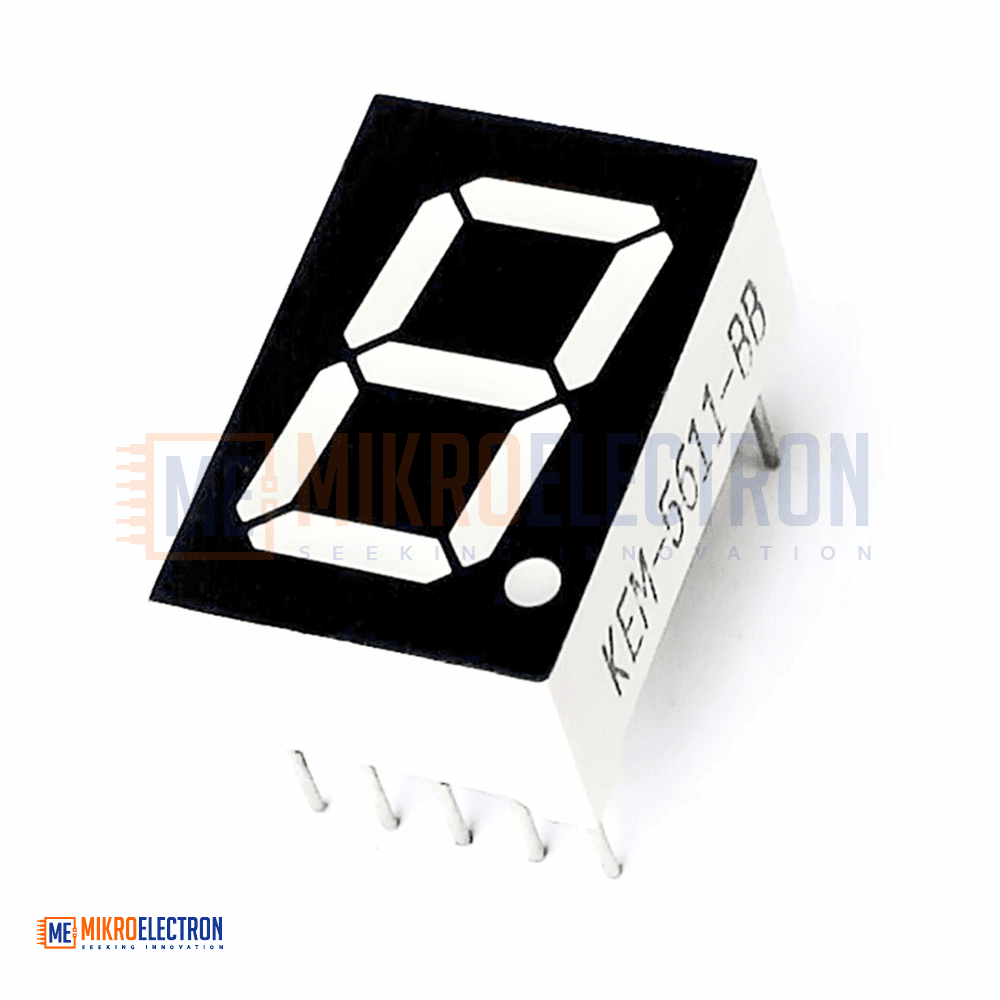

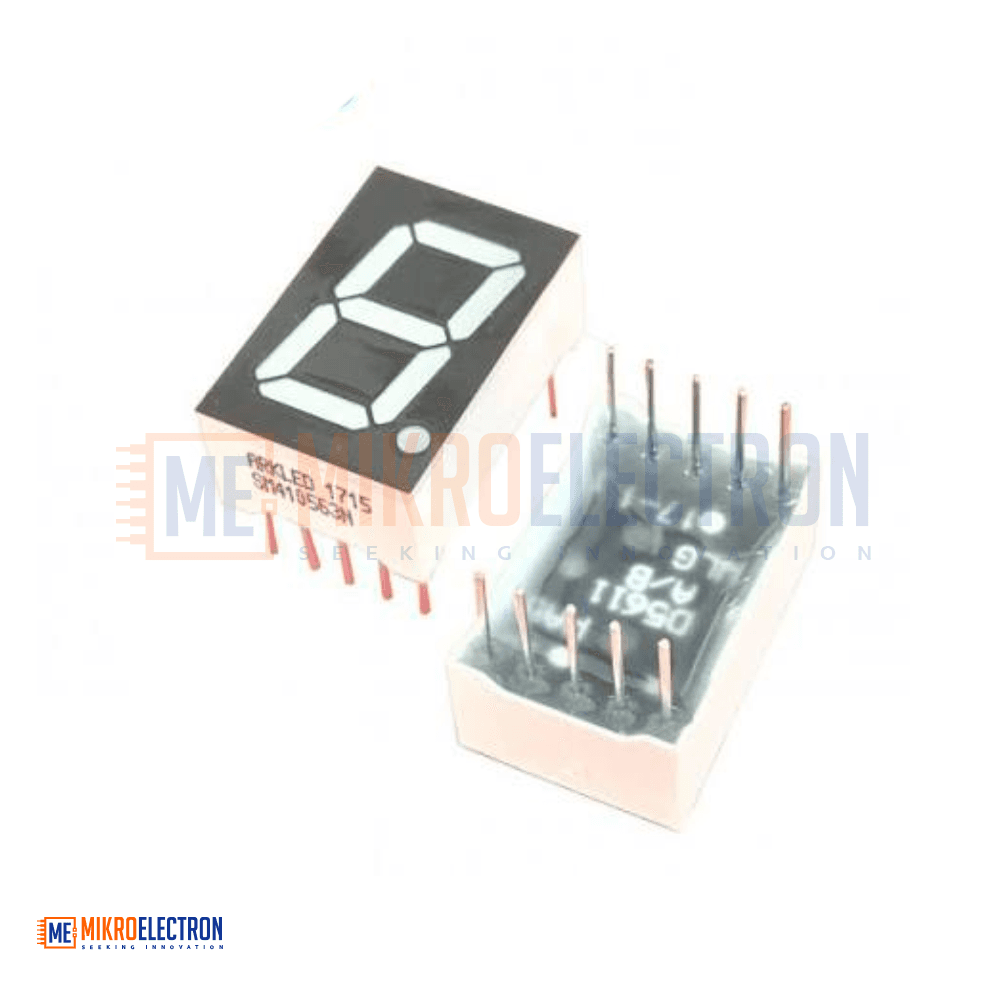

7 SEGMENT 1DIGIT SMALL 0.36 inch C.A

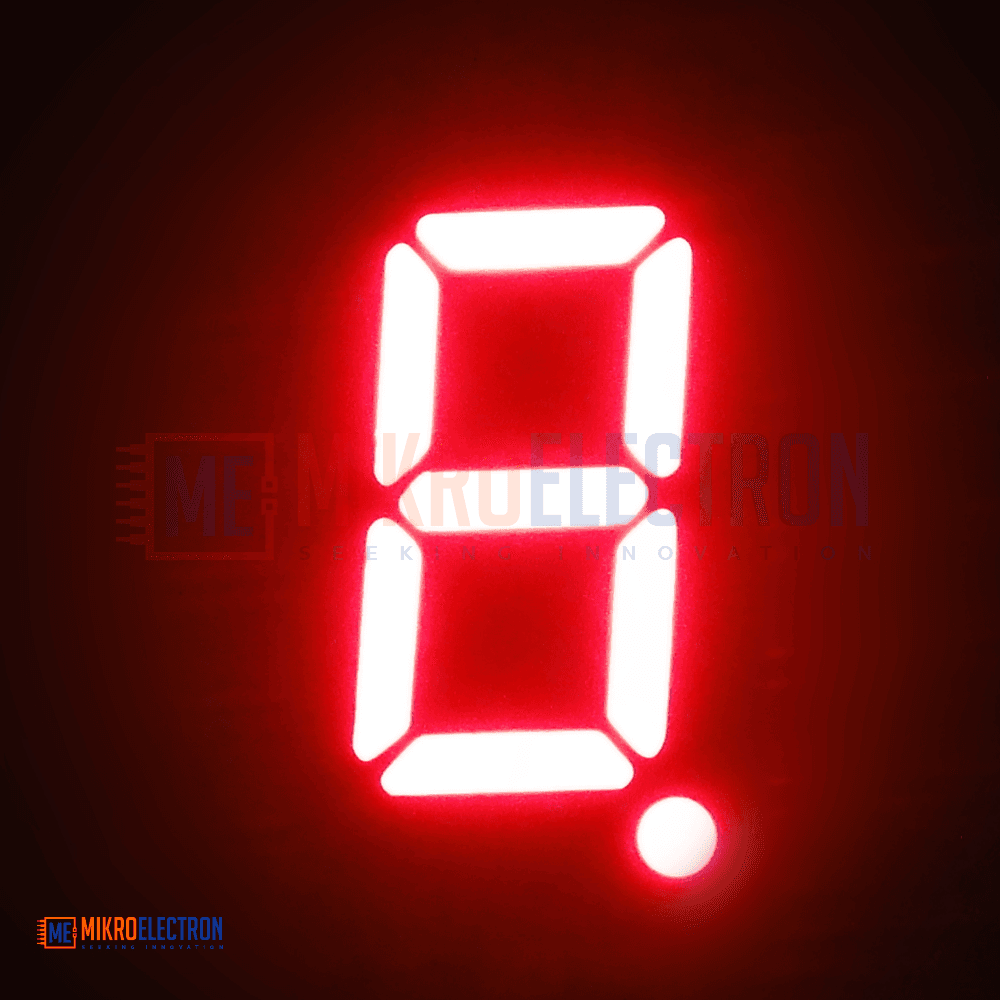

7 Segment 1 Digit Small 0.36-inch Common Anode Display is a compact LED numeric display used to show digits from 0 to 9 and selected characters in electronic projects. The display consists of seven individual LED segments arranged in a figure-eight pattern, plus an optional decimal point. Its Common Anode (C.A.) configuration means all LED anodes are internally connected and controlled by grounding the required segment pins. With its small size and low power consumption, this display is widely used in digital clocks, counters, measuring instruments, calculators, embedded systems, educational projects, and microcontroller-based applications.
شاشة 7 Segment رقم واحد بحجم 0.36 بوصة من نوع Common Anode هي شاشة LED صغيرة الحجم تستخدم لعرض الأرقام من 0 إلى 9 وبعض الأحرف البسيطة في المشاريع الإلكترونية. تتكون من سبعة أجزاء ضوئية مرتبة على شكل الرقم 8 بالإضافة إلى نقطة عشرية اختيارية. في تصميم Common Anode (الأنود المشترك) تكون جميع الأنودات متصلة داخلياً معاً ويتم تشغيل كل جزء من خلال توصيل الطرف المقابل بالأرضي. تتميز بحجمها الصغير واستهلاكها المنخفض للطاقة، وتستخدم بشكل واسع في الساعات الرقمية والعدادات وأجهزة القياس والمشاريع التعليمية وأنظمة المتحكمات الدقيقة.
7 Segment 1 Digit Small 0.36-inch Common Anode Display is a single-digit LED display module designed for numerical indication and basic alphanumeric representation. It contains seven LED segments labeled A through G, arranged to form numeric digits by selectively illuminating specific segments. Many versions also include a decimal point (DP) for displaying decimal values.
The display uses a Common Anode configuration, where all LED anodes are connected together internally. To illuminate a segment, the corresponding cathode pin must be driven LOW while the common anode is connected to a positive voltage supply through an appropriate current-limiting resistor.
Its compact 0.36-inch digit height makes it suitable for applications where board space is limited while maintaining good visibility. The display can be directly interfaced with microcontrollers, driver ICs, counters, timers, and digital measurement systems.
Due to its simple operation, low cost, and high reliability, the 7-segment display remains one of the most commonly used visual output devices in electronics.
Specifications
Display Type
- 7-Segment LED Display
- Single Digit
Configuration
- Common Anode (C.A.)
Digit Height
- 0.36 inch (approximately 9.14 mm)
Display Color
- Depends on model:
- Red
- Green
- Yellow
- Blue
- White
Number of Segments
- 7 LED Segments
- 1 Decimal Point (DP)
Operating Voltage
- Typically 1.8V – 2.2V per LED segment (Red)
- Varies according to LED color
Operating Current
- Typically 10–20 mA per segment
Viewing Angle
- Wide viewing angle for easy readability
Mounting Type
- Through-hole (DIP)

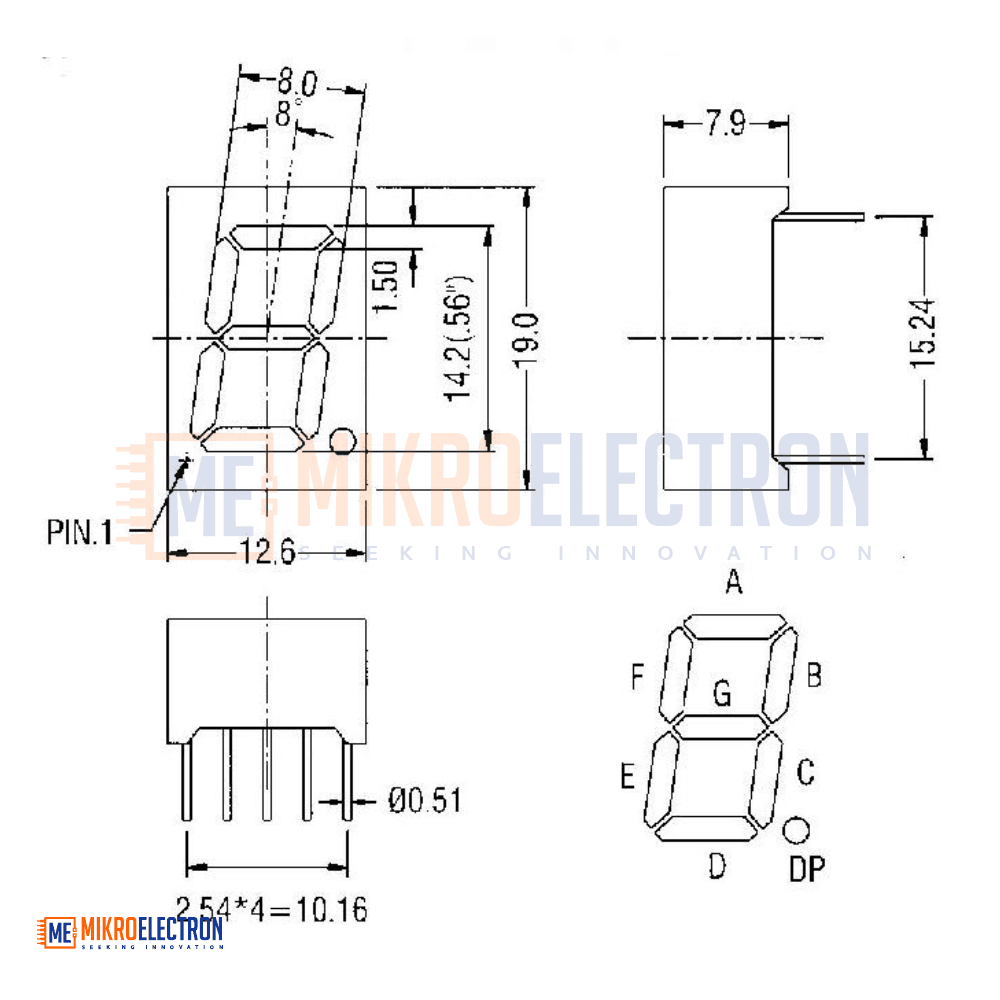

Pin Configuration
- Segment Pins:
- A
- B
- C
- D
- E
- F
- G
- DP
- Common Anode Pins
Power Consumption
- Low power LED technology
Applications
Digital Clocks
- Time display systems
- Alarm clocks
Counters
- Event counters
- Production counters
- Object counting systems
Measurement Instruments
- Voltmeters
- Ammeters
- Frequency counters
- Temperature displays
Educational Projects
- Arduino projects
- Microcontroller training
- Electronics learning kits
Consumer Electronics
- Calculators
- Kitchen appliances
- Control panels
Industrial Equipment
- Process indicators
- Machine status displays
- Digital control systems
Embedded Systems
- Numeric user interfaces
- Status displays
- Diagnostic indicators
