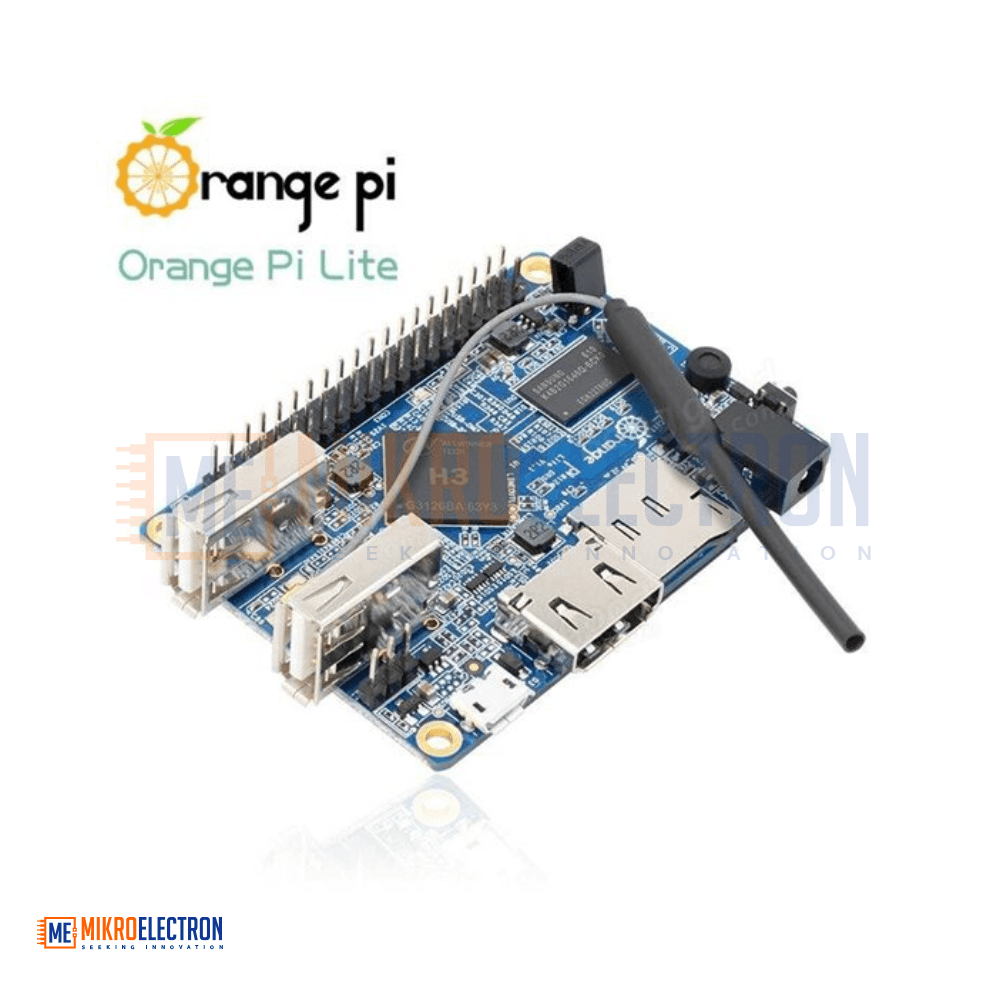

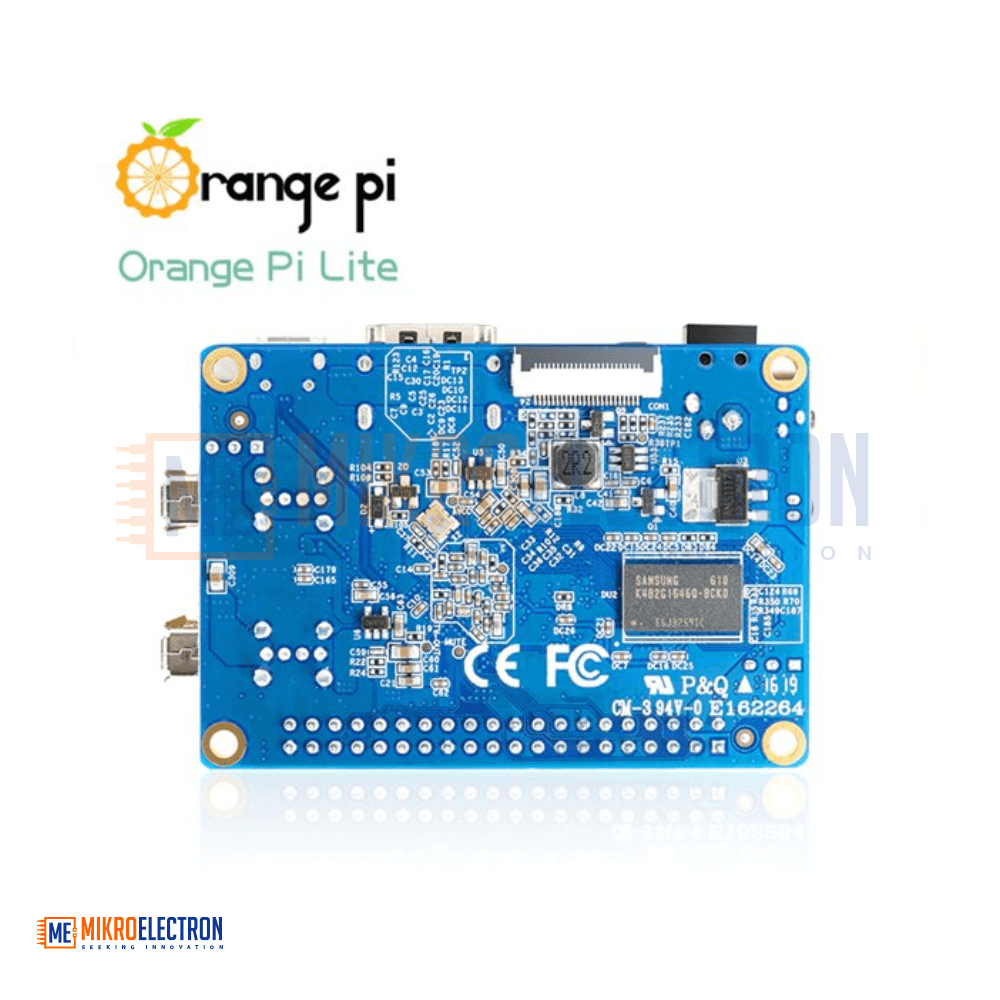

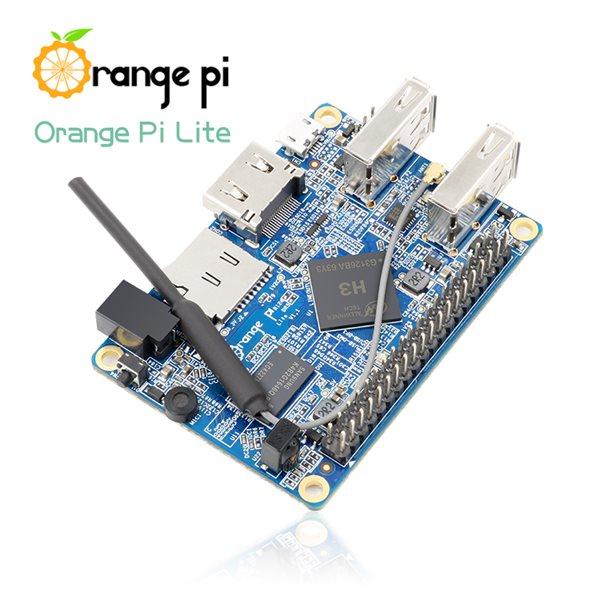

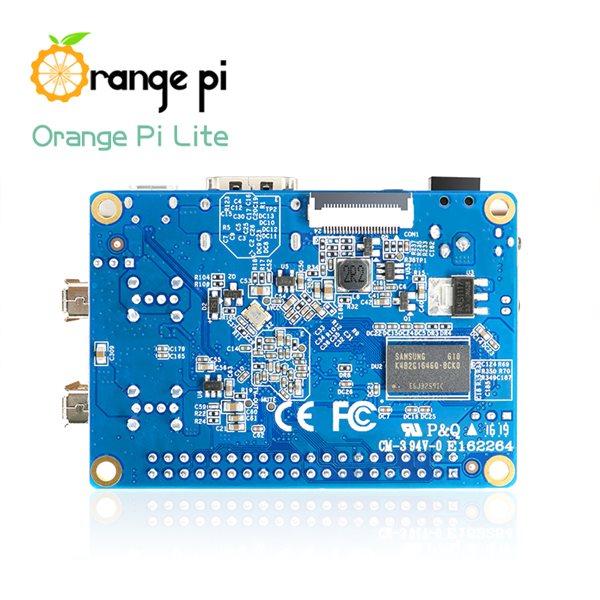

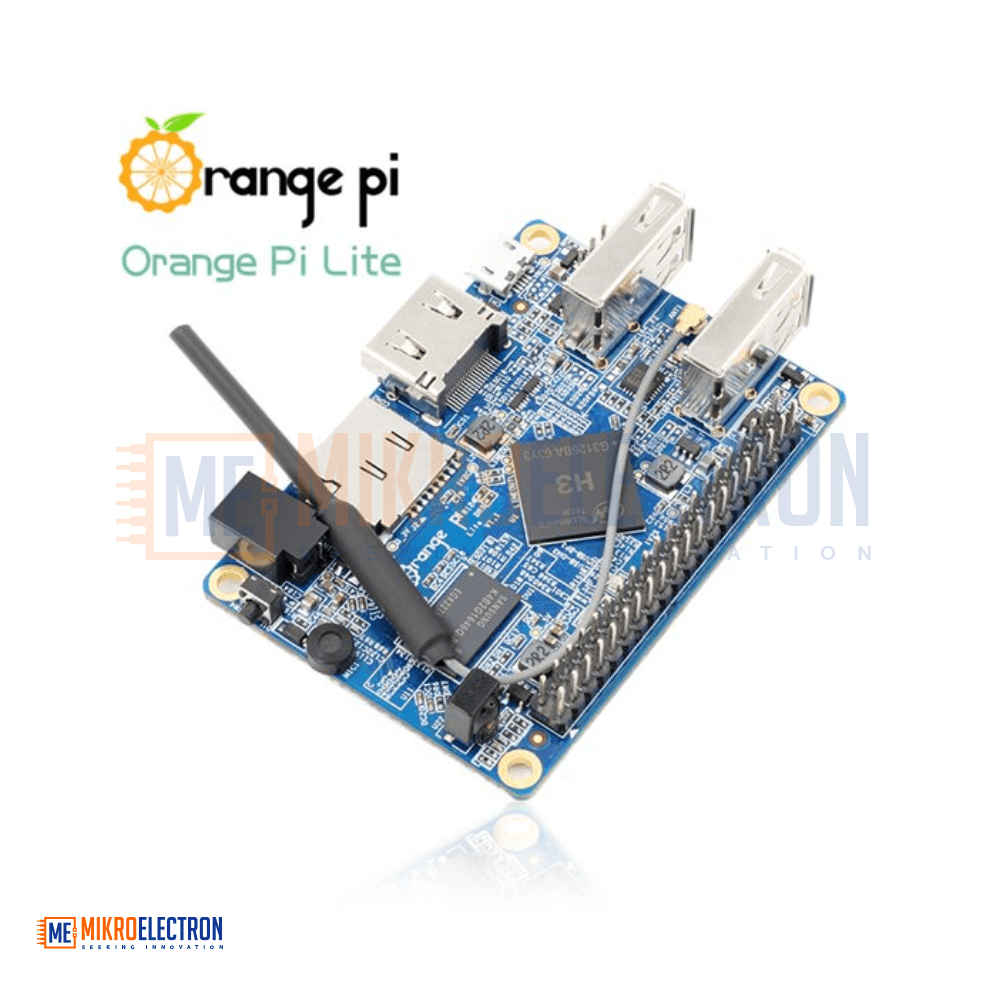

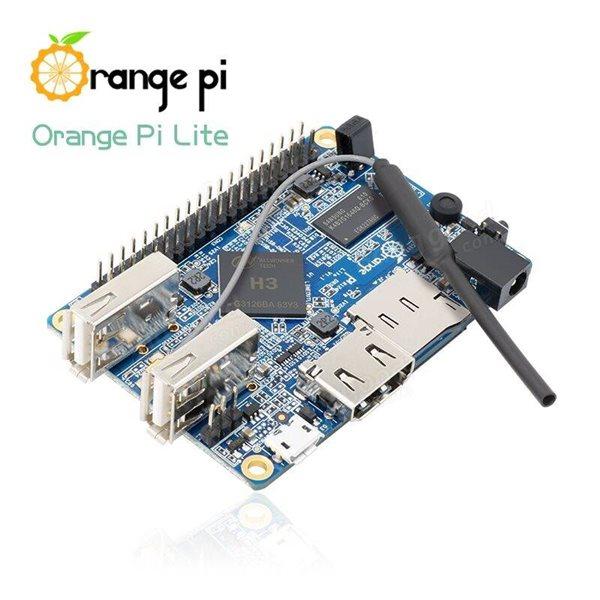

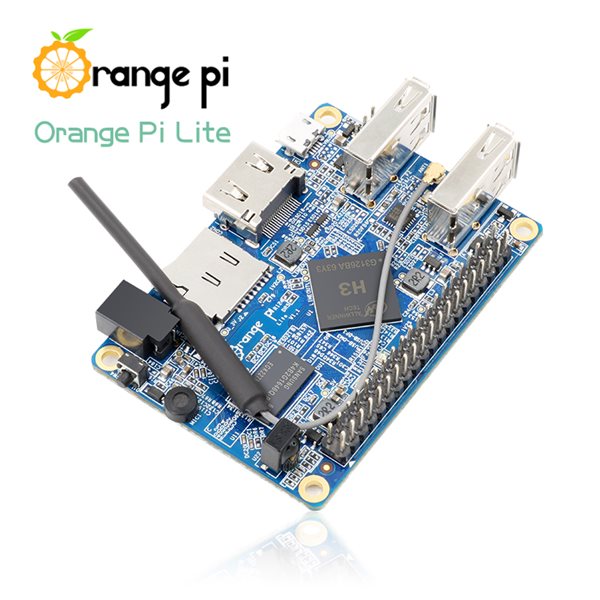

Orange Pi Lite

Orange Pi Lite is a versatile open-source single-board computer developed for educational, development, multimedia, and Internet of Things (IoT) applications. Despite its compact size, it provides a powerful computing platform capable of running Linux-based operating systems and Android.

The board is powered by the AllWinner H3 Quad-Core Cortex-A7 processor, enabling smooth execution of general-purpose computing tasks, network applications, media playback, and embedded projects. The integrated Mali400MP2 GPU supports hardware-accelerated graphics and video processing, including H.265/HEVC video decoding up to 4K resolution.

Built-in Wi-Fi connectivity eliminates the need for external wireless adapters, making the board ideal for wireless networking projects, smart home systems, and remote monitoring applications. The inclusion of a 40-pin GPIO header allows developers to connect sensors, motors, displays, and various electronic modules.

With support for Android, Ubuntu, Debian, and Raspberry Pi compatible images, Orange Pi Lite offers flexibility for both beginners and advanced users. Its compact dimensions and low power consumption make it suitable for portable and embedded systems.

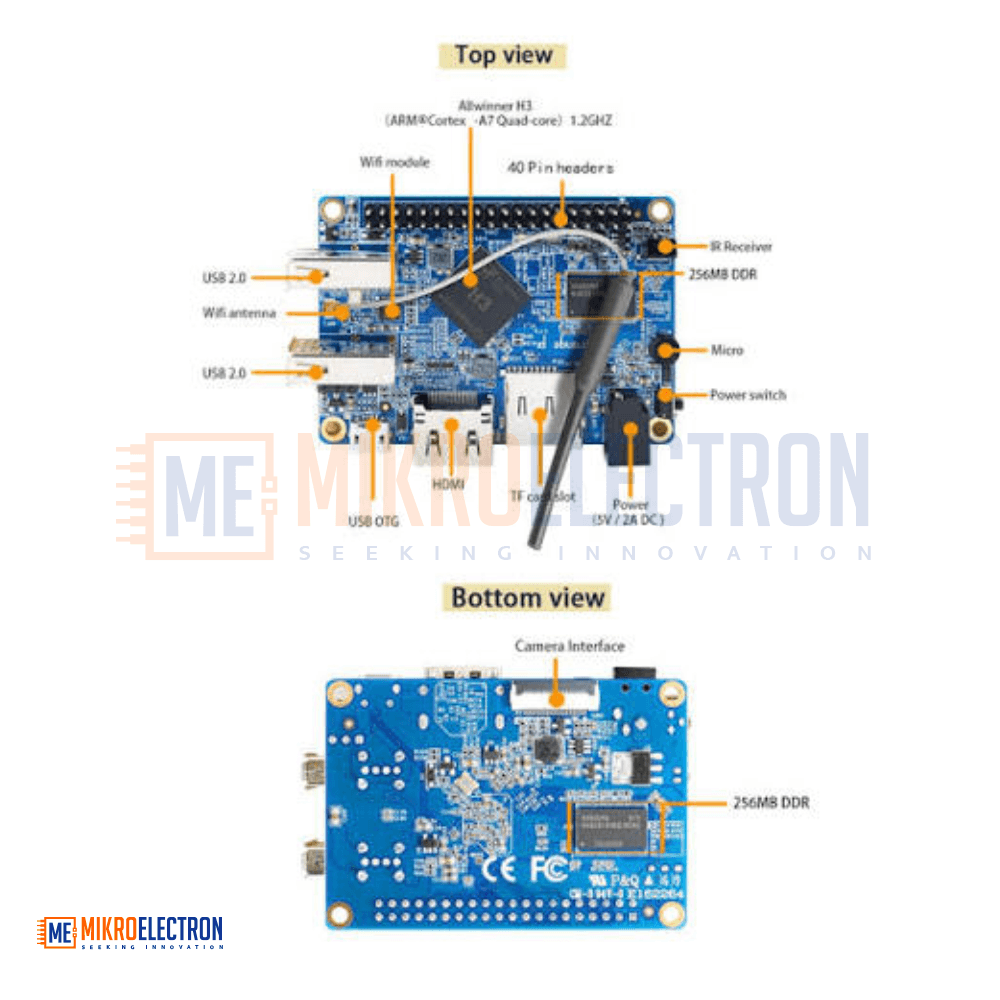

Specifications

Processor

• CPU: AllWinner H3
• Architecture: Quad-Core ARM Cortex-A7
• Video Decoding: H.265/HEVC 4K Support

Graphics

• GPU: Mali400MP2
• GPU Frequency: 600 MHz
• Graphics API: OpenGL ES 2.0

Memory

• RAM: 512MB DDR3 SDRAM
• Shared between CPU and GPU

Storage

• MicroSD (TF) Card Slot
• Supports cards up to 64GB

Wireless Connectivity

• Built-in Wi-Fi
• External Wi-Fi antenna support

Video Input

• CSI Camera Connector
• Supports:
  • 8-bit YUV422 CMOS sensors
  • CCIR656 protocol
  • NTSC and PAL standards
  • Video capture up to 1080p @ 30fps

Audio Input

• Microphone (MIC)

Video Output

• HDMI Output
• HDCP Support
• HDMI CEC Support

Audio Output

• Audio through HDMI

USB Ports

• 2 × USB 2.0 Host
• 1 × USB 2.0 OTG

Power

• DC Power Input
• USB OTG does not provide power input

Expansion Interfaces

• 40-Pin GPIO Header
• Raspberry Pi B+ compatible
• UART Interface
• Ground Pins

Indicators and Controls

• Power LED
• Status LED
• Power Button

Operating Systems

• Android
• Ubuntu
• Debian
• Raspberry Pi Images

Physical Characteristics

• Dimensions: 69 mm × 48 mm
• Weight: 60 g

Applications

Education and Learning

• Programming education
• Linux learning platform
• Electronics and embedded systems training

Internet of Things (IoT)

• Smart home controllers
• Sensor monitoring systems
• Remote data collection devices

Home Server

• File server
• Web server
• Media server
• Network storage applications

Multimedia

• HD video playback
• Digital signage
• Media center systems
• Streaming applications

Robotics

• Robot control systems
• Autonomous robotics projects
• Sensor integration platforms

Industrial Projects

• Data logging systems
• Process monitoring
• Embedded control systems

DIY and Maker Projects

• Home automation
• Custom electronics development
• Prototyping and experimentation
