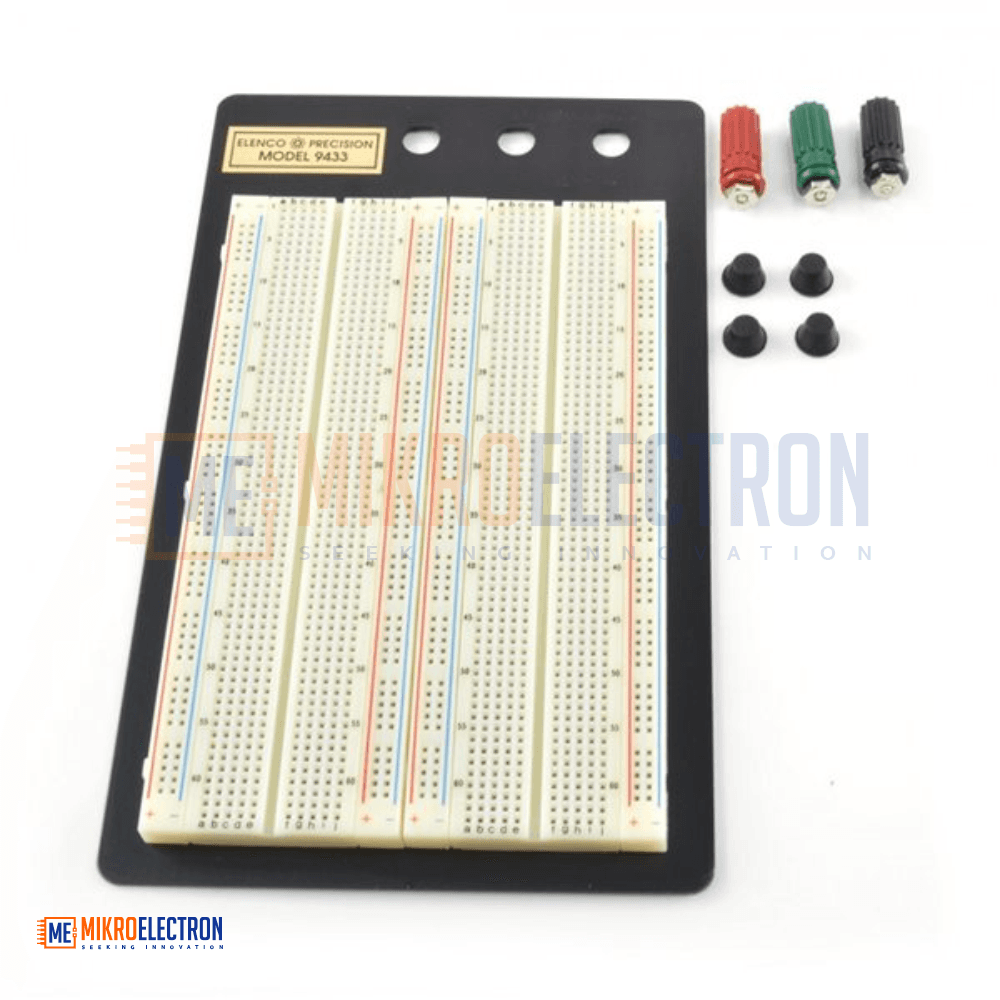

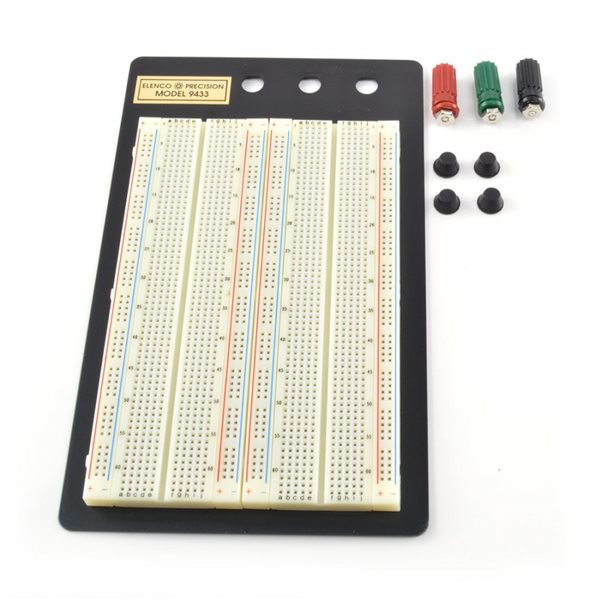

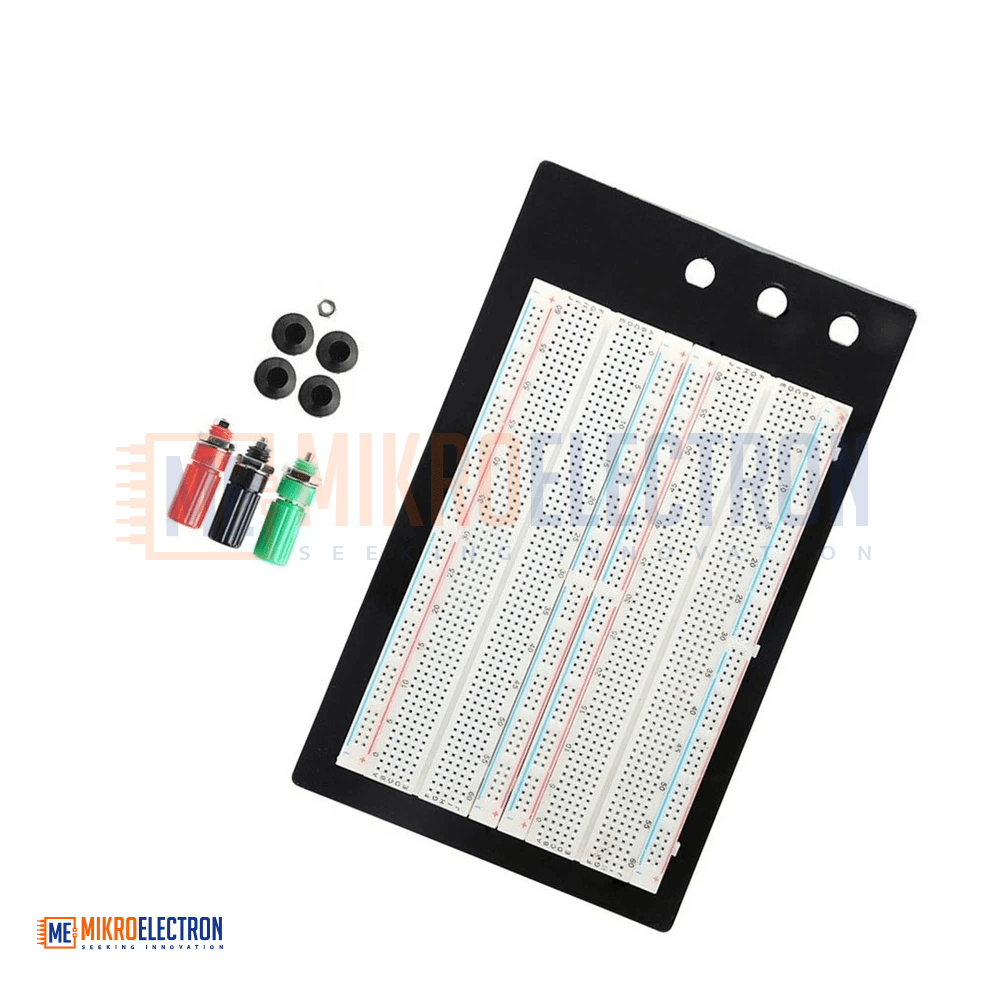

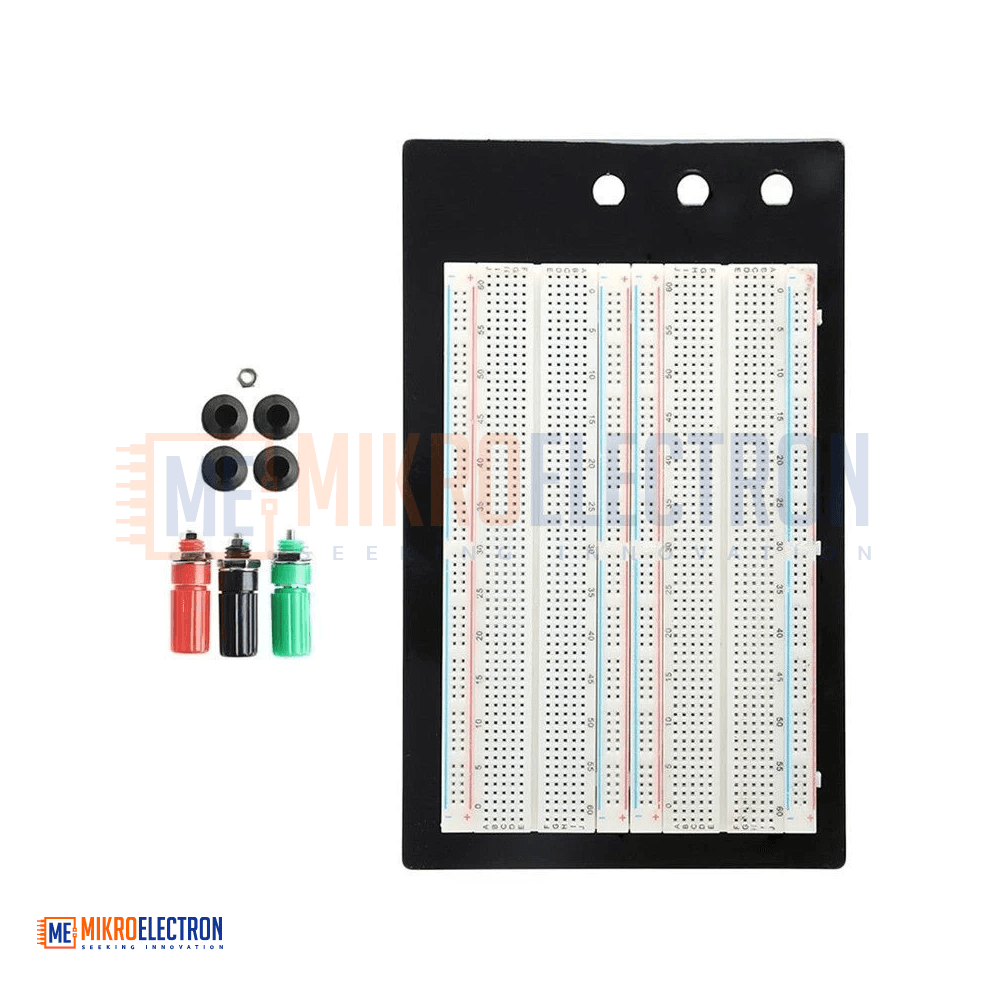

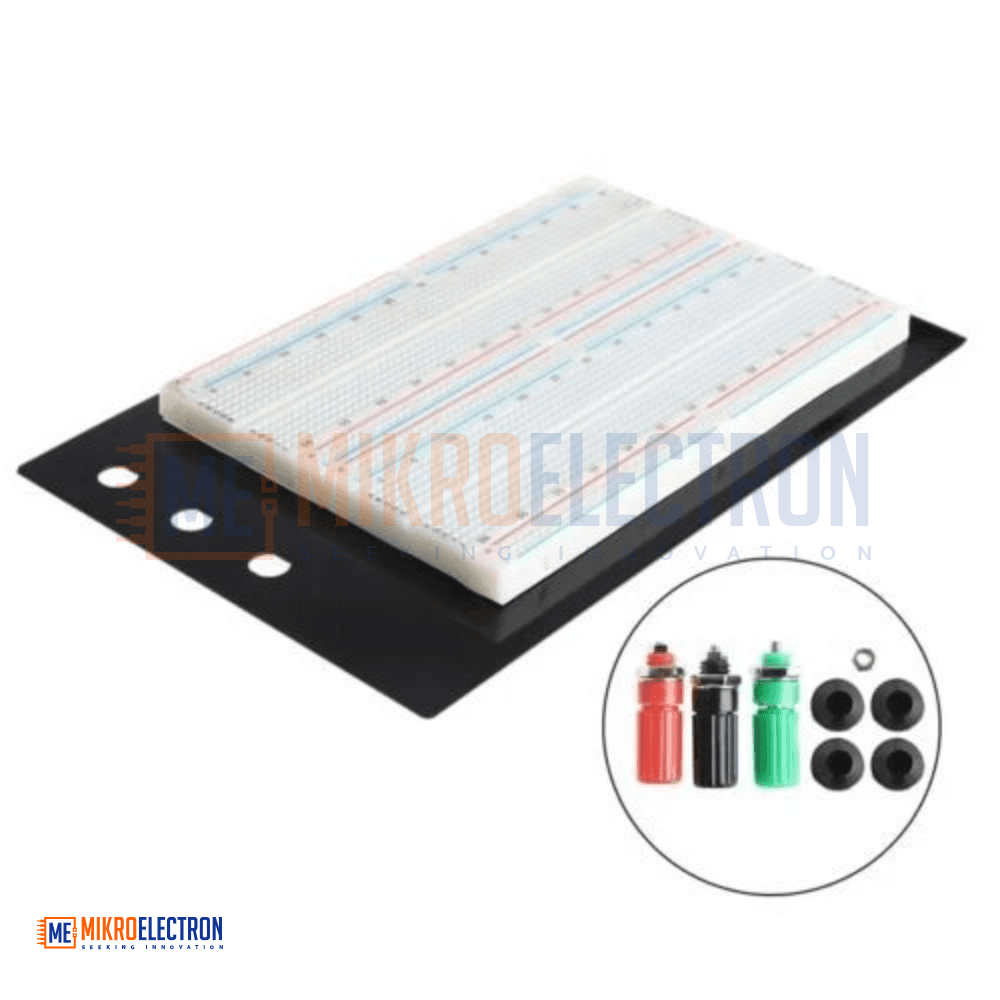

1660 Tie Point Solderless Breadboard

5.0(1 review)
SKU: ME-3043
JD8.90
Out Of Stock

1660 Tie Point Solderless Breadboard is a large prototyping board designed for building and testing electronic circuits without soldering. Featuring 1660 tie points, it provides ample space for complex circuit designs and development projects. The breadboard includes eight independent power bus lines and 252 separate 5-point terminal strips, allowing efficient component placement and circuit organization. Its reusable design makes it ideal for students, engineers, hobbyists, and electronics developers. Compatible with a wide range of electronic components, sensors, ICs, and microcontroller platforms, it offers a convenient and reliable solution for circuit prototyping and experimentation.

لوحة تجارب إلكترونية بدون لحام 1660 نقطة توصيل هي لوحة تطوير كبيرة مخصصة لبناء واختبار الدوائر الإلكترونية دون الحاجة إلى اللحام. تحتوي على 1660 نقطة توصيل توفر مساحة واسعة لتنفيذ المشاريع والدوائر المعقدة. تضم اللوحة ثمانية خطوط طاقة مستقلة و252 مجموعة نقاط توصيل مكونة من 5 نقاط، مما يسهل تنظيم المكونات وتوزيع التوصيلات الكهربائية. بفضل تصميمها القابل لإعادة الاستخدام، تعد مثالية للطلاب والمهندسين والهواة ومطوري الأنظمة الإلكترونية. كما تتوافق مع معظم المكونات الإلكترونية والدوائر المتكاملة وألواح التطوير المختلفة.

Breadboard & PCB

The 1660 Tie Point Solderless Breadboard is a high-capacity prototyping platform designed for assembling, testing, and modifying electronic circuits without soldering. Its large working area makes it suitable for both simple experiments and advanced electronic projects.

With a total of 1660 tie points, the breadboard offers extensive space for circuit development. It features eight independent common bus lines for power distribution and 252 separate terminal strips, each containing five interconnected tie points for convenient component placement.

The solderless design allows components to be inserted and removed repeatedly without damaging the board, making it an excellent tool for learning, prototyping, troubleshooting, and product development. It supports a wide range of electronic components including resistors, capacitors, transistors, integrated circuits, sensors, and microcontroller modules.

This breadboard is commonly used in educational laboratories, research environments, engineering workshops, and electronics development projects.

Specifications

ParameterSpecification
Product NameSolderless Breadboard
Total Tie Points1660 Points
Power Bus Lines8 Independent Bus Lines
Terminal Strips252 Separate 5-Point Terminals
Connection TypeSolderless Push-In Contacts
ReusableYes
Compatible Wire TypeSolid Core Jumper Wire
Suitable Component PitchStandard 2.54 mm (0.1")
Mounting TypeDesktop / Prototype Platform
MaterialABS Plastic with Metal Contacts
ApplicationCircuit Prototyping and Testing

Applications

  • Electronic circuit prototyping
  • Arduino projects
  • Raspberry Pi interfacing
  • Educational electronics training
  • Microcontroller development
  • Sensor testing and evaluation
  • Analog circuit design
  • Digital logic experiments
  • Robotics projects
  • Research and development
  • Circuit troubleshooting
  • Product design verification
