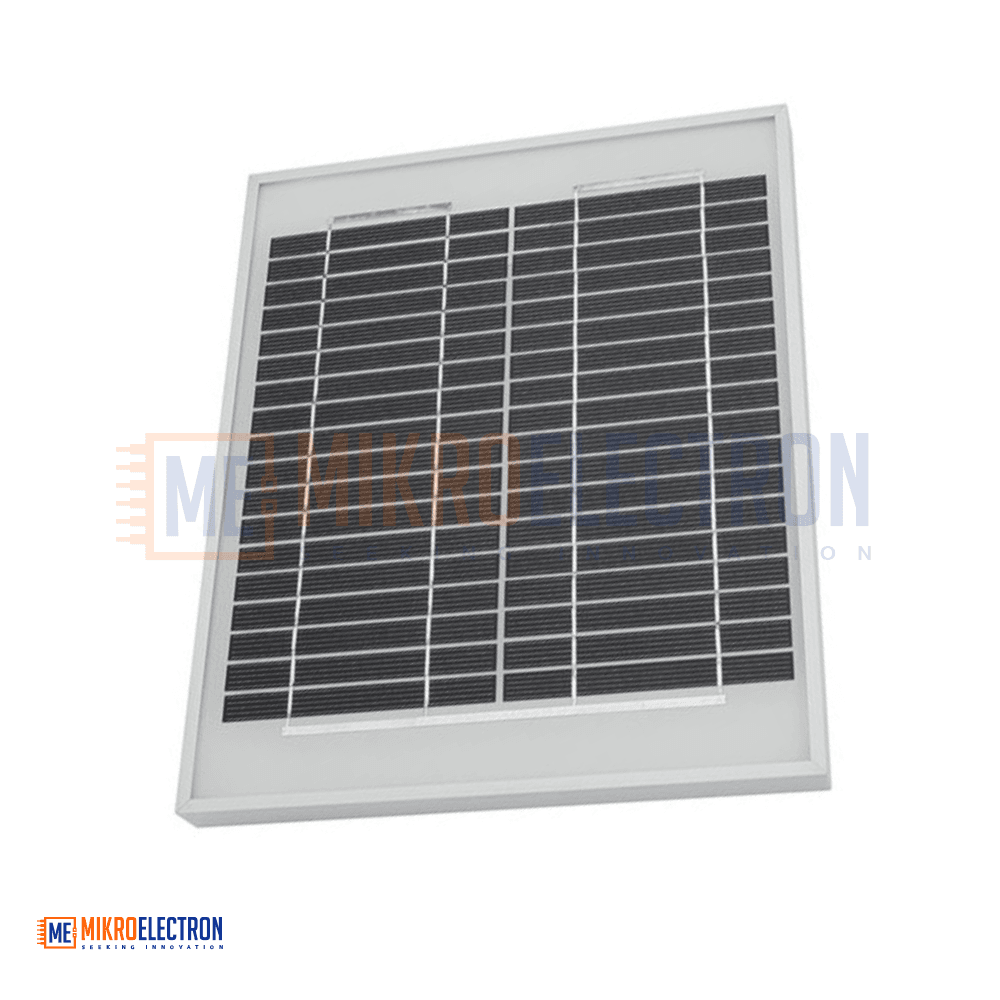

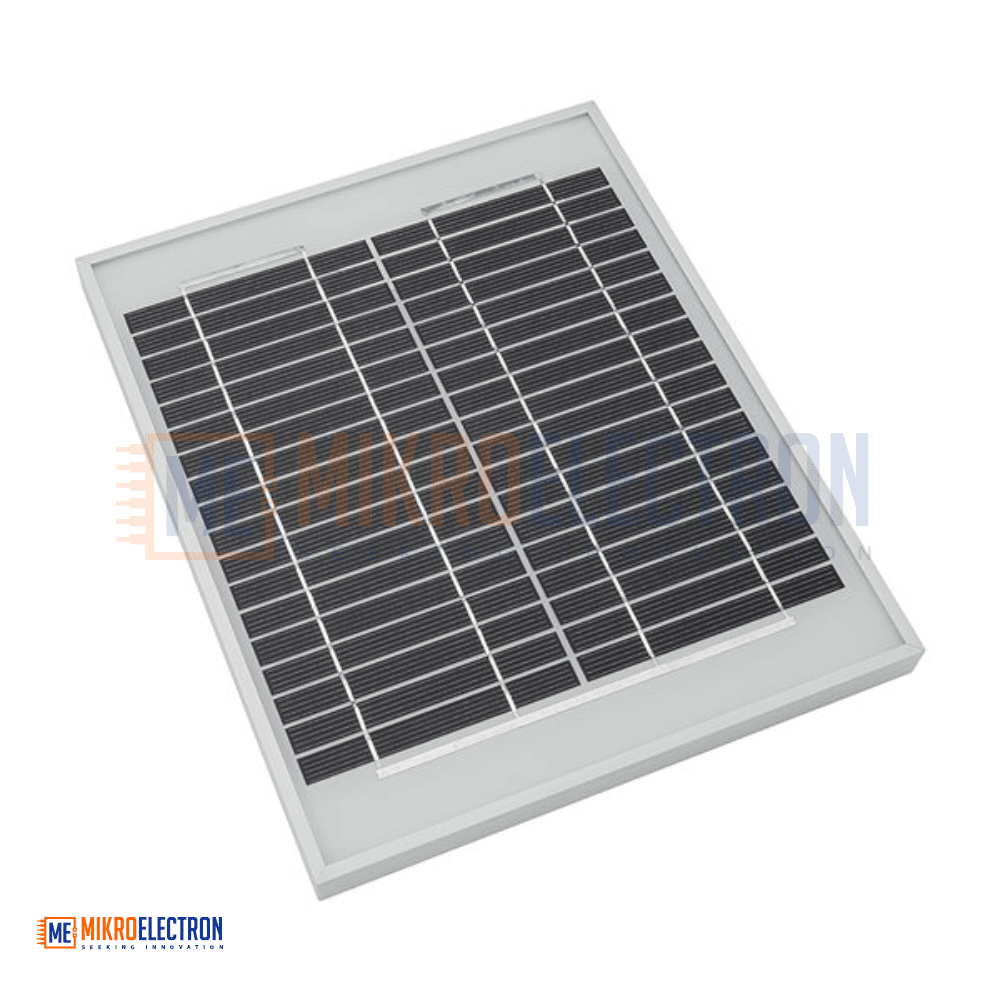

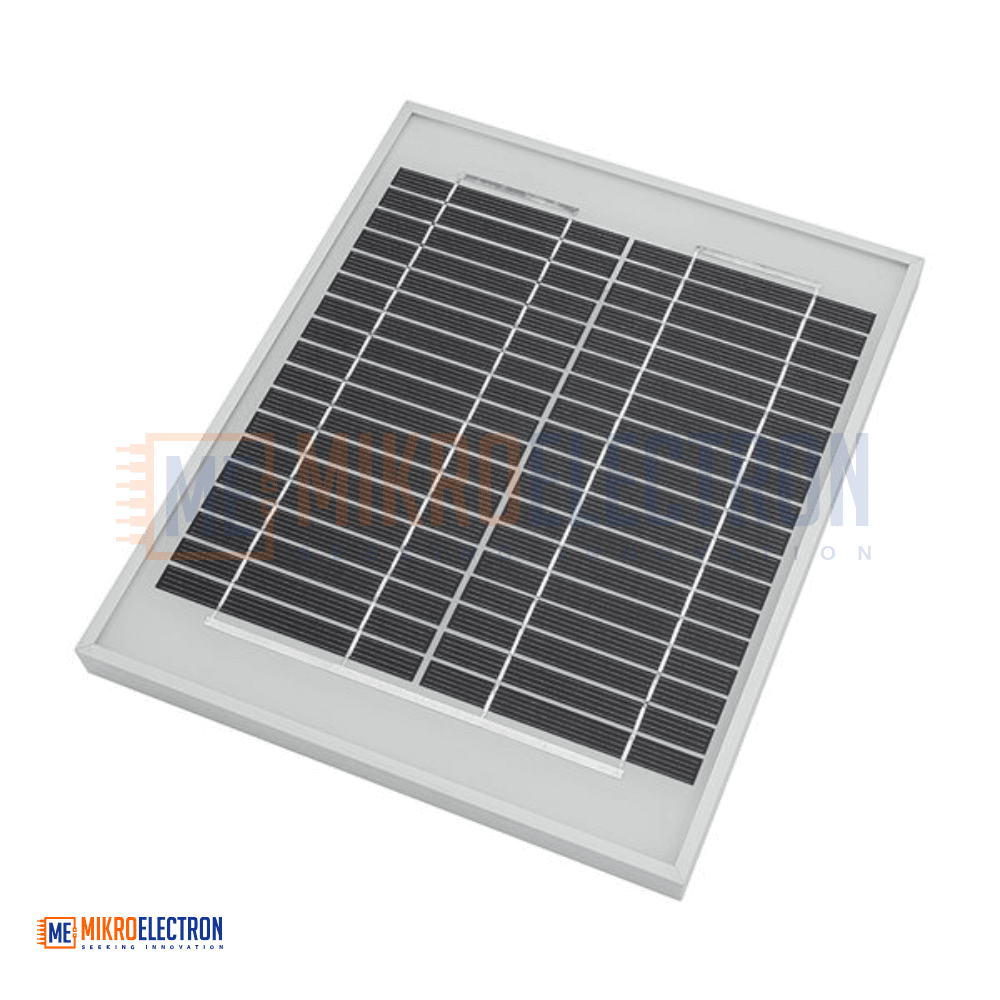

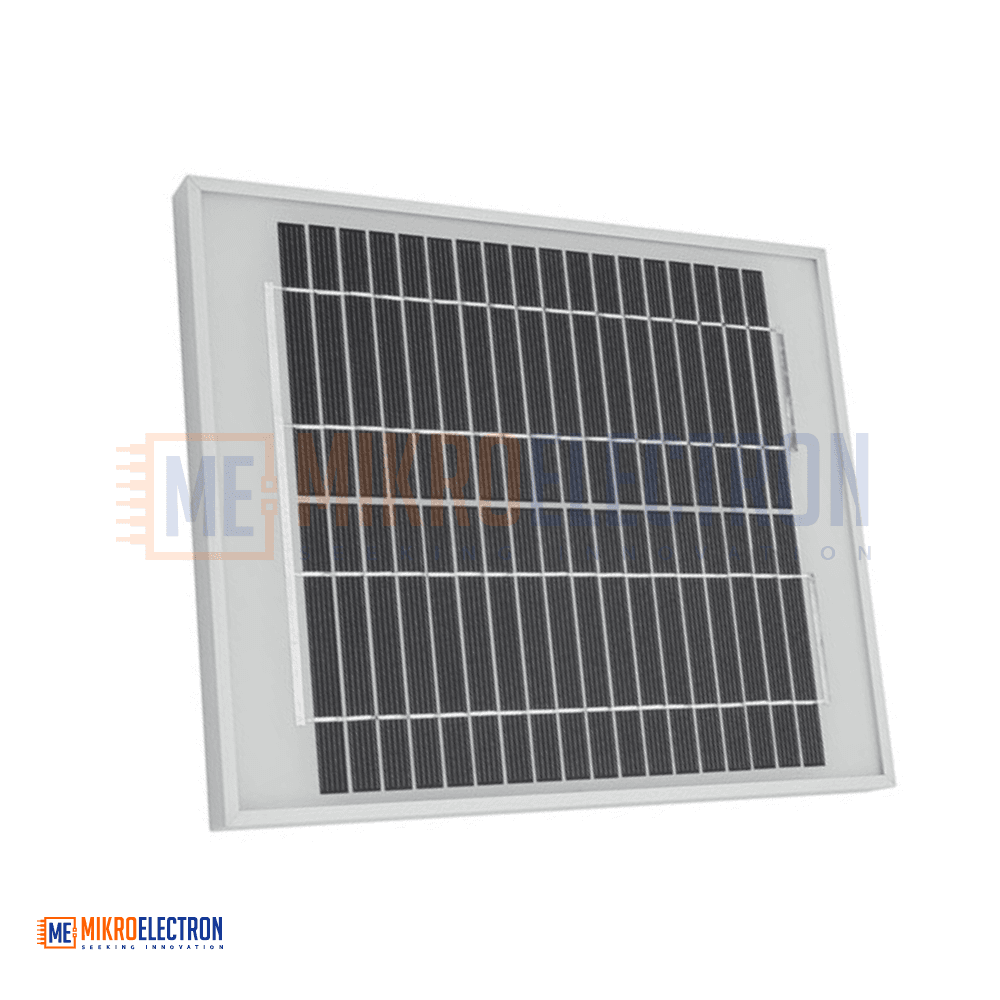

Solar Panel 18V 15W, 350 x 350 mm
Solar Panel 18V 15W (350 × 350 mm) is a durable and efficient photovoltaic panel designed for small off-grid power systems, battery charging, and renewable energy projects. It generates approximately 18V DC output under direct sunlight and delivers up to 15W of power, making it suitable for powering low-energy devices and charging batteries. The panel features convenient screw terminal connections with strain relief for easy installation and reliable operation. Multiple panels can be connected in series or parallel to increase system voltage or current. It is ideal for outdoor applications requiring clean, sustainable, and maintenance-free energy.
لوح طاقة شمسية 18 فولت 15 واط (350 × 350 مم) هو لوح كهروضوئي عملي وعالي الكفاءة مصمم لأنظمة الطاقة الشمسية الصغيرة وشحن البطاريات والمشاريع المعتمدة على الطاقة المتجددة. يوفر جهداً يصل إلى 18 فولت تيار مستمر تحت أشعة الشمس المباشرة وبقدرة تصل إلى 15 واط، مما يجعله مناسباً لتشغيل الأجهزة منخفضة الاستهلاك وشحن البطاريات. يحتوي على أطراف توصيل لولبية مع حماية للكابل لتسهيل التركيب وضمان التوصيل الآمن. كما يمكن توصيل عدة ألواح معاً على التوالي أو التوازي لزيادة الجهد أو التيار حسب الحاجة.
The Solar Panel 18V 15W is a compact renewable energy solution designed for outdoor power generation, battery charging, and educational solar projects. Utilizing photovoltaic technology, the panel converts sunlight into electrical energy, providing a stable DC output suitable for a wide range of low-power applications.
The panel produces approximately 18V DC under optimal sunlight conditions and can deliver up to 15W of power output. Its robust construction allows reliable operation in outdoor environments, while the integrated screw terminals with strain relief simplify installation and wiring.
For larger systems, multiple panels can be connected in series to increase voltage or in parallel to increase current output. This flexibility makes the panel suitable for solar charging systems, remote monitoring equipment, outdoor lighting, and portable renewable energy applications.
With no moving parts and minimal maintenance requirements, the panel offers a dependable and environmentally friendly power source for long-term use.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Solar Panel |
| Rated Voltage | 18V DC |
| Rated Power | 15W |
| Approximate Output Current | 555 mA |
| Technology | Photovoltaic Solar Cell |
| Output Type | DC |
| Connection Type | Screw Terminals with Strain Relief |
| Expandable Configuration | Series and Parallel Connection |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 350 × 350 × 22 mm |
| Panel Type | Rigid Solar Panel |
| Installation Location | Outdoor |
Applications
- Solar battery charging systems
- Outdoor lighting projects
- Solar-powered data loggers
- Remote monitoring equipment
- Educational renewable energy projects
- Portable solar power systems
- Small off-grid energy systems
- IoT and sensor power supplies
- Garden and landscape lighting
- Emergency backup charging systems
