Digital Display Vernier Calipers 0~150mm Stainless Steel
Digital Display Vernier Caliper 0–150mm Stainless Steel is a professional precision measuring instrument designed for accurate dimensional measurements in industrial, automotive, engineering, and workshop applications. Manufactured from hardened stainless steel, it offers excellent durability, corrosion resistance, and long-term accuracy. The large LCD display provides clear readings in both metric and imperial units, while the linear capacitive measuring system ensures precise results with a resolution of 0.01mm. Capable of measuring inside, outside, depth, and step dimensions, this digital caliper is an essential tool for technicians, engineers, machinists, and quality control professionals.
قدمة رقمية من الستانلس ستيل 0–150 مم هي أداة قياس احترافية عالية الدقة مصممة للاستخدامات الصناعية والهندسية وورش الصيانة. مصنوعة من الفولاذ المقاوم للصدأ المقسى لتوفير المتانة العالية ومقاومة التآكل والحفاظ على الدقة لفترات طويلة. تحتوي على شاشة LCD كبيرة وواضحة لعرض القياسات بالملليمتر والبوصة بسهولة. يعتمد الجهاز على نظام قياس سعوي خطي يحقق دقة عالية تصل إلى 0.01 مم. يمكن استخدامها لقياس الأبعاد الداخلية والخارجية وقياسات العمق والخطوات، مما يجعلها أداة أساسية للمهندسين والفنيين وأعمال الفحص والجودة.
The Digital Display Vernier Caliper 0–150mm Stainless Steel is a high-precision measuring tool designed for professionals who require accurate and reliable measurements. Constructed from hardened stainless steel, it provides excellent wear resistance, durability, and long-term dimensional stability.

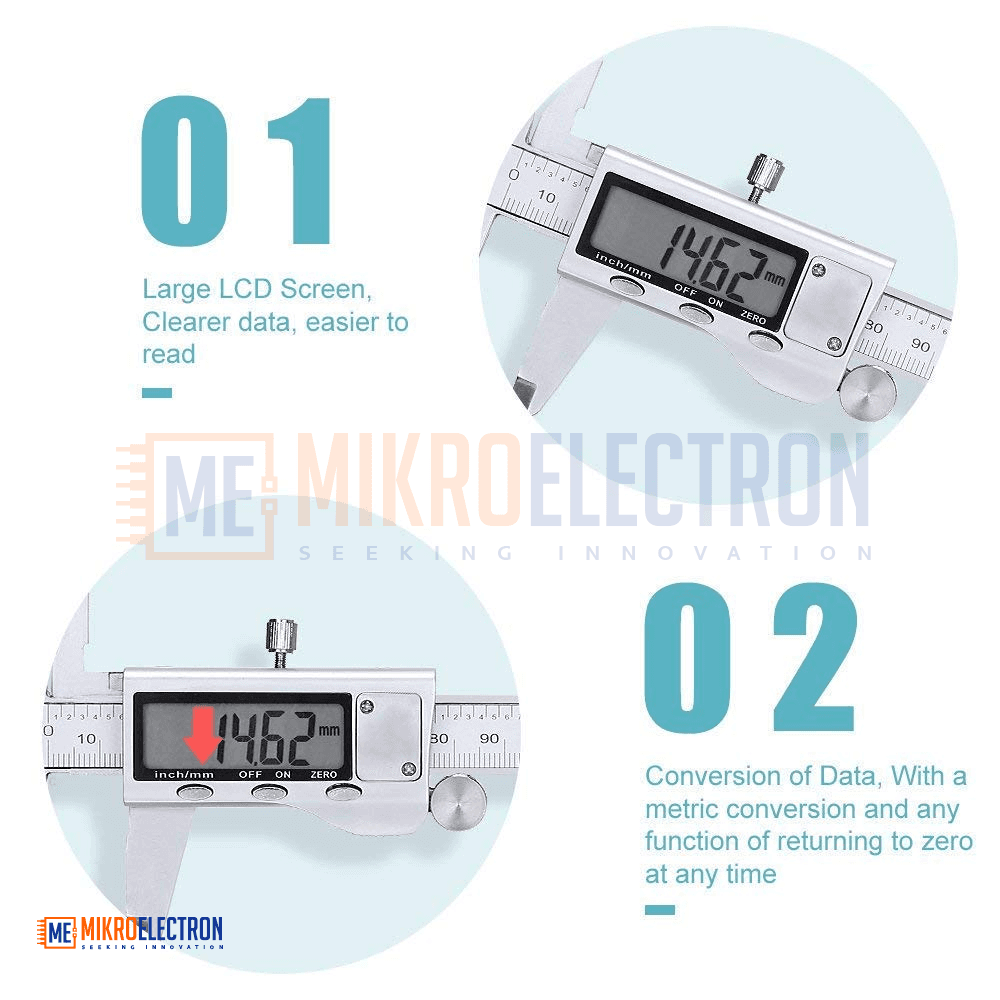

The caliper features a linear capacitive measuring system that delivers highly accurate measurements with a resolution of 0.01mm (0.0005 inch). The large LCD display allows quick and easy reading of measurements, while the instant metric-to-inch conversion function increases convenience during operation.

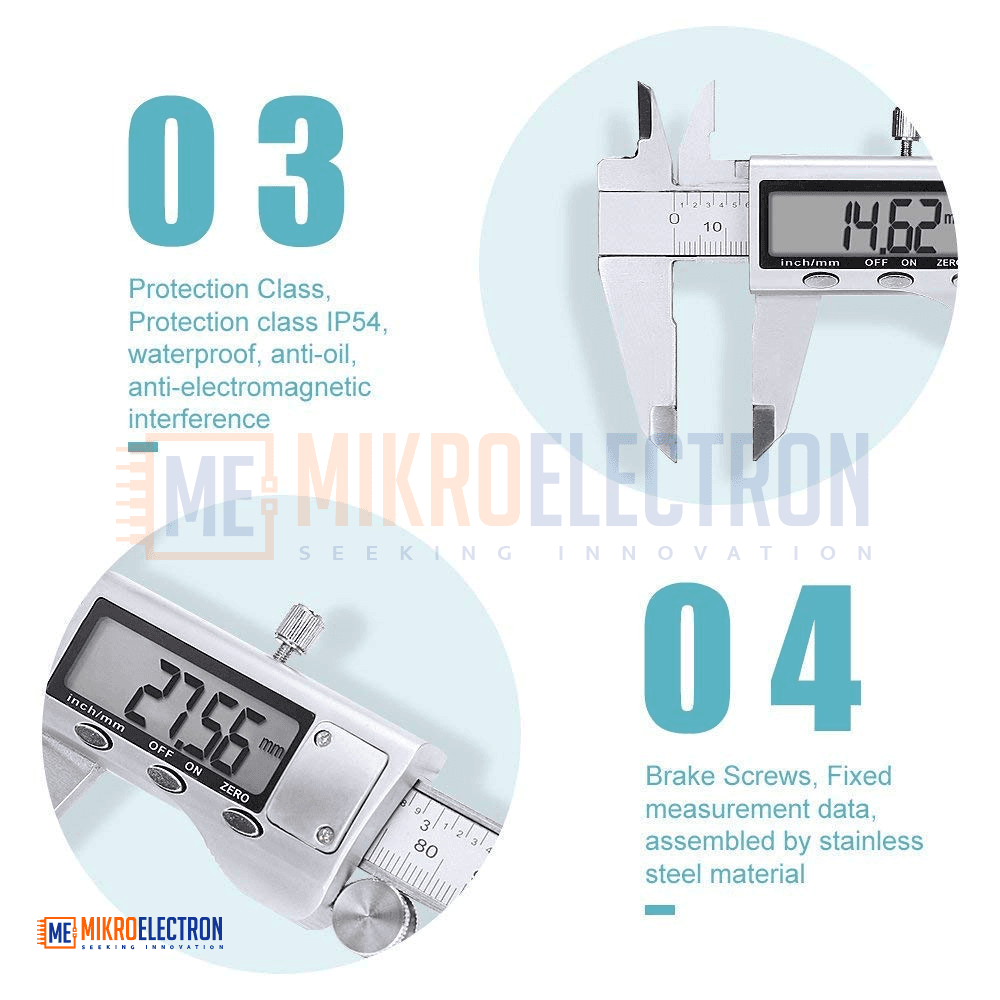

A zero-setting function allows the display to be reset at any position, making comparative and differential measurements simple. The built-in locking thumb screw securely holds the measuring jaws in place for improved measurement consistency.

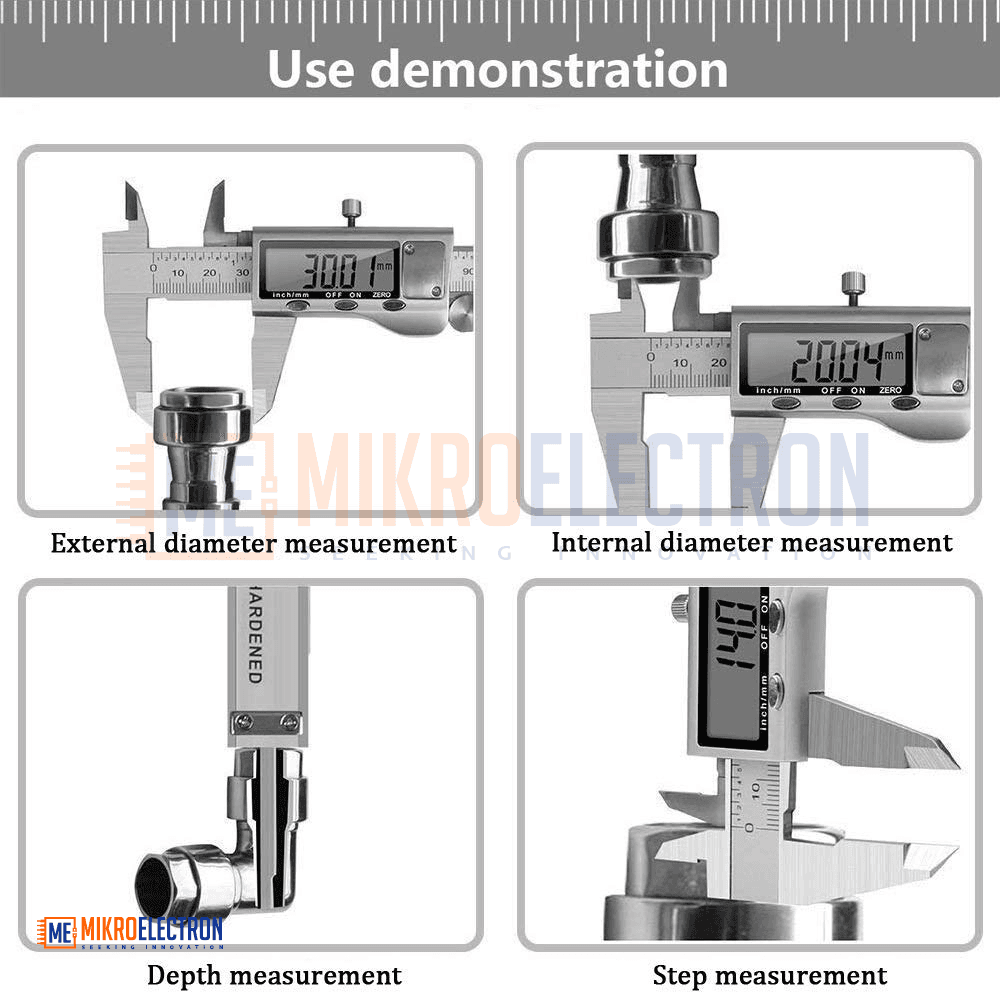

Designed for versatility, the caliper supports inside, outside, depth, and step measurements, making it suitable for machining, manufacturing, automotive maintenance, engineering inspections, laboratory work, and quality control applications.

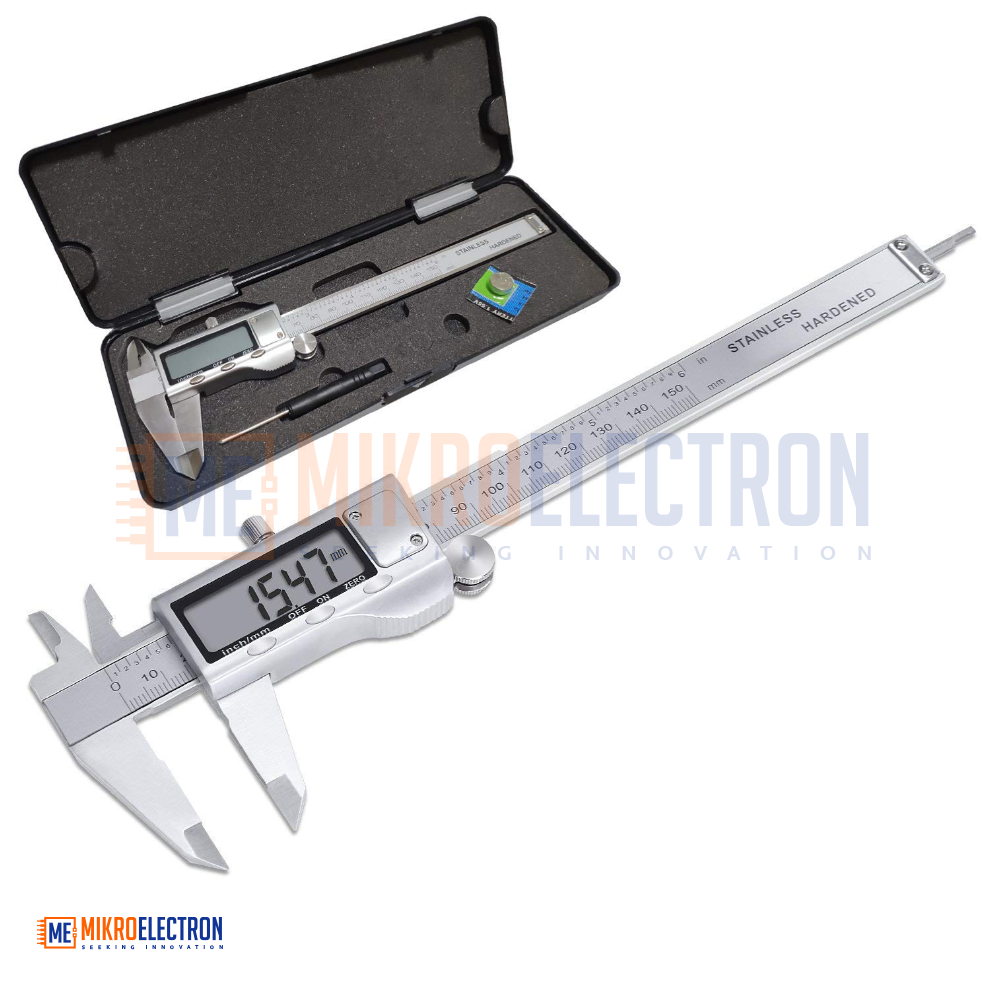

The package includes batteries and a protective storage case for safe transport and long-term storage.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Digital Display Vernier Caliper |
| Material | Hardened Stainless Steel |
| Measuring Range | 0 – 150 mm (0 – 6 inch) |
| Resolution | 0.01 mm / 0.0005 inch |
| Repeatability | 0.01 mm / 0.0005 inch |
| Accuracy (<100 mm) | ±0.02 mm (±0.001 inch) |
| Accuracy (100–150 mm) | ±0.03 mm (±0.001 inch) |
| Measuring System | Linear Capacitive Measuring System |
| Display Type | Large LCD Display |
| Unit Conversion | mm / inch |
| Maximum Measuring Speed | 1 m/s |
| Zero Setting | Any Position |
| Locking Mechanism | Thumb Lock Screw |
| Power Supply | 2 × SR44 1.5V Batteries |
| Battery Type | Silver Oxide Cell |
| Battery Life (Continuous Use) | Up to 1 Year |
| Battery Life (Normal Use) | Up to 3 Years |
| Dimensions | 23.4 × 7.6 × 1.3 cm |
| Weight | 272 g (Including Case) |
Applications
- Precision engineering measurements
- Mechanical workshops
- CNC machining and manufacturing
- Automotive repair and maintenance
- Quality control and inspection
- Metalworking and fabrication
- Electronics assembly and repair
- Educational laboratories
- Research and development projects
- Tool and die measurements
- Woodworking applications
- Industrial maintenance
