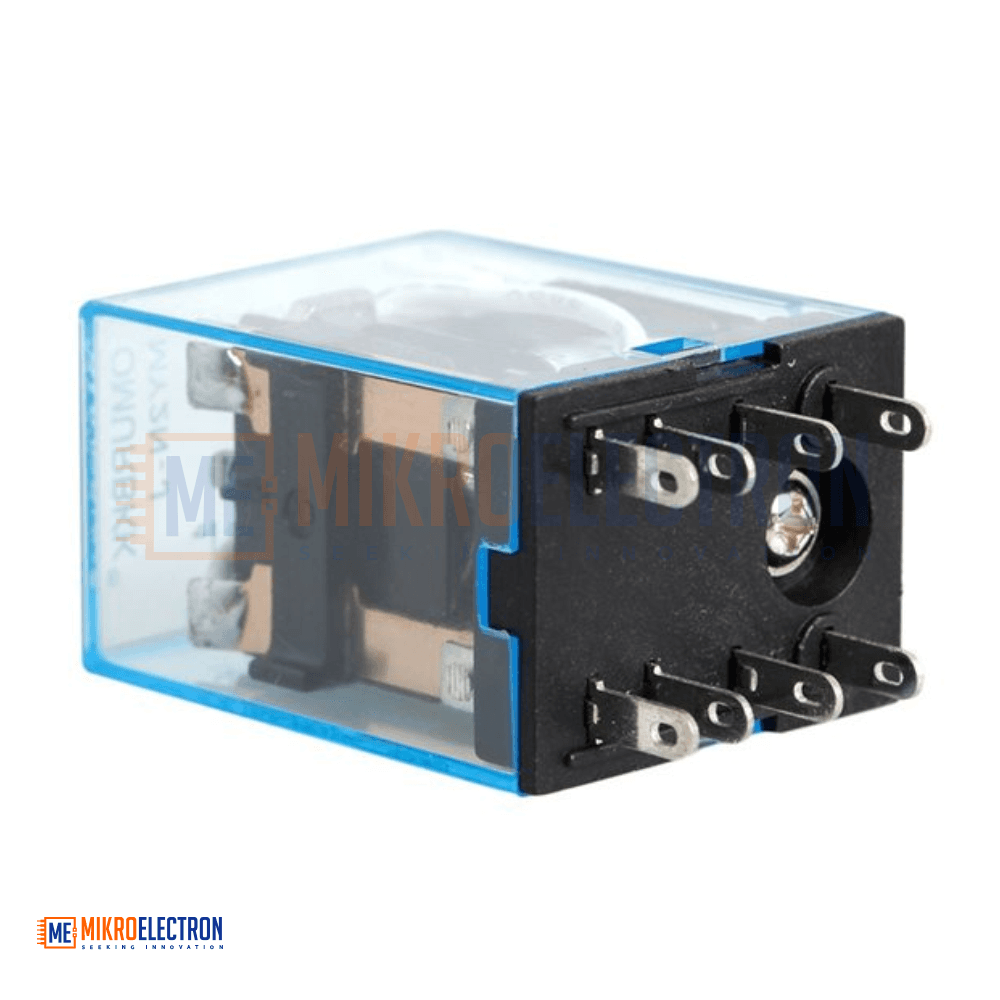

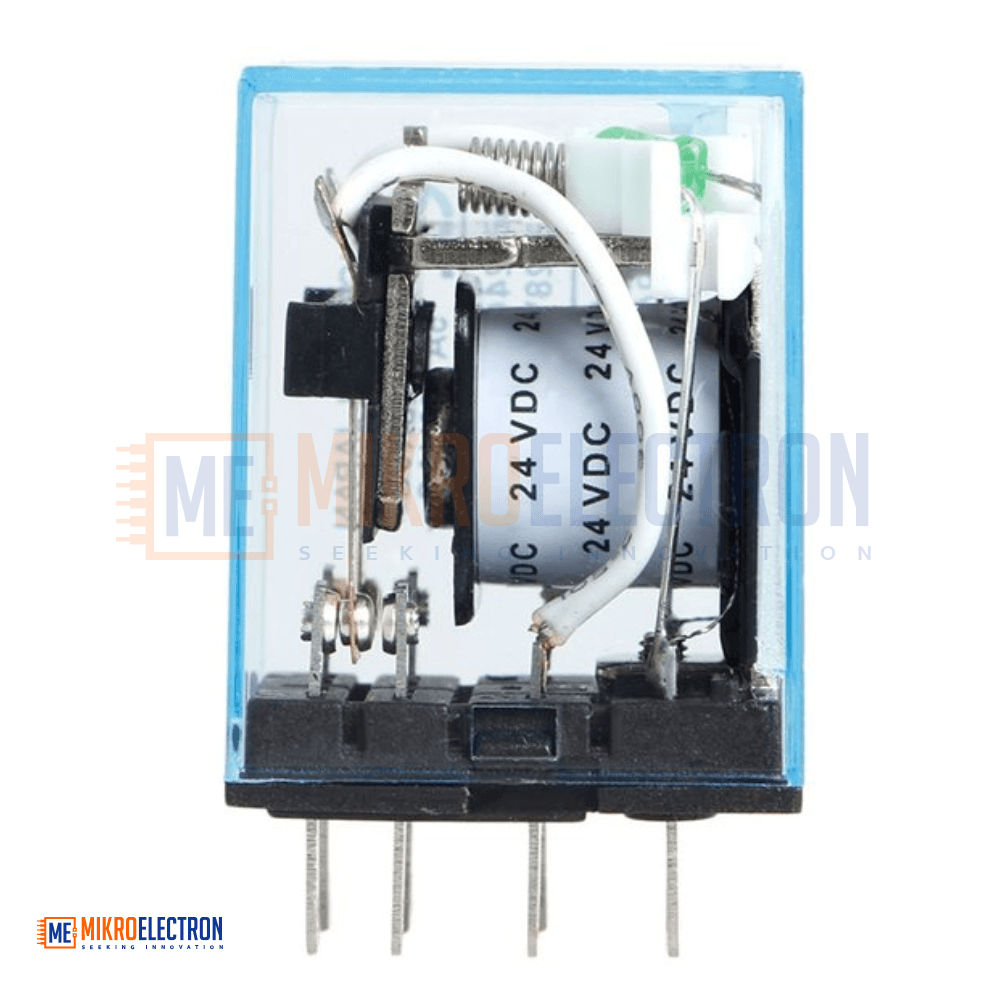

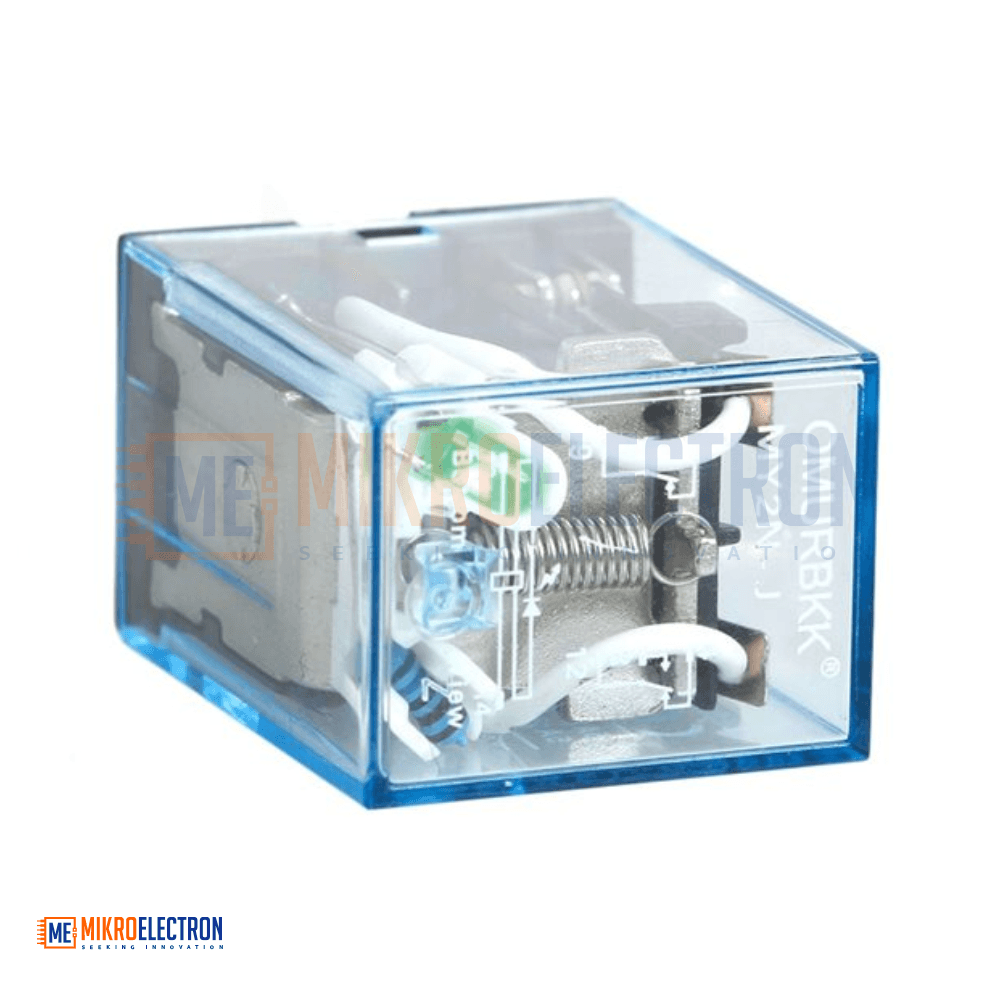

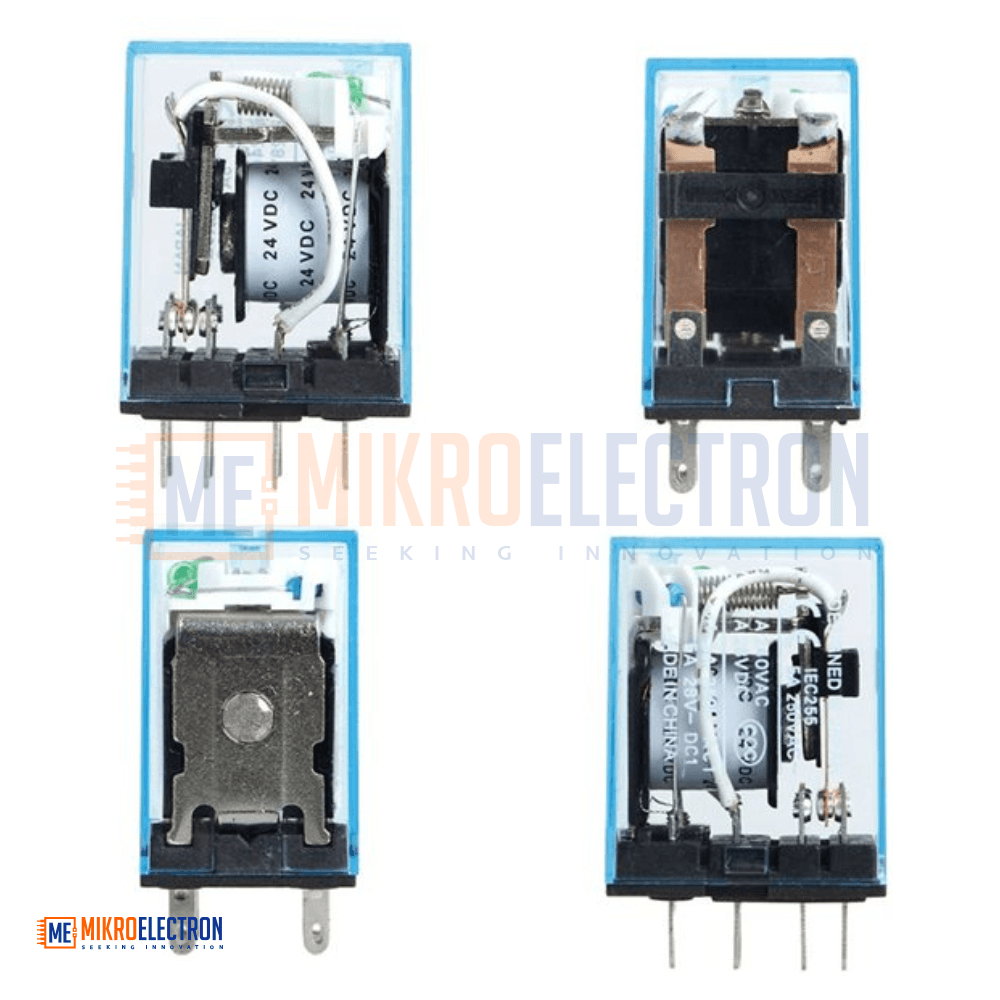

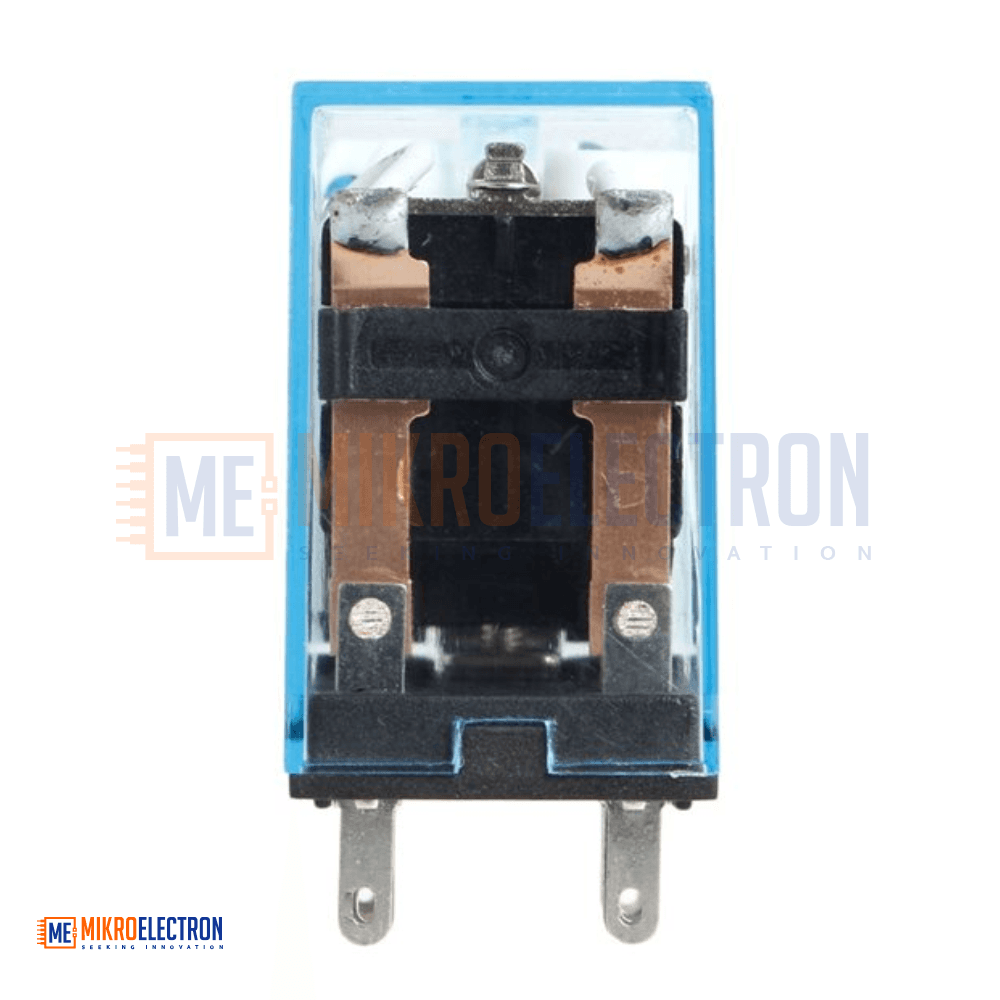

24V DC Omron Relay 8Pin DPDT
The 24V DC Omron MY2NJ Relay is a reliable 8-pin DPDT (Double Pole Double Throw) electromagnetic relay designed for industrial control, automation, and electronic switching applications. It features a 24V DC coil voltage, supports switching loads up to 5A, and provides excellent electrical isolation between control and load circuits. With its compact design, durable construction, and stable performance, this relay is suitable for control panels, PLC systems, power management circuits, and automation equipment. The plug-in design allows easy installation, maintenance, and replacement, making it a practical choice for professional and industrial applications.
يعد ريليه أومرون MY2NJ بجهد 24 فولت DC ريليه كهرومغناطيسي موثوق من نوع DPDT ثنائي القطب وثنائي الاتجاه مزود بقاعدة 8 أطراف. يتميز بقدرته على التحكم بالأحمال الكهربائية حتى 5 أمبير مع توفير عزل كهربائي ممتاز بين دائرة التحكم ودائرة الحمل. يتم استخدامه على نطاق واسع في أنظمة الأتمتة الصناعية، ولوحات التحكم، ووحدات PLC، ودوائر إدارة الطاقة. يتميز بتصميم مدمج وأداء مستقر وعمر تشغيلي طويل، كما أن تصميمه القابل للتركيب والاستبدال بسهولة يجعله خيارًا مثاليًا للتطبيقات الصناعية والإلكترونية المختلفة.
The Omron MY2NJ 24V DC Relay is a high-quality DPDT (Double Pole Double Throw) electromagnetic relay designed for reliable switching of AC and DC loads in industrial, automation, and electronic control systems. It features an 8-pin plug-in configuration, allowing easy installation and replacement in compatible relay sockets.
With a contact rating of 5A at 250V AC and 5A at 30V DC, the relay is suitable for controlling motors, lighting systems, power supplies, alarms, and automation equipment. The relay provides excellent insulation and dielectric strength, ensuring safe and dependable operation in demanding environments.
Its compact construction, stable switching performance, and long service life make it a preferred solution for control panels, machine control systems, PLC interfaces, and industrial automation applications.
Specifications
| Parameter | Specification |
|---|---|
| Model | MY2NJ |
| Relay Type | Electromagnetic Relay |
| Contact Configuration | DPDT (2 Form C) |
| Pin Count | 8 Pins |
| Coil Voltage | 24V DC |
| Contact Rating (AC) | 5A @ 250V AC |
| Contact Rating (DC) | 5A @ 30V DC |
| Dielectric Strength (BOC) | 1000VAC |
| Dielectric Strength (BCC) | 1500VAC |
| Coil Power Consumption | AC 0.9VA – 1.2VA |
| Mounting Type | Plug-in / PCB Insert Type |
| Dimensions | 27.6 × 21.5 × 34 mm |
| Material | Electrical Components |
| Condition | Brand New |
Applications
- Industrial automation systems
- PLC control panels
- Machine control equipment
- Power distribution and switching circuits
- Motor control systems
- Security and alarm systems
- Lighting control applications
- Process control equipment
- Electrical testing and measurement devices
- General-purpose electronic switching
