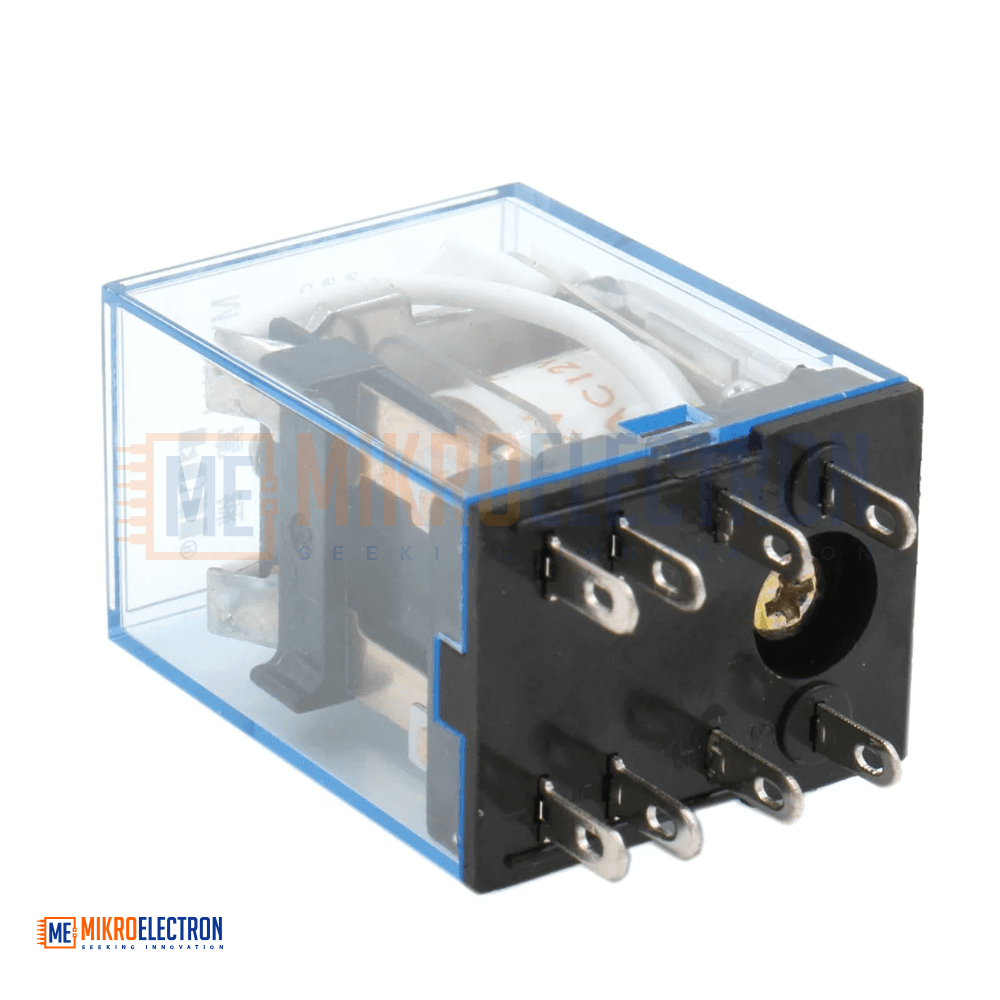

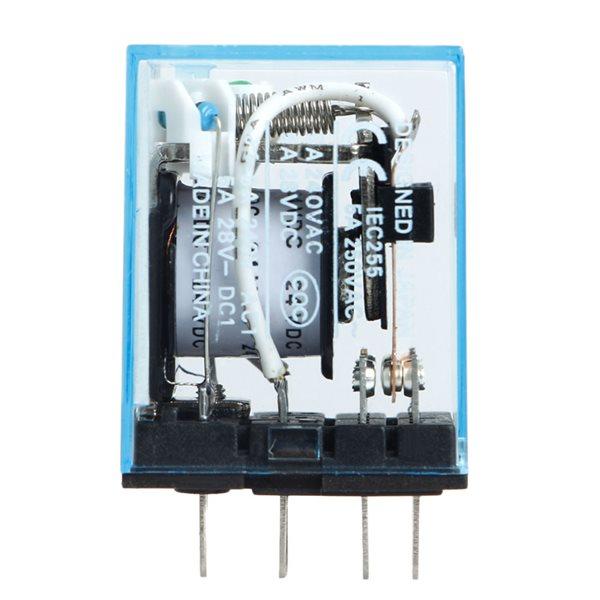

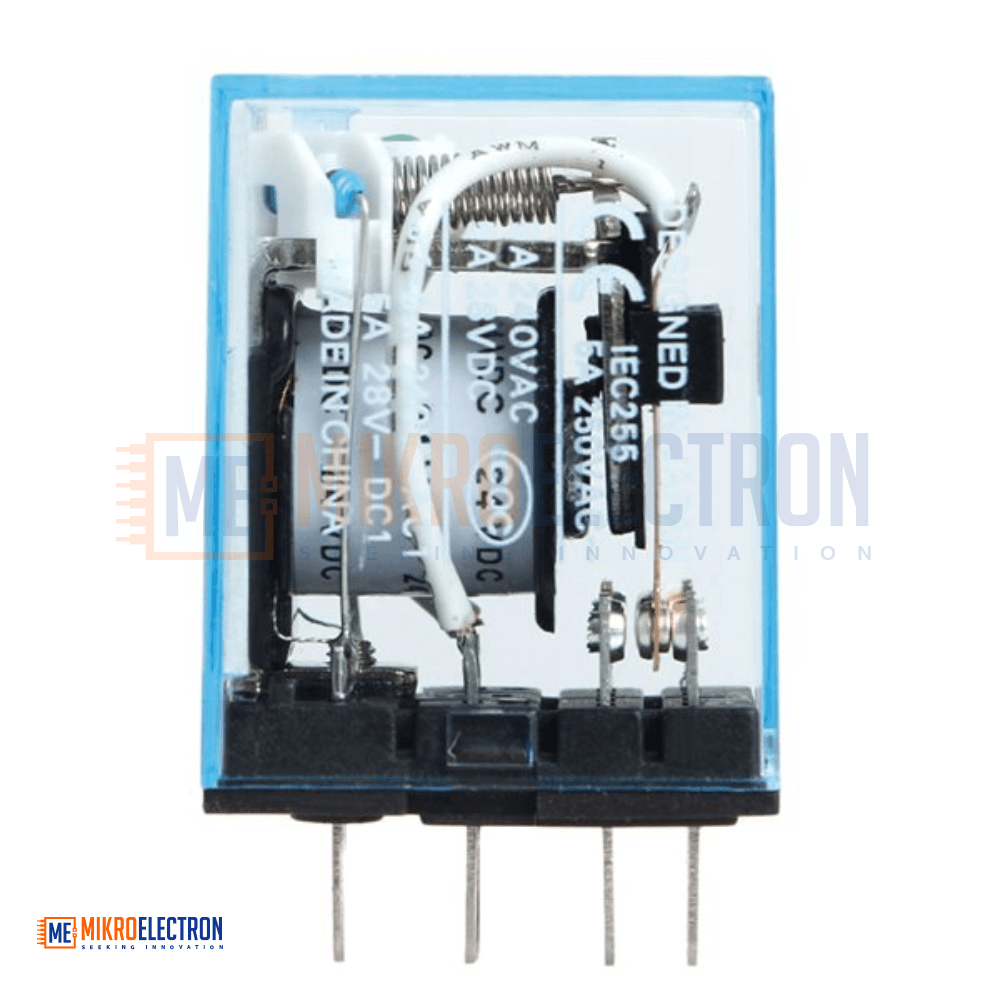

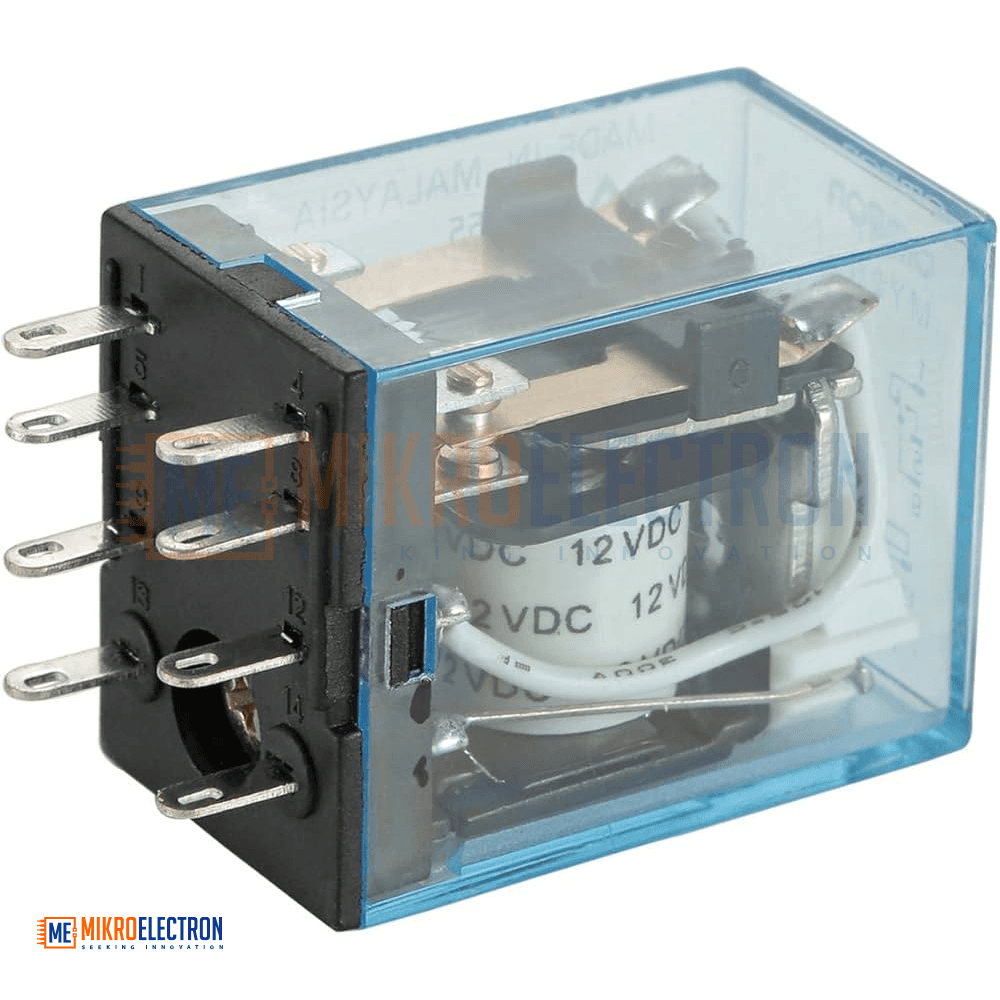

12V DC OMRON RELAY 8PIN DPDT
The OMRON MY2NJ 8-Pin DPDT Relay is a reliable electromagnetic relay designed for switching and control applications in industrial and electronic systems. Featuring a 12V DC coil voltage, this relay offers a DPDT (Double Pole Double Throw) contact configuration, enabling simultaneous control of two independent circuits. It supports switching loads up to 5A at 250V AC or 5A at 30V DC, making it suitable for automation equipment, control panels, and embedded projects. Its compact 8-pin plug-in design, high dielectric strength, and compatibility with PCB or relay sockets ensure easy installation and dependable performance.
يُعد مرحل OMRON MY2NJ ذو 8 أطراف مرحلًا كهرومغناطيسيًا موثوقًا مصممًا لتطبيقات التحكم والتبديل في الأنظمة الصناعية والإلكترونية. يعمل بجهد ملف 12 فولت تيار مستمر (DC) ويتميز بتكوين DPDT (ثنائي القطب ثنائي الاتجاه)، مما يتيح التحكم في دائرتين مستقلتين في الوقت نفسه. يدعم المرحل أحمال تبديل تصل إلى 5 أمبير عند 250 فولت AC أو 5 أمبير عند 30 فولت DC، مما يجعله مناسبًا لأنظمة الأتمتة ولوحات التحكم والمشاريع الإلكترونية. كما يضمن تصميمه المدمج ذو 8 أطراف وقوة العزل العالية سهولة التركيب وأداءً موثوقًا.
The OMRON MY2NJ is a general-purpose electromagnetic relay engineered for dependable switching performance in industrial, commercial, and electronic applications. With its 8-pin plug-in design and DPDT (Double Pole Double Throw) contact arrangement, it can control two separate circuits simultaneously using a single relay.
This model features a 12V DC coil, making it ideal for low-voltage control systems, microcontroller-based projects, automation equipment, PLC interfaces, and control panels. The relay provides a switching capacity of up to 5A at 250V AC or 5A at 30V DC, allowing it to handle a variety of electrical loads.
Designed for reliability and safety, the MY2NJ offers excellent insulation performance with a dielectric strength of 1000VAC between open contacts and 1500VAC between the coil and contacts. Its compact dimensions and compatibility with both PCB mounting and relay sockets simplify installation and maintenance.
Specifications
| Parameter | Value |
|---|---|
| Model | MY2NJ |
| Brand | OMRON |
| Relay Type | Electromagnetic Relay |
| Contact Configuration | DPDT (2 Form C) |
| Number of Pins | 8 Pins |
| Coil Rated Voltage | 12V DC |
| Contact Rating (AC) | 5A at 250V AC |
| Contact Rating (DC) | 5A at 30V DC |
| Contact Distribution | 4Z |
| Dielectric Strength (Between Open Contacts) | 1000VAC |
| Dielectric Strength (Between Coil and Contacts) | 1500VAC |

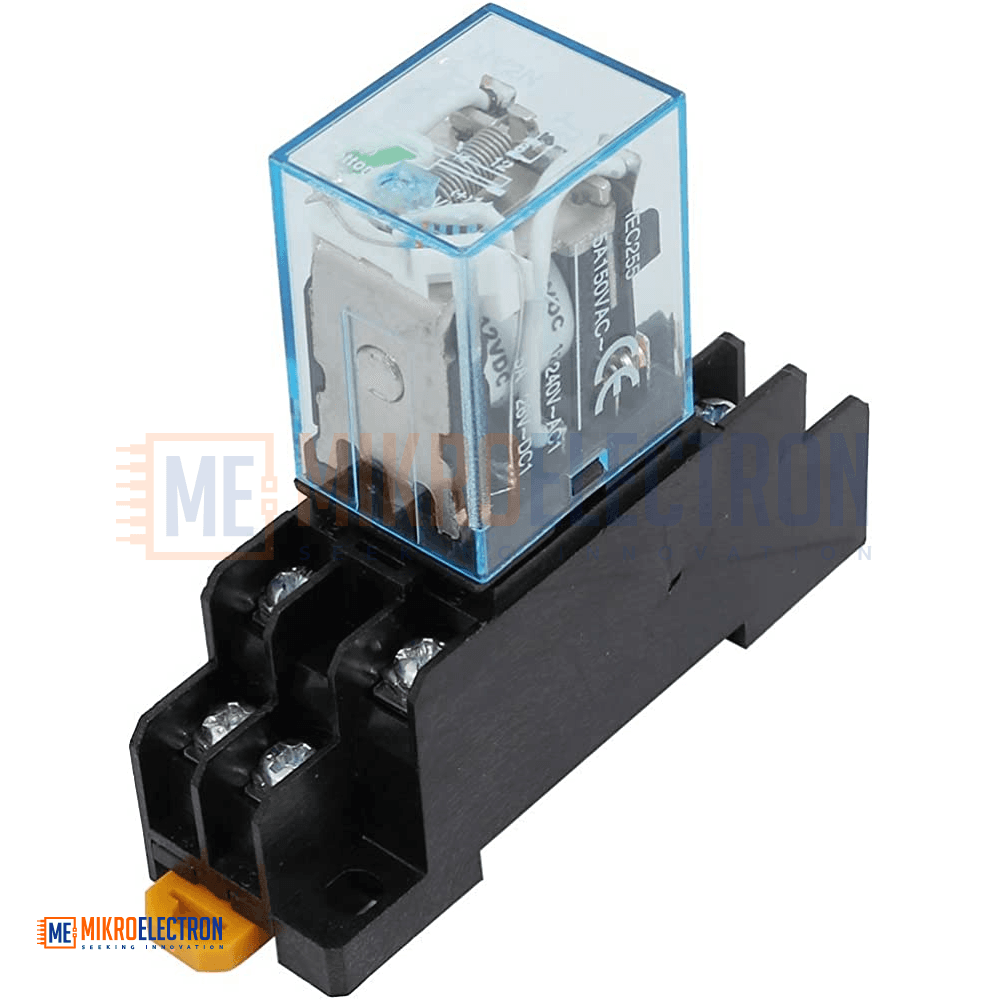

| Mounting Type | Plug-in / PCB Insert Type |
| Dimensions | 27.6 × 21.5 × 34 mm |
| Housing Material | Electrical components with durable casing |
| Package | No retail package |
Applications
- Industrial automation systems
- PLC output interfaces
- Control panels and switchboards
- Microcontroller and Arduino projects
- Power switching circuits
- Motor and lighting control
- HVAC control systems
- Timers and sequencing equipment
- General-purpose electronic switching
