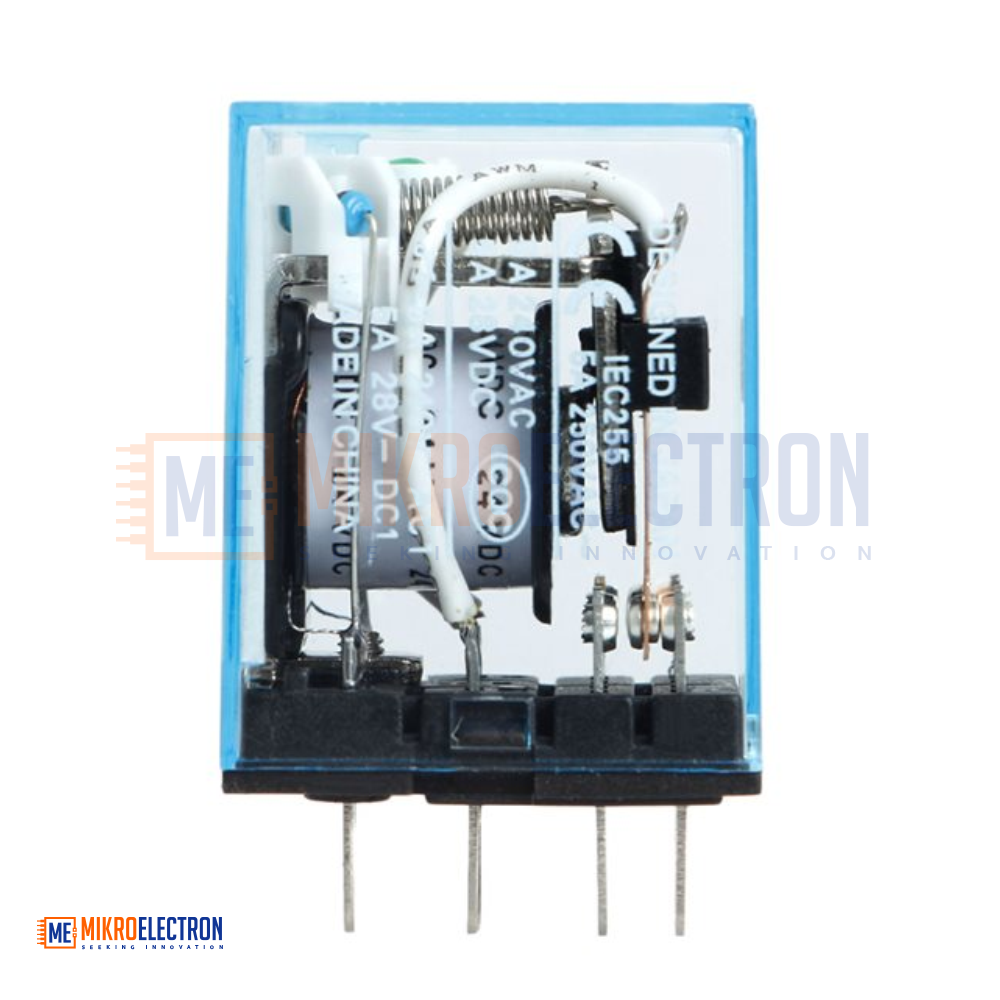

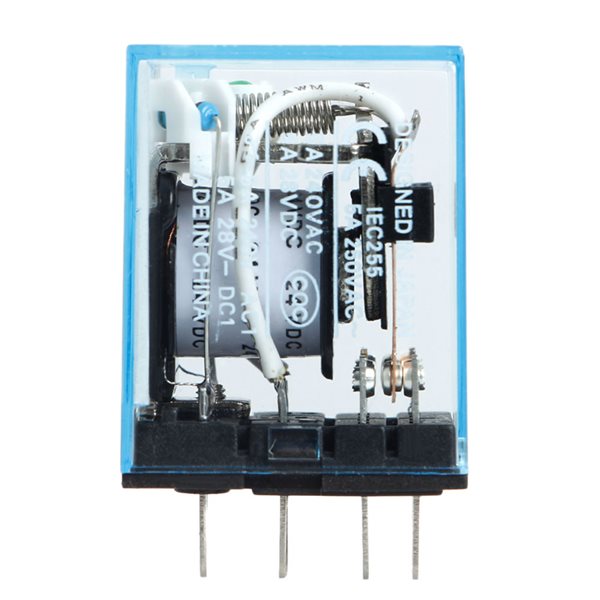

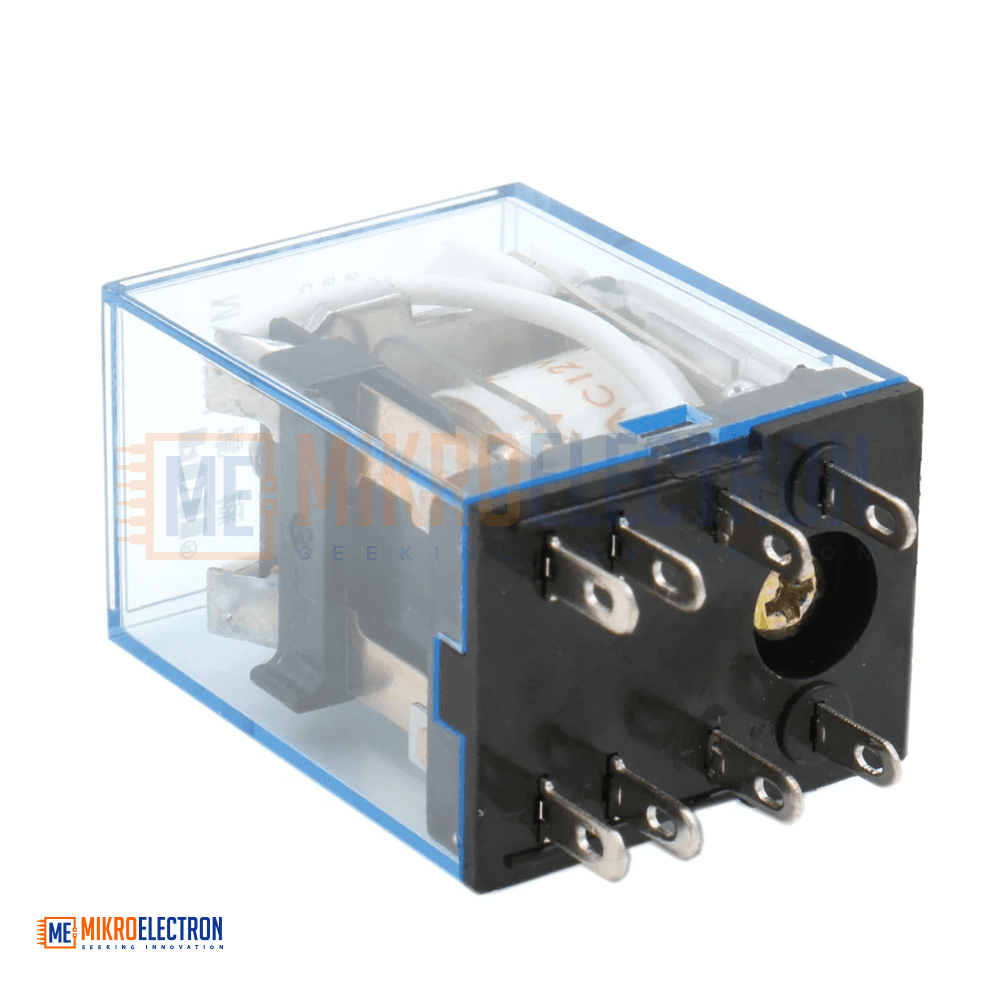

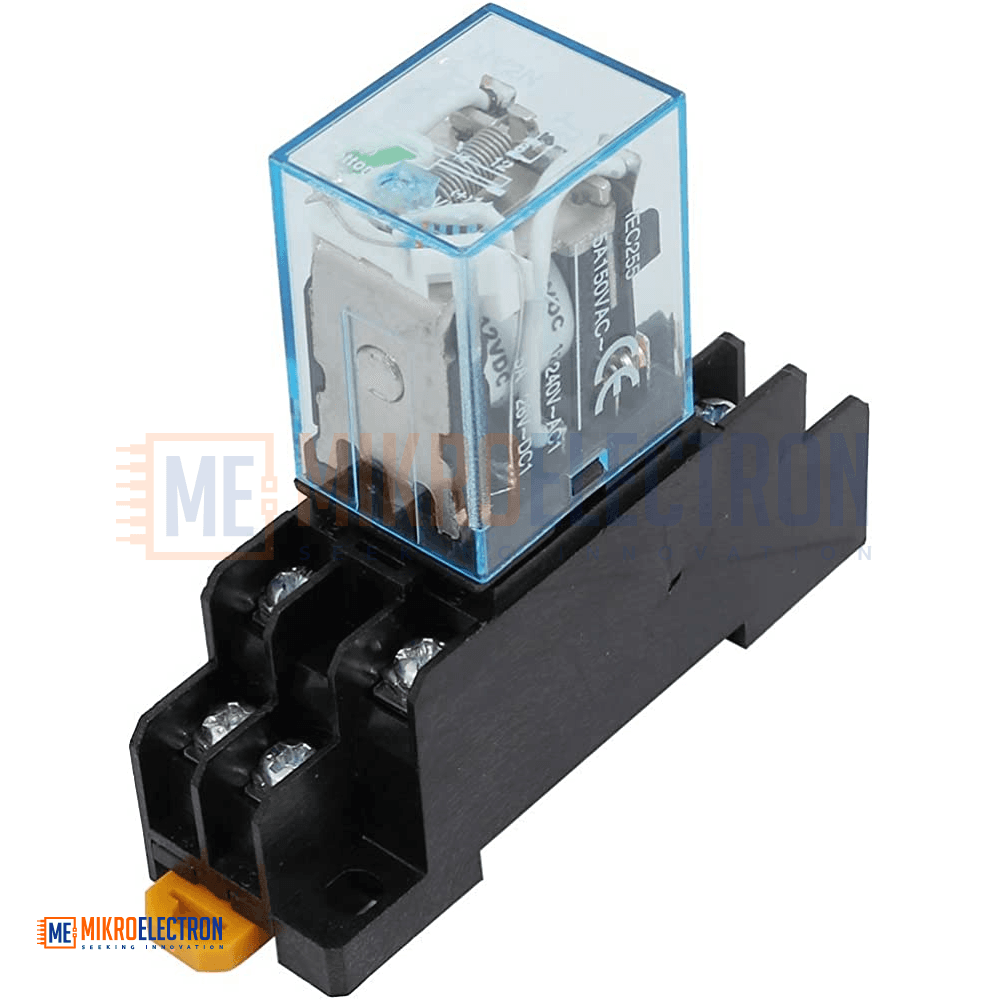

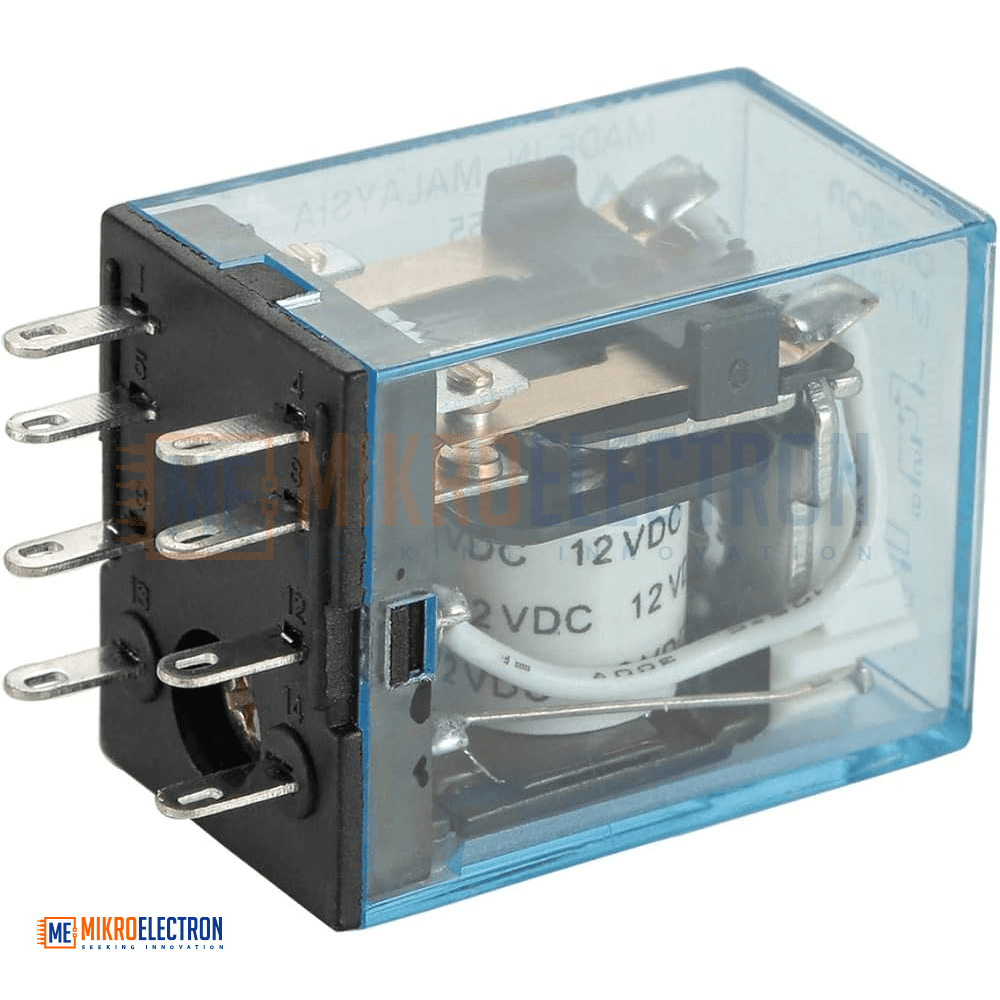

220-240 AC OMRON RELAY 8PIN DPDT MY2NJ
The OMRON MY2NJ 8-Pin DPDT Relay is a high-quality electromagnetic relay designed for reliable switching in industrial automation, control panels, and electronic equipment. Operating with a 220–240V AC coil voltage, this relay features a DPDT (Double Pole Double Throw) contact configuration, allowing it to control two independent circuits simultaneously. It supports switching loads up to 5A at 250V AC or 5A at 30V DC. With its compact 8-pin plug-in design, durable construction, and high dielectric strength, the MY2NJ relay is ideal for automation systems, power control applications, and general-purpose switching tasks.
يُعد مرحل OMRON MY2NJ ذو 8 أطراف مرحلًا كهرومغناطيسيًا عالي الجودة مصممًا لتطبيقات التحكم والأتمتة الصناعية والمعدات الإلكترونية. يعمل بجهد ملف 220–240 فولت تيار متردد ويتميز بتكوين DPDT (ثنائي القطب ثنائي الاتجاه)، مما يتيح التحكم في دائرتين مستقلتين في الوقت نفسه. يدعم المرحل أحمال تبديل تصل إلى 5 أمبير عند 250 فولت AC أو 5 أمبير عند 30 فولت DC. بفضل تصميمه المدمج القابل للتركيب عبر 8 أطراف وبنيته المتينة وقوة العزل العالية، يُعد خيارًا مثاليًا لأنظمة التحكم وتطبيقات تبديل الطاقة المختلفة.
The OMRON MY2NJ is a general-purpose electromagnetic relay engineered for dependable switching performance in industrial and commercial applications. Featuring an 8-pin plug-in design and a DPDT (Double Pole Double Throw) contact arrangement, it enables the control of two separate circuits using a single relay.
Designed with a 220–240V AC coil, the MY2NJ is suitable for control panels, industrial automation systems, machinery, timers, and power distribution equipment. It offers a contact switching capacity of up to 5A at 250V AC or 5A at 30V DC, making it suitable for a wide range of low- to medium-power loads.
The relay provides excellent insulation characteristics, with a dielectric strength of 1000VAC between open contacts and 1500VAC between coil and contacts, helping ensure safe and stable operation. Its compact dimensions and printed circuit board or socket mounting compatibility allow for easy installation and replacement.
Specifications
| Parameter | Value |
|---|---|
| Model | MY2NJ |
| Brand | OMRON |
| Relay Type | Electromagnetic Relay |
| Contact Configuration | DPDT (2 Form C) |
| Number of Pins | 8 Pins |
| Coil Rated Voltage | 220–240V AC |
| Contact Rating (AC) | 5A at 250V AC |
| Contact Rating (DC) | 5A at 30V DC |
| Dielectric Strength (Between Open Contacts) | 1000VAC |
| Dielectric Strength (Between Coil and Contacts) | 1500VAC |
| Mounting Type | Plug-in / PCB Insert Type |
| Dimensions | 27.6 × 21.5 × 34 mm |
| Housing Material | High-quality electrical components |
| Color | Transparent housing with internal indicators (may vary) |
Applications
- Industrial automation systems
- Control panels and switchboards
- PLC output interfaces
- Power distribution systems
- Motor and lighting control circuits
- Timers and sequencing systems
- Machine control equipment
- HVAC control systems
- General-purpose switching applications
