5V 10A AC DC Adapter Power Supply MS-50-5 50W
The MS-50-5 Switching Power Supply converts 110V or 220V AC mains into a stable 5V DC output at up to 10A (50W), making it well-suited for powering long LED strips, Arduino and Raspberry Pi rigs, CCTV cameras, and 5V automation projects. Built into a compact ventilated metal enclosure with fanless convection cooling, it features a power-on LED indicator, short-circuit and overload protection, and is 100% full-load burn-in tested before shipment.
مزود طاقة بتيار مستمر 5 فولت / 10 أمبير من نوع MS-50-5 بقدرة 50 واط، يحوّل تيار الشبكة المتردد 110 أو 220 فولت إلى خرج ثابت 5 فولت بتيار يصل إلى 10 أمبير، ومناسب لتشغيل شرائط LED الطويلة، مشاريع Arduino وRaspberry Pi، كاميرات المراقبة، وأنظمة الأتمتة بجهد 5 فولت. يأتي بعلبة معدنية مدمجة مع تبريد طبيعي بالهواء، مؤشر LED للتشغيل، حماية من الحمل الزائد ودوائر القصر، واختبار تشغيل بالحمل الكامل بنسبة 100%.
The MS-50-5 is a 50-watt enclosed switching power supply designed for projects that need more current than a standard wall adapter can provide. With a regulated 5V DC output at up to 10A, it has the headroom needed to drive long runs of addressable LED strips, multi-board prototyping setups, USB charging stations, and clusters of 5V sensors or relay modules without sagging under load.
Compared to the smaller 7A version, the MS-50-5 offers roughly 40% more current, making it the right choice when you're running denser pixel displays, several Raspberry Pi boards on one bench, or driving accessories that draw heavy peak current at startup. The unit accepts both 110V and 220V AC input, and the output is finely adjustable via an onboard trimmer to compensate for voltage drops over long cable runs — important for 5V LED installations where even small losses can shift color and brightness.

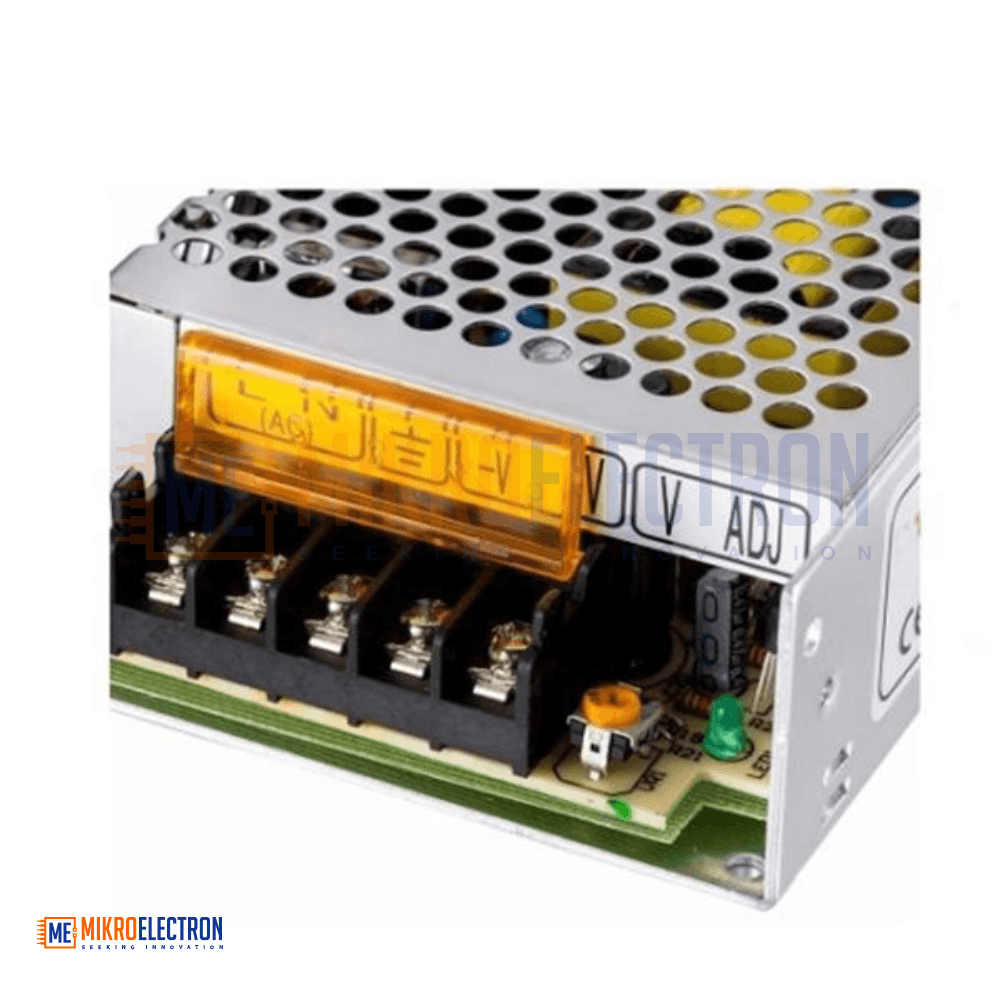

Cooling is fanless, relying on free-air convection through the ventilated metal chassis, so operation is silent and there are no moving parts to wear out. Screw terminals are provided for both AC input and DC output, and the housing includes side-flange mounting holes for permanent installation inside enclosures, control panels, or display fixtures.
Specifications
- Model: MS-50-5
- Input voltage: AC 110V / 220V (switchable)
- Input frequency: 50/60 Hz
- Output voltage: 5V DC (adjustable via trimmer)
- Output current: 10A
- Rated power: 50W
- Cooling: Free-air convection (fanless)
- Protections: Short-circuit and overload
- Indicator: Power-on LED
- Quality test: 100% full-load burn-in tested
- Enclosure: Compact ventilated metal case with screw terminals
- Mounting: Side-flange chassis with screw holes
Applications
- High-density 5V LED strips and pixel walls — WS2812B, SK6812, APA102, and similar addressable LEDs
- Multi-board Arduino, ESP32, and microcontroller workbenches
- Raspberry Pi clusters and SBC setups requiring a robust 5V rail
- CCTV and security cameras rated for 5V DC
- USB charging stations, powered hubs, and prototyping rigs
- Home automation and IoT panels built around 5V sensors, relays, and modules
- 3D printer accessories, fans, and auxiliary 5V loads
- Replacement supply for failed adapters in commercial and DIY equipment
