5V 7A AC DC Adapter Power Supply S-35-5
The S-35-5 Switching Power Supply delivers a stable 5V DC at up to 7A (35W) from a standard 110V or 220V AC mains input, making it ideal for powering LED strips, Arduino and Raspberry Pi projects, CCTV cameras, and hobby electronics. Housed in a ventilated metal enclosure with free-air convection cooling, it includes a power LED indicator, short-circuit and overload protection, and has passed a 100% full-load burn-in test for reliability.
مزود طاقة بتيار مستمر 5 فولت / 7 أمبير من نوع S-35-5، يحوّل تيار الشبكة المتردد 110 أو 220 فولت إلى خرج ثابت 5 فولت بتيار يصل إلى 7 أمبير (35 واط)، ومناسب لتشغيل شرائط LED، مشاريع Arduino وRaspberry Pi، كاميرات المراقبة، والإلكترونيات الهاوية. يتميز بعلبة معدنية مع تبريد طبيعي بالهواء، مؤشر LED للتشغيل، وحماية من الحمل الزائد ودوائر القصر، مع اختبار تشغيل بالحمل الكامل بنسبة 100%.
The S-35-5 is a 35-watt enclosed switching power supply that converts standard mains AC into a stable, regulated 5V DC output suitable for a wide range of low-voltage electronics. With its 7A current rating, it has enough headroom to comfortably drive long runs of 5V LED strips (WS2812B, SK6812, and similar addressable types), multiple Arduino or microcontroller boards on a workbench, USB-powered devices via a buck terminal, and small DC motors or sensor arrays.
The unit accepts both 110V and 220V AC input, making it suitable for use in different regions and giving designers flexibility when shipping or relocating equipment. Output voltage is finely adjustable via a small trimmer potentiometer on the side of the unit, allowing precise tuning around the 5V nominal value to compensate for cable voltage drops on longer runs.

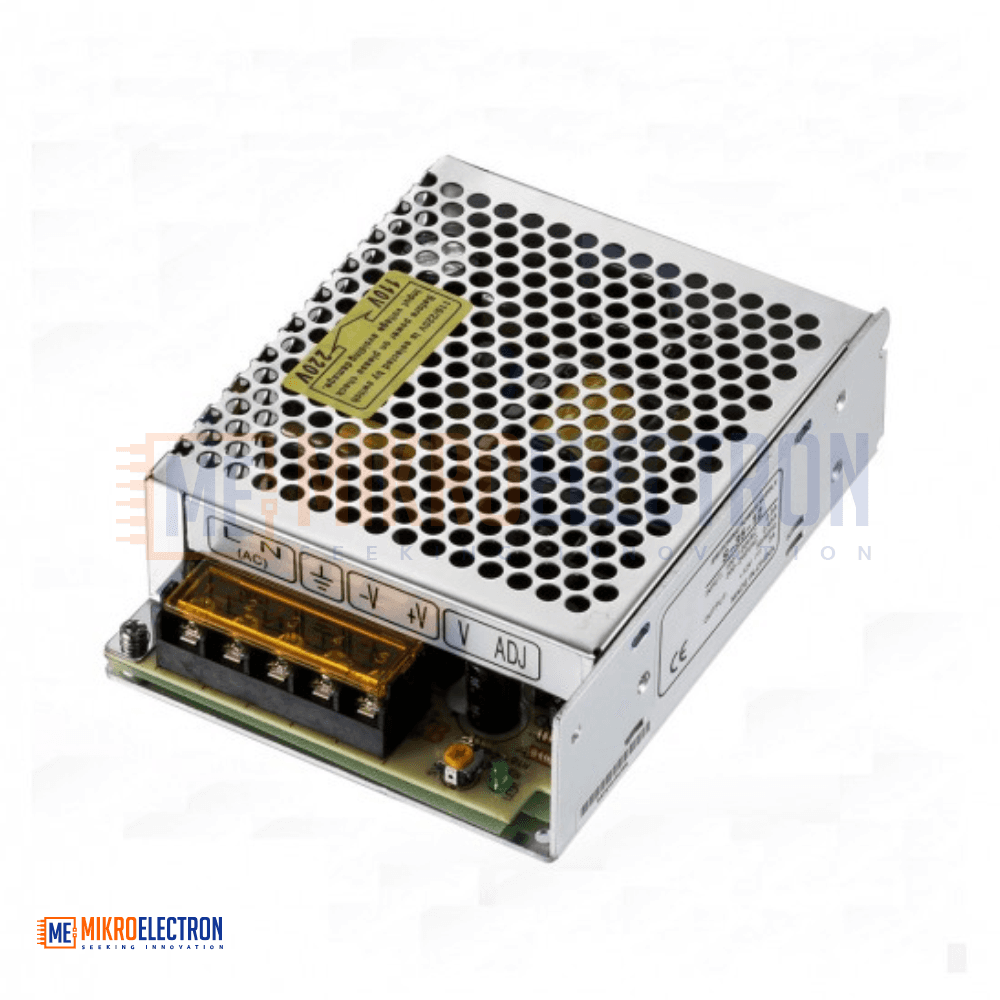

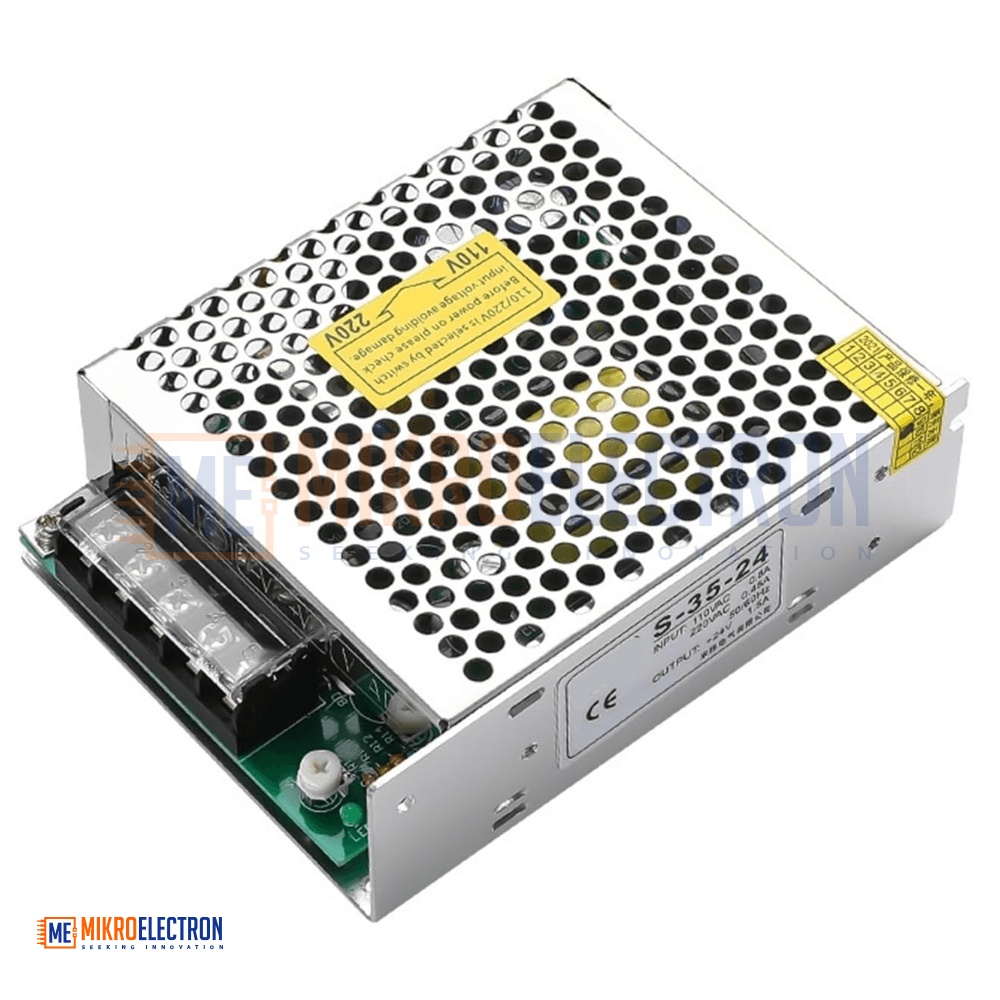

Cooling is handled by free-air convection — there is no internal fan, so operation is completely silent and there are no moving parts to wear out. The metal chassis features screw terminals for AC input and DC output, a green LED power indicator, and standard mounting holes for permanent installation inside enclosures, control panels, or maker projects.
Specifications
- Model: S-35-5
- Input voltage: AC 110V / 220V (switchable)
- Input frequency: 50/60 Hz
- Output voltage: 5V DC (adjustable via trimmer)
- Output current: 7A
- Rated power: 35W

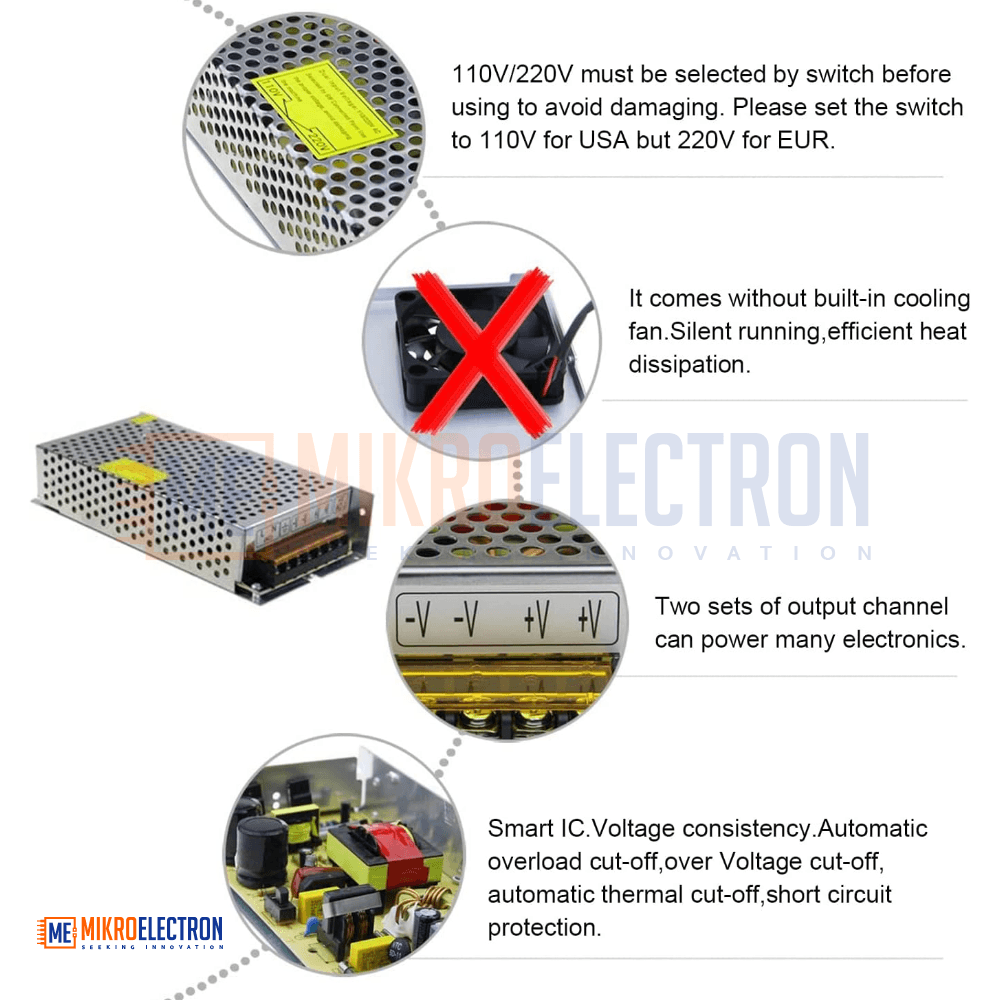

- Cooling: Free-air convection (fanless)
- Protections: Short-circuit and overload
- Indicator: Power-on LED
- Quality test: 100% full-load burn-in tested
- Enclosure: Ventilated metal case with screw terminals
- Mounting: Side-flange chassis with screw holes
Applications
- 5V LED strips and pixel lighting — WS2812B, SK6812, APA102, and other addressable LEDs
- Arduino, ESP32, ESP8266, and microcontroller projects requiring a stable 5V rail
- Raspberry Pi and single-board computer setups (via appropriate cabling)
- CCTV and security cameras rated for 5V DC
- USB hubs, charging stations, and powered breadboards
- DIY electronics workbenches and prototyping stations
- Small DC fans, sensors, relays, and automation modules
- Replacement supply for failed wall adapters when a higher-current source is needed
