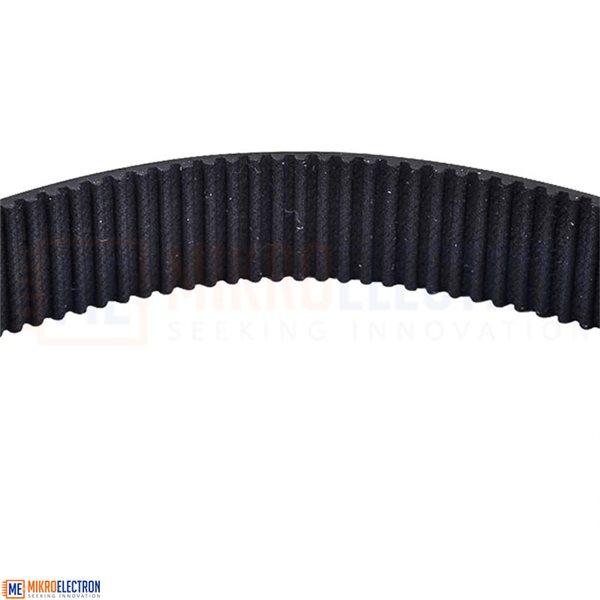

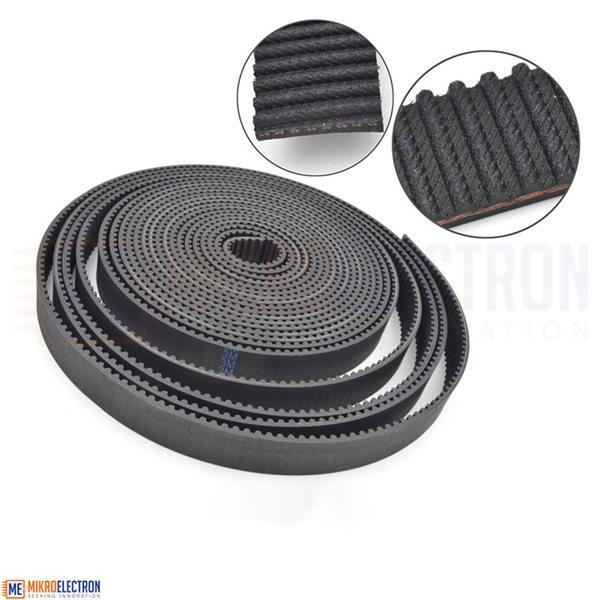

HTD3M-15mm Timing Belt
The HTD3M Open Timing Belt – 15mm Width is a high-performance synchronous belt designed for precise linear motion and power transmission applications. Manufactured from durable neoprene rubber with a fiberglass reinforcement core, it offers excellent flexibility, wear resistance, and dimensional stability. Featuring a 3mm tooth pitch and 15mm width, this open-ended timing belt ensures accurate positioning, low backlash, and reliable torque transfer. Supplied in 1-meter lengths, it can be cut to custom sizes for use in 3D printers, CNC machines, robotics, conveyor systems, and industrial automation equipment.
يُعد حزام التوقيت المفتوح HTD3M بعرض 15 مم حلاً عالي الأداء لنقل الحركة الدقيقة في أنظمة الحركة الخطية والتطبيقات الصناعية. صُنع من مطاط النيوبرين المقوى بألياف زجاجية لضمان المتانة والمرونة العالية والثبات الأبعادي. يتميز بخطوة أسنان 3 مم وعرض 15 مم، مما يوفر دقة عالية في التموضع ونقلًا فعالًا للعزم مع تقليل الخلوص والانزلاق. يُورّد الحزام بطول متر واحد ويمكن قصه حسب الحاجة، مما يجعله مثاليًا للطابعات ثلاثية الأبعاد، وماكينات CNC، والروبوتات، وأنظمة الأتمتة.
The HTD3M Open Timing Belt is a precision synchronous belt engineered for accurate motion control and efficient power transmission. Designed with the HTD (High Torque Drive) 3M tooth profile, it provides superior load distribution and enhanced torque capacity compared to conventional timing belts.
Constructed from high-quality neoprene rubber and reinforced with a fiberglass tensile core, the belt delivers excellent durability, high tensile strength, and resistance to stretching. This construction ensures consistent performance and reliable synchronization even under continuous operation.
With a 3mm tooth pitch, 15mm width, and open-ended design, the belt can be easily cut to custom lengths, making it suitable for a wide range of linear motion systems and custom mechanical assemblies.
The HTD3M timing belt is widely used in 3D printers, CNC routers, laser engraving machines, robotics, conveyors, and industrial automation systems, where precise positioning and smooth operation are critical.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Open Timing Belt |
| Series | HTD3M |

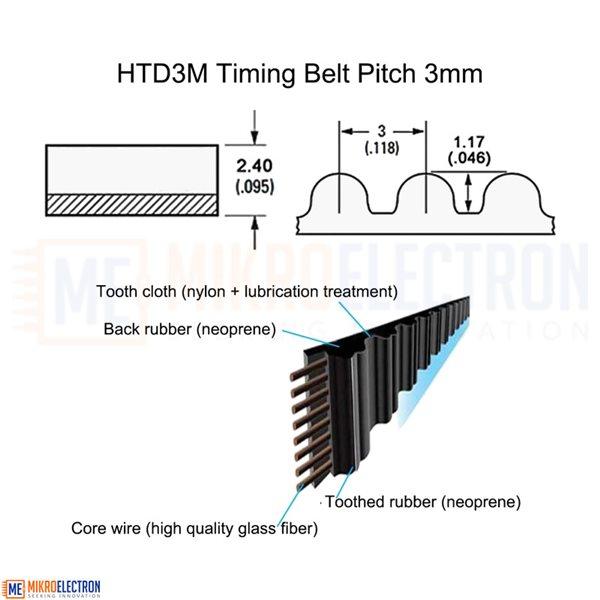

| Tooth Pitch | 3 mm |
| Belt Width | 15 mm |
| Belt Height | 2.40 mm |
| Tooth Height | 1.17 mm |
| Material | Neoprene Rubber |
| Core Material | Fiberglass |
| Shape | Open Loop |
| Length per Pack | 1 Meter |
| Drive Type | Synchronous / Positive Drive |
Applications
- 3D printers
- CNC routers and milling machines
- Laser engraving and cutting machines
- Industrial automation systems
- Conveyor systems
- Robotics and motion control equipment
- Pick-and-place machines
- DIY mechanical projects
