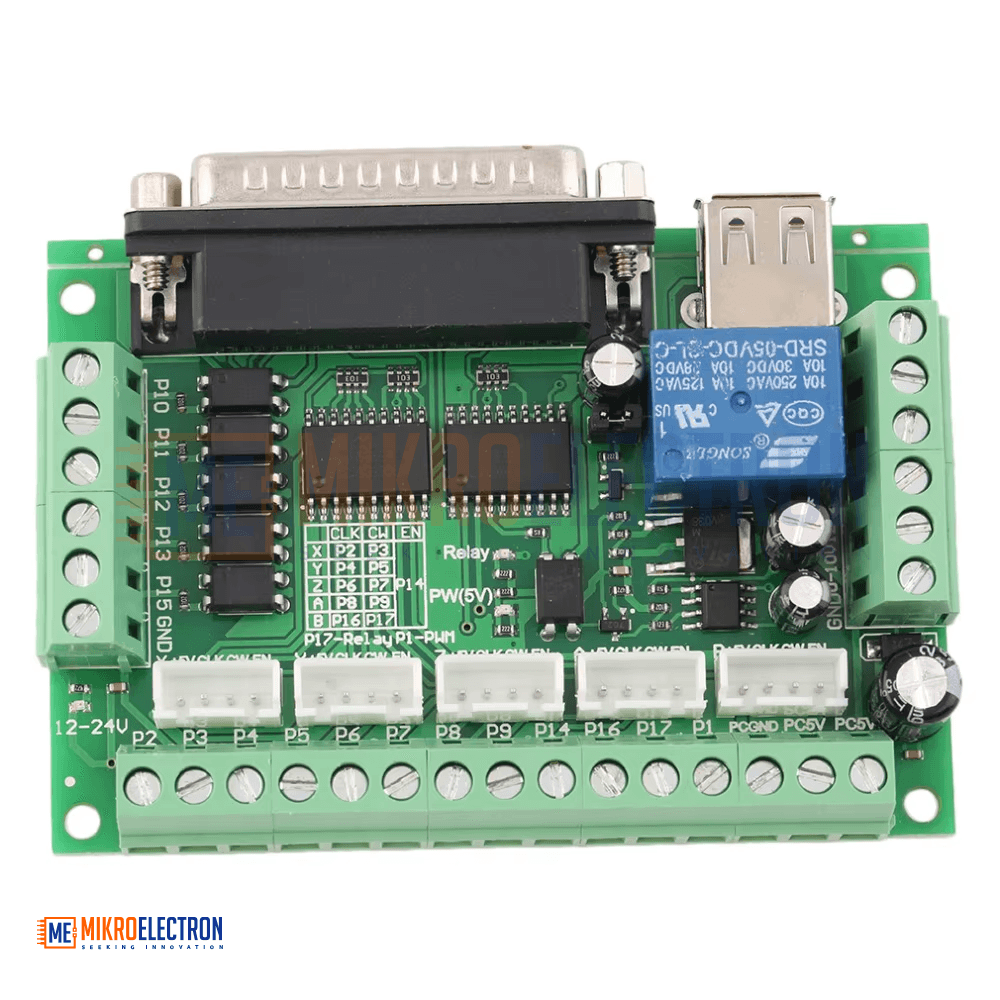

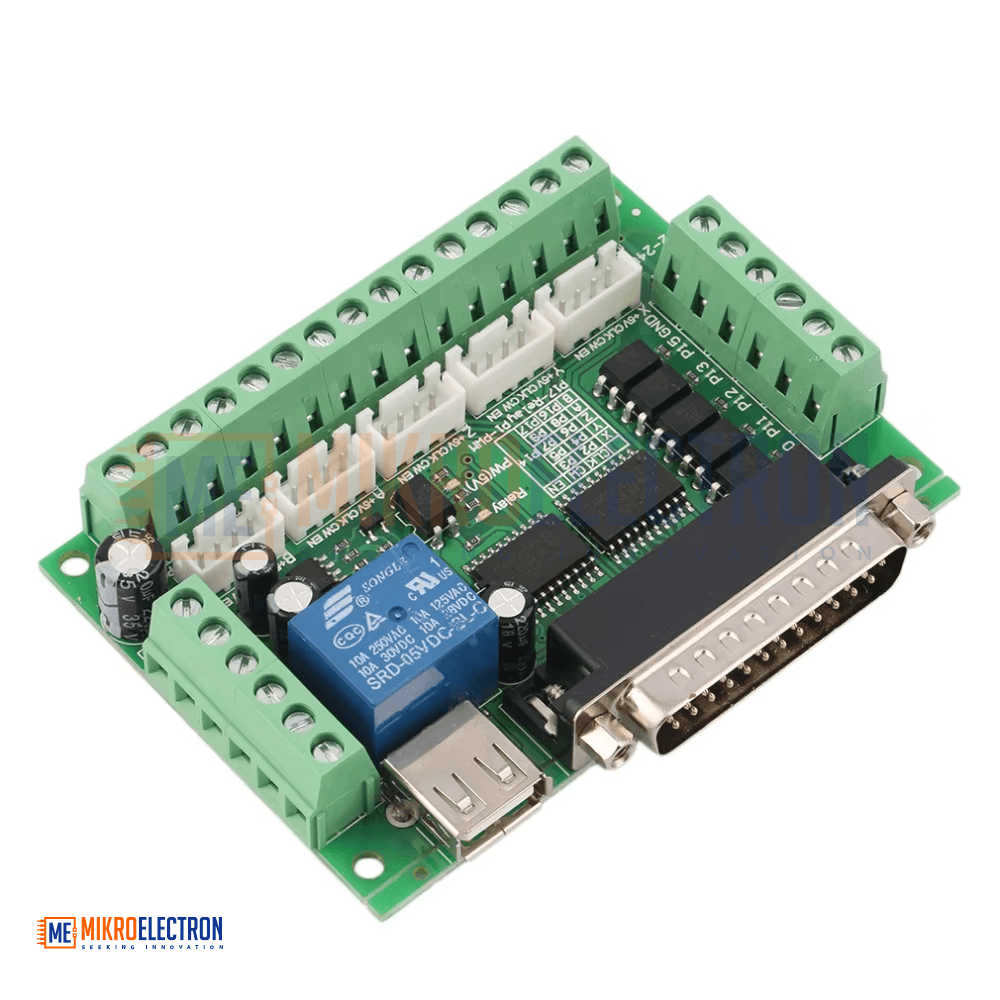

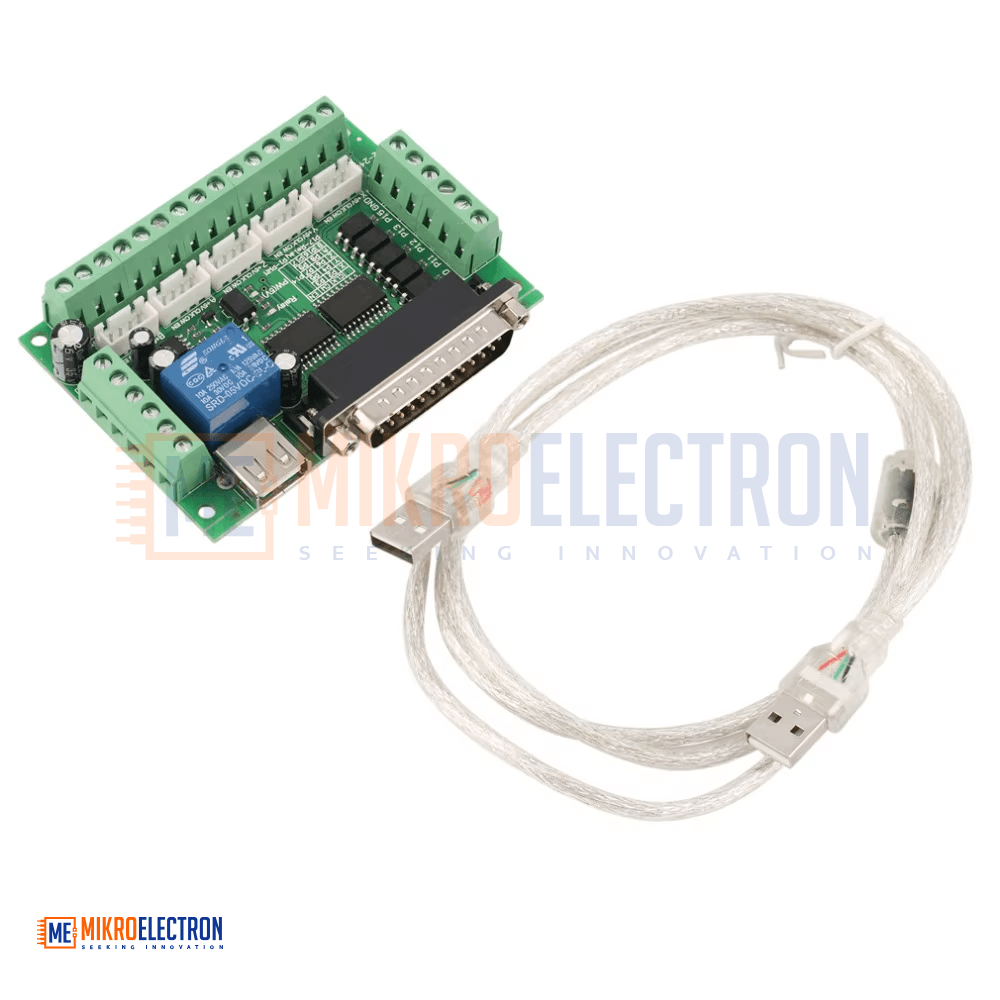

MACH3 5 Axis CNC Breakout Board For Stepper Motor Driver CNC
The MACH3 5-Axis CNC Breakout Board is a versatile interface controller designed to connect a computer running MACH3 software to stepper motor drivers in CNC machines. Supporting up to five axes of motion control, it features optocoupler isolation on all input signals for enhanced safety and noise immunity. The board includes a 0–10V analog output for spindle speed control, a dedicated relay output for spindle switching, and support for both common anode and common cathode input configurations. With USB-powered isolation, wide 12–24V DC input support, and compatibility with parallel port control software, it is ideal for CNC routers, engravers, and automation systems.
تُعد لوحة التحكم MACH3 CNC ذات 5 محاور واجهة متقدمة مصممة لربط جهاز كمبيوتر يعمل ببرنامج MACH3 مع مشغلات المحركات الخطوية في ماكينات CNC. تدعم اللوحة التحكم بما يصل إلى خمسة محاور حركة، وتتميز بعزل ضوئي لجميع إشارات الإدخال لتعزيز الأمان وتقليل التداخل الكهربائي. كما توفر خرجًا تناظريًا بجهد 0–10 فولت للتحكم بسرعة المغزل، بالإضافة إلى خرج ريليه مخصص لتشغيل وإيقاف المغزل، مع دعم لتوصيلات الأنود المشترك والكاثود المشترك. بفضل دعمها لجهد تشغيل 12–24 فولت DC وعزل طاقة USB، تُعد خيارًا مثاليًا لماكينات CNC وأنظمة الأتمتة.
The MACH3 5-Axis CNC Breakout Board is a high-performance interface module designed to simplify the connection between a computer's parallel port and CNC motion control hardware. It supports up to five motion axes, making it suitable for CNC routers, milling machines, plasma cutters, laser engravers, and other automation equipment.
Fully compatible with MACH3 and other parallel-port-based CNC control software, the board converts control signals from the computer into reliable outputs for stepper motor drivers. All input channels are equipped with optocoupler isolation, protecting the computer from electrical noise, voltage spikes, and wiring faults.

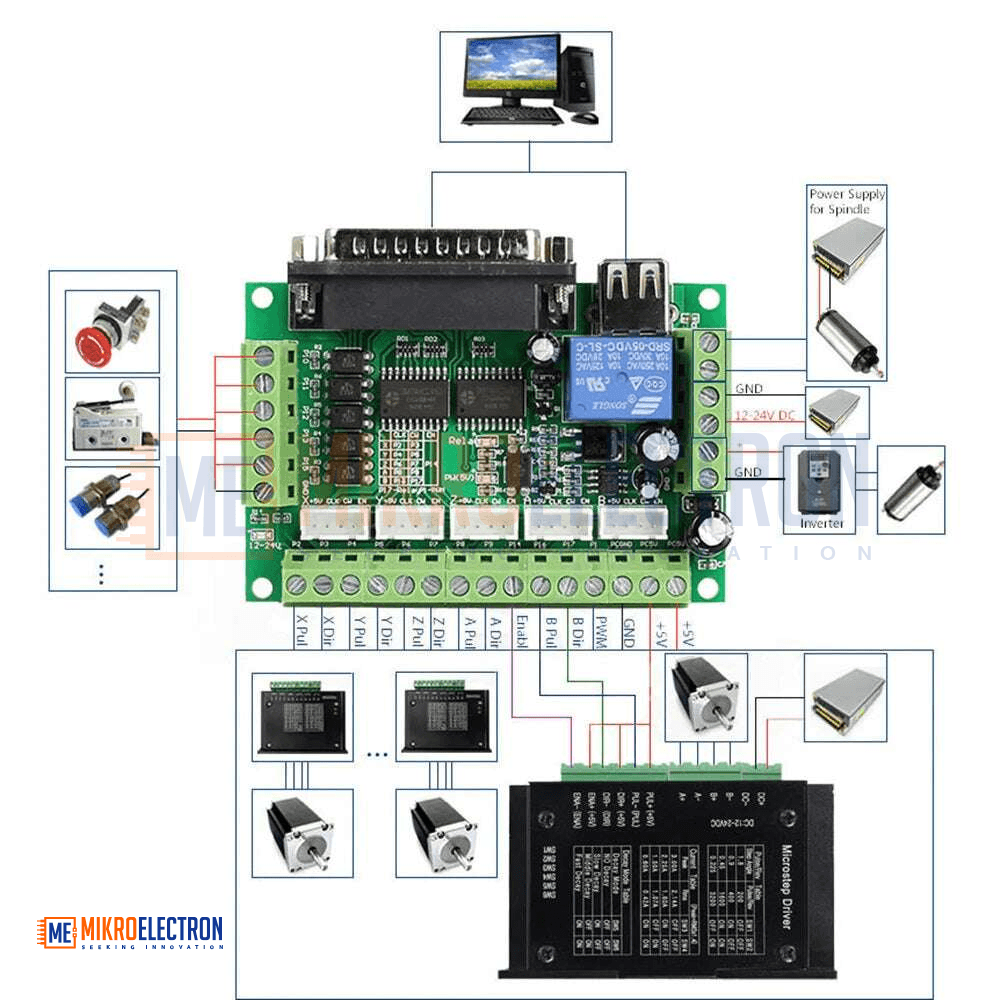

The board features a dedicated 0–10V analog output for variable spindle speed control and an integrated relay output for spindle on/off switching. It also supports external devices such as emergency stop buttons, limit switches, and spindle speed controllers.
Designed for flexibility, the breakout board operates with a wide 12–24V DC input range, includes reverse polarity protection, and supports both common anode and common cathode wiring configurations.
Specifications
| Parameter | Value |
|---|---|
| Product Type | CNC Breakout Board |
| Supported Axes | 5 Axes |
| Software Compatibility | MACH3 and parallel port CNC software |
| Communication Interface | Parallel Port (DB25) |
| Power Input | 12–24V DC |
| USB Function | Isolated USB Power Supply |
| Input Isolation | Optocoupler Isolation on All Inputs |
| Analog Output | 0–10V DC Spindle Speed Control |
| Relay Output | Spindle On/Off Control |

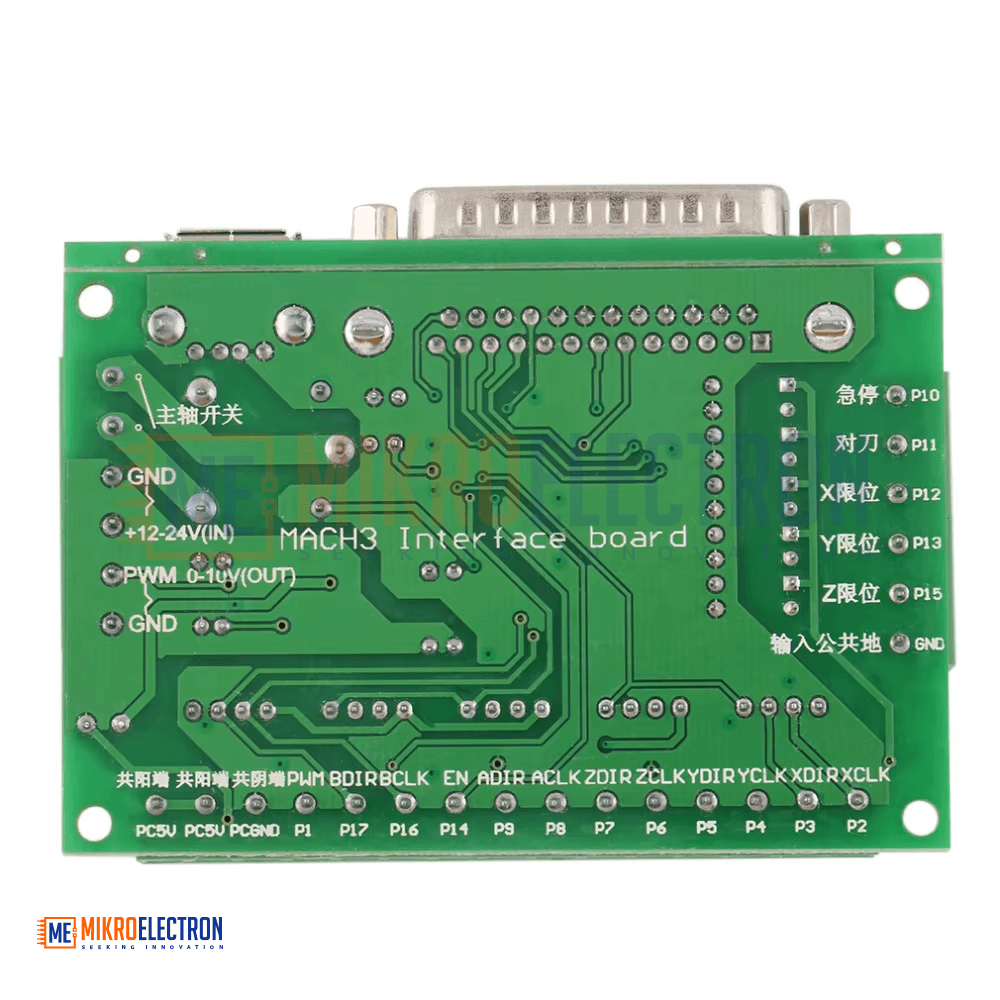

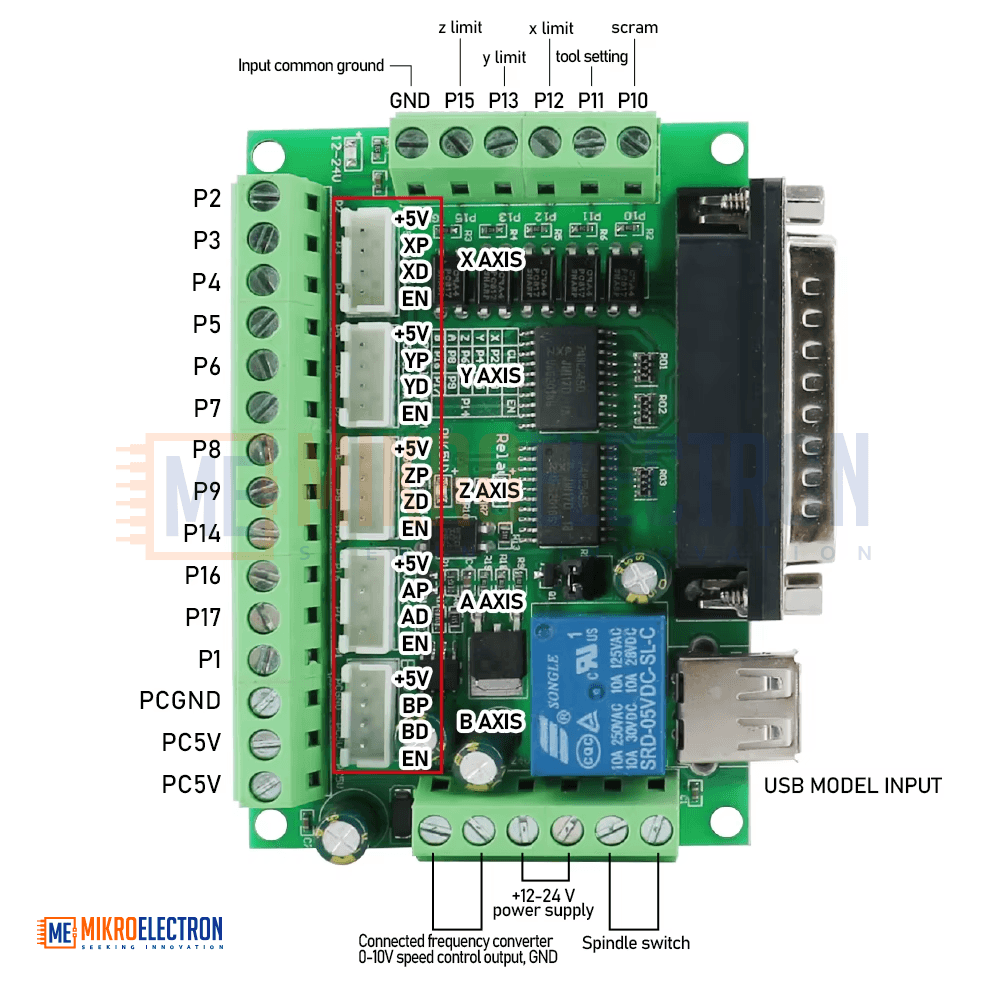

| Relay Output Port | P17 |
| Analog Output Port | P1 |
| Available Control Ports | Up to 17 Ports |
| Input Configuration | Common Anode / Common Cathode |
| Protection Features | Reverse Polarity Protection |

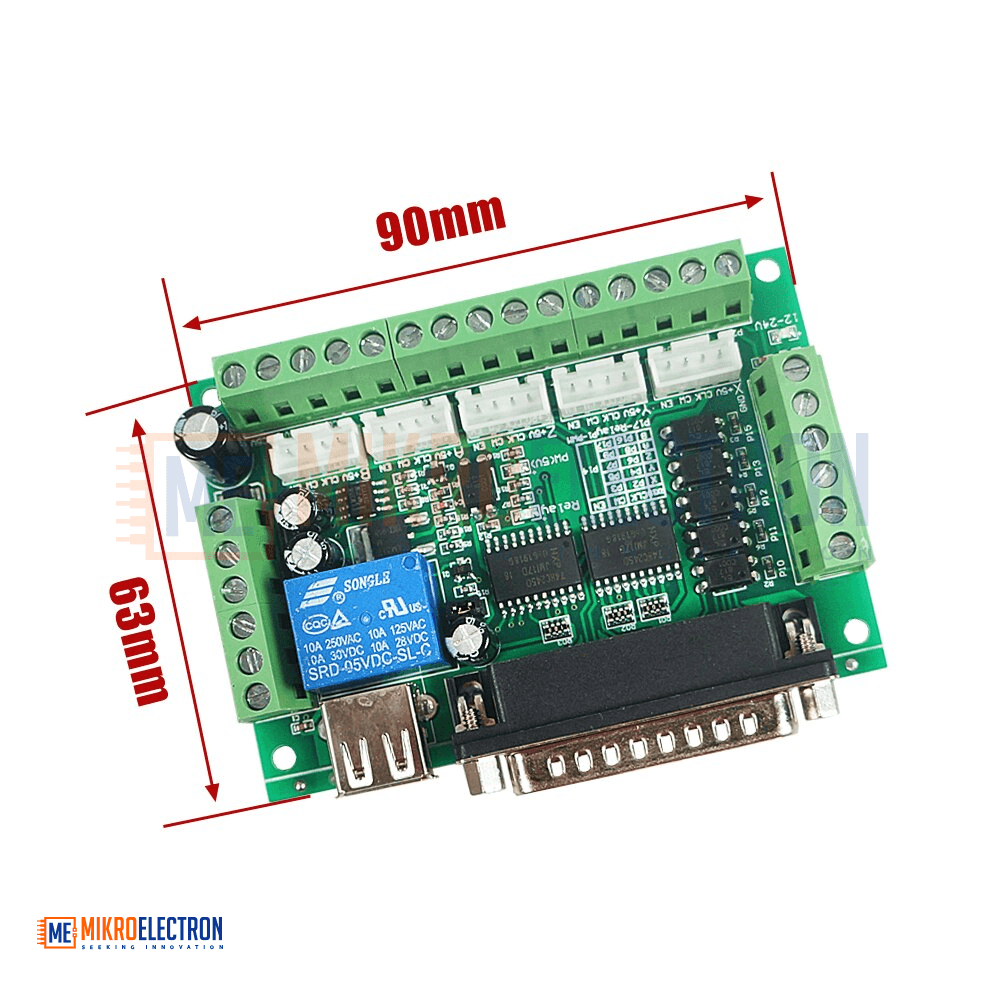

| Board Dimensions | 90 × 70 × 18 mm |
| Board Color | Green |
| Optocoupler Cable Length | 135 cm |
Applications
- CNC routers
- CNC milling machines
- Laser engraving machines
- Plasma cutting systems
- Woodworking CNC machines
- DIY CNC projects
- Industrial automation systems
- Stepper motor control systems
