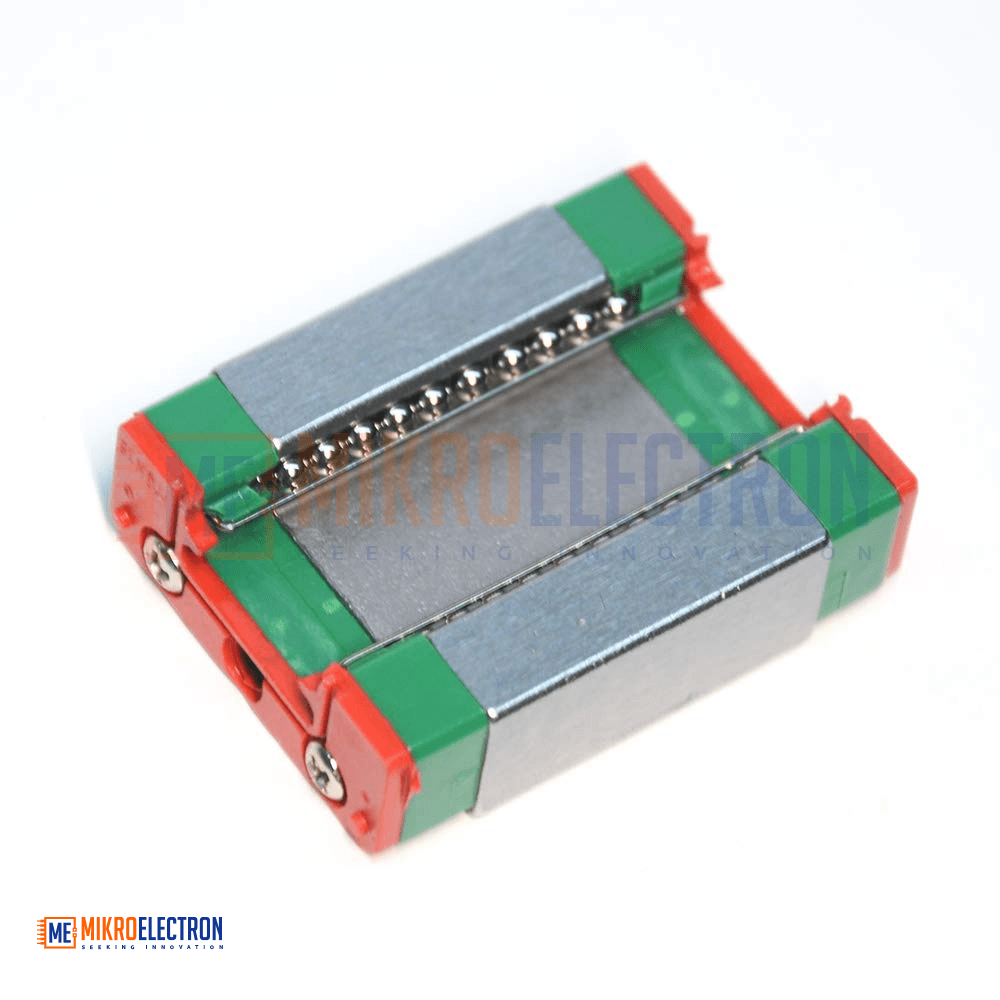

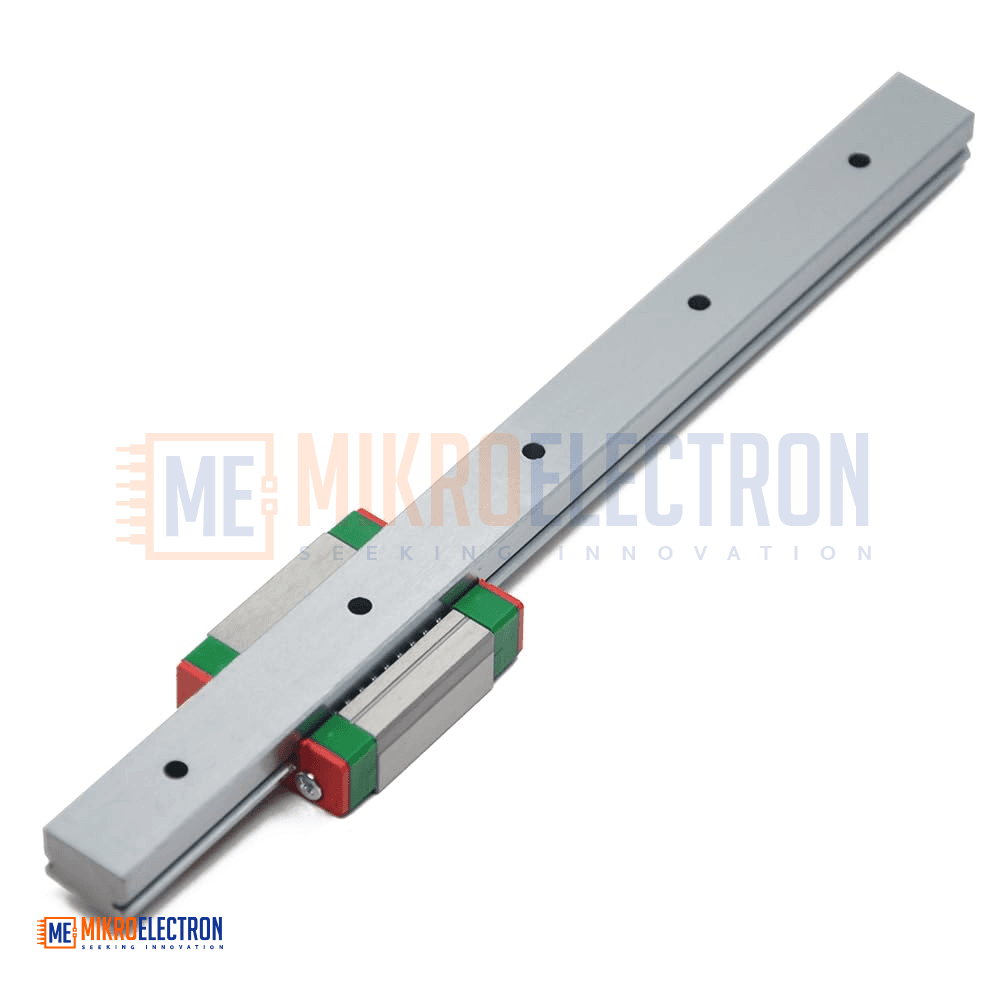

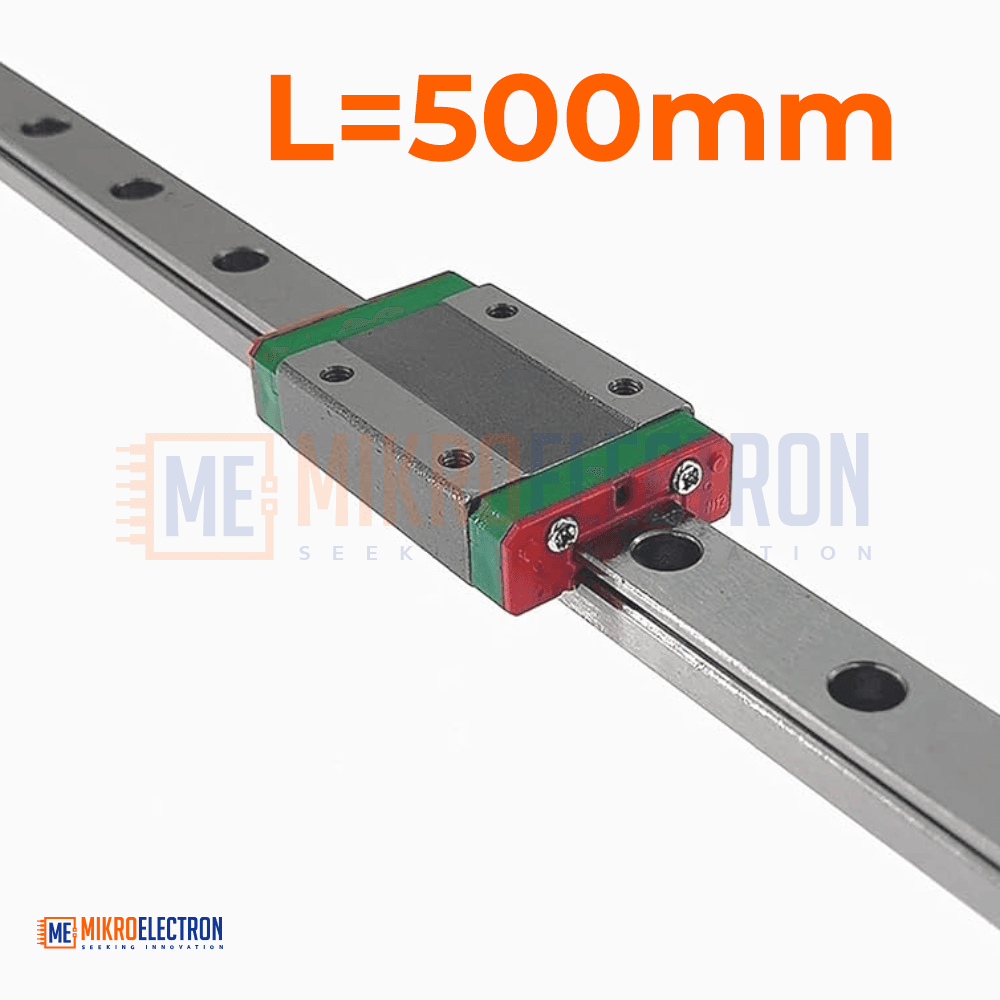

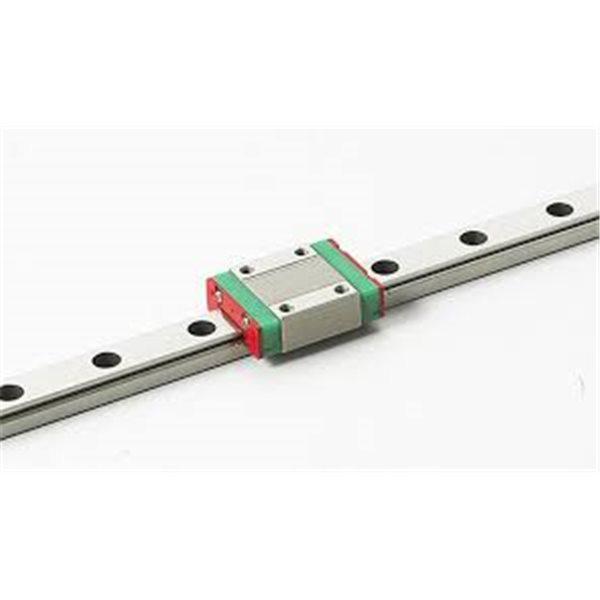

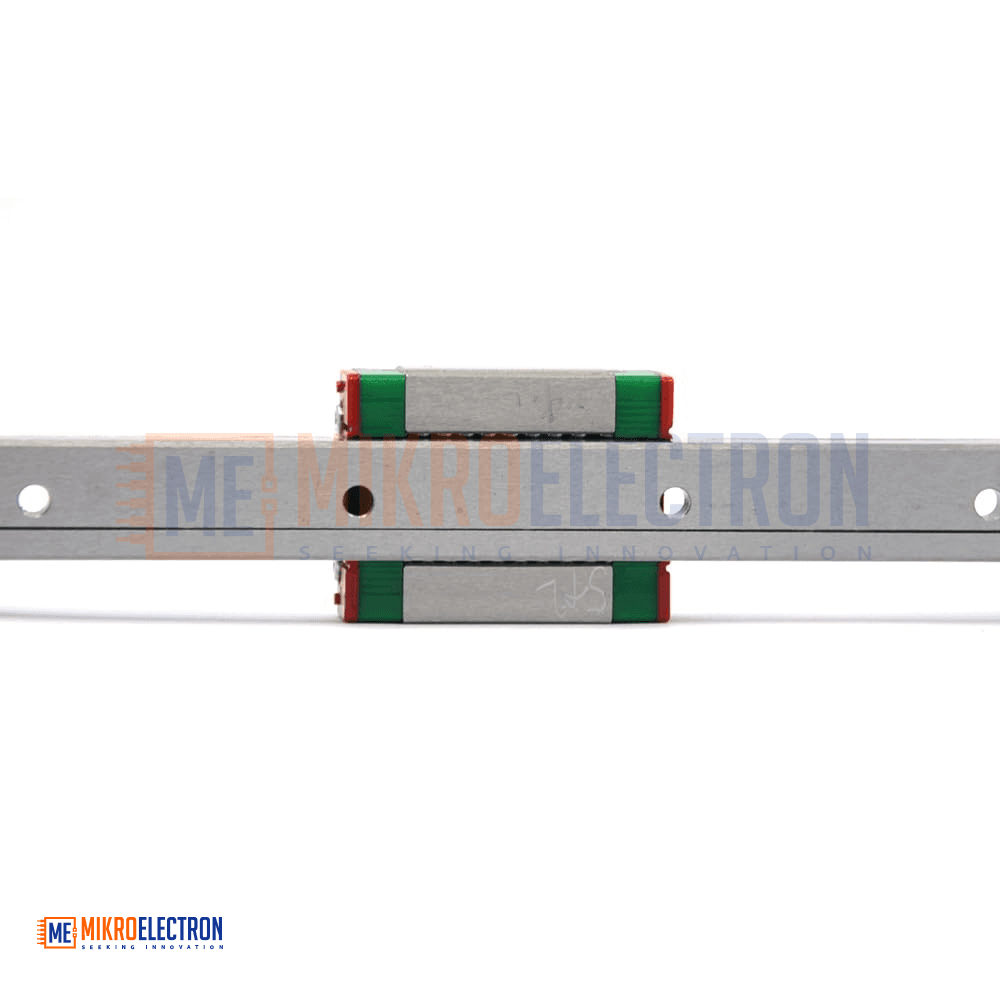

MGN15 linear rail guide with MGN15C carriage L=500mm
The MGN15 Linear Rail Guide with MGN15C Carriage (500mm) is a precision motion component designed to provide smooth, accurate, and stable linear movement for 3D printers, CNC machines, and automation systems. Featuring a 500mm hardened steel rail and a compact MGN15C carriage block, it delivers high rigidity, low friction, and excellent load capacity for X, Y, and Z axis applications. Its compact profile allows easy integration into space-constrained designs while ensuring precise positioning and reliable performance. The MGN15 linear guide is ideal for upgrading or building custom motion systems that require consistent accuracy and durability.
يُعد الدليل الخطي MGN15 مع عربة MGN15C بطول 500 مم مكونًا عالي الدقة مصممًا لتوفير حركة خطية سلسة وثابتة لأنظمة الطابعات ثلاثية الأبعاد، وماكينات CNC، ومشاريع الأتمتة. يتكون من سكة فولاذية مقسّاة بطول 500 مم وعربة MGN15C المدمجة، مما يوفر صلابة عالية واحتكاكًا منخفضًا وقدرة ممتازة على تحمل الأحمال لتطبيقات المحاور X وY وZ. يتيح تصميمه المدمج سهولة الدمج في المساحات المحدودة مع الحفاظ على دقة التموضع والأداء الموثوق، مما يجعله خيارًا مثاليًا لبناء أو تطوير أنظمة الحركة الخطية.
The MGN15 Linear Rail Guide with MGN15C Carriage is a high-precision linear motion system engineered for applications requiring smooth, accurate, and repeatable movement. The assembly consists of a 500mm MGN15 linear rail and a pre-installed MGN15C carriage block, offering excellent rigidity and stability for motion control systems.
Manufactured from hardened steel, the rail provides long-lasting durability and resistance to wear, while the carriage features precision ball bearings that ensure low-friction operation and consistent performance. Its compact design makes it particularly suitable for applications with limited installation space.
The MGN15 linear guide is widely used in 3D printers, CNC routers, laser engravers, robotics, and industrial automation equipment. It is designed to support movement along X, Y, or Z axes, improving positioning accuracy and reducing vibration during operation.
Whether used for custom machine builds or as an upgrade to existing systems, the MGN15 rail and carriage assembly delivers reliable linear motion and enhanced mechanical performance.

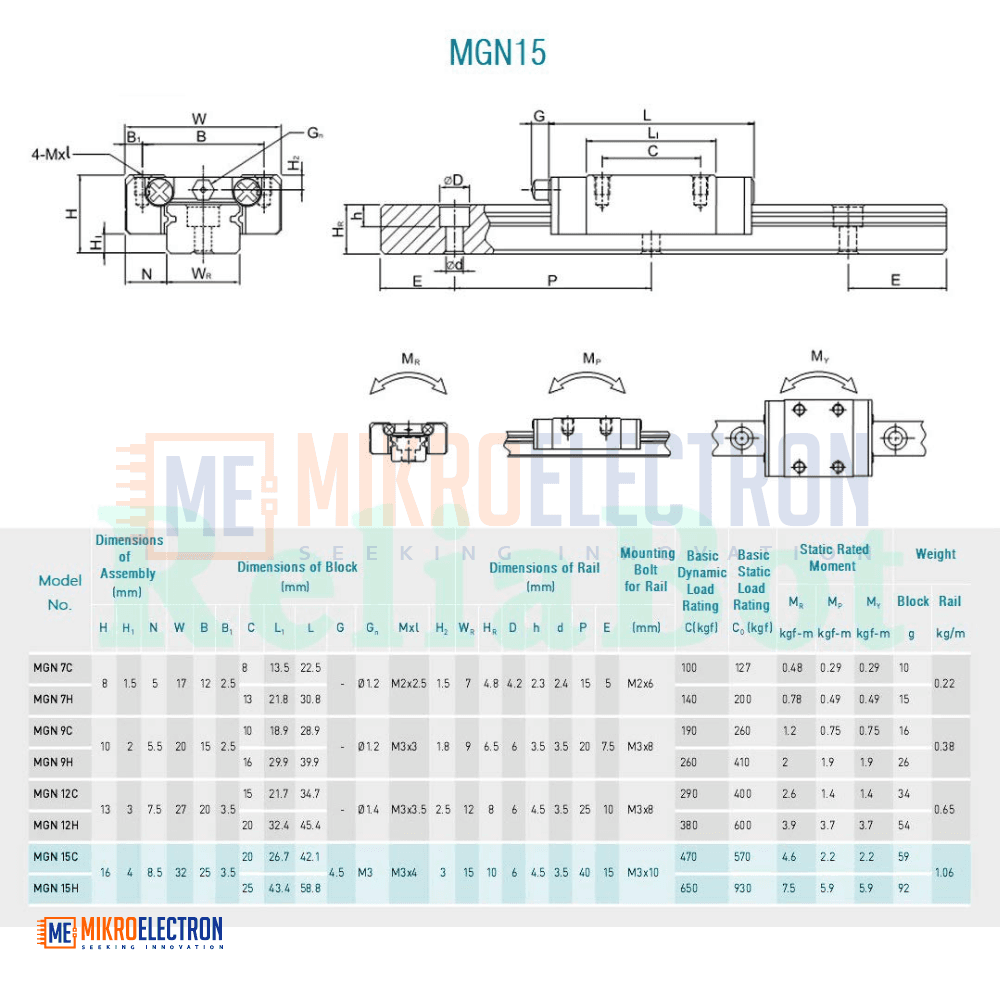

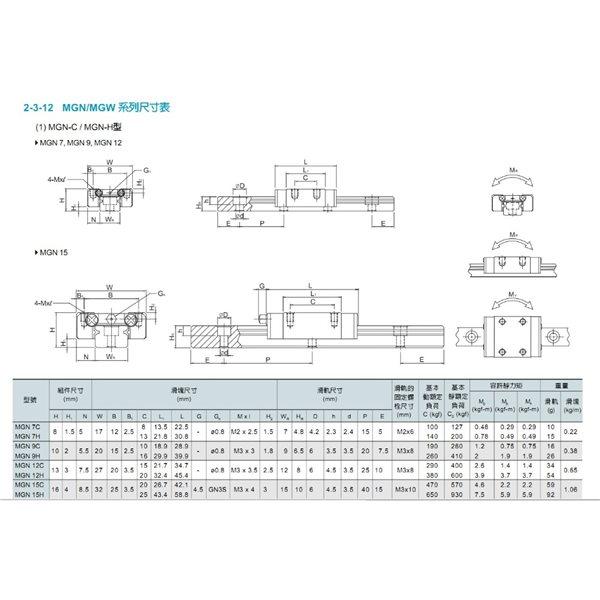

Specifications
| Parameter | Value |
|---|---|
| Model | MGN15 |
| Carriage Model | MGN15C |
| Rail Length | 500 mm |
| Rail Width | 15 mm |
| Guide Type | Miniature Linear Rail Guide |
| Carriage Type | Compact Carriage Block |
| Material | Hardened Steel |
| Motion Type | Linear Motion |
| Bearing Type | Recirculating Ball Bearings |
| Mounting Orientation | X, Y, or Z Axis |
| Installation Type | Bolt-Mounted |
| Applications | 3D Printers, CNC Machines, Robotics |
Applications
- 3D printer X, Y, and Z axes
- CNC routers and milling machines
- Laser engraving and cutting machines
- Robotics and automation systems
- Camera sliders and motion platforms
- Pick-and-place equipment
- DIY motion control projects
- Precision positioning systems
