Bridge Rectifier 2A (2W10)
Out Of Stock

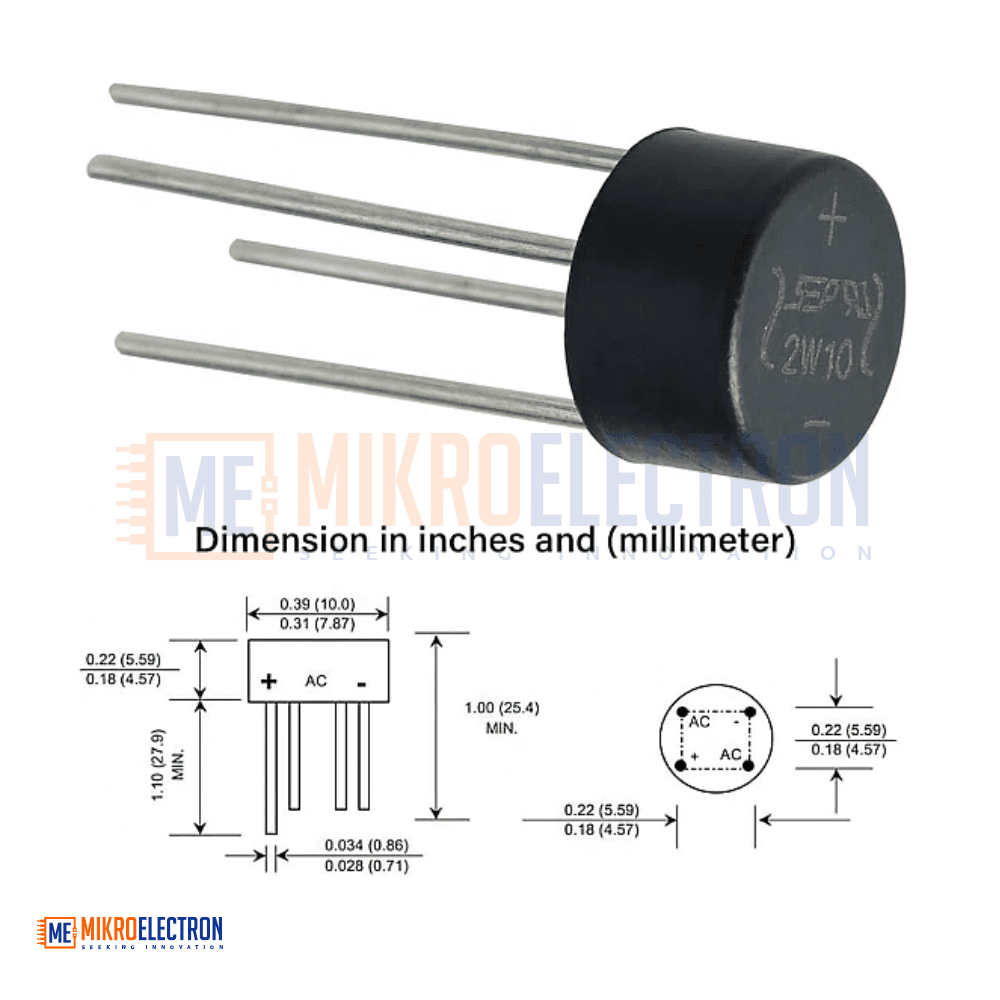

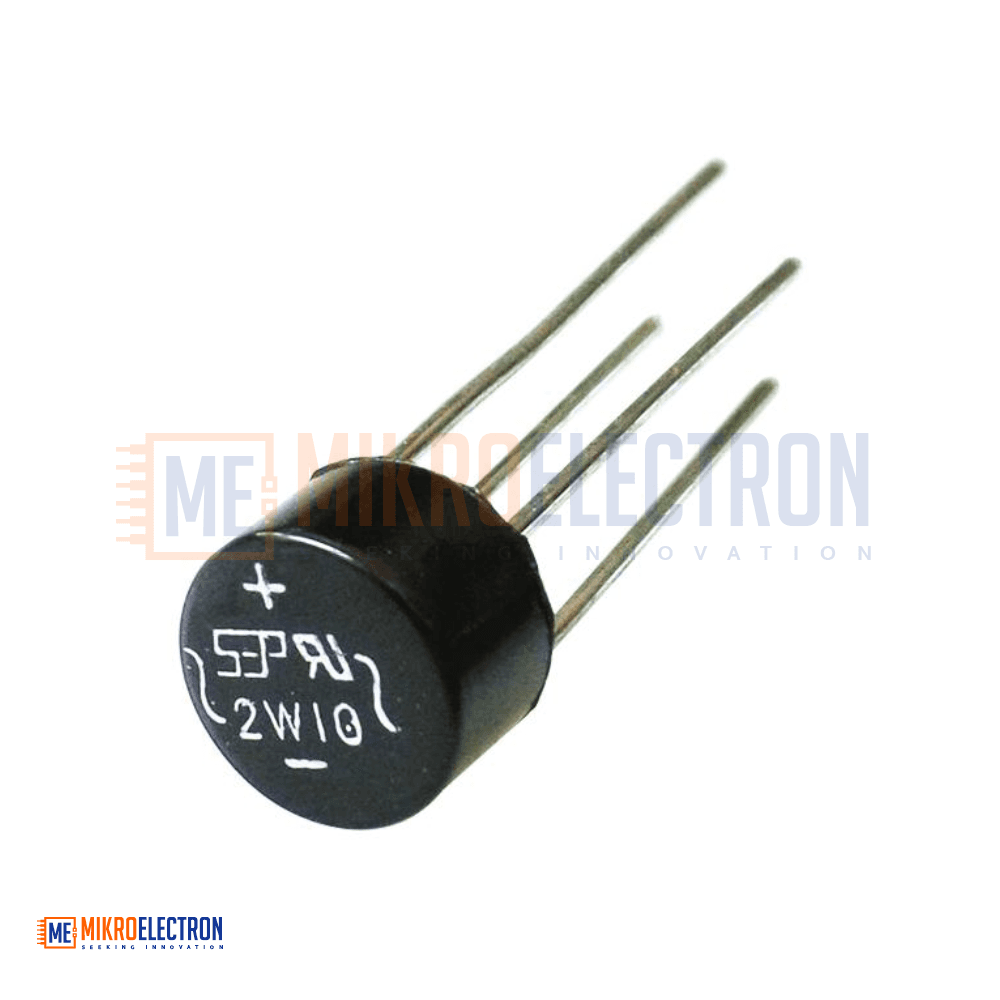

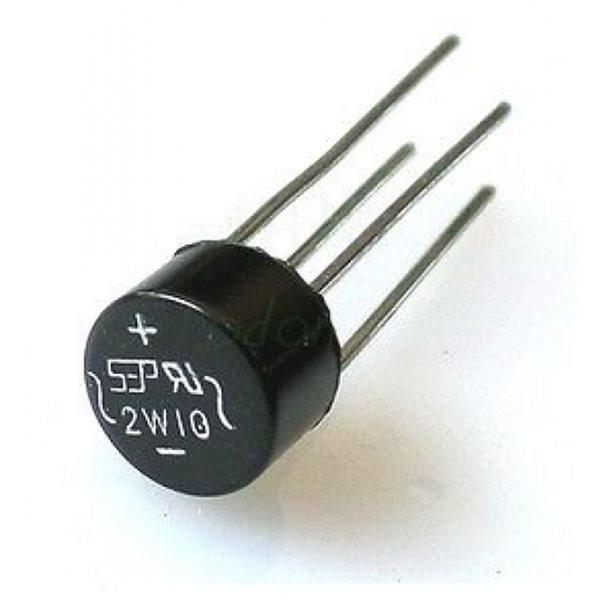

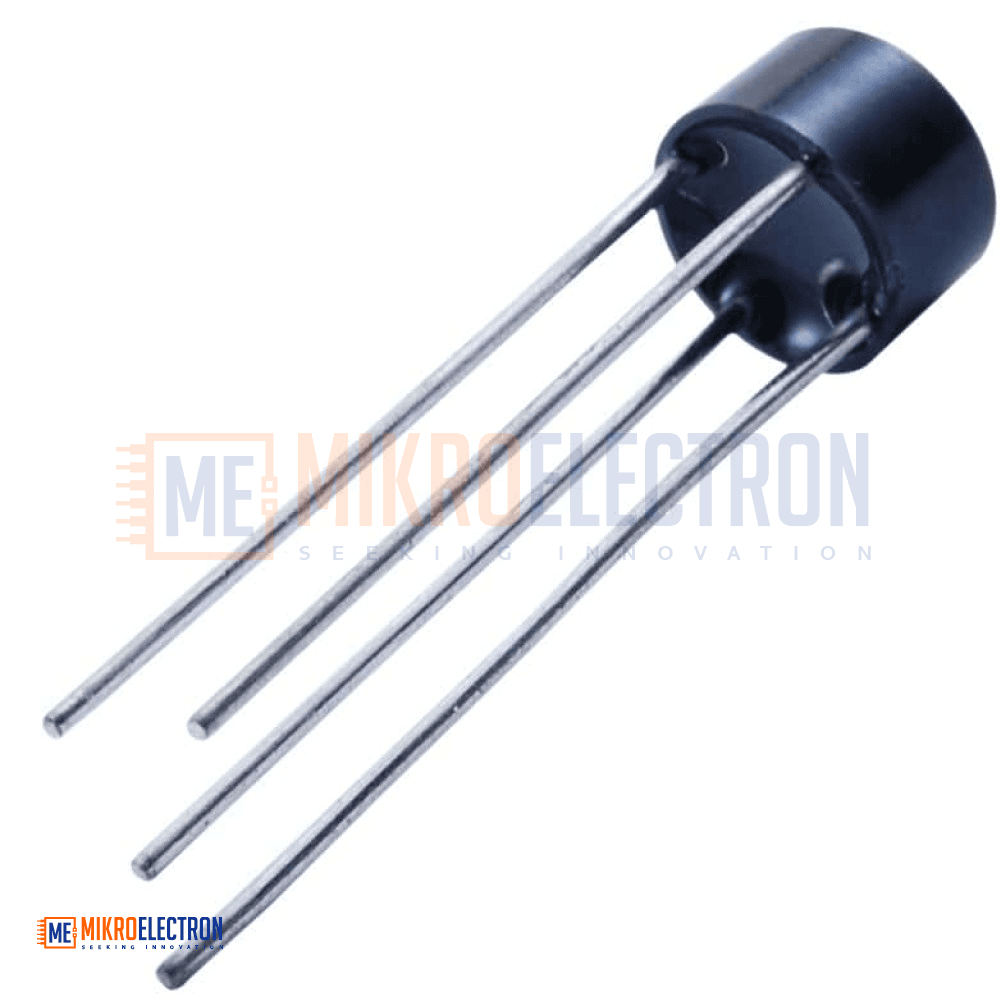

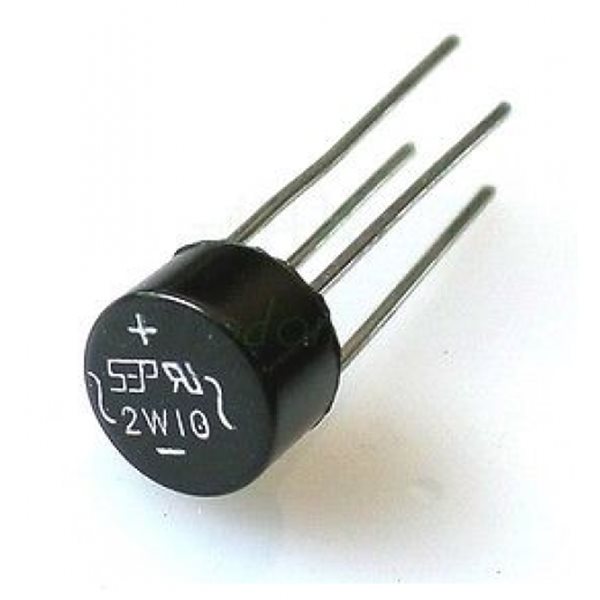

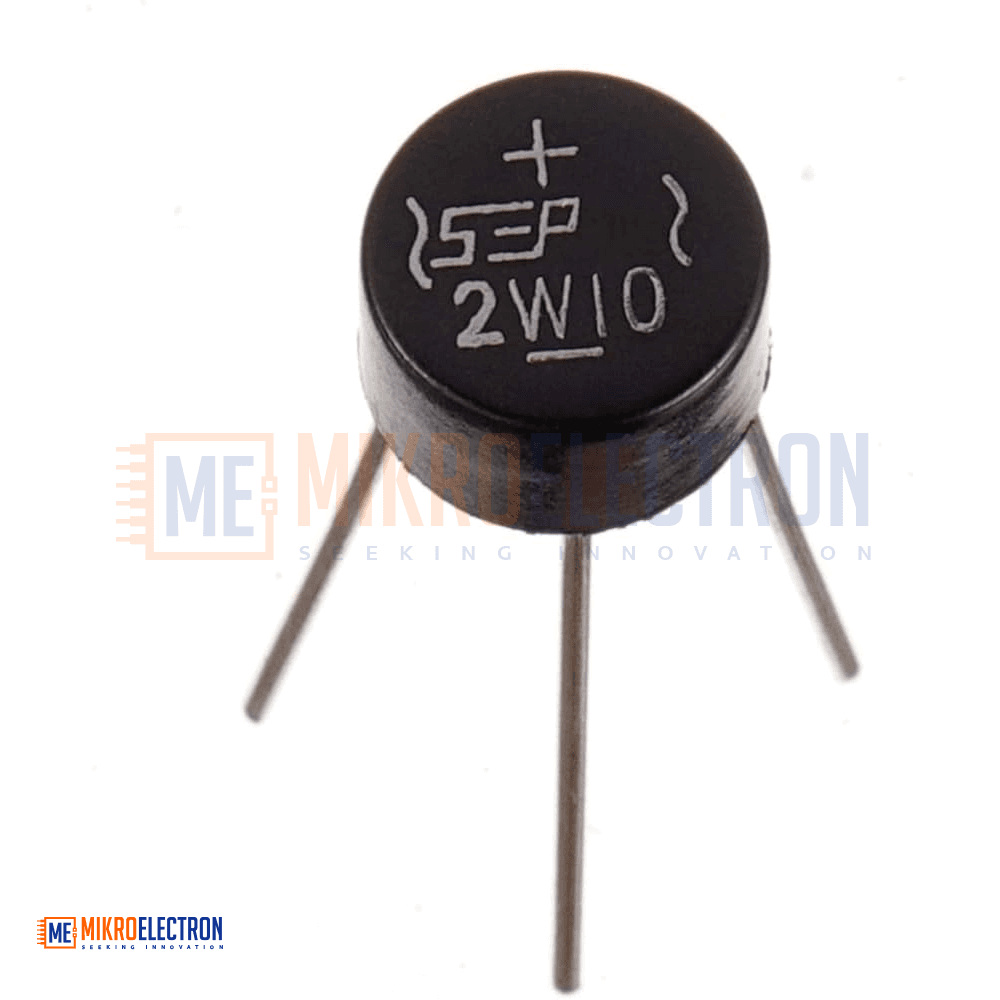

The 2W10 Bridge Rectifier is a compact single-phase silicon rectifier designed to efficiently convert alternating current (AC) into direct current (DC). It integrates four diodes in a bridge configuration within a single package, simplifying circuit design and reducing assembly time. The device supports an average forward current of 2A and offers a peak reverse voltage rating of 1000V, making it suitable for a wide range of power supply and electronic applications. With a low forward voltage drop and a wide operating temperature range from -55°C to +150°C, the 2W10 provides reliable and stable performance.
يُعد مقوم الجسر 2W10 مقوم سيليكون أحادي الطور مصممًا لتحويل التيار المتردد (AC) إلى تيار مستمر (DC) بكفاءة عالية. يضم أربع ثنائيات موصلة داخليًا بتكوين جسر داخل حزمة واحدة، مما يساهم في تبسيط تصميم الدوائر الإلكترونية وتقليل وقت التركيب. يدعم المقوم تيارًا أماميًا متوسطًا يصل إلى 2 أمبير، ويوفر جهدًا عكسيًا أقصى متكررًا يبلغ 1000 فولت، مما يجعله مناسبًا لمجموعة واسعة من تطبيقات مزودات الطاقة والأنظمة الإلكترونية. كما يتميز بجهد هبوط منخفض ونطاق واسع لدرجات الحرارة من -55°C إلى +150°C لضمان أداء موثوق ومستقر.

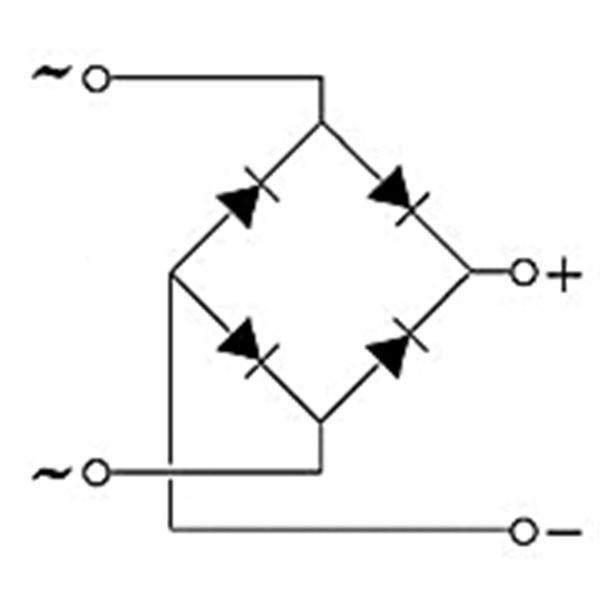

The 2W10 Bridge Rectifier is a single-phase full-wave rectifier that converts AC input voltage into DC output voltage using four integrated silicon diodes arranged in a bridge configuration. By combining all four diodes into a single compact package, the 2W10 reduces PCB space requirements and simplifies circuit assembly compared to discrete diode solutions.
Designed to handle an average rectified forward current of 2A, the device is suitable for low- to medium-power applications such as power adapters, battery chargers, industrial control circuits, and consumer electronics. Its 1000V peak reverse voltage rating (VRRM) ensures reliable operation in circuits exposed to high-voltage transients or elevated input voltages.
The rectifier features a maximum forward voltage drop of 1.1V per diode at 2A, helping maintain efficient power conversion while minimizing heat generation. With an operating temperature range of -55°C to +150°C, the 2W10 delivers dependable performance in demanding environmental conditions.
Its robust construction and high-voltage capability make the 2W10 an excellent choice for AC-to-DC conversion in a wide range of electronic and electrical applications.
Specifications
| Parameter | Value |
|---|---|
| Model | 2W10 |
| Device Type | Single-Phase Silicon Bridge Rectifier |
| Rectifier Configuration | Full-Wave Bridge |
| Average Rectified Forward Current (Io) | 2A |
| Maximum Recurrent Peak Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Input Voltage | 700V |
| Maximum Forward Voltage Drop (VF) | 1.1V per diode at 2A |
| Operating Temperature Range | -55°C to +150°C |
| Number of Internal Diodes | 4 |
| Mounting Type | Through-Hole |
| Package Type | 2W Series Package |
Applications
- AC-to-DC power supplies
- Battery charging circuits
- Power adapters and converters
- Industrial control equipment
- Home appliances
- LED driver circuits
- Motor control systems
- Instrumentation and measurement equipment
- Consumer electronics
- General-purpose rectification applications
