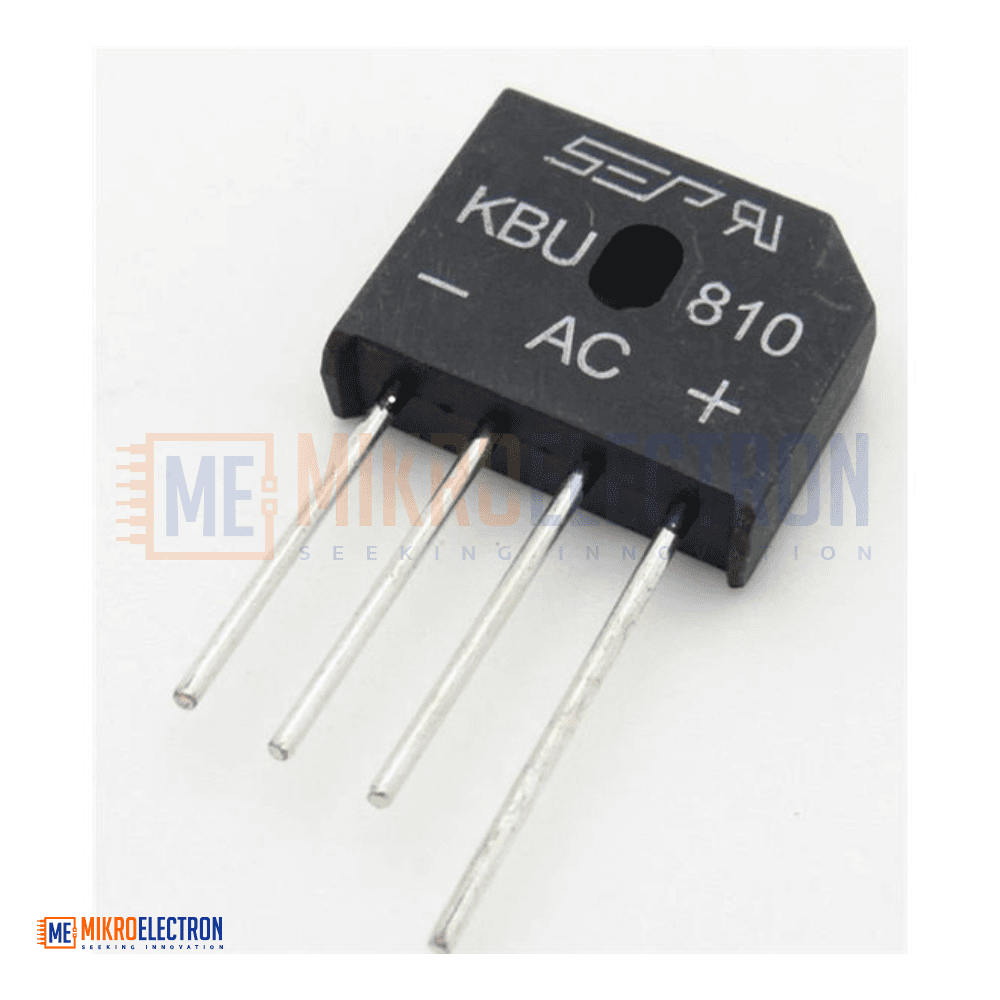

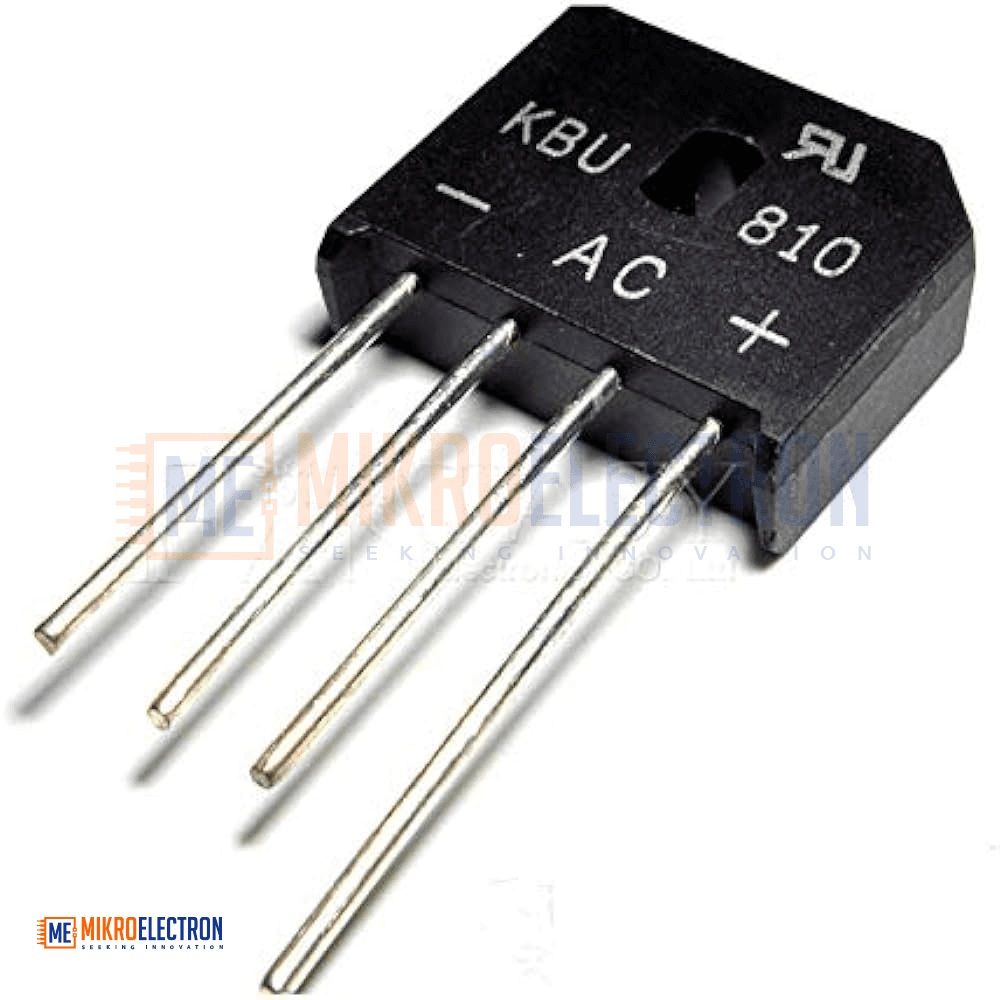

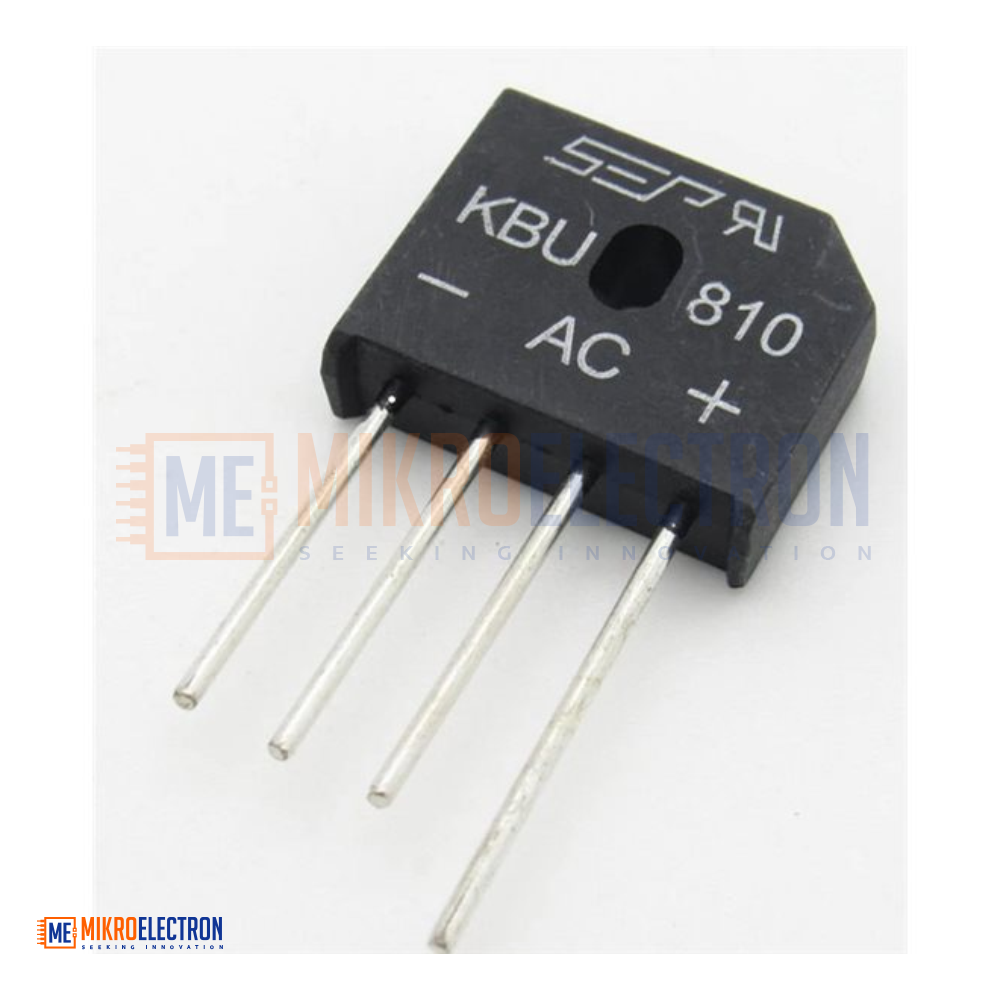

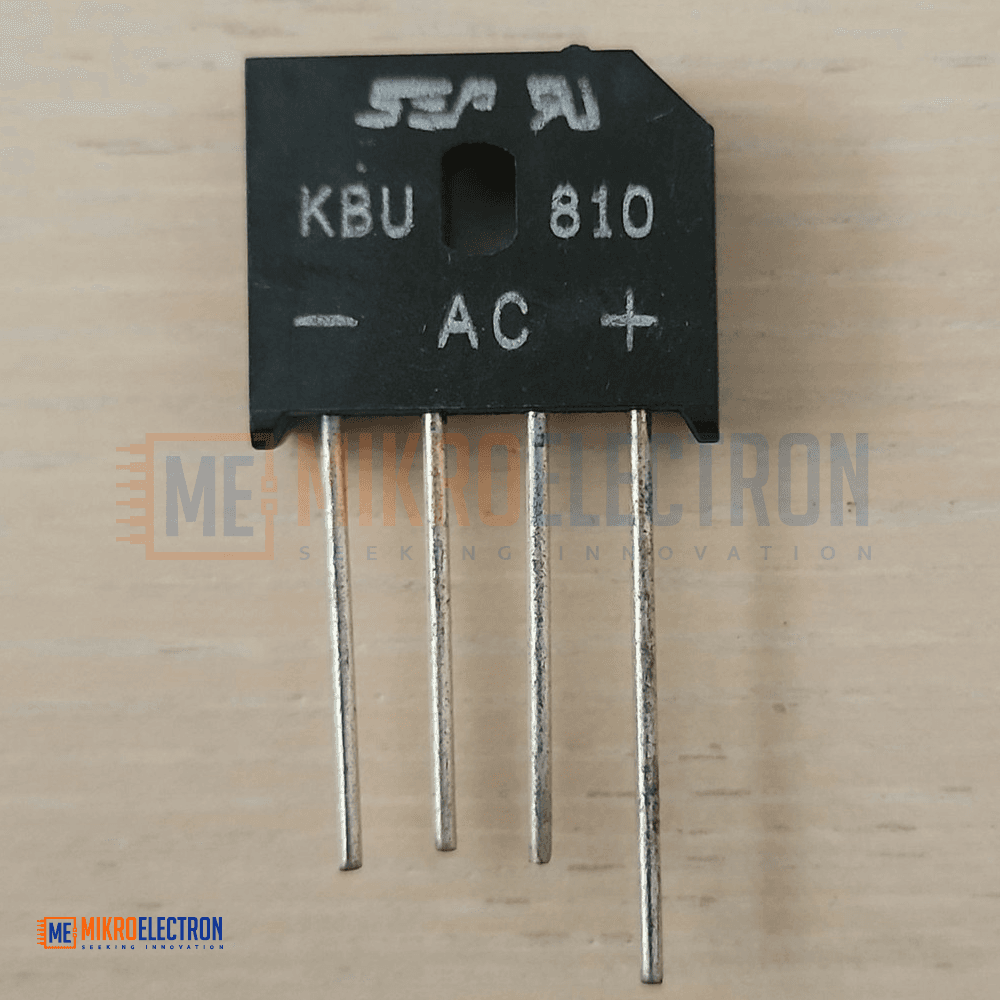

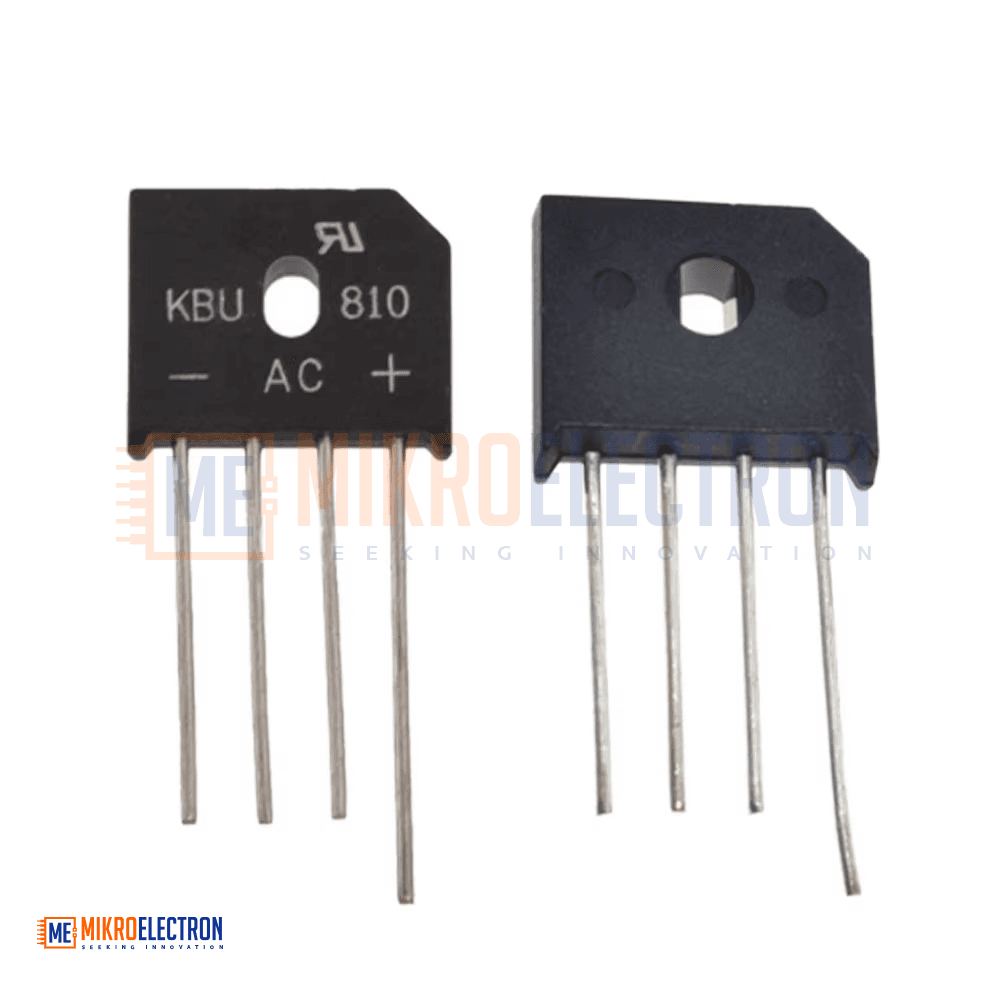

bridge rectifier KBU810 KBU-810 8A 1000V diode bridge rectifier
KBU810 Bridge Rectifier (8A, 1000V) is a high-performance diode bridge designed to convert Alternating Current (AC) into Direct Current (DC) efficiently and reliably. Featuring a maximum forward current of 8A and a peak reverse voltage rating of 1000V, it is suitable for power supplies, battery chargers, industrial equipment, and electronic circuits requiring AC-to-DC conversion. The compact package includes a convenient mounting hole for secure installation and effective heat dissipation. Built for durability and stable operation over a wide temperature range, the KBU810 is an excellent choice for both professional and DIY power electronics applications.
مقوم جسر KBU810 بقدرة 8 أمبير وجهد 1000 فولت هو عنصر إلكتروني عالي الأداء مصمم لتحويل التيار المتردد (AC) إلى تيار مستمر (DC) بكفاءة وموثوقية عالية. يتميز بتيار تشغيل أقصى يبلغ 8 أمبير وجهد عكسي أقصى يصل إلى 1000 فولت، مما يجعله مناسباً لمزودات الطاقة، وشواحن البطاريات، والمعدات الصناعية، والدوائر الإلكترونية المختلفة. يتمتع بتصميم مدمج مع فتحة تثبيت تسهل عملية التركيب والتبريد. يوفر أداءً مستقراً ضمن نطاق واسع من درجات الحرارة، ويعد خياراً مثالياً لمشاريع الإلكترونيات وأنظمة القدرة الكهربائية.

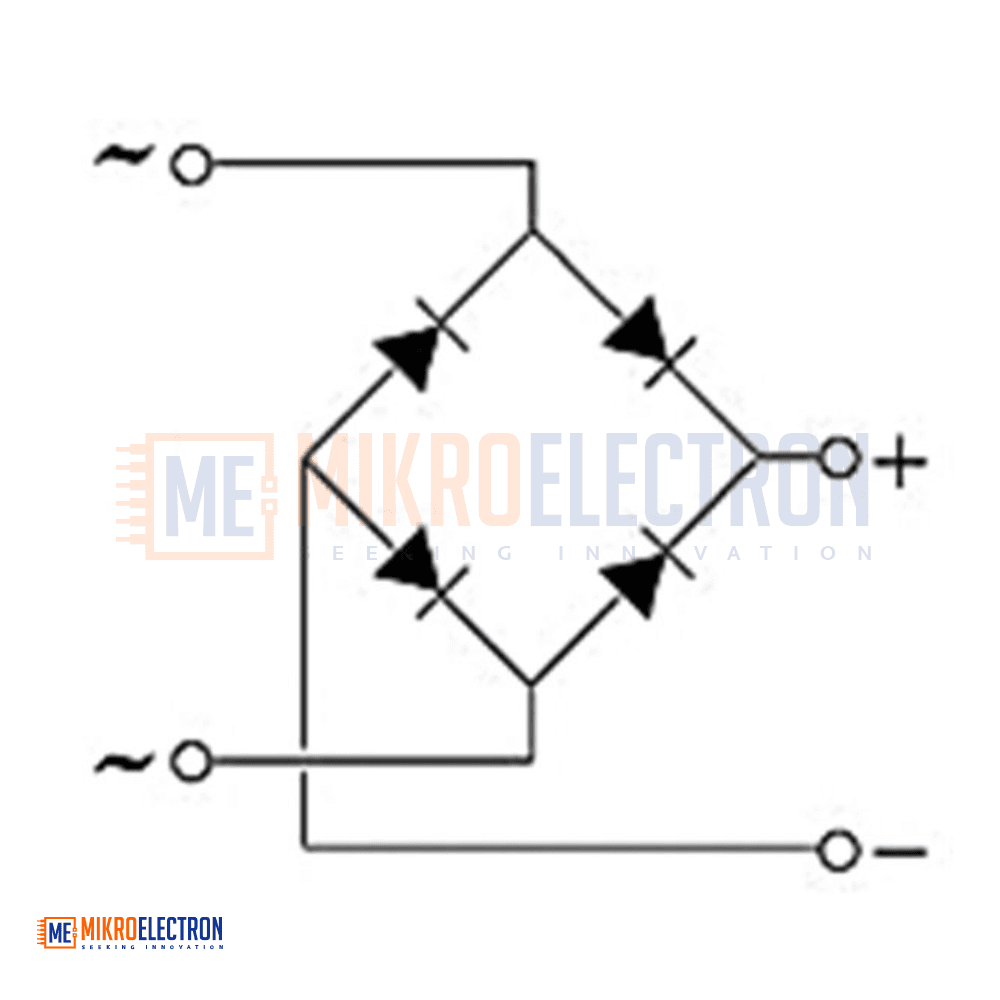

The KBU810 Bridge Rectifier is a robust AC-to-DC conversion component designed for medium and high-power electronic applications. It integrates four rectifier diodes in a single package to provide full-wave rectification, allowing alternating current input to be converted into direct current output.
With a maximum average forward current of 8A and a peak reverse voltage rating of 1000V, the KBU810 is suitable for use in power supplies, battery charging systems, motor control circuits, inverters, and industrial electronics. The device features a compact package with an integrated mounting hole for easy installation and improved thermal management.
It is important to note that the rectifier converts AC to DC but does not regulate or reduce output voltage. Additional filtering and regulation circuits are required when stable DC voltage is needed.
Specifications
| Specification | Details |
|---|---|
| Model | KBU810 |
| Type | Bridge Rectifier |
| Maximum AC Input Voltage | 1000V AC |
| Minimum AC Input Voltage | 1V AC |
| Maximum Forward Current | 8A |
| RMS Reverse Voltage | 700V |
| Peak Reverse Voltage | 1000V |
| Voltage Drop | < 50mV |
| Package Dimensions | 23 × 20 × 6 mm |
| Pin Width | 1.2 mm |
| Mounting Type | Through-Hole with Mounting Hole |
| Operating Temperature | -65°C to +150°C |
| Function | Full-Wave AC to DC Rectification |
Applications
- AC to DC power supplies
- Battery chargers
- Industrial control equipment
- Motor drive circuits
- Power conversion systems
- LED power supply circuits
- Inverters and converters
- Home appliance electronics
- DIY power electronics projects
- Laboratory power systems
- Rectification stages in electronic equipment
- Transformer-based power supplies
