P2 Pro Controller
JIYI P2 PRO FLIGHT CONTROLLER MULTIROTOR
The P2 Pro Flight Controller is an advanced autopilot system designed for multirotor UAVs, offering precise flight stabilization, intelligent navigation, and automated flight functions. Supporting quadcopters, hexacopters, and octocopters with frame sizes up to 1200mm, it features GPS-assisted flight, one-key takeoff and landing, return-to-home, waypoint navigation, and intelligent orientation control. The system delivers stable hovering and reliable flight performance, making it ideal for aerial photography, videography, mapping, and professional drone applications. With support for multiple receiver types and easy PC configuration via USB, the P2 Pro provides a comprehensive flight control solution for both hobbyists and professionals.
يُعد P2 Pro Flight Controller نظام تحكم طيران متقدم للطائرات متعددة المراوح، يوفر استقرارًا عاليًا ووظائف طيران ذكية ومساعدة عبر نظام GPS. يدعم الطائرات الرباعية والسداسية والثمانية حتى قطر 1200 مم، ويتميز بخاصية الإقلاع والهبوط بضغطة واحدة، والعودة التلقائية إلى نقطة الإقلاع، والطيران عبر نقاط المسار، والتحكم الذكي بالاتجاه. يوفر النظام ثباتًا ممتازًا أثناء التحليق ودقة عالية في التمركز، مما يجعله مناسبًا لتطبيقات التصوير الجوي والمسح والمهام الاحترافية للطائرات بدون طيار.
The P2 Pro Multirotor Autopilot Flight Control System is a professional-grade flight controller developed for a wide range of multirotor aircraft. Designed to provide reliable flight stabilization and intelligent navigation functions, the system combines advanced sensors, GPS positioning, and automated flight capabilities to enhance both safety and performance.
The controller supports numerous airframe configurations, including quadcopters, hexacopters, and octocopters, making it suitable for hobby, commercial, and aerial imaging applications. With built-in GPS-assisted flight control, the P2 Pro enables precise hovering, waypoint missions, automatic return-to-home, and intelligent orientation control.

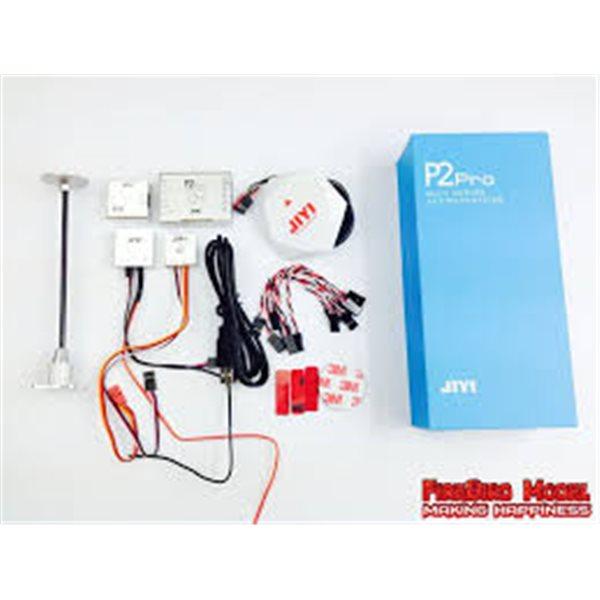

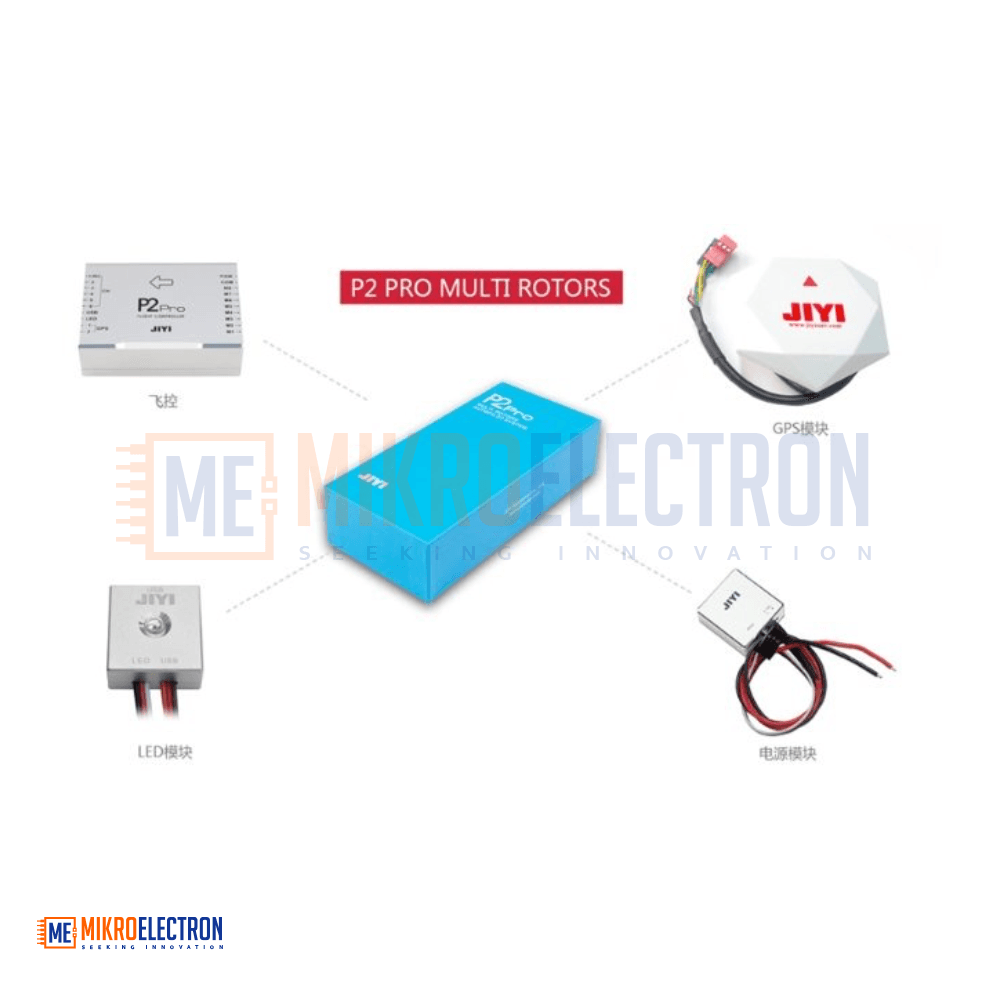

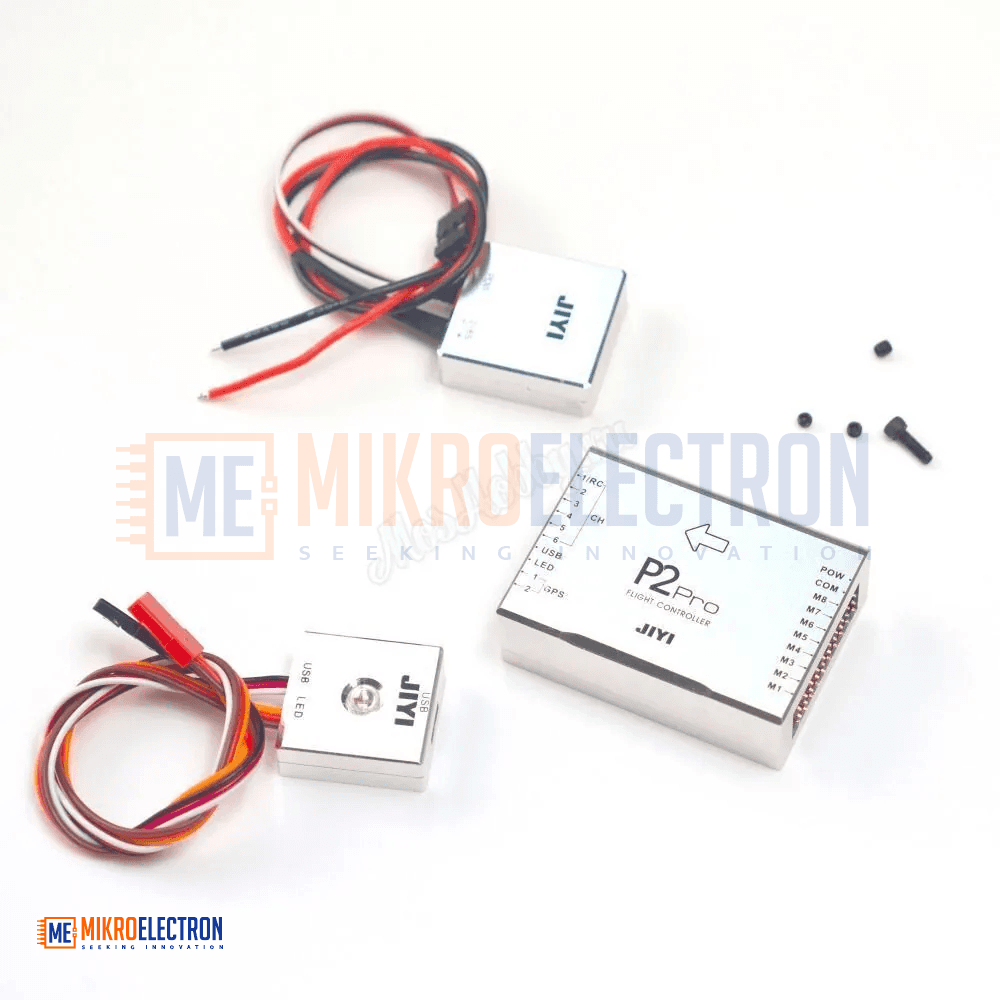

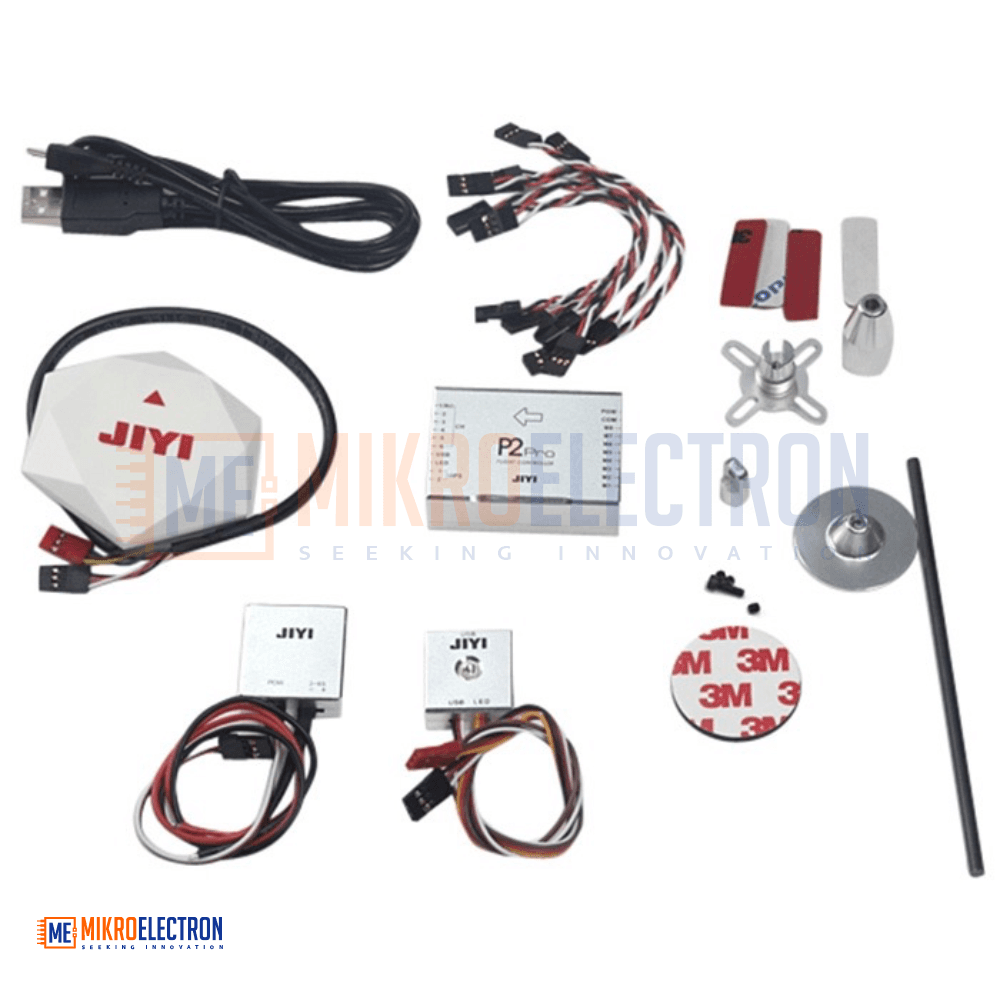

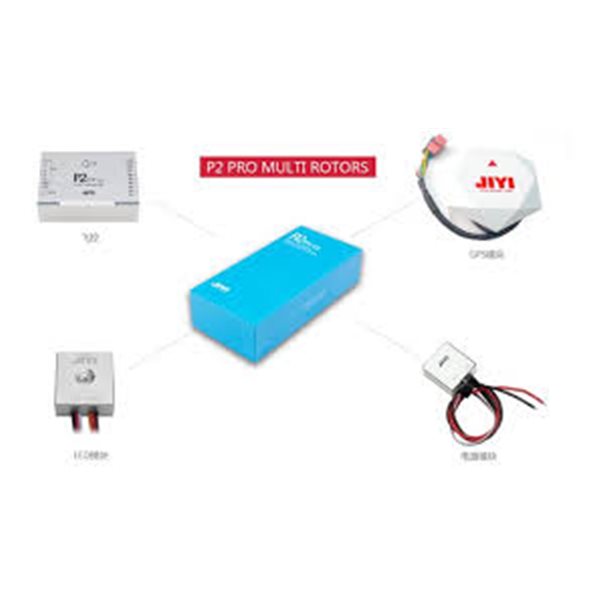

The system includes a Main Controller, GPS Compass Module, Power Management Unit (PMU), and LED Status Module, providing a complete flight management solution. Configuration and tuning can be performed through a USB connection using compatible Windows-based software.
Its advanced flight algorithms and stabilization features make it an excellent choice for aerial photography, videography, surveying, inspection, and general-purpose UAV operations.
Specifications
| Parameter | Value |
|---|---|
| Product Name | P2 Pro Flight Controller |
| Type | Multirotor Autopilot Flight Control System |
| Supported Aircraft Diameter | Up to 1200mm |
| Supported Configurations | I4, X4, I6, X6, IY6, Y6, I8, X8, V8 |
| Receiver Support | PPM, PWM, SBUS |
| Minimum Receiver Channels | 6 Channels |
| ESC Compatibility | PWM ESC Below 490Hz |
| Radio System Compatibility | PCM / 2.4GHz Systems |
| Main Controller Voltage | 4.8V – 5.5V |
| PMU Input Voltage | 7.4V – 26V (2S–6S LiPo Recommended) |
| PMU Output | 5V / 2A |
| Power Consumption | < 2W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +60°C |
| Hovering Accuracy (Horizontal) | ±2m |
| Hovering Accuracy (Vertical) | ±0.8m |
| Maximum Tilt Angle | 30° |
| Maximum Vertical Speed | 6m/s |
| USB Interface | Micro USB |
| PC Software Support | Windows XP SP3 / Windows 7 |
| Mobile Phone Compatibility | Supported |
Component Dimensions & Weight
| Component | Dimensions | Weight |
| Main Controller | 55 × 38 × 17mm | 36g |
| GPS Compass Module | 64.5 × 11mm | 45g |
| LED Module | 25 × 23 × 10mm | 11g |
| PMU Module | 30 × 28 × 10mm | 18.53g |
Applications
- Aerial photography drones
- Aerial videography platforms
- Professional UAV systems
- Agricultural drones
- Surveying and mapping drones
- Inspection and monitoring UAVs
- Search and rescue platforms
- Research and development projects
- Commercial multirotor aircraft
- Long-range GPS-assisted flight applications
- Autonomous waypoint missions
- Advanced hobby drone projects
