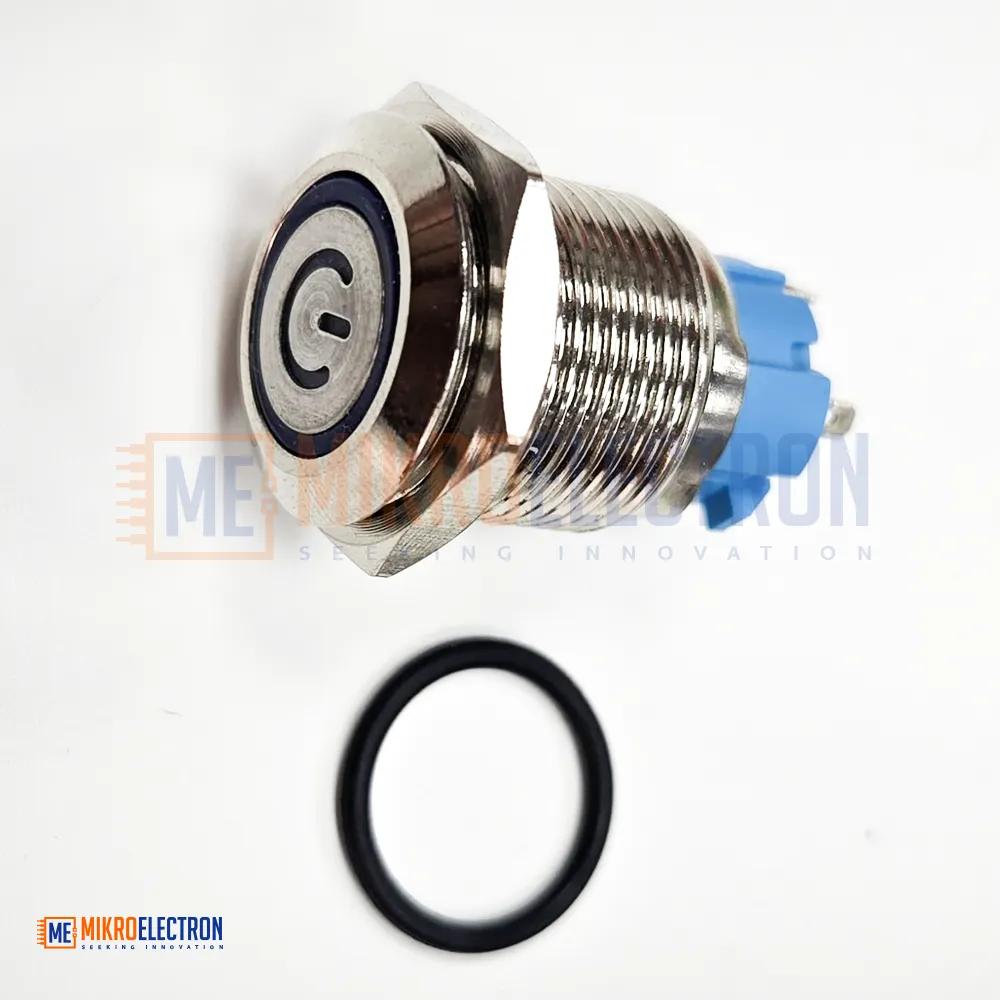

Metal Switch 12v 16mm 4-Pin Blue Or Red Self-Lock Waterproof IP65
The 16mm Metal Push Button Switch is a durable and reliable self-locking (latching) switch designed for on/off control in automotive, industrial, and DIY electronic applications. Featuring a robust stainless steel housing and an IP65 waterproof rating, it provides excellent resistance against dust and water exposure. The integrated 12V LED ring, available in blue or red, offers clear visual status indication. Its 4-pin design separates the switch contacts from the LED terminals, enabling flexible wiring options for various control systems and equipment.
يُعد مفتاح الضغط المعدني بقطر 16 مم مفتاحًا متينًا وموثوقًا من نوع التثبيت الذاتي (تشغيل/إيقاف)، مصممًا لتطبيقات التحكم في الأنظمة الإلكترونية والصناعية والسيارات. يتميز بهيكل مصنوع من الفولاذ المقاوم للصدأ وتصنيف IP65 المقاوم للماء والغبار، مما يجعله مناسبًا للاستخدام في البيئات القاسية. يحتوي المفتاح على حلقة إضاءة LED بجهد 12 فولت متوفرة باللونين الأزرق أو الأحمر لتوفير مؤشر بصري واضح لحالة التشغيل. كما يتيح تصميمه ذو الأربعة أطراف توصيلًا مرنًا للمفتاح والإضاءة بشكل مستقل.
The 16mm Metal Push Button Switch 12V 4-Pin Self-Locking Waterproof IP65 is a premium-quality latching switch engineered for reliable operation in demanding environments.
Designed with a durable stainless steel body, this switch offers excellent resistance to corrosion, impact, and wear, making it suitable for long-term use in industrial machinery, automotive systems, control panels, marine equipment, and custom electronic projects.
Its self-locking mechanism allows the switch to maintain its state after being pressed. A single press activates the circuit, while a second press returns it to the original position, providing convenient ON/OFF control without requiring continuous pressure.

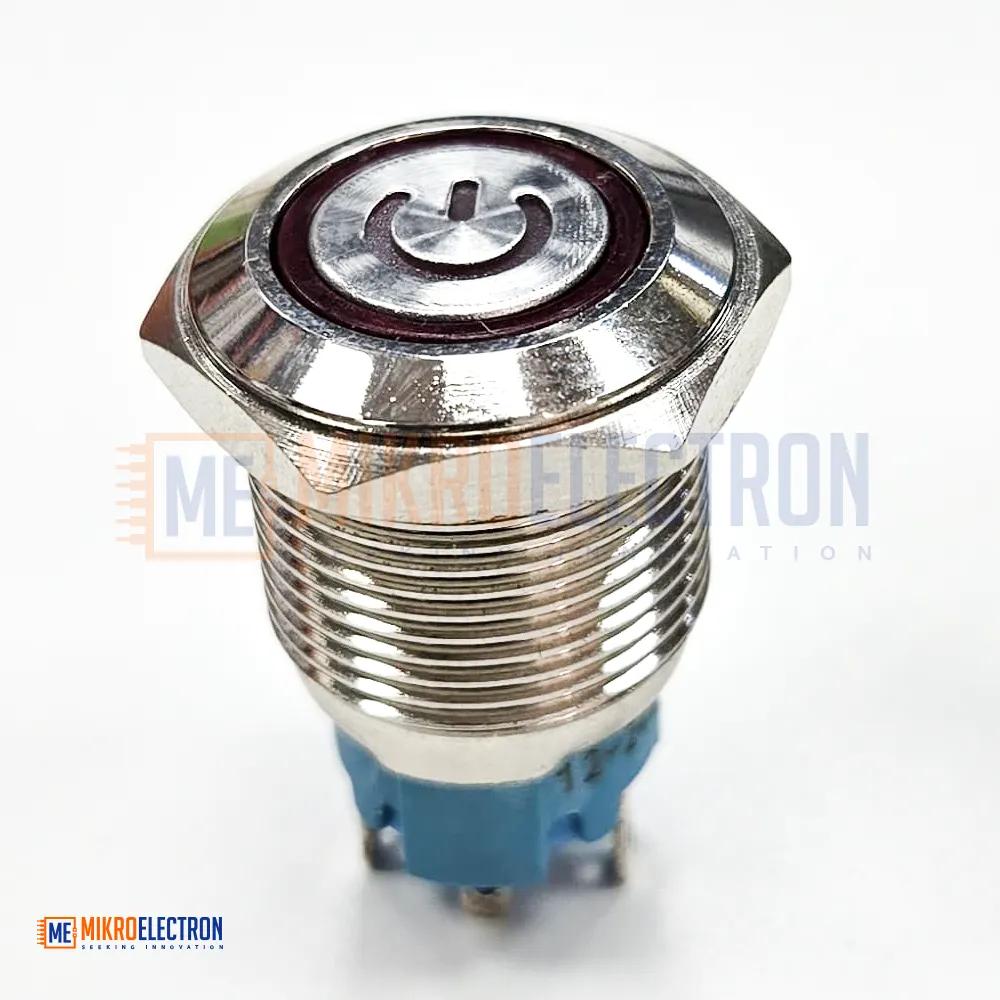

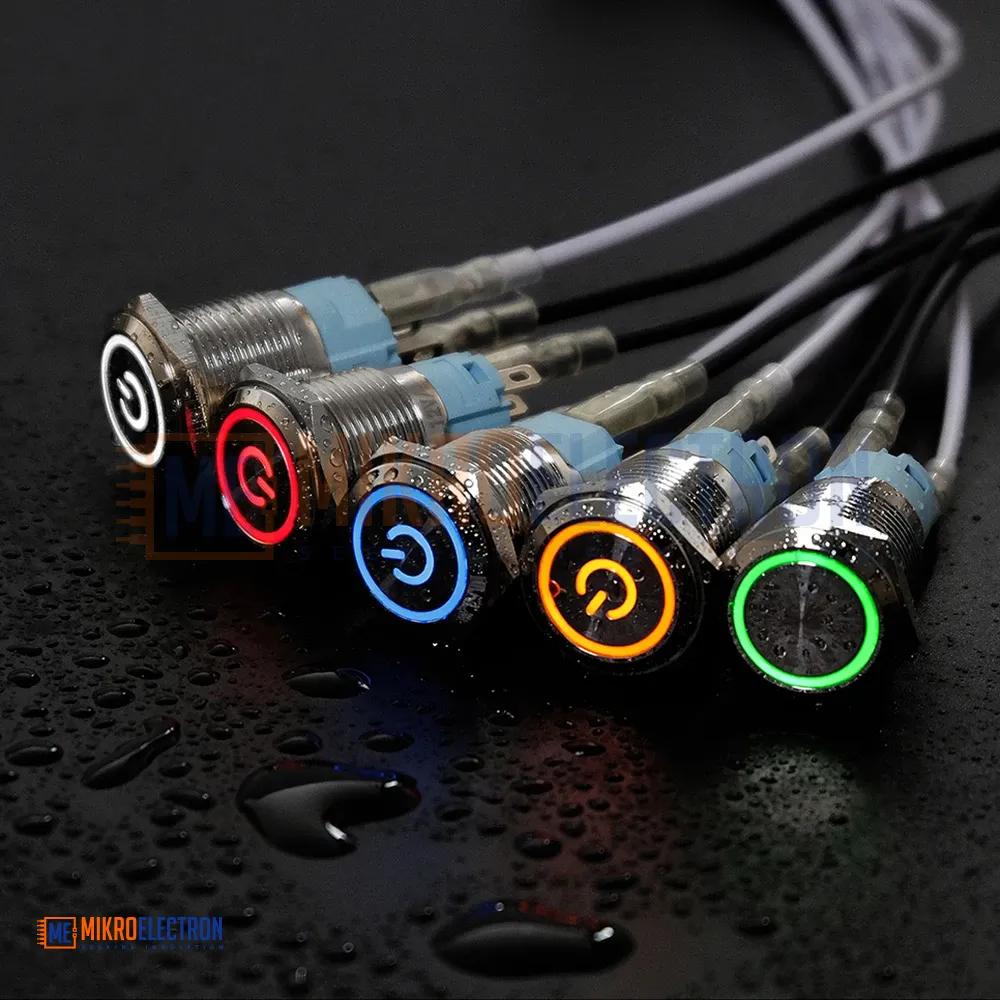

The integrated LED ring illumination, powered by 12V DC, is available in blue or red, offering a clear visual indication of switch status in low-light environments.
With an IP65 waterproof rating, the switch is protected against dust ingress and low-pressure water jets, making it ideal for outdoor installations and harsh operating conditions.

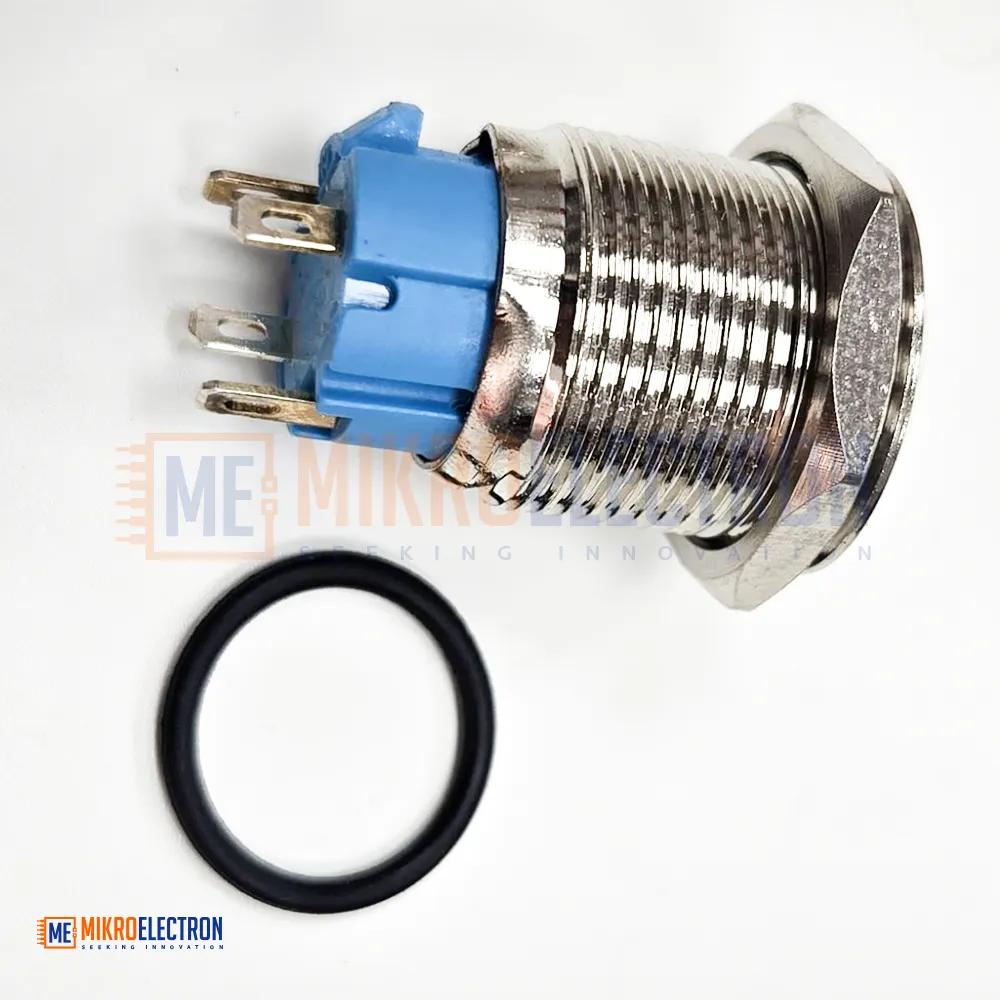

The 4-pin configuration includes two terminals for the switch contacts and two terminals for the LED, enabling independent control and flexible wiring configurations.
Specifications
| Specification | Details |
|---|---|
| Product Type | Metal Push Button Switch |
| Mounting Hole Diameter | 16mm |
| Operation Type | Self-Locking (Latching ON/OFF) |
| Rated LED Voltage | 12V DC |

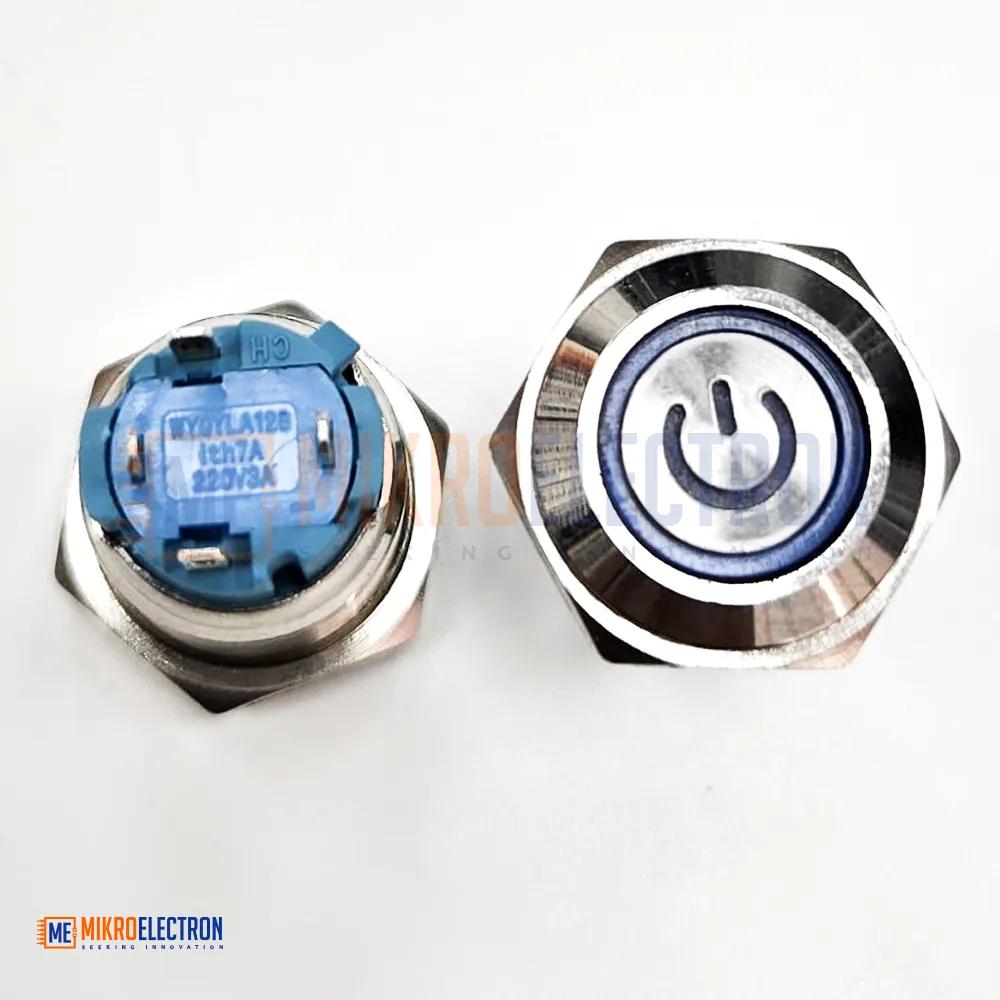

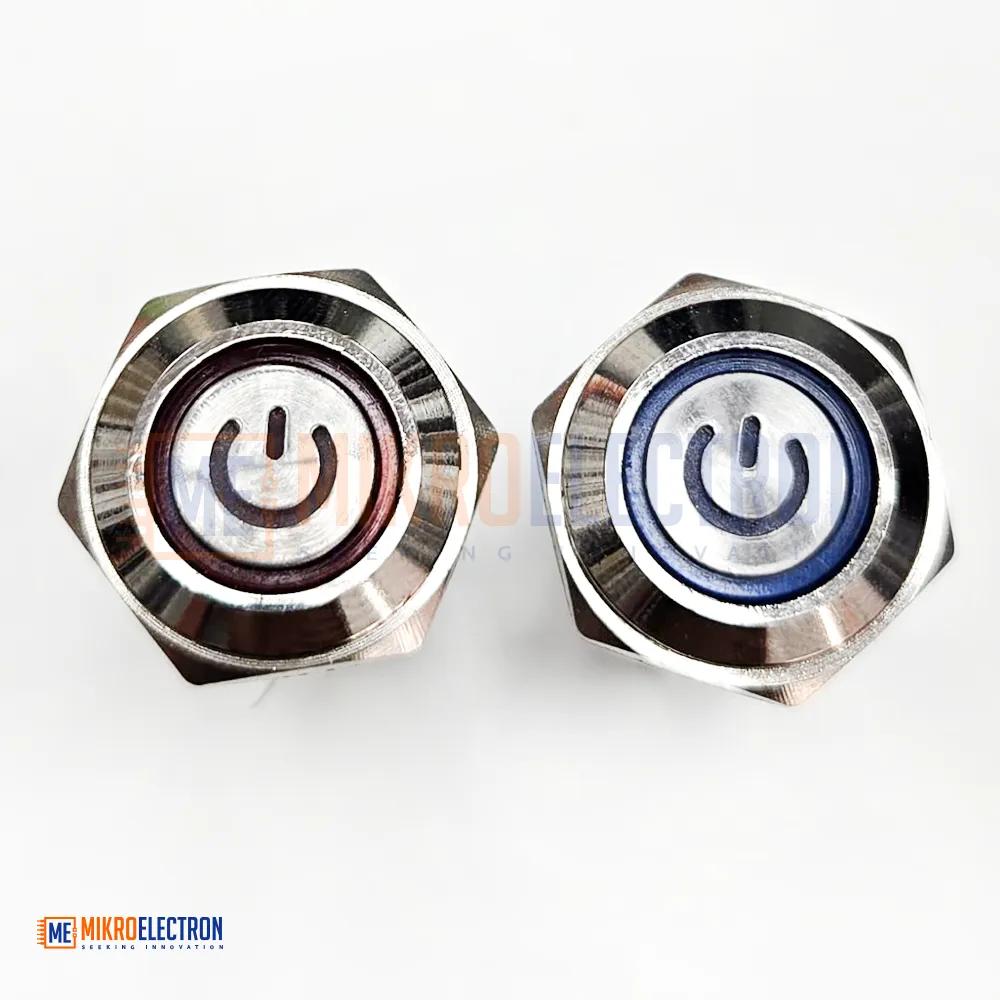

| LED Color Options | Blue or Red |
| Contact Type | 1NO (Normally Open) |
| Terminal Configuration | 4-Pin |
| Switch Terminals | 2 Pins |
| LED Terminals | 2 Pins |
| Housing Material | Stainless Steel |
| Waterproof Rating | IP65 |
| Current Rating | 3–5A at 12V DC (model dependent) |
| Supported Panel Thickness | Approximately 1–10mm |
| Operating Temperature | -20°C to +55°C |
| LED Lifespan | More than 50,000 hours |
Applications
- Automotive control panels
- Industrial machinery and equipment
- DIY electronics projects
- Marine and outdoor installations
- Home automation systems
- Power supply controls
- Robotics and embedded systems
- Audio and lighting equipment
- Custom control boxes
- Security and access control systems
