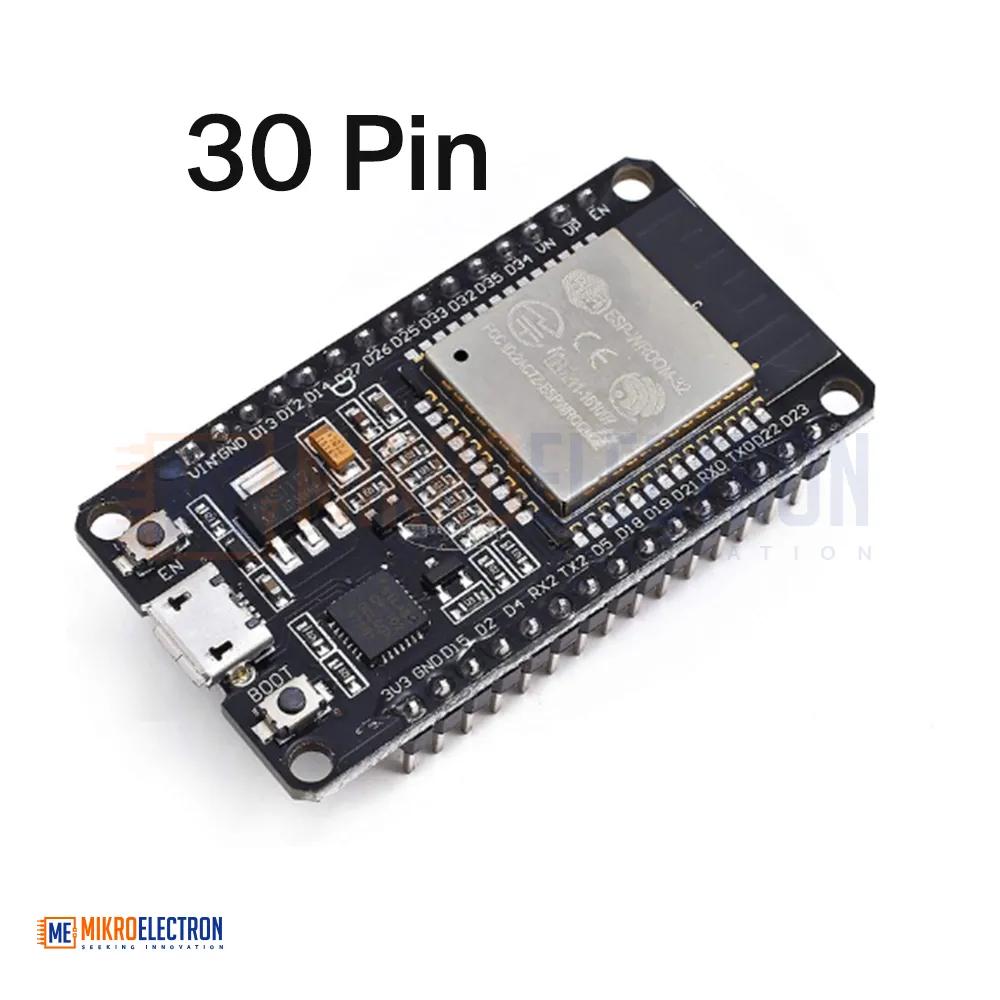

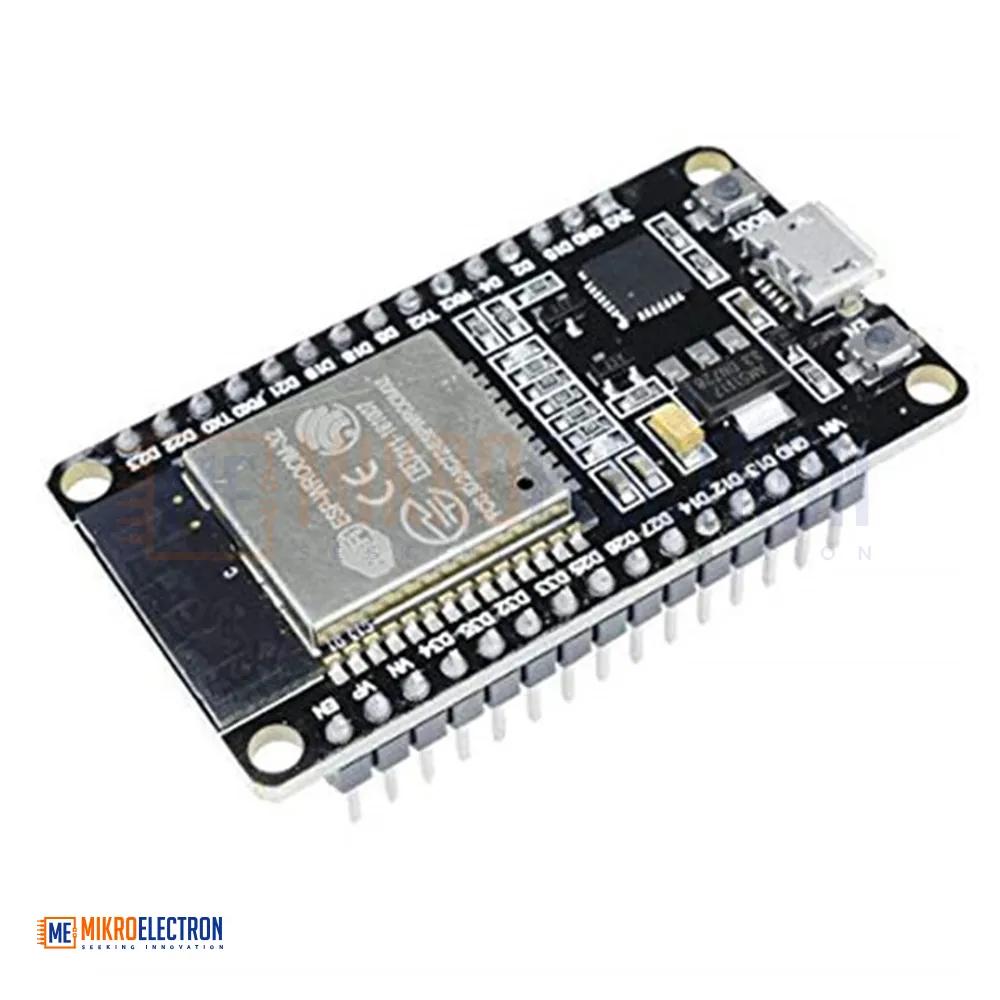

ESP32 dev Kit v1 WIFI Bluetooth Networking Development Board ( 30 Pin )
Out Of Stock
The ESP32 DevKit V1 (30 Pin) is a powerful wireless development board based on the ESP-WROOM-32 module, featuring a 240MHz dual-core Tensilica LX6 processor, integrated Wi-Fi and Bluetooth (Classic + BLE) connectivity. Designed for IoT, smart automation, wearable devices, and embedded applications, it combines high processing power with ultra-low energy consumption. The board includes multiple communication interfaces, analog and digital peripherals, capacitive touch inputs, and advanced security features. With support for wireless networking, sensor integration, and real-time control, the ESP32 DevKit V1 is an ideal platform for prototyping and developing connected electronic projects.
تُعد لوحة ESP32 DevKit V1 (30 Pin) منصة تطوير متقدمة تعتمد على وحدة ESP-WROOM-32، وتتميز بمعالج ثنائي النواة بسرعة 240 ميجاهرتز مع دعم مدمج لشبكات Wi-Fi وتقنية Bluetooth الكلاسيكية وBLE. صُممت لتطبيقات إنترنت الأشياء والأتمتة الذكية والأجهزة القابلة للارتداء والمشاريع المدمجة، حيث تجمع بين الأداء العالي والاستهلاك المنخفض للطاقة. توفر اللوحة العديد من واجهات الاتصال والمداخل والمخارج الرقمية والتناظرية ومستشعرات اللمس السعوية وخصائص الأمان المتقدمة، مما يجعلها خيارًا مثاليًا لتطوير المشاريع الإلكترونية المتصلة بالشبكات.
The ESP32 DevKit V1 (30 Pin) is a versatile development board built around the powerful ESP-WROOM-32 wireless module. It integrates a 240MHz dual-core Tensilica LX6 microcontroller, enabling fast processing for embedded applications, wireless communication, sensor monitoring, and real-time control systems.
The board provides built-in 802.11 b/g/n Wi-Fi and Bluetooth Classic/BLE connectivity, allowing devices to communicate wirelessly without additional modules. With 520KB SRAM, 16MB Flash memory, and extensive peripheral support, it is suitable for both simple and complex IoT projects.
ESP32 supports a wide range of communication protocols including UART, SPI, I2C, I2S, SDIO, and PWM, making it compatible with numerous sensors, displays, motors, and external modules. Advanced security features such as AES, SHA-2, RSA-4096, and ECC hardware encryption ensure secure data transmission and storage.
Engineered for low-power operation, the ESP32 consumes as little as 5μA in deep-sleep mode, making it ideal for battery-powered devices. Its industrial-grade operating temperature range of -40°C to +125°C ensures reliable performance in demanding environments.
Specifications
| Parameter | Value |
|---|---|
| Module | ESP-WROOM-32 |
| Development Board | ESP32 DevKit V1 (30 Pin) |
| Processor | Dual-Core Tensilica LX6 |
| CPU Frequency | Up to 240MHz |
| Performance | 600 DMIPS |
| SRAM | 520KB Integrated SRAM |
| Flash Memory | 16MB |
| Operating Voltage | 2.3V – 3.6V |
| Wi-Fi Standard | 802.11 b/g/n HT40 |
| Bluetooth | Bluetooth Classic + BLE |
| Antenna | On-board PCB Antenna |
| UART Interfaces | 3 |
| SPI Interfaces | 3 |
| I2C Interfaces | 2 |
| I2S Interfaces | 2 |
| ADC Channels | 18 |
| DAC Channels | 2 |
| Capacitive Touch Inputs | 10 |
| PWM Support | Available on all GPIOs |
| Hall Sensor | Integrated |
| SDIO Interface | 50MHz Master/Slave |
| SD Card Support | Yes |
| Security | AES, SHA-2, ECC, RSA-4096 Hardware Encryption |
| Wi-Fi Modes | Station, SoftAP, Wi-Fi Direct, Sniffer |
| Maximum Data Rate | 150Mbps (802.11n HT40) |
| Maximum TX Power | 19.5dBm @ 11b |
| Receiver Sensitivity | -97dBm |
| Deep Sleep Current | 5μA |
| Operating Temperature | -40°C to +125°C |
Applications
- Internet of Things (IoT) projects
- Smart home automation systems
- Wireless sensor networks
- Remote monitoring and control
- Industrial automation
- Data logging systems
- Wearable electronics
- Bluetooth-enabled devices
- Wi-Fi connected products
- Environmental monitoring stations
- Robotics and autonomous systems
- Smart agriculture solutions
- Wireless communication gateways
- Home security and surveillance systems
- Mobile and battery-powered devices
