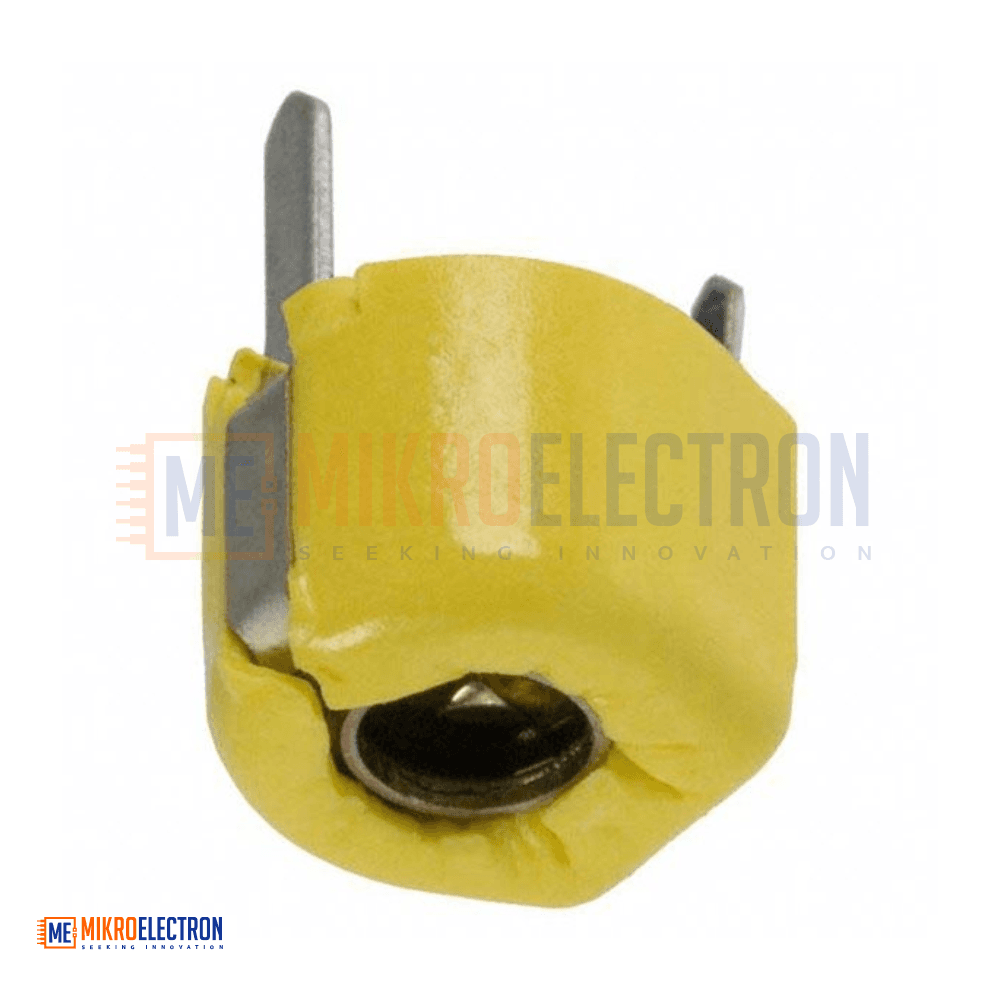

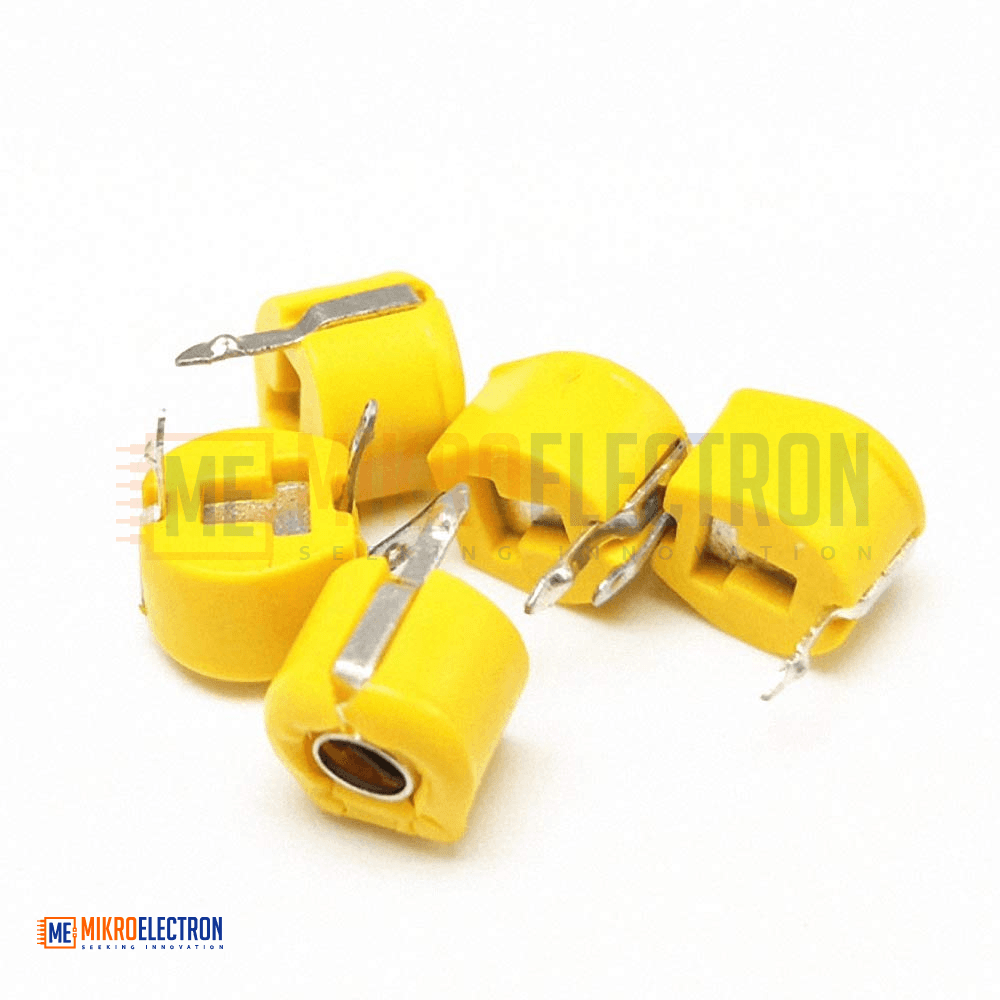

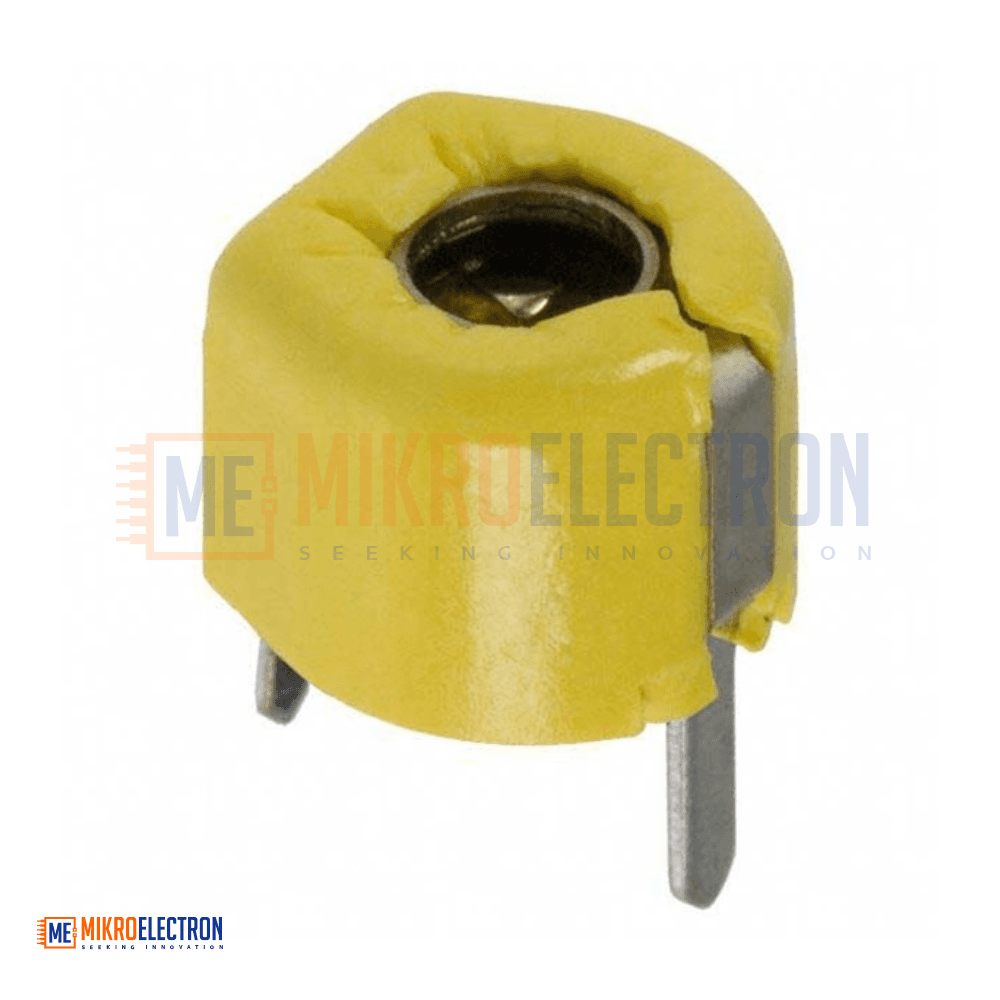

adjustable capacitance trimmer variable capacitor JML06-1 40 PF 6mm
The JML06-1 Adjustable Trimmer Capacitor (0–40pF) is a compact precision component used for fine-tuning capacitance in RF and analog circuits. It is designed for frequency adjustment, calibration, and signal optimization in electronic systems. Built with a ceramic dielectric, it offers stable performance and low loss at high frequencies. The capacitor supports up to 100V rated voltage and features a 6mm adjustment screw for accurate tuning. With a through-hole mounting design, it is easy to integrate into PCBs. This trimmer capacitor is widely used in communication devices, oscillators, and antenna matching applications requiring precise capacitance control.
المكثف المتغير القابل للضبط JML06-1 (0–40 بيكوفاراد) هو مكون دقيق يستخدم لضبط السعة في دوائر الترددات الراديوية والدوائر التناظرية. يُستخدم في ضبط التردد ومعايرة الإشارات وتحسين الأداء في الأنظمة الإلكترونية. يتميز بعازل من السيراميك مما يوفر استقرارًا عاليًا وفقدانًا منخفضًا عند الترددات العالية. يدعم جهد تشغيل يصل إلى 100 فولت ويحتوي على مسمار ضبط بقطر 6 مم لضبط دقيق. يتم تركيبه عبر الثقوب (Through-hole) بسهولة على لوحات الدوائر المطبوعة. يستخدم في أجهزة الاتصالات والمذبذبات وأنظمة مطابقة الهوائيات.
The JML06-1 Adjustable Trimmer Capacitor is a precision variable capacitor designed for fine tuning capacitance values in high-frequency electronic circuits. It is commonly used in RF applications, oscillators, filters, and communication systems where accurate frequency adjustment is required.
This component provides a capacitance range of 0 to 40 pF, allowing precise calibration of circuit behavior. Its ceramic dielectric structure ensures stable capacitance, low losses, and reliable performance at high frequencies. The trimmer is adjusted using a small screw mechanism, enabling fine control over circuit tuning.
With a 100V rated voltage, it is suitable for low-power signal circuits. The through-hole mounting design ensures secure placement on PCBs, making it easy to integrate into both professional and DIY electronics projects.
Specifications
| Parameter | Details |
|---|---|
| Model | JML06-1 |
| Type | Adjustable Trimmer Capacitor |
| Capacitance Range | 0 – 40 pF |
| Adjustment Type | Bottom adjustment screw |
| Dielectric Material | Ceramic |
| Rated Voltage | 100V |
| Tolerance | ±10% |
| Operating Temperature | -25°C to +85°C |
| Mounting Type | Through-hole |

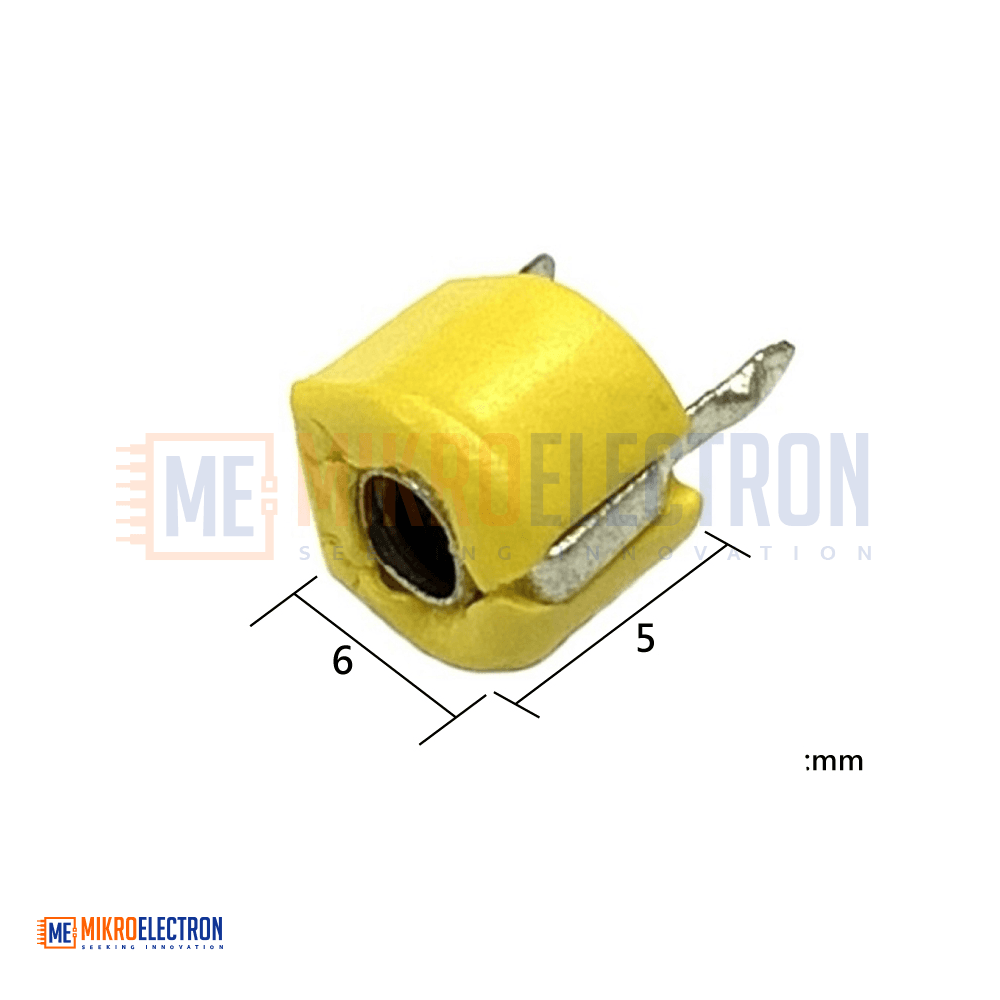

| Size | 6 mm diameter |
Applications
- RF tuning circuits
- Oscillators and frequency generators
- Communication devices
- Antenna matching networks
- Radio transmitters and receivers
- Signal calibration circuits
- DIY electronics and prototyping projects
- Filter tuning in analog circuits
