adjustable capacitance trimmer variable capacitor JML06-1 40 PF 6mm
6.8 ~ 45pF Trimmer Capacitor 100V Bottom Adjustment Through HoleJML06-1-40P 40pf 6mm JML06-1 DIP trimmer Adjustable capacitor

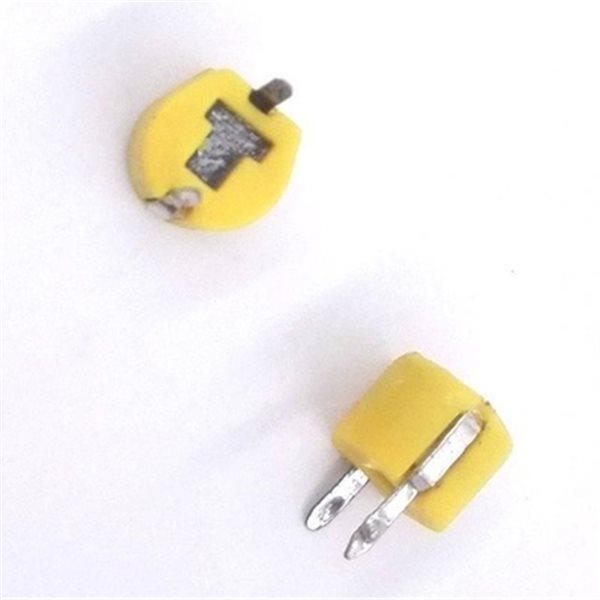

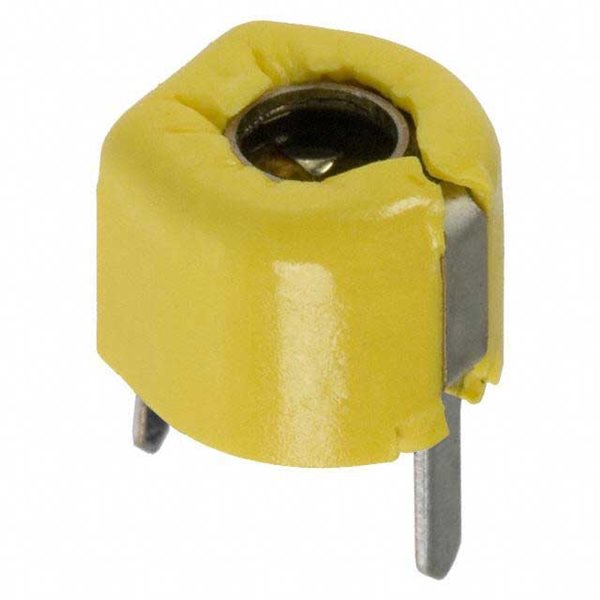

The JML06-1 Adjustable Trimmer Capacitor is a precision variable capacitor designed for fine-tuning capacitance in RF, oscillator, and communication circuits. With an adjustment range up to 40 pF, this compact 6mm trimmer offers excellent stability and low loss for frequency control and calibration tasks.
Specifications:
Model: JML06-1
Type: Trimmer / Variable Capacitor
Capacitance Range: 0–40 pF
Adjustment Diameter: 6 mm
Dielectric Material: Ceramic
Operating Voltage: 100V
Tolerance: ±10%
Operating Temperature Range: –25°C to +85°C
Mounting Type: Through-hole
Applications:
RF and communication circuits
Frequency oscillators and filters
Antenna matching networks
Radio receivers and transmitters
DIY electronics and calibration tools
