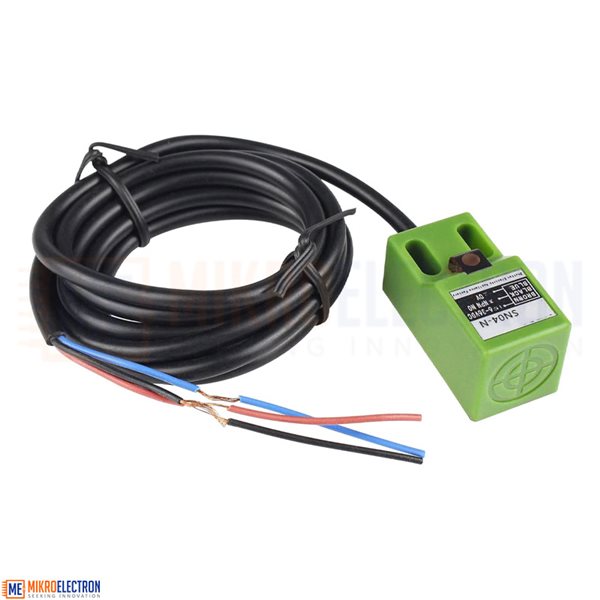

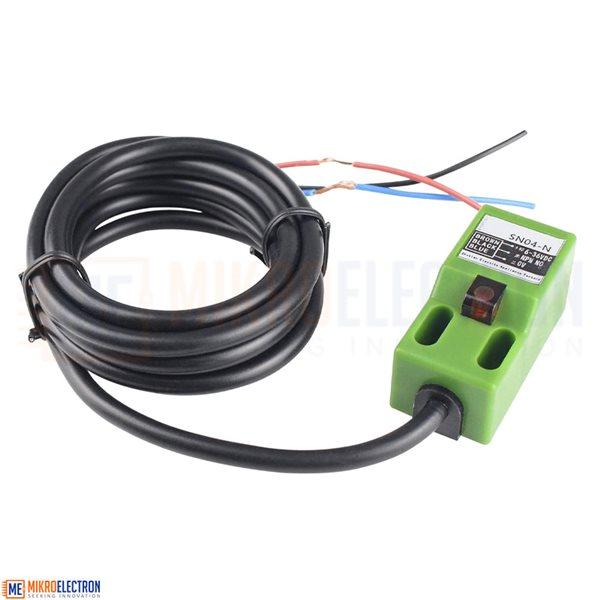

Name: Inductive Proximity Sensor NO NPN 6-36VDC - SN04- | Inductive, Proximity, Sensor, NO, NPN, 6, 36VDC, SN04,
Brand: Mikroelectron
SKU: me-3148
Price: 6.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

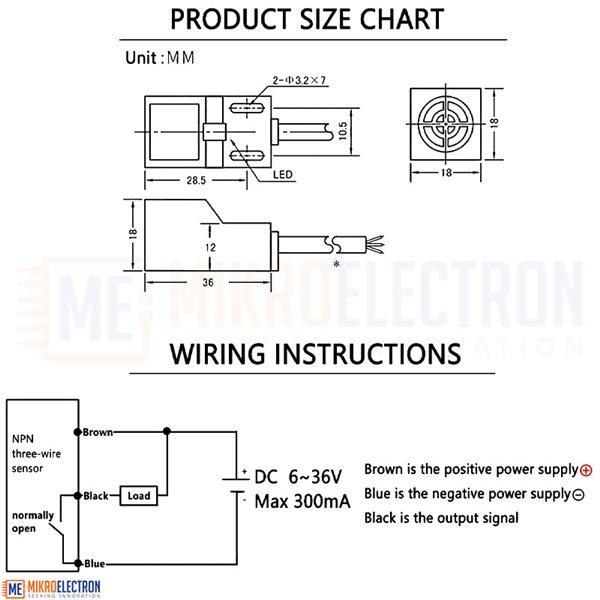

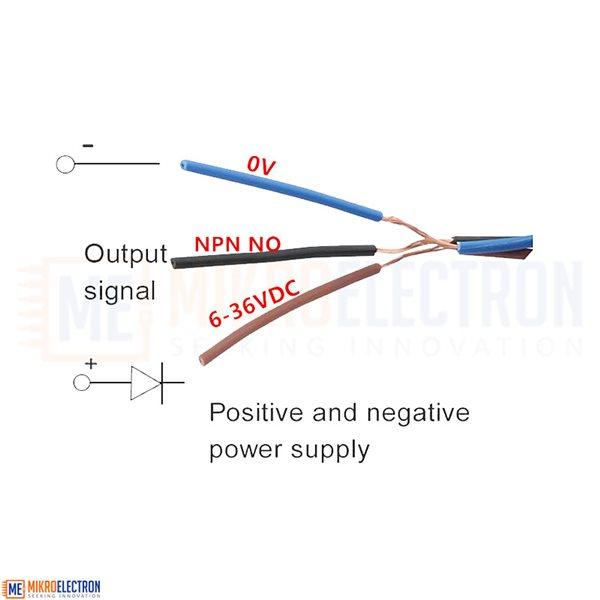

<div>Proximity Sensor Switch SN04-N</div><div><br></div><div>Theory: Inductive Type Sensor</div><div>Wire Type: DC 3 Wire Type (Brown, Black, Blue)</div><div>Output Type: NPN, NO</div><div>Detecting Distance: 4mm</div><div>Switch Appearance Type: Angular Column Type</div><div>Voltage: DC 6-36V</div><div>Current Output: 300mA</div><div>Detect Object: Iron</div><div>Size: 34 x 18 x 18mm (1.4" x 0.7" x 0.7")</div><div>External Material: ABS Plastic</div><div>Net Weight: 0.1(lb)</div>





Inductive, Proximity, Sensor, NO, NPN, 6, 36VDC, SN04,

<p>Proximity Sensor Switch SN04-NTheory: Inductive Type SensorWire Type: DC 3 Wire Type (Brown, Black, Blue)Output Type: NPN, NODetecting Distance: 4mmSwitch Appearance Type: Angular Column TypeVoltage: DC 6-36VCurrent Output: 300mADetect Object: IronSize: 34 x 18 x 18mm (1.4" x 0.7" x 0.7")External Material: ABS PlasticNet Weight: 0.1(lb)</p>
