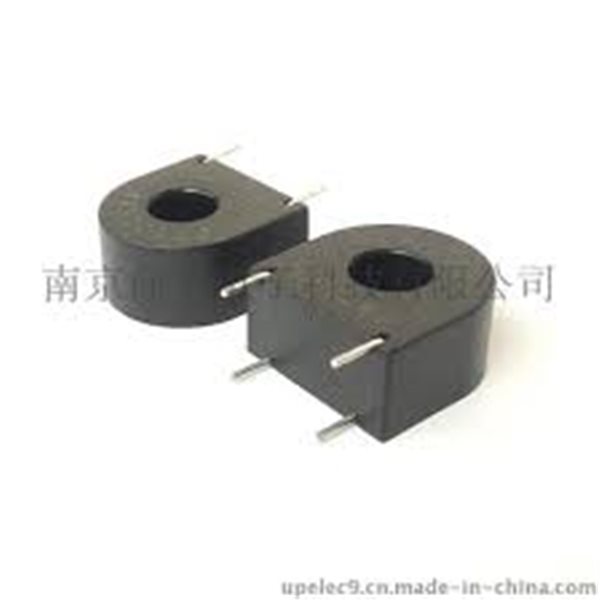

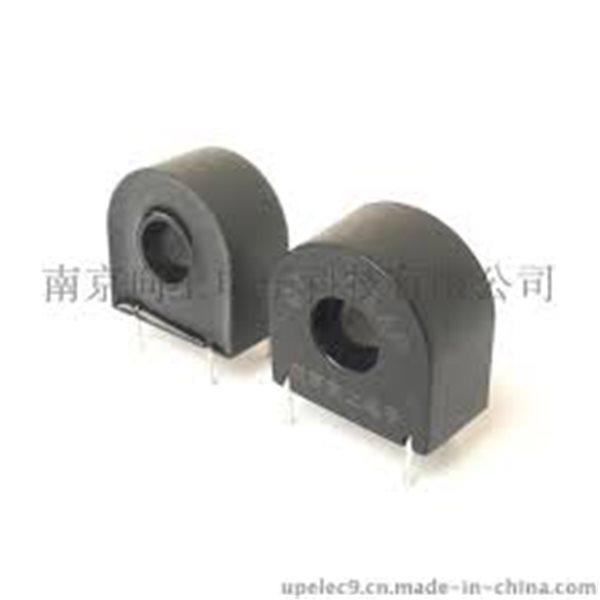

DL-CT1005AP current transformer
DL-CT1005AP protectionPrecision current transformer
Small size, high precision and good consistency, which is used for precision measurement and protection of current.
Structure parameter:
Bottom view
Main technical parameters:
Model | DL-CT1005AP |
Rated current ratio | 10A/5mA |
Constant current | 0~80A(80Ohm, continuous) |
Output ratio | 2000/1 |
accuracy | 0.2level |
Linear degree | 0.1% |
Linear range | 0~120A(10When the time is. |
purpose | Precision current measurement and protection |
Use introduction | When an electric current flows fromP1Flow into the transformer, the two winding current from theS1Inflow of external circuit |
sealing material | epoxy resin |
Installation method | Core installation |
working temperature | -40C~+80C |
