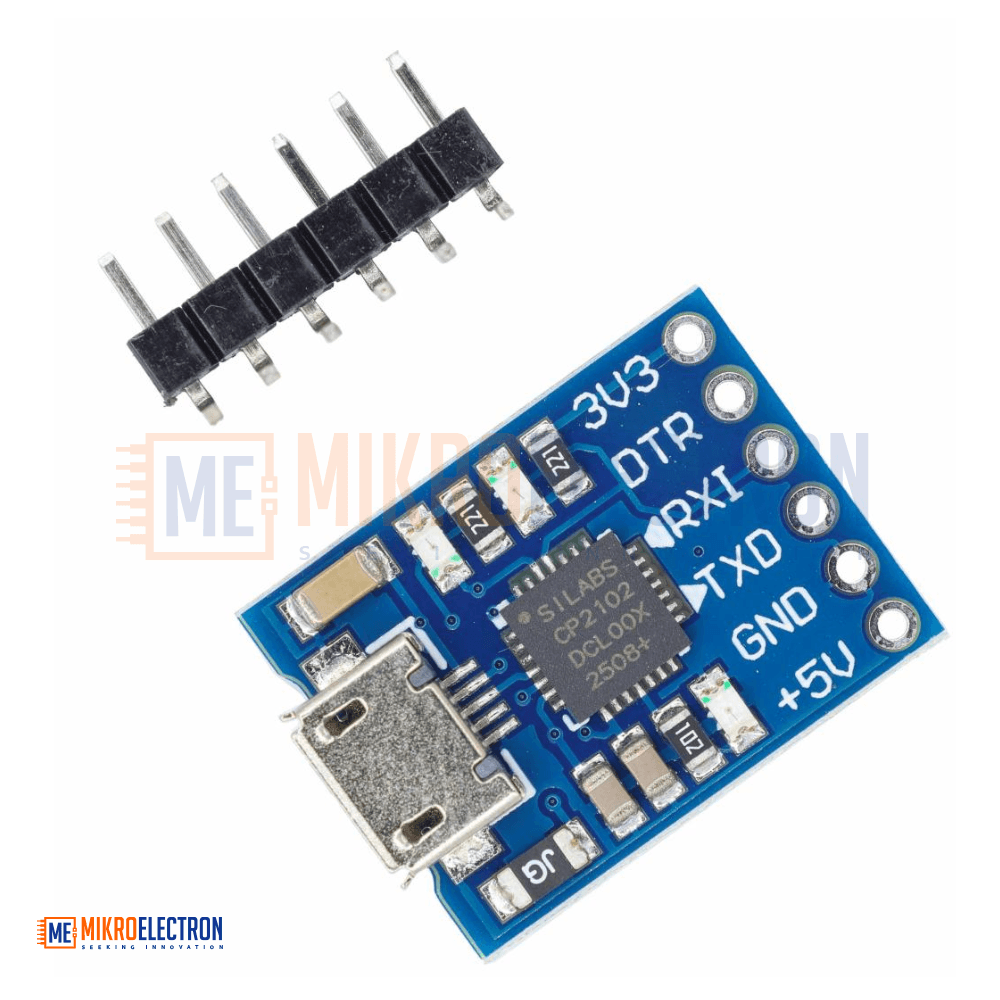

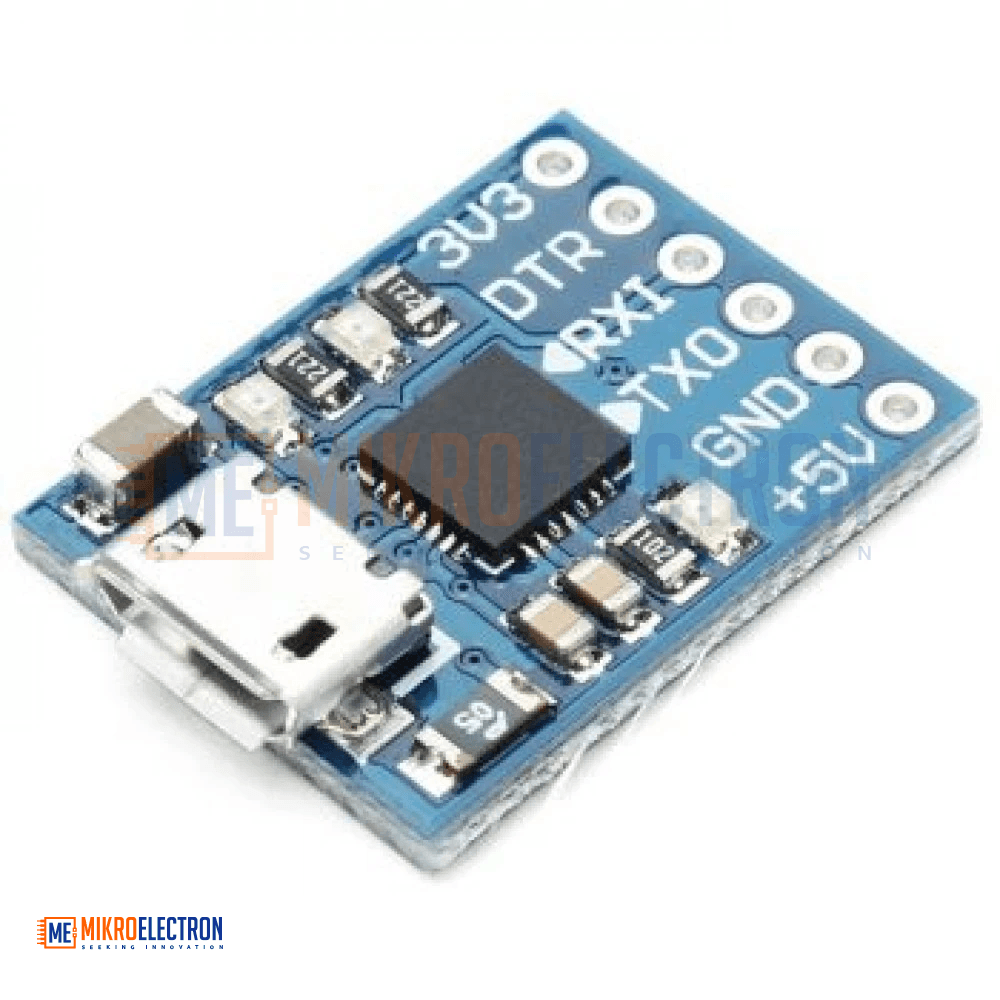

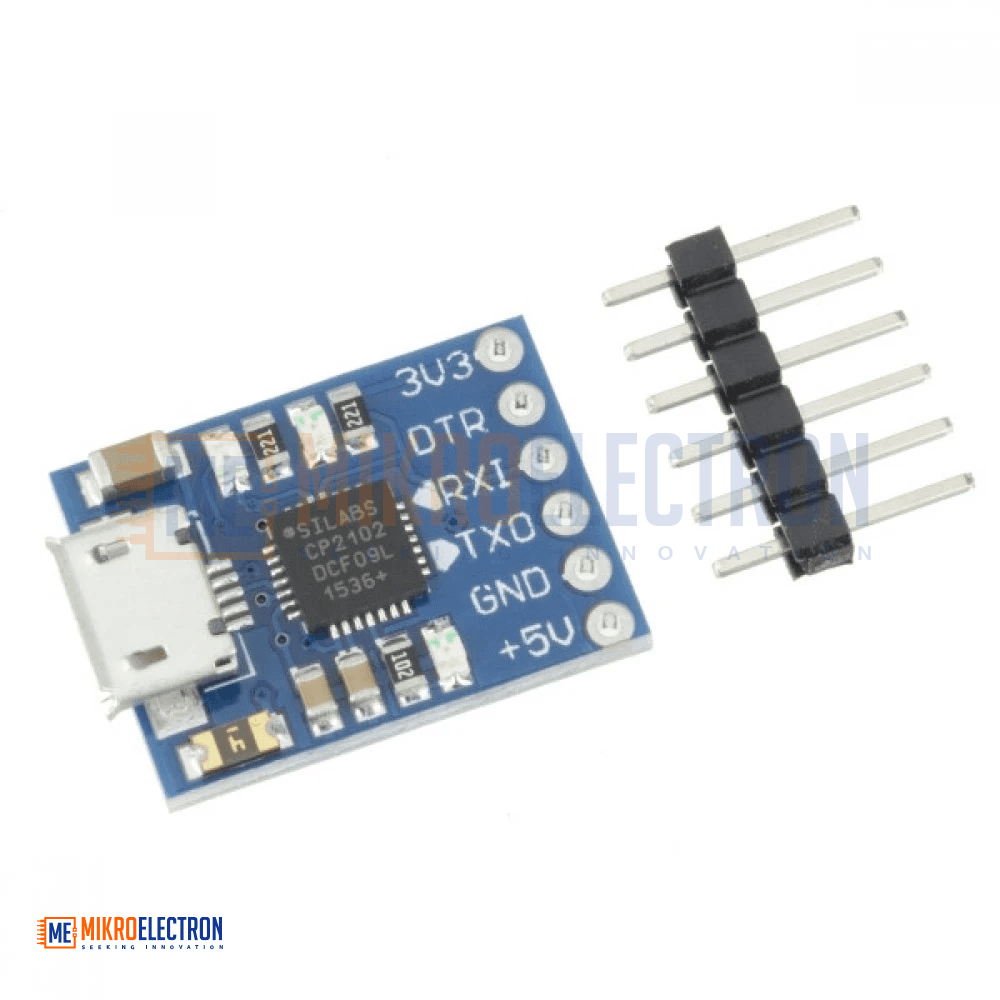

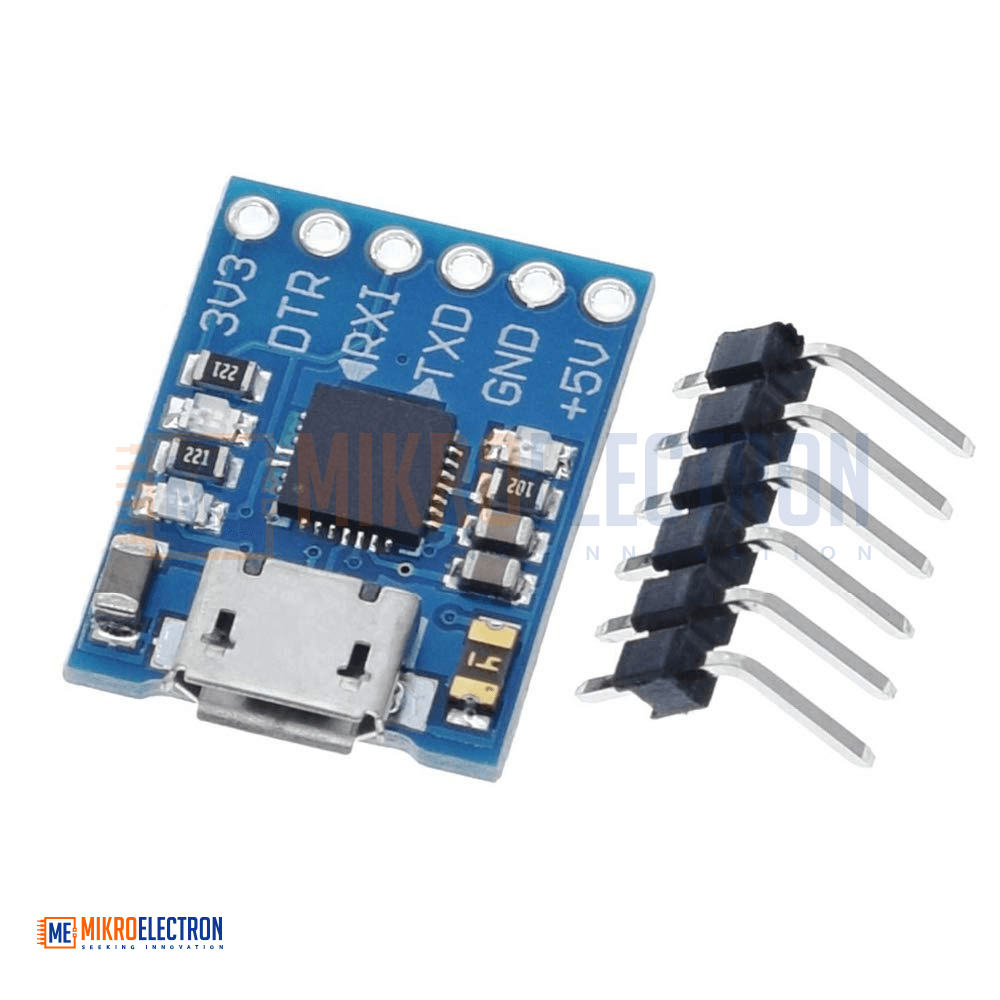

CP2102 Micro USB to TTL

The CP2102 Micro USB to TTL Converter Module is a high-performance USB-to-UART bridge designed for reliable serial communication between a PC and embedded systems. It is based on the CP2102 integrated chip, which combines USB controller, transceiver, oscillator, EEPROM, and UART interface into a single compact solution.

This module allows computers without a native serial (COM) port to communicate with microcontrollers via a virtual COM port over USB. It is widely used in programming, debugging, and data exchange for development boards and embedded systems.

The module supports a wide range of baud rates and provides stable, fast, and efficient data transmission. It is compatible with major operating systems, making it a universal tool for electronics developers.

Specifications

• Product Type: USB to TTL Serial Converter
• Chipset: CP2102
• USB Standard: USB 2.0 Full Speed (12 Mbps)
• Operating Voltage: 5V and 3.3V support
• Baud Rate Range: 300 bps to 1.5 Mbps
• EEPROM Size: 1024 Bytes
• Buffer Size:
  • Receive: 576 bytes
  • Transmit: 640 bytes
• Operating Temperature: -40°C to +85°C
• Interface: USB to UART TTL
• Compatibility: Windows, Mac OS, Linux

Applications

• Arduino programming and debugging
• ESP8266 / ESP32 firmware flashing
• Serial communication testing
• Embedded system development
• Microcontroller data logging
• IoT device programming
• PC to MCU communication projects
• Industrial electronics testing
