ST-Link V2 stlink mini STM8STM32 STLINK simulator/programmer With Cover
The ST-Link V2 Mini Programmer/Debugger with Protective Cover is a compact and reliable tool designed for programming and debugging STM8 and STM32 microcontrollers. It supports SWD and SWIM interfaces, enabling fast, stable, and efficient firmware uploading and real-time debugging. Compatible with popular development environments such as Keil MDK, IAR Embedded Workbench, STVD, STVP, and ST-Link Utility, it offers broad software support for embedded development projects. Featuring automatic firmware upgrades, a protected 5V output, and a durable aluminum alloy enclosure, the ST-Link V2 Mini ensures convenient, safe, and portable operation for professionals, students, and electronics enthusiasts.
يُعد مبرمج ومصحح الأخطاء ST-Link V2 Mini مع الغطاء الواقي أداة مدمجة وموثوقة مخصصة لبرمجة وتصحيح أخطاء متحكمات STM8 وSTM32. يدعم واجهتي SWD وSWIM، مما يوفر تحميلًا سريعًا للبرامج الثابتة وإمكانية التصحيح الفوري بكفاءة عالية. يتوافق مع بيئات التطوير الشهيرة مثل Keil MDK وIAR Embedded Workbench وSTVD وSTVP وST-Link Utility، مما يجعله مناسبًا لمجموعة واسعة من مشاريع الأنظمة المدمجة. يتميز بتحديث تلقائي للبرامج الثابتة، ومخرج طاقة 5 فولت مزود بالحماية، وهيكل متين من سبائك الألومنيوم، مما يوفر استخدامًا آمنًا وسهل الحمل للمطورين والهواة.
The ST-Link V2 Mini is a professional-grade programmer and debugger designed specifically for STM8 and STM32 microcontroller families. It provides a cost-effective and efficient solution for firmware downloading, in-circuit debugging, and development testing.
Supporting the SWD (Serial Wire Debug) interface for STM32 devices and the SWIM (Single Wire Interface Module) protocol for STM8 devices, the programmer enables stable communication, fast programming speeds, and reliable debugging performance.
The device is compatible with a wide range of development tools, including ST-Link Utility, STVD, STVP, IAR Embedded Workbench, and Keil MDK, making it suitable for both educational and professional applications.
Its built-in automatic firmware update feature ensures continued compatibility with the latest software releases from STMicroelectronics. Additionally, the integrated 5V power output with I/O protection helps safeguard the programmer and target boards from accidental wiring errors.

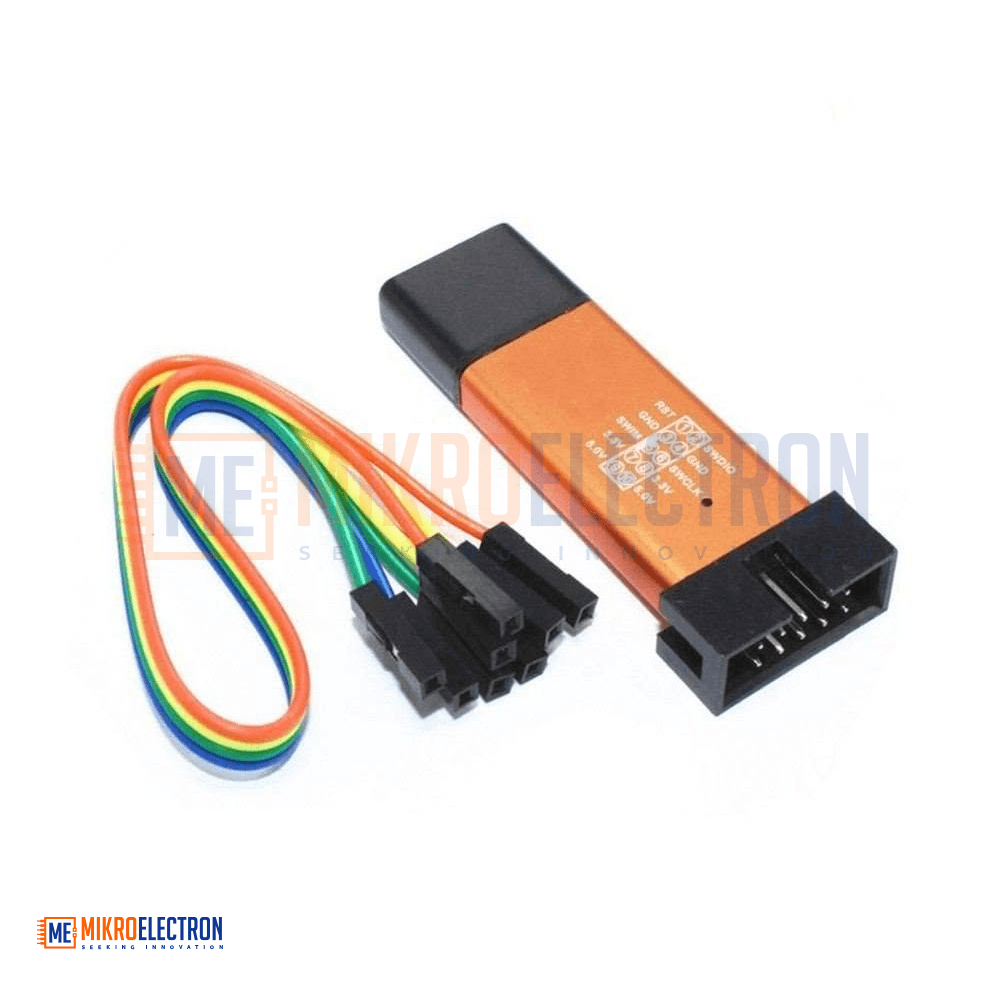

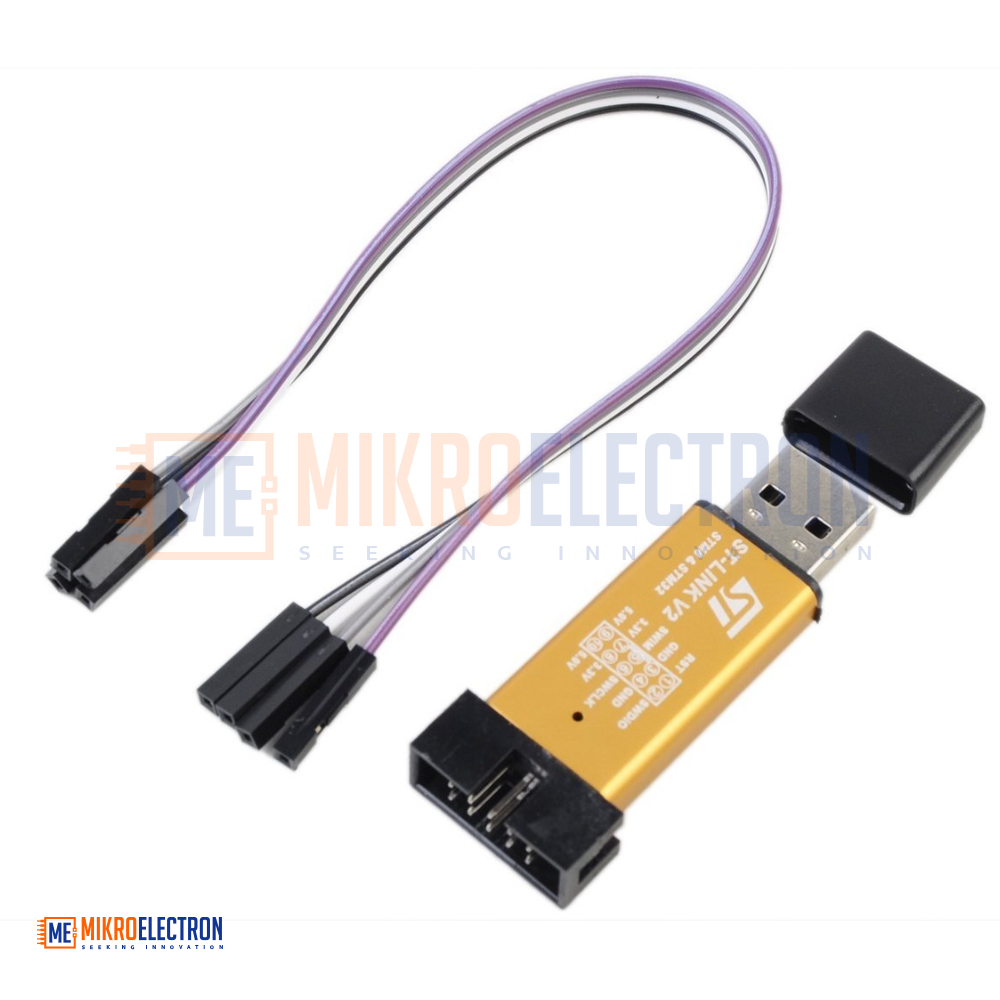

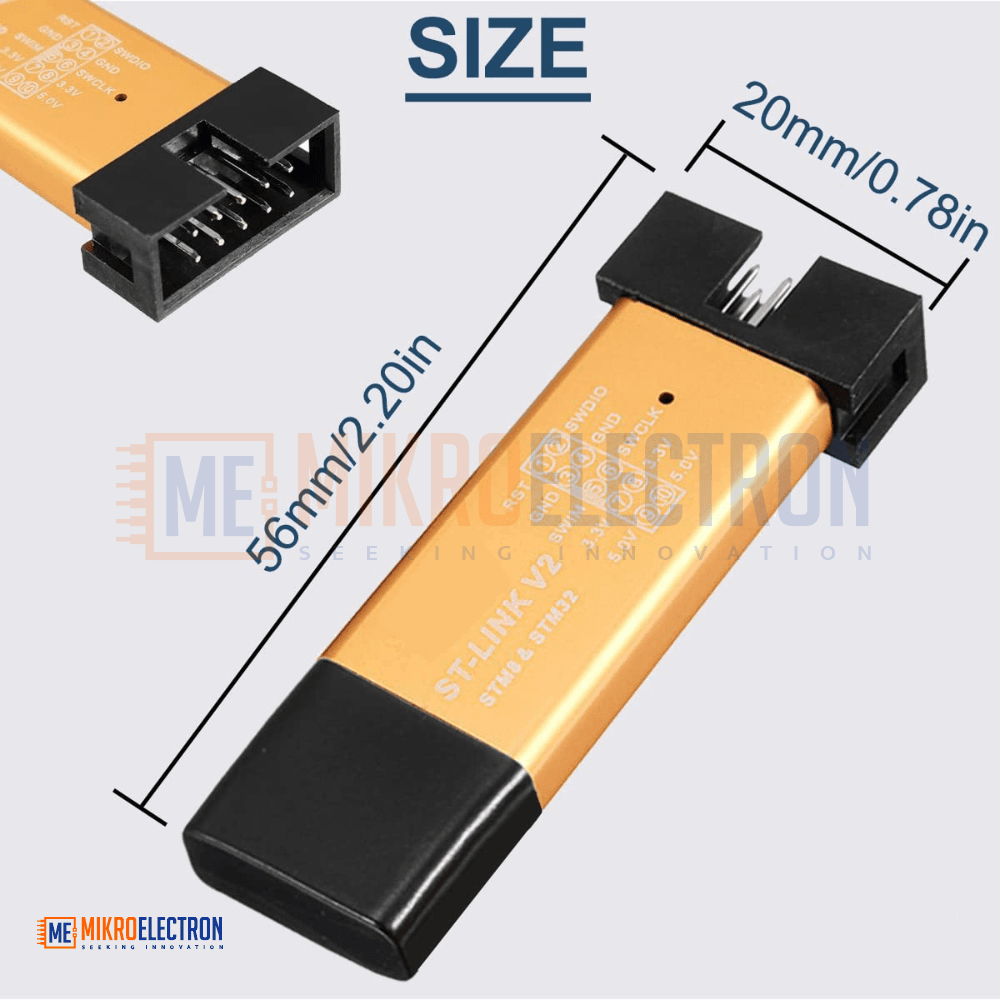

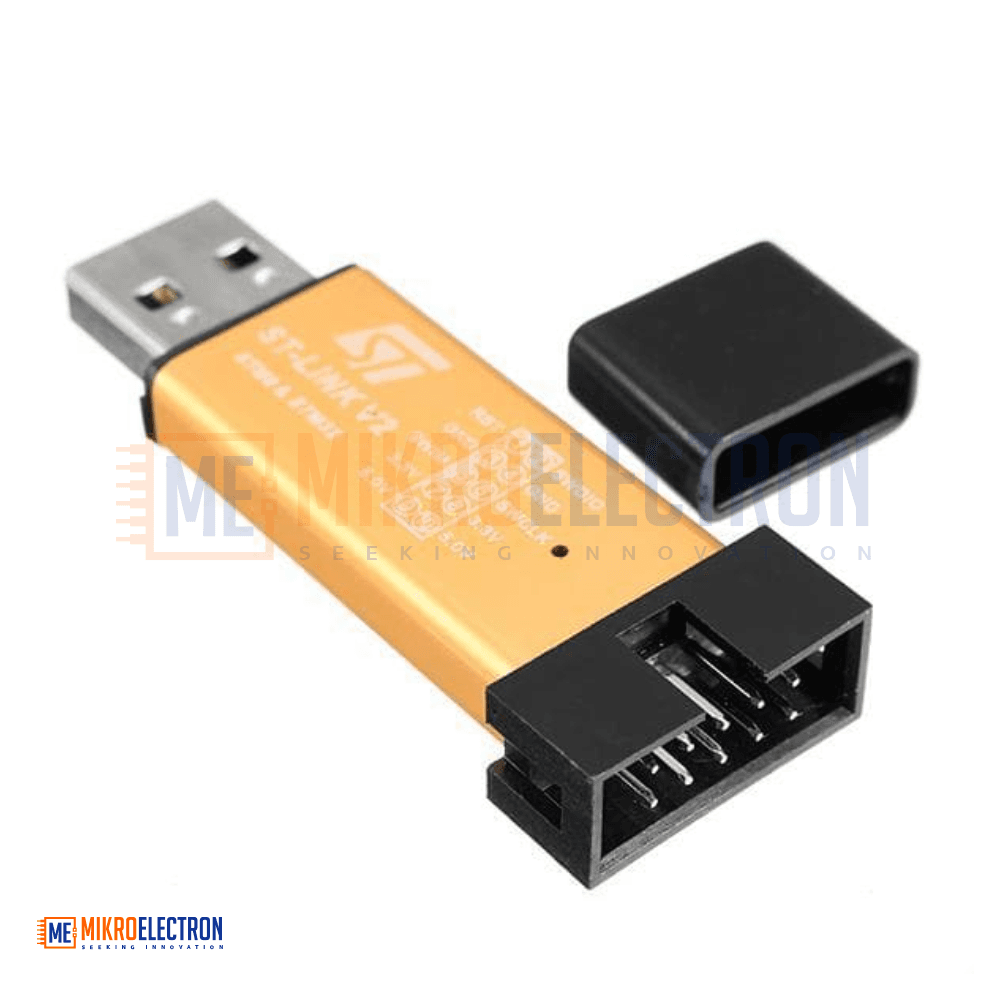

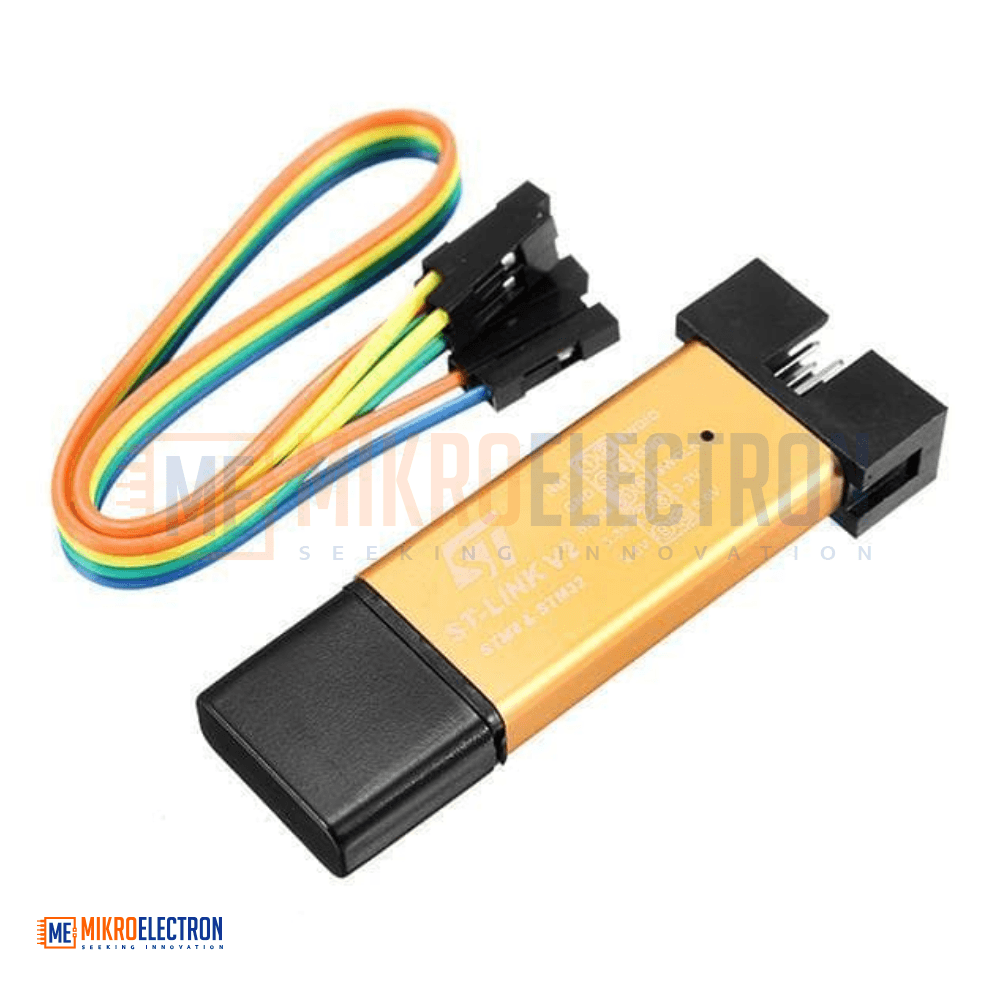

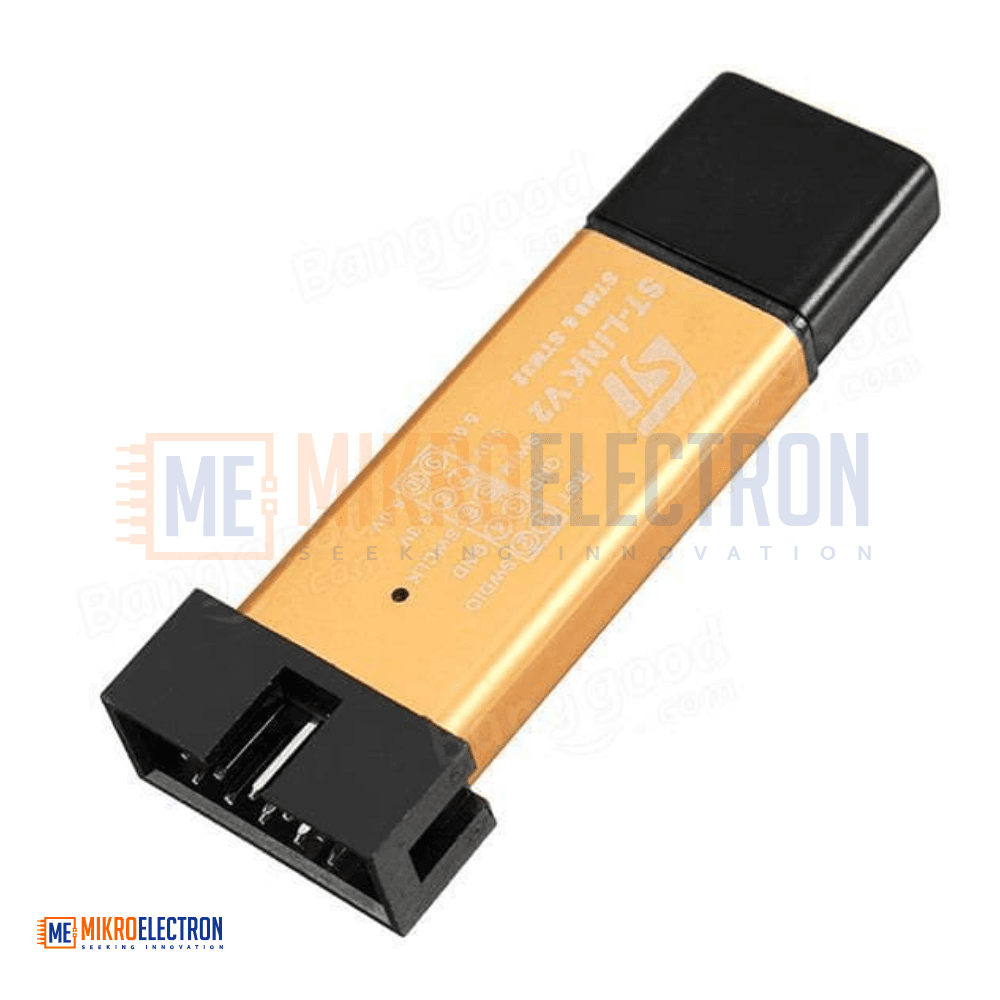

The compact design features a durable USB flash drive-style aluminum alloy enclosure, protecting internal components against static electricity, impacts, and everyday wear. The included 20 cm Dupont cable and 2.54 mm pitch connector provide flexible connectivity for various development boards and custom circuits.
Specifications
| Parameter | Details |
|---|---|
| Product Name | ST-Link V2 Mini Programmer/Debugger |
| Supported Microcontrollers | STM8 and STM32 Series |
| Debug Interface for STM32 | SWD (Serial Wire Debug) |
| Debug Interface for STM8 | SWIM (Single Wire Interface Module) |
| Communication Interface | USB 2.0 |
| Connector Pitch | 2.54 mm |
| Included Cable Length | 20 cm Dupont Cable |
| Output Voltage | 5V Protected Output |
| Firmware Update | Automatic Upgrade Supported |
| Housing Material | Aluminum Alloy |
| Supported Software | ST-Link Utility v2.0+, STVD v2.0+, STVP v3.2.3+, IAR EWARM v6.20+, IAR EWSTM8 v1.30+, Keil RVMDK v4.21+ |
| Operating Function | Programming and In-Circuit Debugging |
| Protection Features | I/O Port Protection and Anti-Static Housing |
Applications
- Programming and debugging STM32-based embedded systems
- Developing firmware for STM8 microcontrollers
- Educational and academic microcontroller training
- Prototyping and testing embedded hardware designs
- Industrial automation controller development
- IoT device firmware programming
- Robotics and smart device projects
- Electronics laboratories and repair workshops
