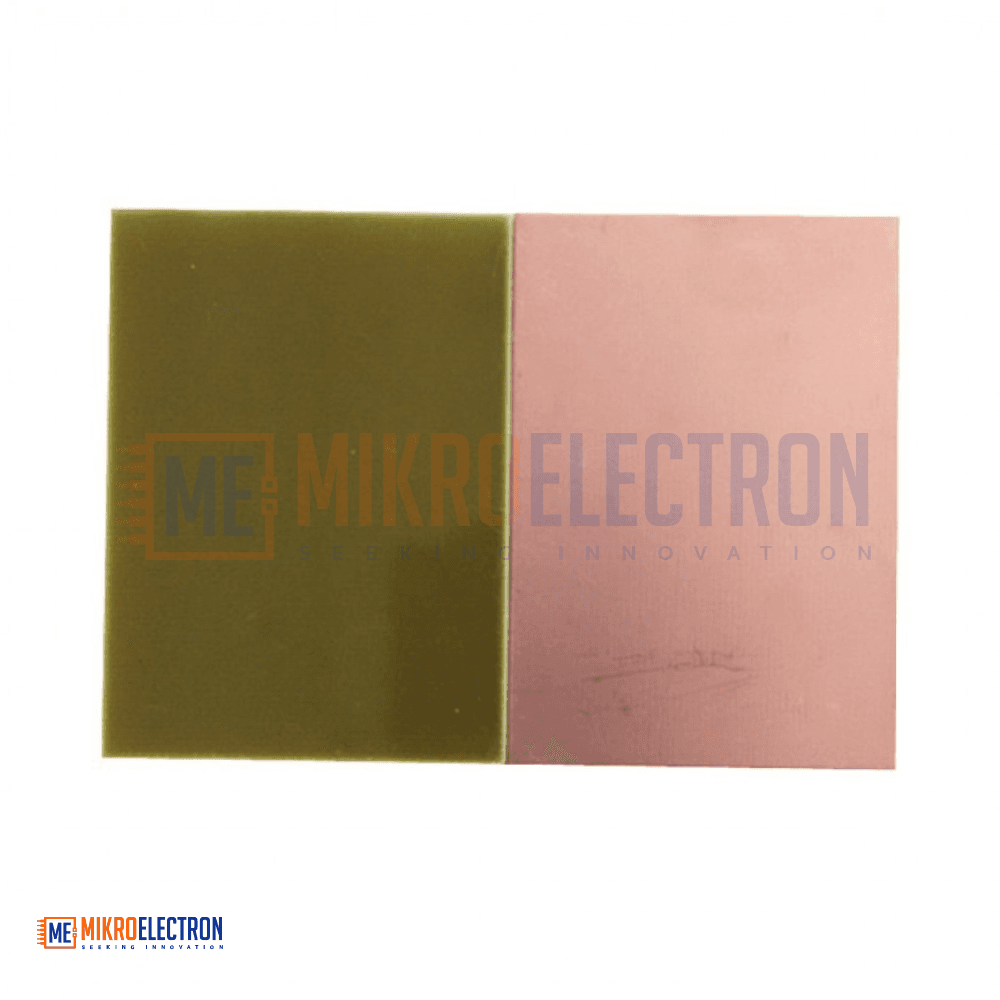

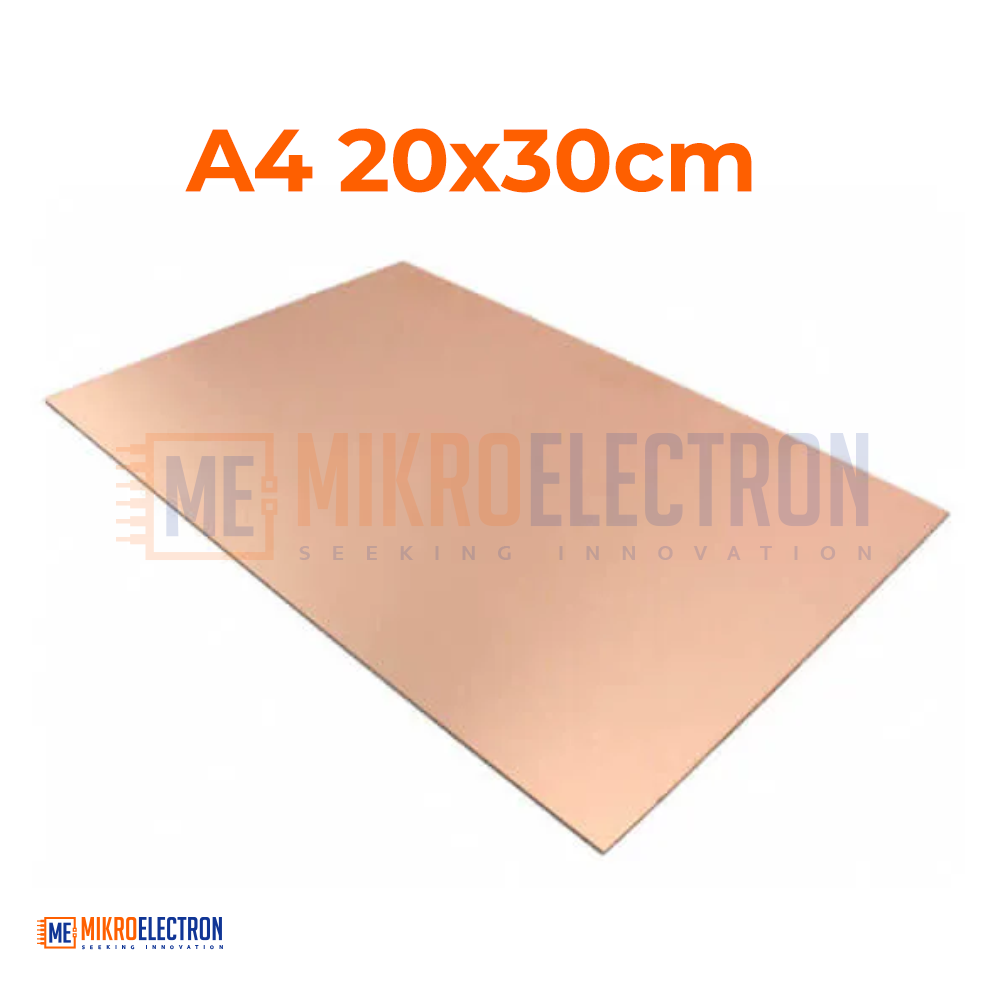

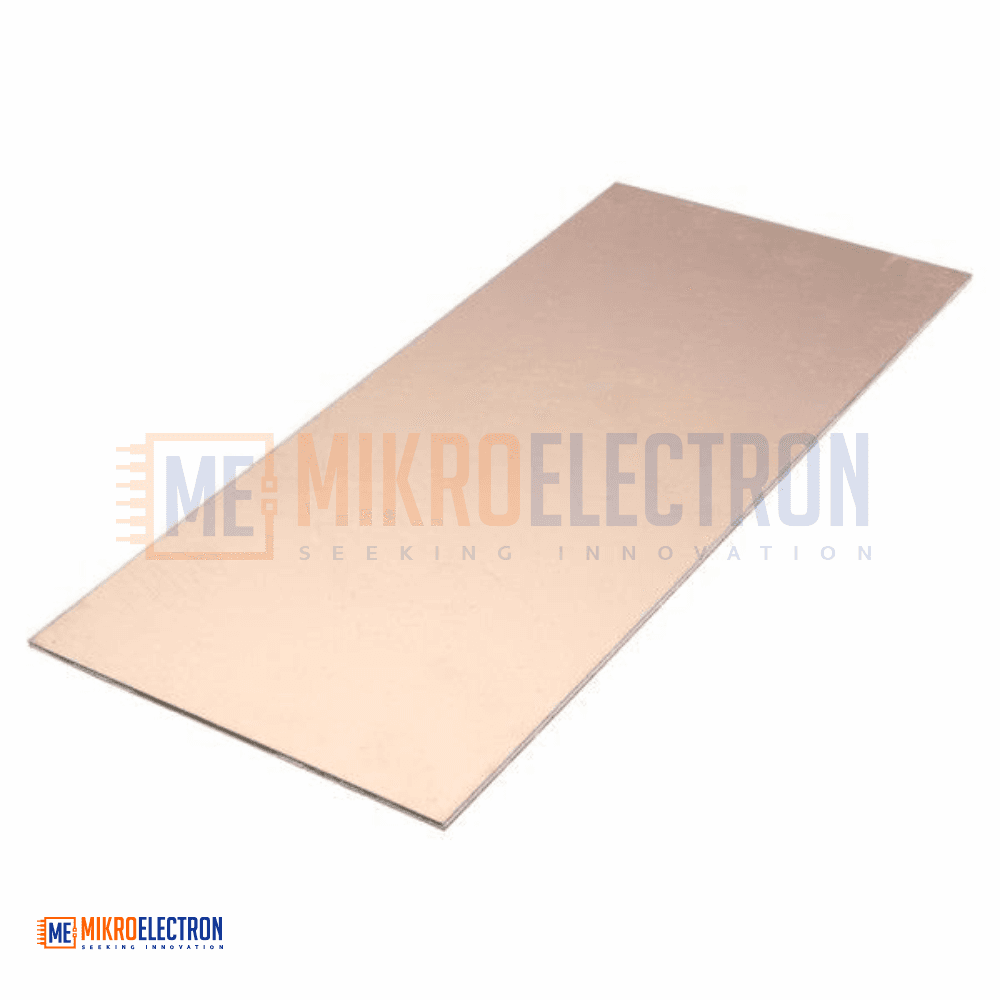

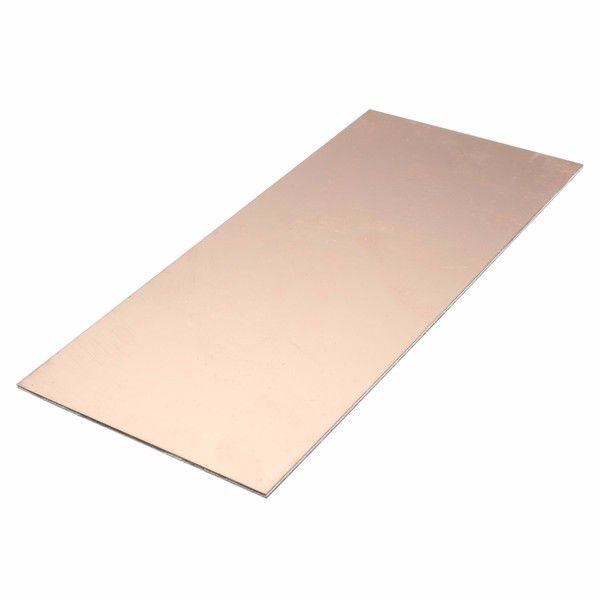

DOUBLE LAYER FIBER PCB A4 20x30 CM
The Double Layer Fiber PCB A4 (20×30 cm) is a high-quality blank printed circuit board designed for electronic prototyping and DIY circuit development. It features a double-sided copper-clad fiberglass (fiber) base, providing strong mechanical durability and excellent electrical performance. The pure copper surface allows easy etching, drilling, and soldering, making it suitable for custom circuit designs. This PCB is widely used in engineering projects, electronics development, and educational applications where reliable and stable circuit construction is required.
لوحة الدوائر المطبوعة Double Layer Fiber PCB مقاس A4 (20×30 سم) هي لوحة فارغة عالية الجودة مخصصة للنماذج الأولية وتصميم الدوائر الإلكترونية. تتميز بطبقتين من النحاس على قاعدة من الألياف الزجاجية (Fiber) مما يوفر قوة ميكانيكية عالية وأداء كهربائي ممتاز. سطح النحاس النقي يسهل عملية الحفر واللحام والتصميم حسب الحاجة. تُستخدم هذه اللوحة في المشاريع الهندسية، وتطوير الإلكترونيات، والتطبيقات التعليمية.
The Double Layer Fiber PCB A4 (20×30 cm) is a professional-grade blank printed circuit board designed for electronic prototyping, circuit development, and custom hardware design. It consists of a fiberglass (FR4 fiber) base material coated with pure copper on both sides, allowing for complex circuit routing and high-density electronic designs.
This PCB provides excellent mechanical strength, thermal stability, and electrical insulation, making it suitable for both low-frequency and moderate high-frequency applications. The double-layer structure enables designers to create more compact and efficient circuits compared to single-sided boards.
It is widely used in DIY electronics, engineering prototypes, embedded systems, and academic projects. The copper surface can be easily etched, drilled, and soldered, allowing full customization of circuit layouts according to project requirements.
Specifications
| Parameter | Specification |
|---|---|
| Board Type | Double Layer PCB |
| Material | Fiber Glass (FR4) |
| Size | A4 – 20 × 30 cm |
| Copper Layers | 2 (Top & Bottom) |
| Surface Material | Pure Copper Coating |
| Electrical Insulation | High-quality FR4 insulation |
| Mechanical Strength | High durability and rigidity |
| Processing | Suitable for etching, drilling, and soldering |
| Application Type | Prototype and custom PCB design |
Applications
- Electronic circuit prototyping
- DIY electronics projects
- Embedded system development
- Robotics control circuits
- Educational laboratory experiments
- IoT device hardware design
- Power supply circuit design
- Signal processing circuits
- Custom PCB fabrication
- Engineering and research projects
