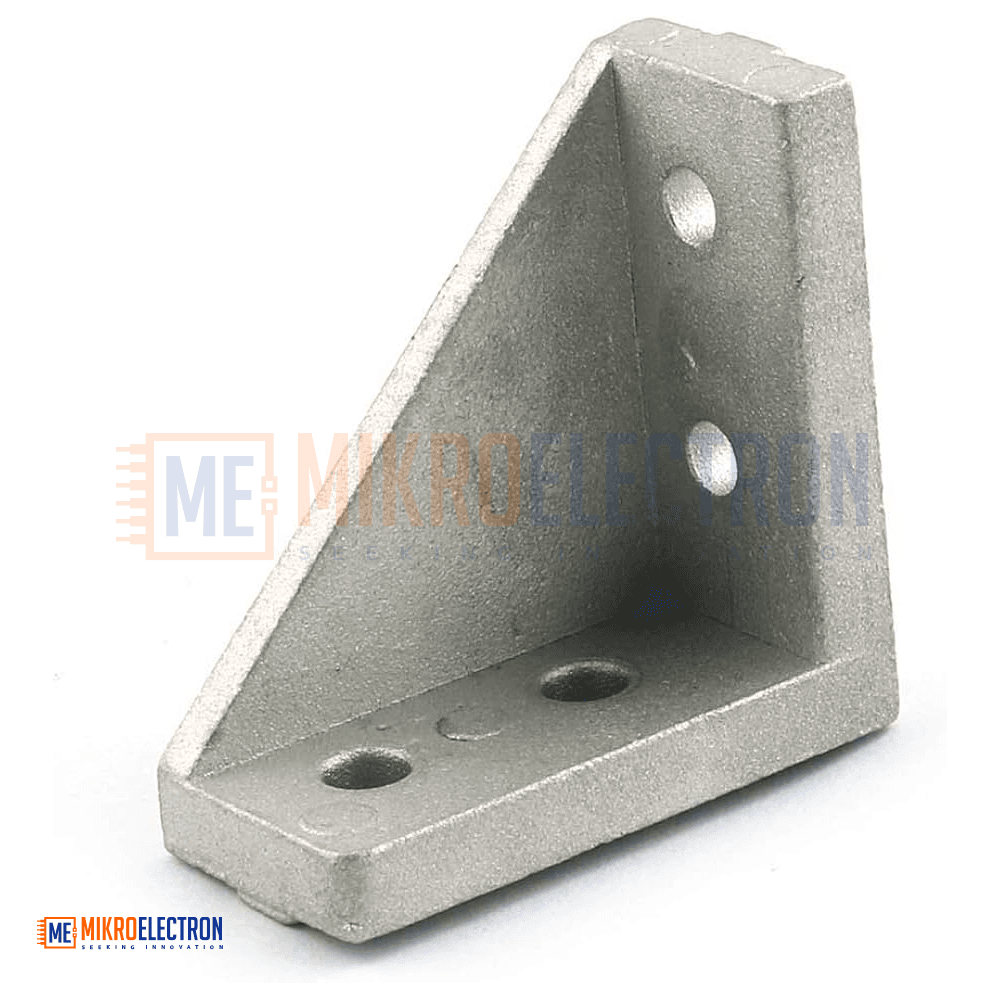

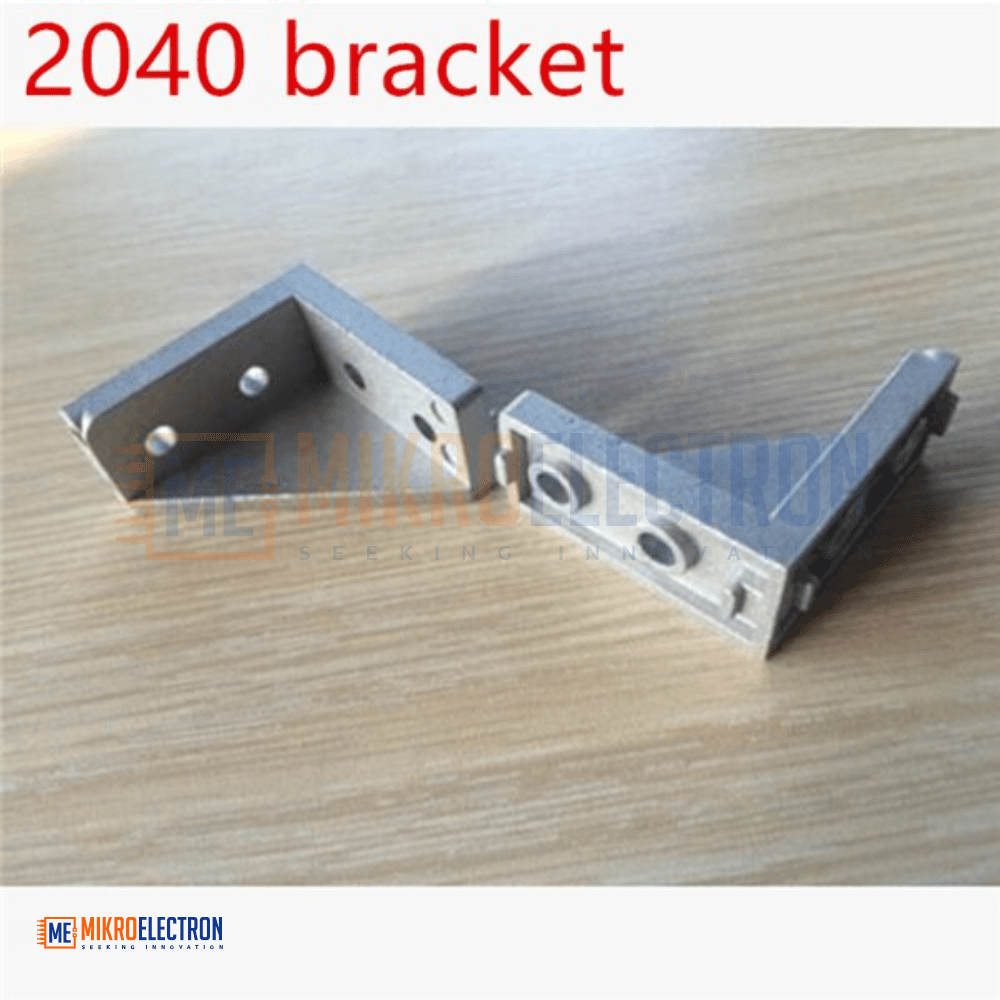

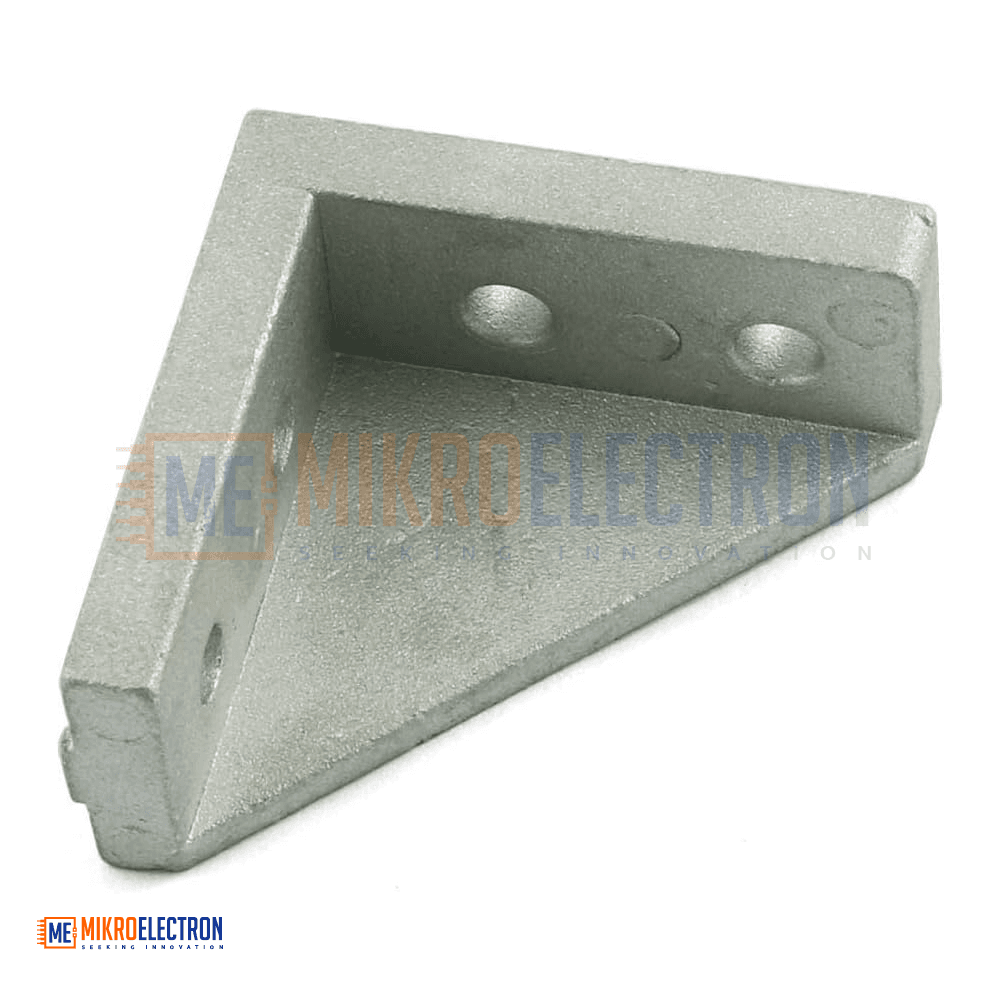

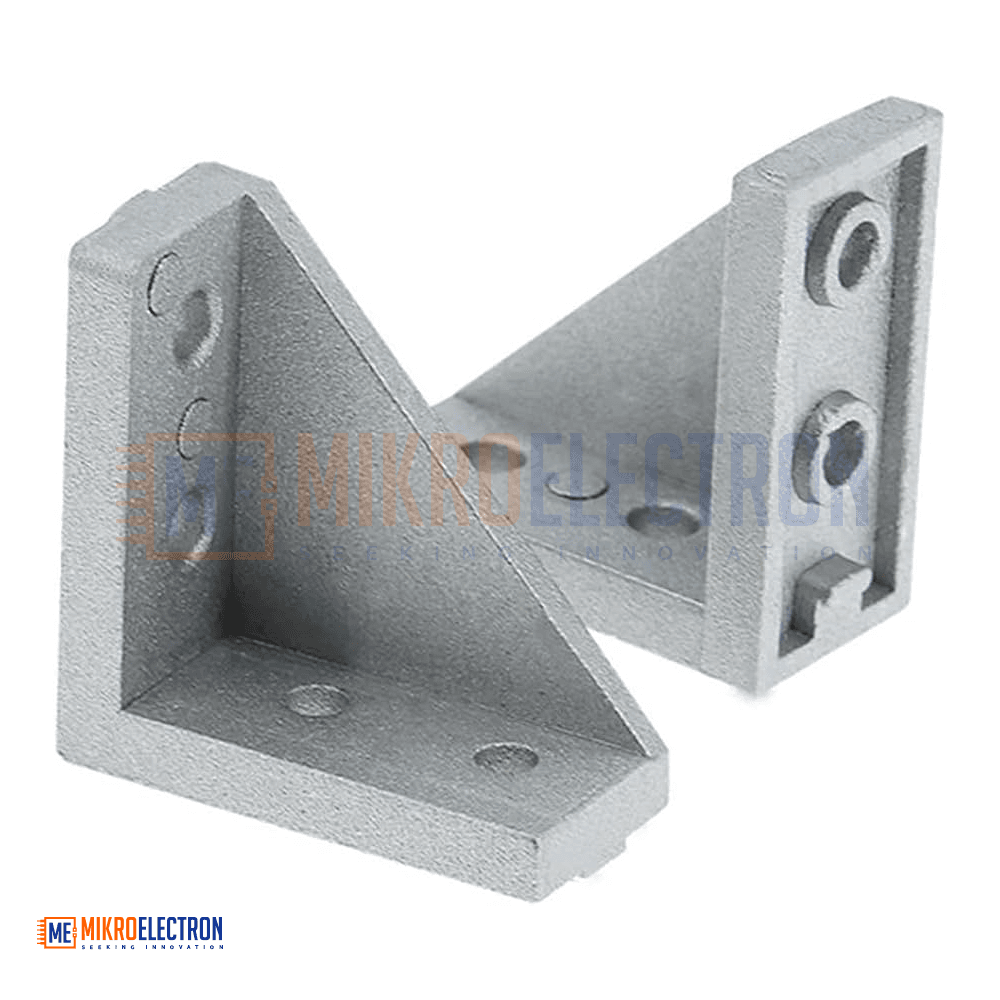

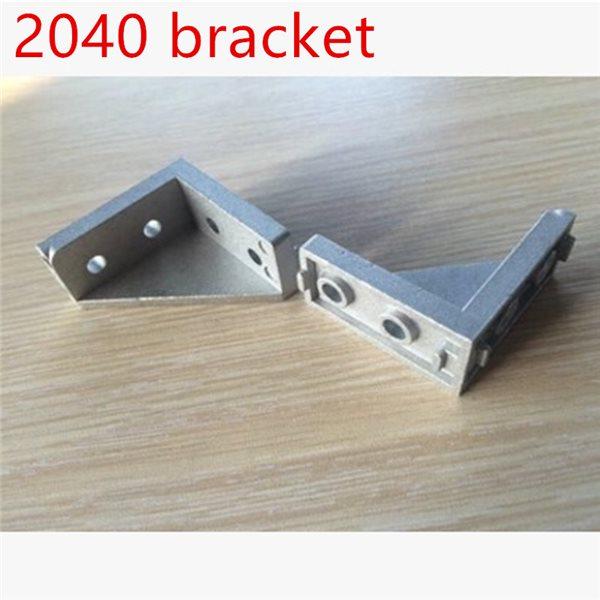

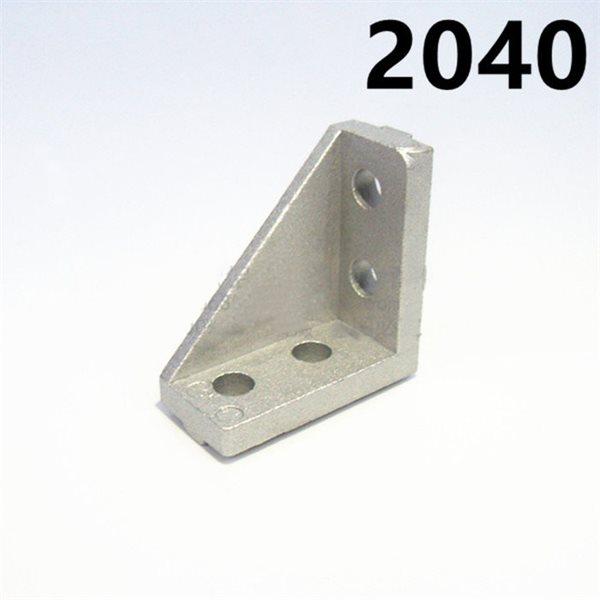

Corner Fitting Bracket for 2040 Aluminum
The 2040 Corner Fitting Bracket is a durable aluminum connector designed for securely joining 2040 and compatible 2020 aluminum extrusion profiles at precise 90-degree angles. Manufactured from high-quality aluminum, this bracket provides excellent strength, corrosion resistance, and long-term reliability for structural framing applications. Its compact 18 × 38 mm L-shaped design features 6 mm mounting holes for easy installation using standard fasteners. Ideal for building machine frames, 3D printer enclosures, CNC machines, workstations, and automation systems, the bracket ensures stable and accurate connections while simplifying assembly and maintenance.
تُعد زاوية التثبيت لقطاعات الألمنيوم 2040 وصلة متينة مصنوعة من الألمنيوم، ومصممة لربط قطاعات الألمنيوم 2040 والمتوافقة مع 2020 بزوايا دقيقة تبلغ 90 درجة. توفر هذه الزاوية قوة تحمل عالية ومقاومة ممتازة للتآكل، مما يضمن أداءً موثوقًا وعمرًا تشغيليًا طويلًا في التطبيقات الهيكلية المختلفة. يتميز تصميمها على شكل حرف L بأبعاد 18 × 38 مم مع فتحات تثبيت بقطر 6 مم لتسهيل التركيب باستخدام المسامير القياسية. تُستخدم على نطاق واسع في هياكل الطابعات ثلاثية الأبعاد، وآلات CNC، وخطوط الأتمتة، وطاولات العمل الصناعية.

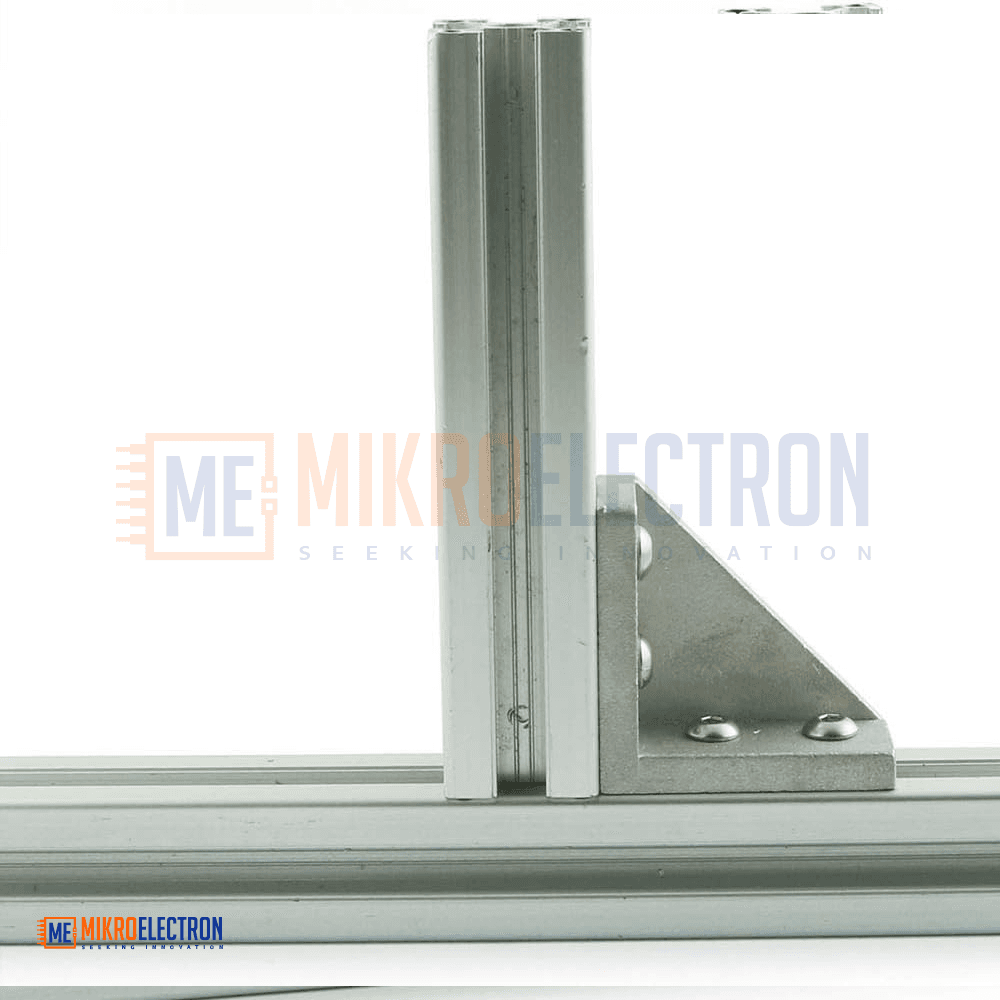

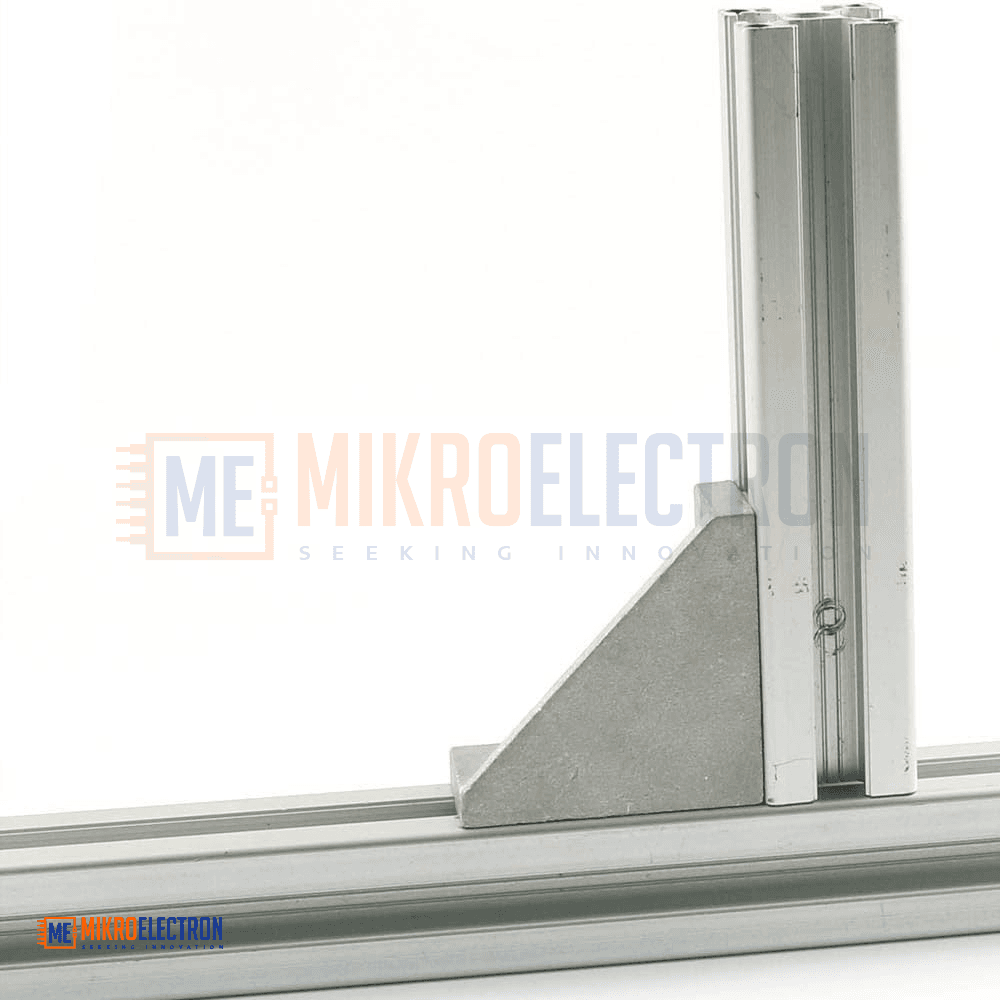

The 2040 Corner Fitting Bracket is an L-shaped aluminum connector designed to create strong and accurate right-angle joints between aluminum extrusion profiles. It is primarily intended for use with 2040 industrial aluminum profiles and can also be used with compatible 2020 series extrusions, depending on the mounting configuration.
Manufactured from high-quality aluminum, the bracket offers an excellent combination of strength, lightweight construction, and corrosion resistance. Its rigid structure helps maintain alignment and stability in framed assemblies while reducing vibration and movement.
The bracket features a compact 18 × 38 mm profile with 6 mm mounting holes, enabling quick and secure installation using standard bolts, T-nuts, and fasteners commonly used with aluminum extrusion systems.
Suitable for modular construction, the 2040 Corner Fitting Bracket simplifies assembly, disassembly, and future modifications without requiring welding or specialized tools. It is widely used in industrial automation, robotics, machine guards, workbenches, display stands, and DIY engineering projects.
Specifications
| Parameter | Value |
|---|---|
| Product Name | 2040 Corner Fitting Bracket |
| Bracket Type | L-Shaped Corner Connector |
| Material | Aluminum |
| Compatible Profiles | 2040 Aluminum Extrusions |
| Additional Compatibility | 2020 Aluminum Profiles |
| Bracket Dimensions | 18 × 38 mm |
| Mounting Hole Diameter | 6 mm |
| Connection Angle | 90° |
| Installation Method | Bolts and T-Nuts |
| Corrosion Resistance | Yes |
| Color | Varies by manufacturer |
| Application Type | Structural Framing and Assembly |
Applications
- 3D printer frames and enclosures
- CNC machine structures
- Industrial automation systems
- Robotics frames and workstations
- Machine guarding and protective enclosures
- Modular workbenches
- Conveyor systems
- Display racks and exhibition stands
- DIY aluminum extrusion projects
- Custom equipment frames
