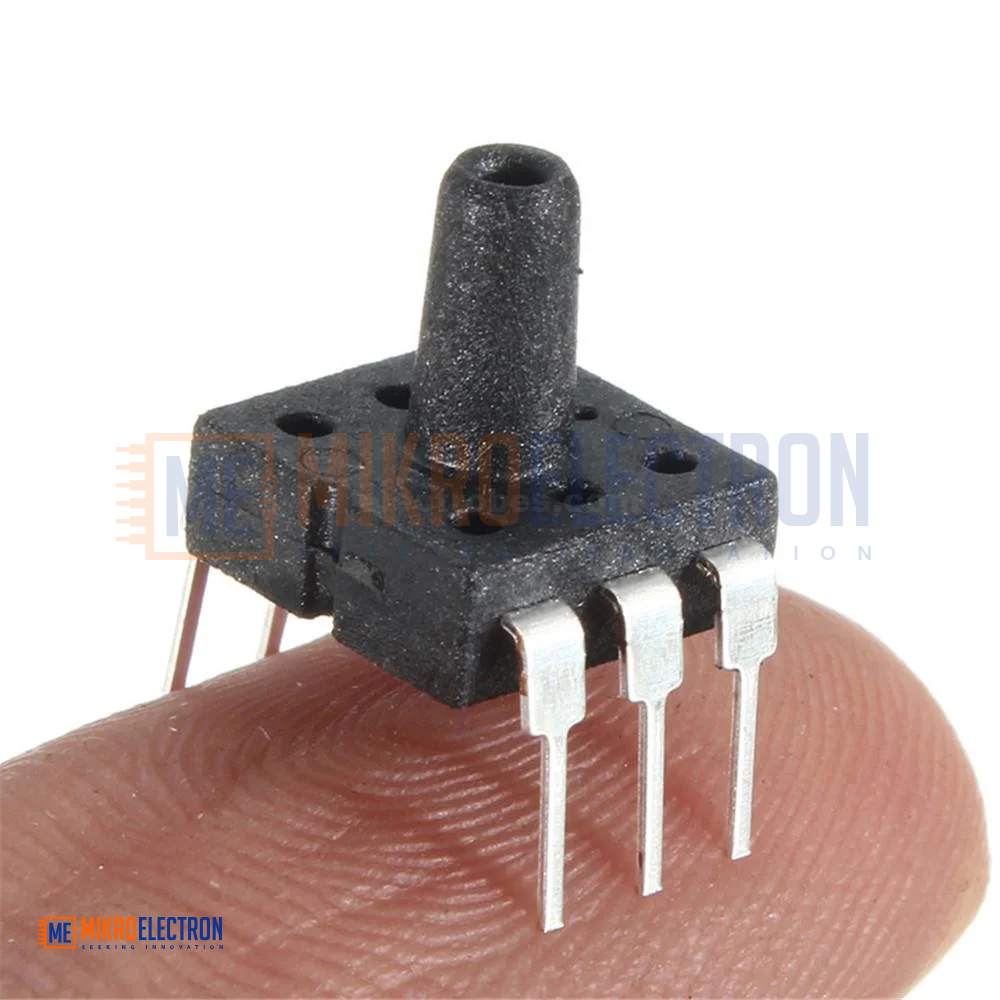

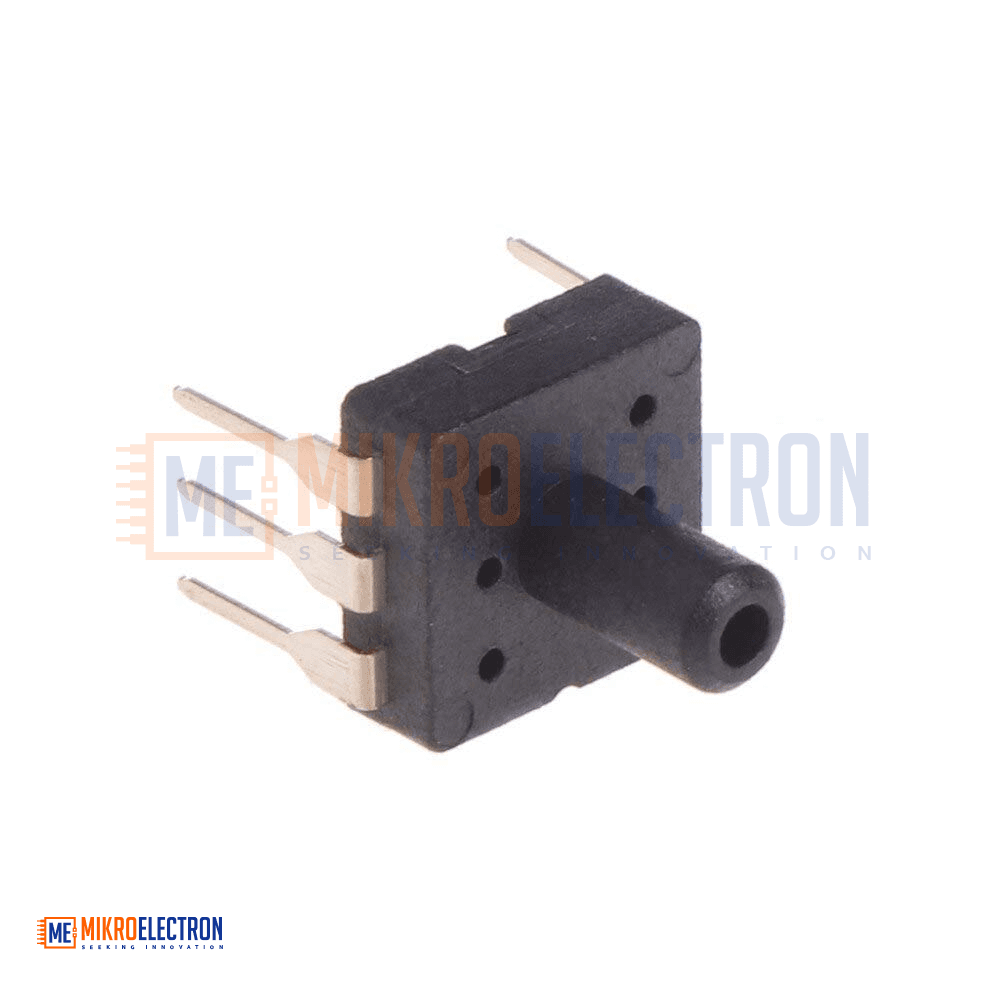

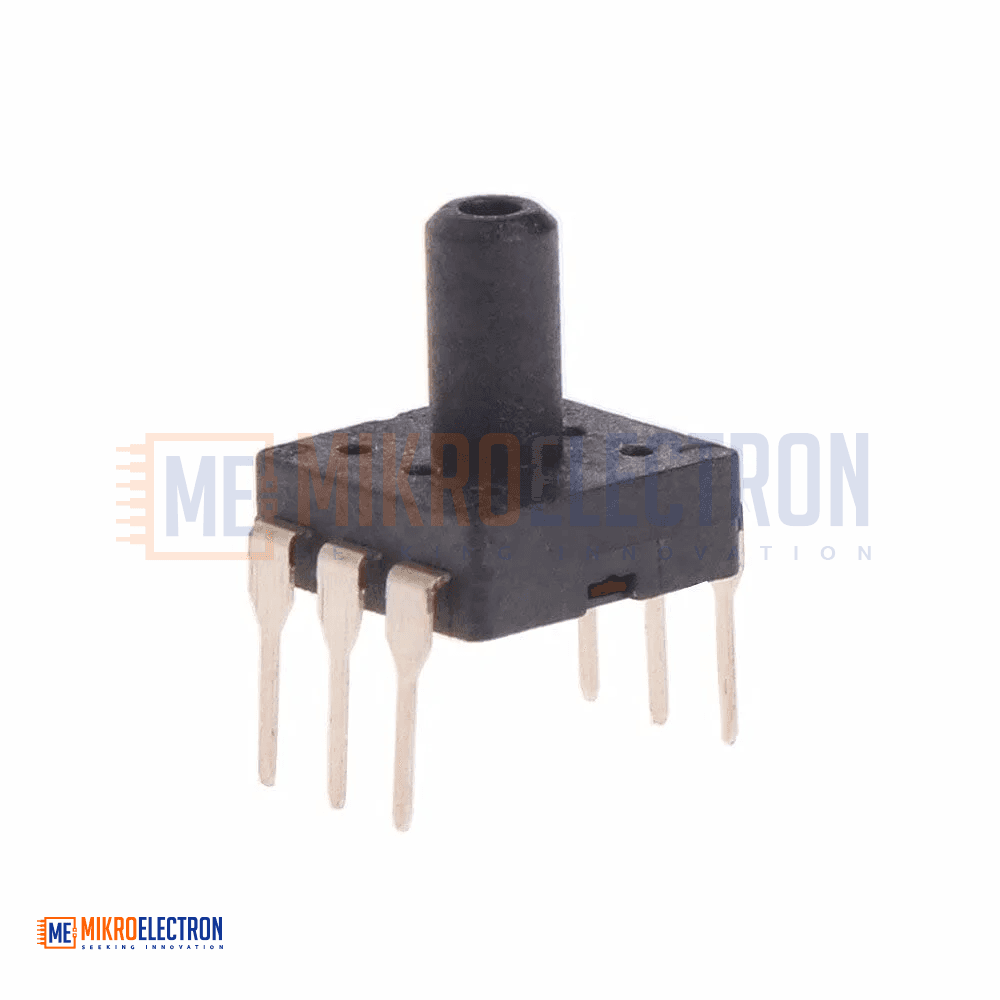

Pressure Sensor MPS20N0040D-D
The MPS20N0040D-D Pressure Sensor is a high-precision MEMS-based air pressure sensor designed for measuring pressures in the range of 0 to 40 kPa. It is commonly used in applications such as medical devices (blood pressure monitors), automotive systems, and industrial pressure measurement tools. The sensor comes in a DIP-6 package, making it easy to integrate with Arduino and other microcontroller platforms. It offers stable performance, wide temperature tolerance, and reliable low-pressure detection, making it suitable for both scientific and engineering projects.
حساس الضغط MPS20N0040D-D هو حساس دقيق يعتمد على تقنية MEMS لقياس ضغط الهواء ضمن مدى 0 إلى 40 كيلو باسكال. يُستخدم في تطبيقات متعددة مثل الأجهزة الطبية (قياس ضغط الدم)، أنظمة السيارات، والأجهزة الصناعية لقياس الضغط. يأتي بتغليف DIP-6 مما يسهل استخدامه مع لوحات مثل Arduino. يتميز بدقة عالية واستقرار جيد وتحمل لدرجات الحرارة المختلفة، مما يجعله مناسبًا للمشاريع الهندسية والعلمية.
The MPS20N0040D-D Pressure Sensor is a high-sensitivity MEMS (Micro-Electro-Mechanical Systems) based sensor designed for precise measurement of low air pressure ranges from 0 to 40 kPa. It is widely used in biomedical, automotive, industrial, and environmental monitoring applications.

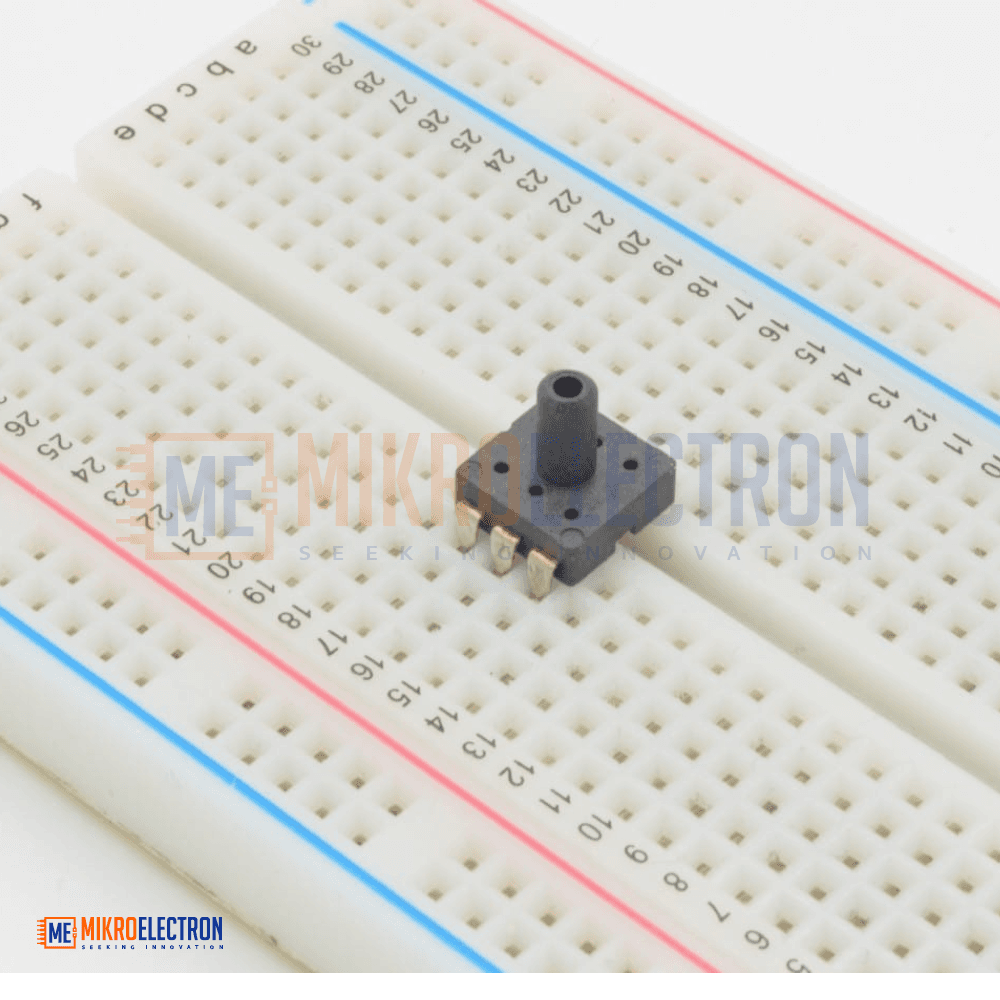

This sensor is particularly suitable for projects requiring accurate low-pressure detection, such as blood pressure monitoring systems, tire pressure measurement, air pumps, and diagnostic equipment. Its compact DIP-6 package allows easy mounting on breadboards and PCB boards, making it ideal for Arduino and other microcontroller-based systems.
The sensor operates with stable output characteristics and supports a wide temperature range, ensuring reliable performance even under harsh environmental conditions. Its MEMS pressure chip ensures high accuracy, low hysteresis, and good long-term stability.
Specifications
| Parameter | Specification |
|---|---|
| Model | MPS20N0040D-D |
| Sensor Type | MEMS Air Pressure Sensor |

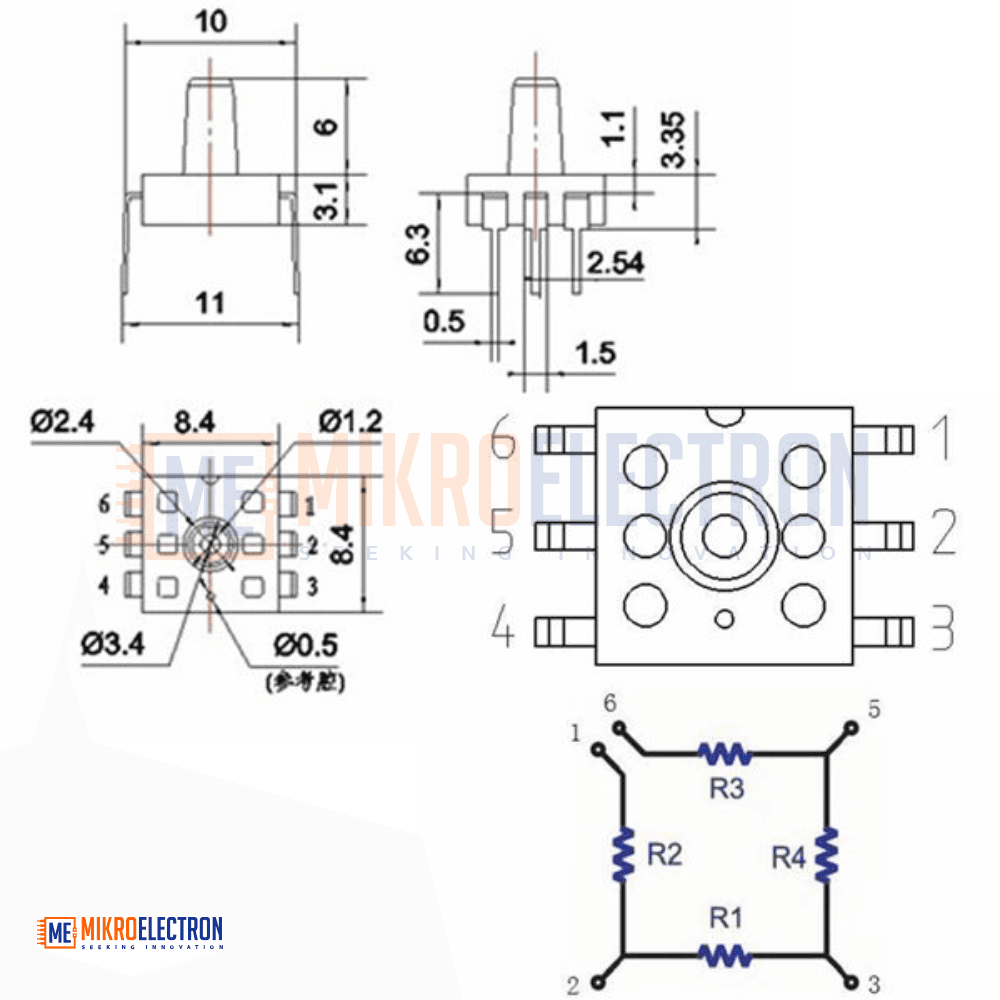

| Package Type | DIP-6 |
| Measuring Medium | Air |
| Pressure Range | 0 – 40 kPa |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +150°C |
| Humidity Range | 50% ± 10% RH |
| Output Impedance | 4 kΩ – 6 kΩ |
| Zero Output | -15 mV to +15 mV |
| Hysteresis | ±0.7% F.S. |
| Power Supply | ≤10V DC / ≤2.0 mA DC |
| Insulation Resistance | 100 MΩ @ 100 VDC |
| Technology | MEMS Pressure Sensing |
Applications
- Blood pressure monitoring devices
- Medical diagnostic equipment
- Automotive tire pressure systems
- MAP sensors (Manifold Absolute Pressure)
- Air pumps and compressors
- Industrial air pressure switches
- Portable pressure meters
- Environmental monitoring systems
- Meteorological measurement devices
- Arduino and IoT sensor projects
- Robotics pressure sensing applications
