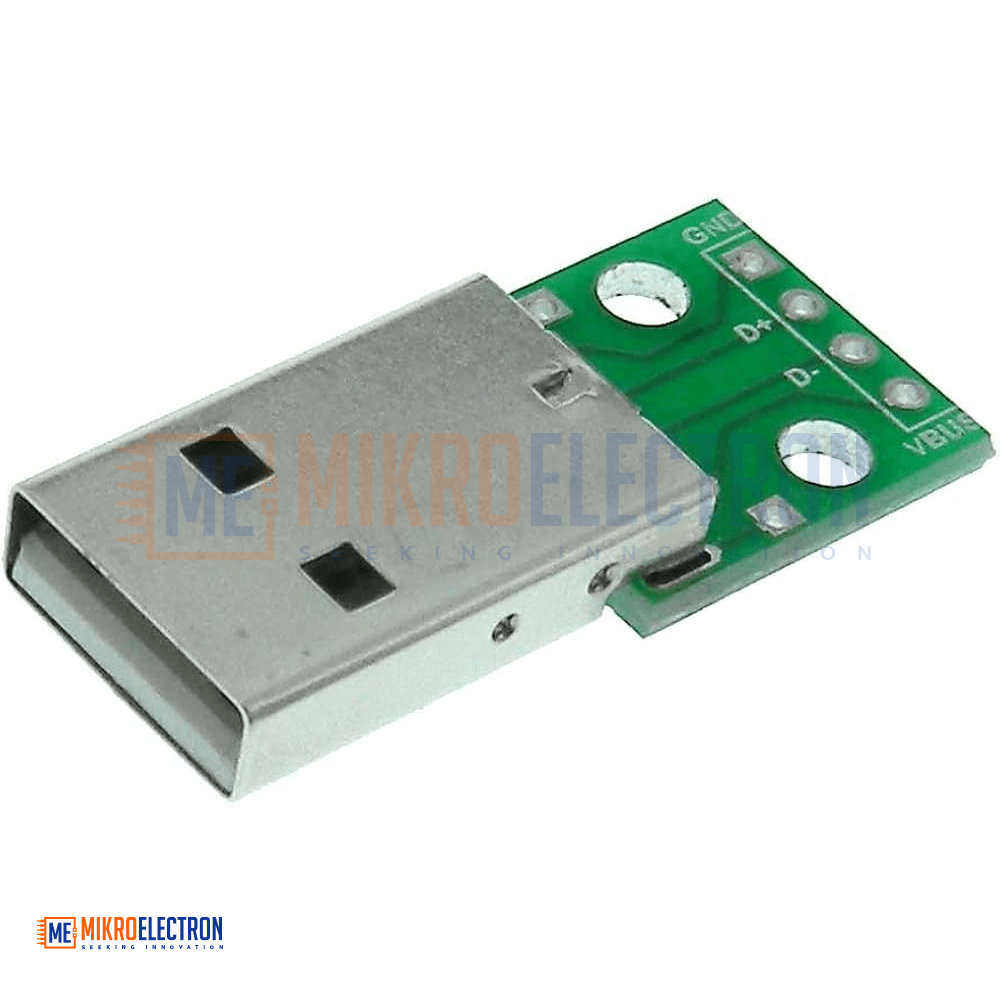

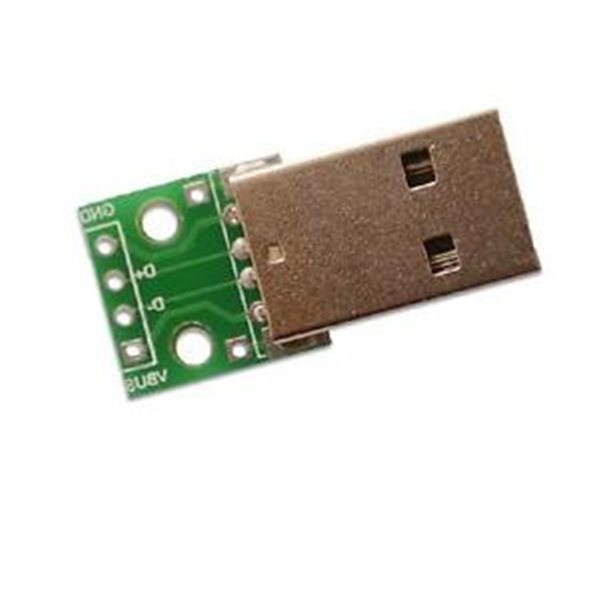

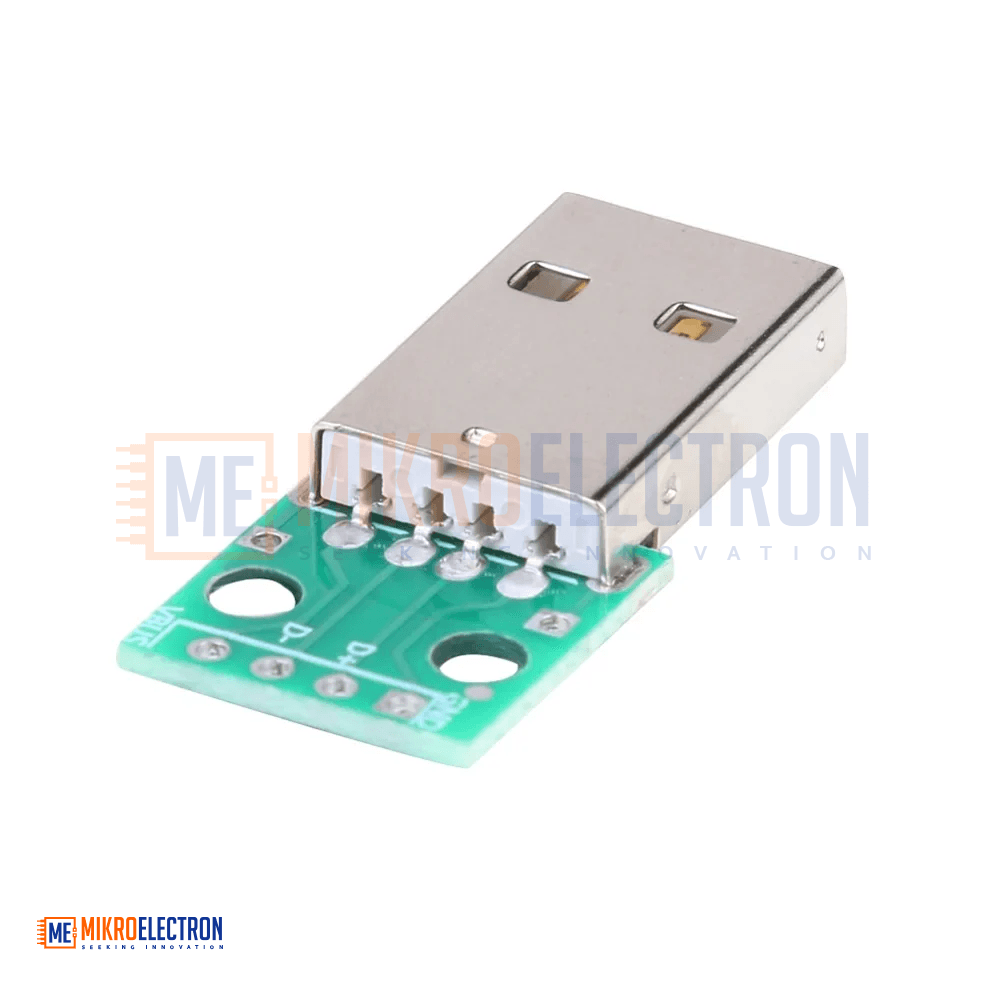

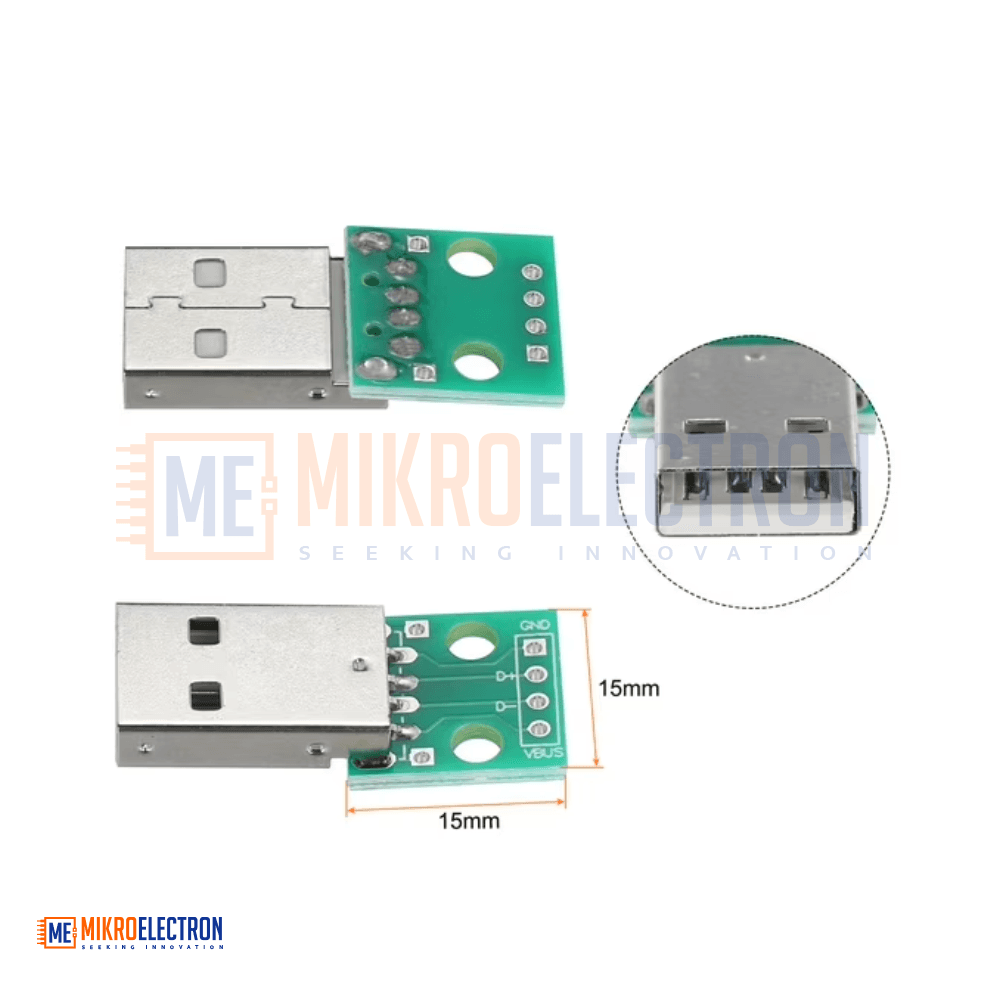

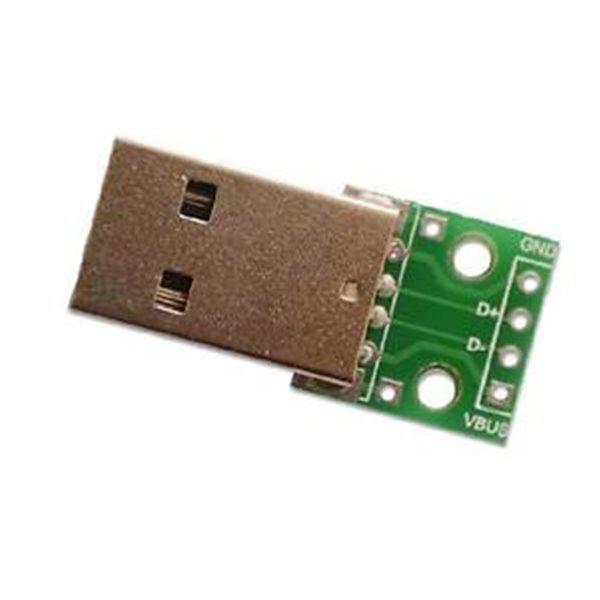

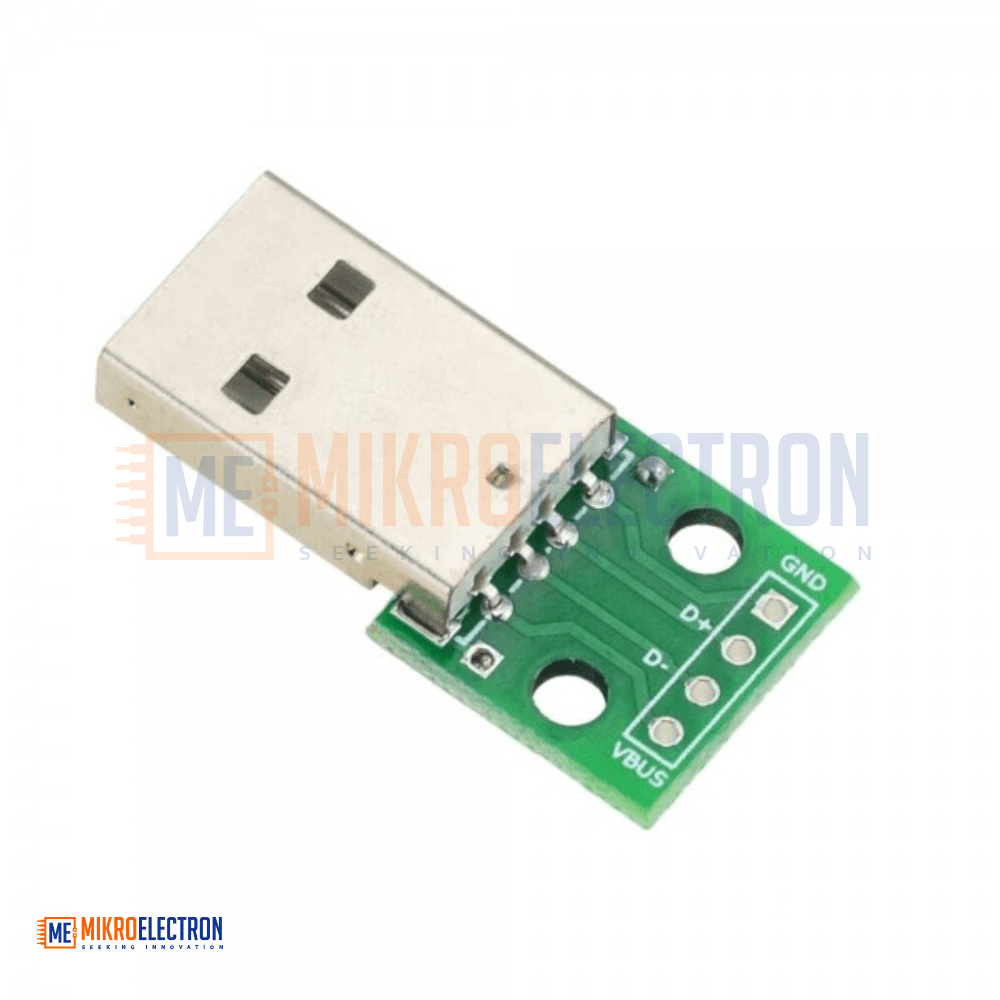

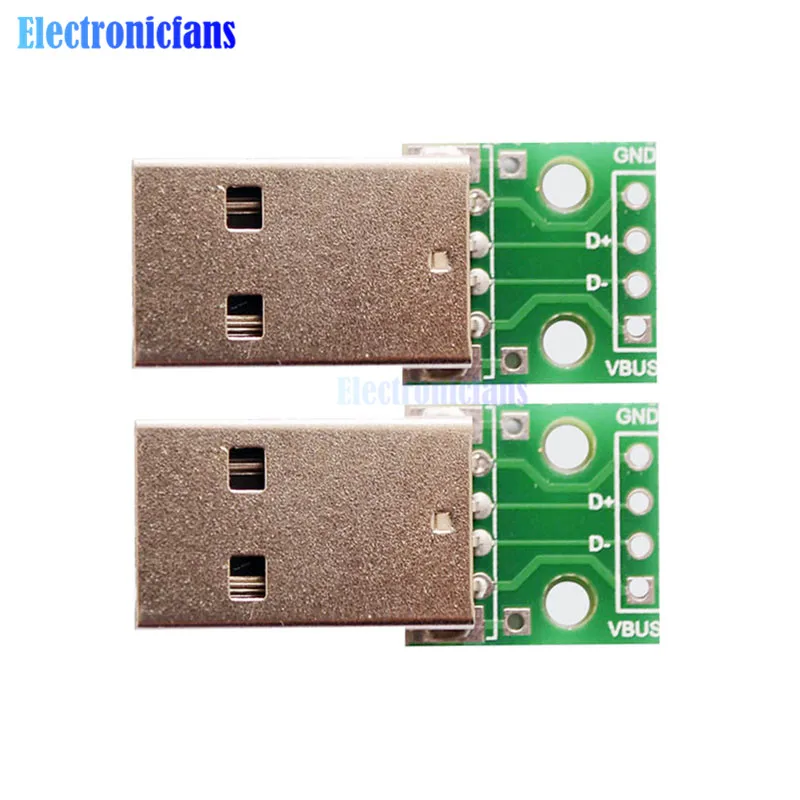

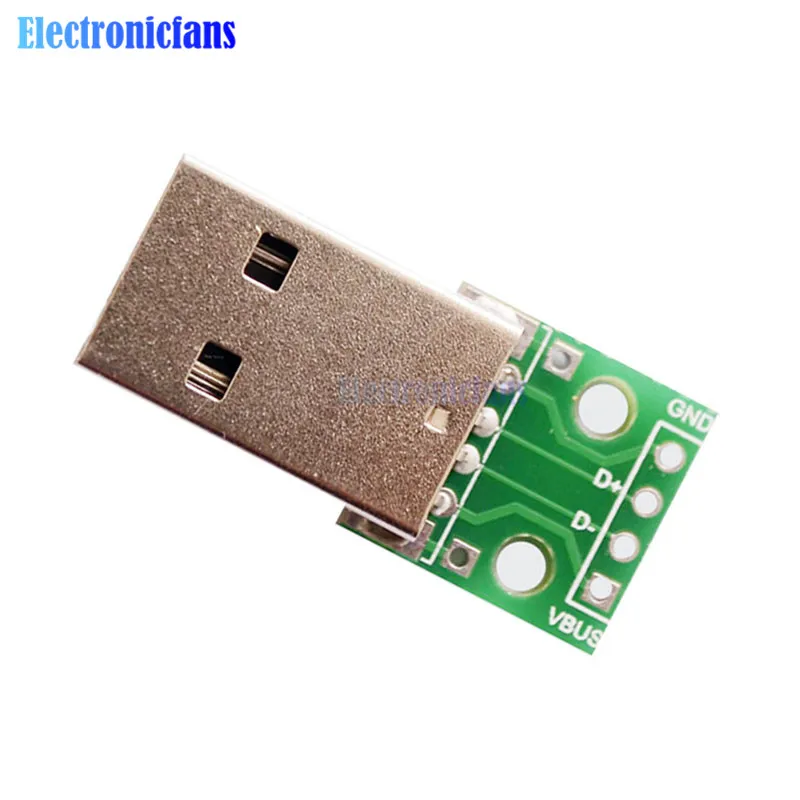

USB male to DIP Adapter Converter 4 pin for 2.54mm PCB Board Power Supply

5.0(1 review)
SKU: ME-3249
JD0.75

The USB Male to DIP Adapter Converter 4 Pin is a compact and practical adapter designed to convert a standard USB male connector into a 2.54 mm DIP pin interface for easy integration with breadboards, PCBs, and electronic projects. It provides convenient access to the USB power and data lines through a standard pin layout, making it ideal for prototyping, development, and DIY applications. The adapter comes with a pre-soldered USB connector, eliminating the need for additional assembly. It is especially useful for powering circuits directly from USB chargers, power banks, or computer USB ports while maintaining compatibility with standard 2.54 mm spacing.

يُعد محول USB Male إلى DIP Adapter Converter 4 Pin لوحة صغيرة وعملية لتحويل موصل USB ذكر إلى واجهة DIP بمسافة 2.54 مم، مما يسهل توصيله مع اللوحات الإلكترونية ولوحات التجارب والمشاريع المختلفة. يتيح الوصول إلى خطوط الطاقة والبيانات الخاصة بمنفذ USB من خلال أطراف قياسية، مما يجعله مناسباً للنماذج الأولية والتطبيقات التعليمية ومشاريع الهواة. يأتي المحول مزوداً بموصل USB ملحوم مسبقاً، مما يوفر سهولة في الاستخدام دون الحاجة إلى عمليات لحام إضافية. كما يسمح بتغذية الدوائر الإلكترونية مباشرة من شواحن USB أو منافذ الكمبيوتر.

Converter Modules

The USB Male to DIP Adapter Converter 4 Pin is a convenient interface board that converts a standard USB connection into a 4-pin 2.54 mm DIP output, enabling simple integration with electronic circuits, development boards, and prototype systems.

Designed for engineers, students, makers, and hobbyists, the adapter allows quick access to the USB power and signal lines without requiring custom USB cable modifications. The USB male connector is already soldered onto the board, providing a ready-to-use solution for development and testing applications.

This adapter is particularly useful when utilizing USB power sources such as mobile phone chargers, power banks, laptop USB ports, or desktop computer USB ports. The standard 2.54 mm pin spacing ensures compatibility with breadboards, perfboards, and most PCB designs.

Its compact size and straightforward design make it an essential accessory for electronics prototyping, embedded systems development, and USB-powered projects.

Specifications

SpecificationDetails
Product NameUSB Male to DIP Adapter Converter
Connector TypeUSB Male
Output Interface4-Pin DIP

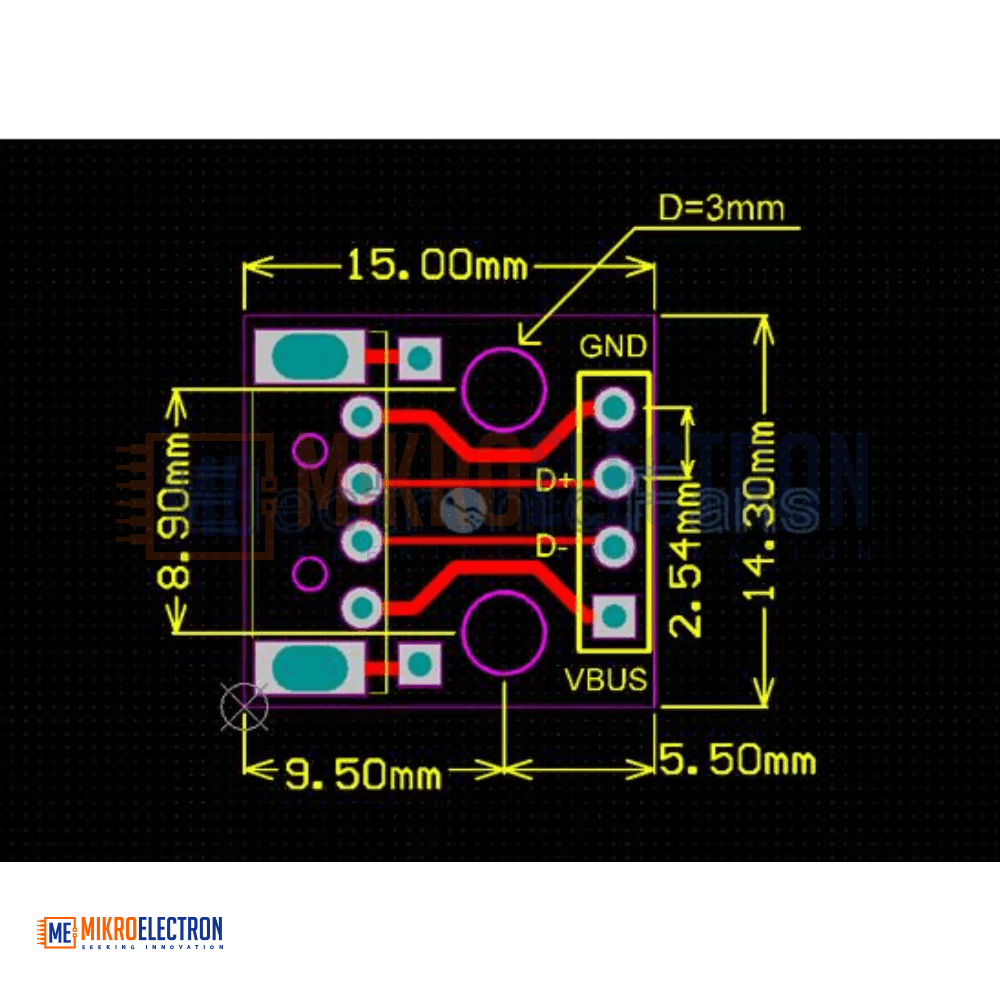

Pin Pitch2.54 mm
USB TypeUSB Male Plug
Board TypeAdapter Converter Board
AssemblyPre-Soldered USB Connector
ApplicationUSB Power and Signal Breakout
CompatibilityBreadboards, PCBs, Prototype Boards
Mounting StyleThrough-Hole DIP Pins

Applications

  • USB-powered electronic projects
  • Breadboard prototyping
  • PCB development and testing
  • Microcontroller power supply connections
  • DIY electronics projects
  • USB charger power breakout
  • Embedded system development
  • Educational electronics laboratories
  • Arduino and development board projects
  • USB signal and power line access
