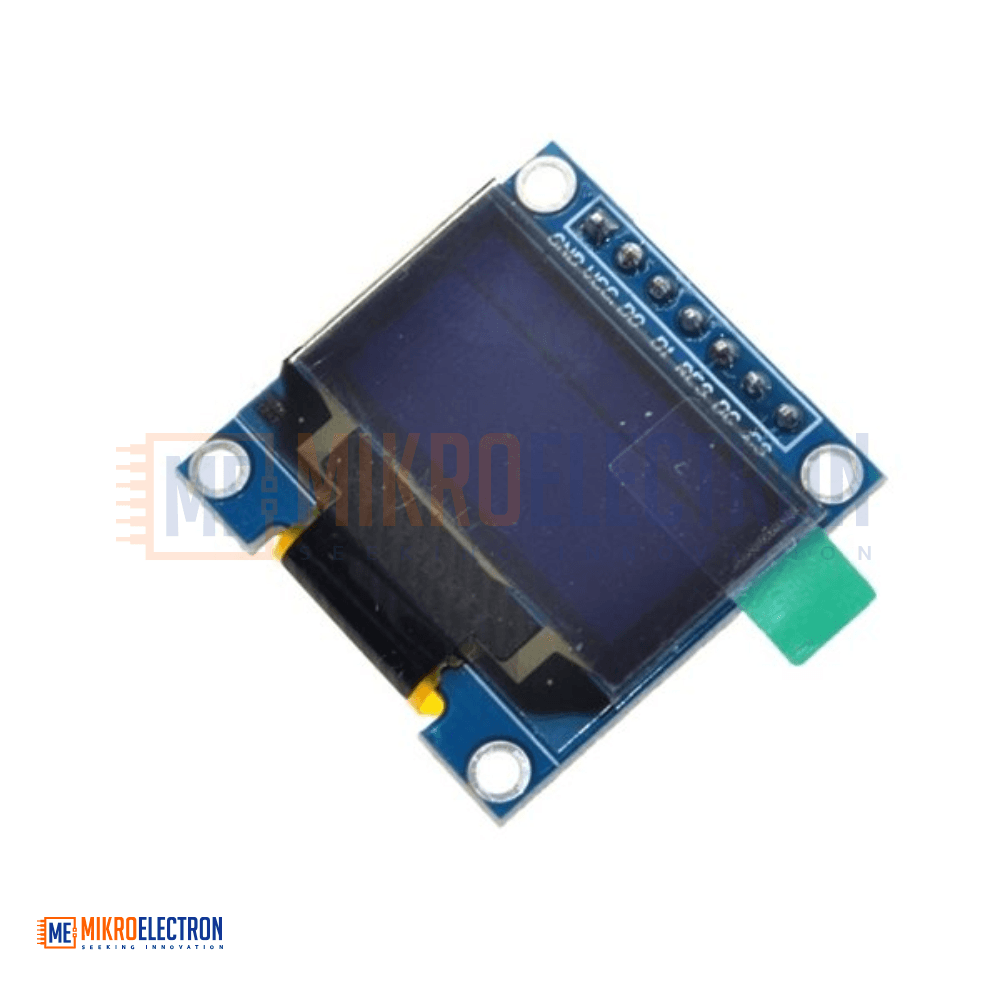

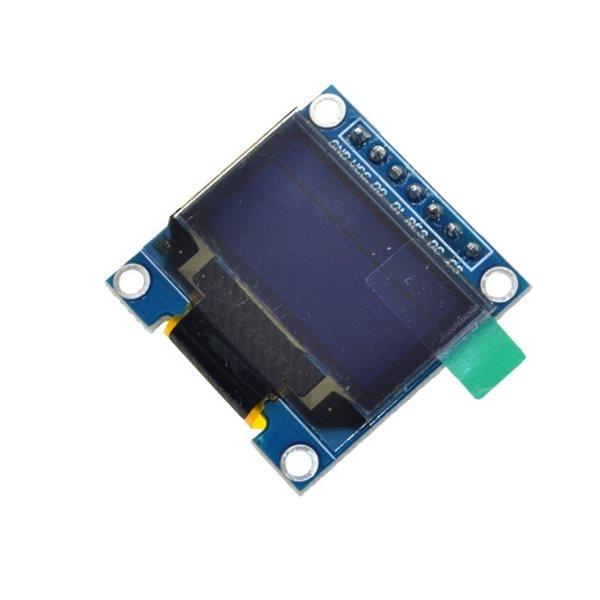

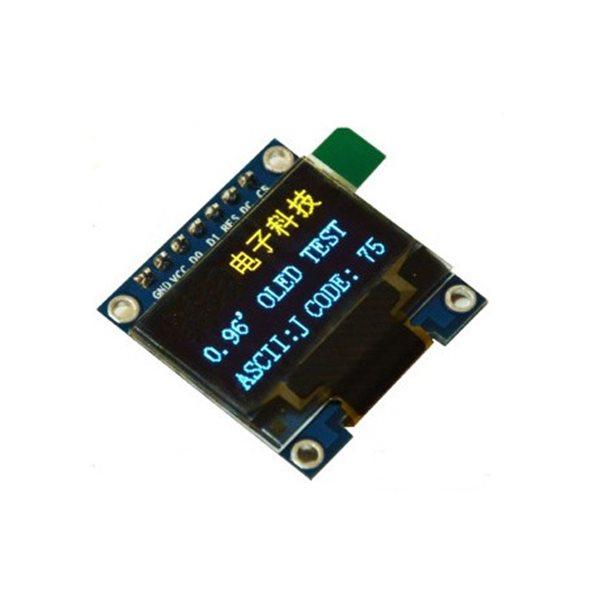

0.96 Inch 128 x 64 Yellow & Blue OLED Display Module 7-Pins
The 0.96 Inch 128×64 OLED Display Module is a compact graphic display designed for embedded electronics and Arduino projects. Featuring a yellow and blue dual-color OLED screen, it delivers sharp visuals with 128×64 pixel resolution and high contrast for easy readability. Powered by the SSD1306 driver IC, the module supports both I2C and SPI communication interfaces, enabling flexible integration with microcontrollers. It operates within a wide voltage range of 3V–5V, making it compatible with both 3.3V and 5V logic systems. Its low power consumption makes it ideal for portable and battery-powered applications.
شاشة OLED مقاس 0.96 بوصة بدقة 128×64 هي شاشة رسومية صغيرة مخصصة للمشاريع الإلكترونية وأنظمة الأردوينو. تتميز بشاشة ثنائية اللون بالأصفر والأزرق توفر وضوحًا عاليًا وتباينًا ممتازًا بفضل دقة 128×64 بكسل. تعتمد على شريحة القيادة SSD1306 وتدعم واجهتي الاتصال I2C وSPI، مما يسهل ربطها مع المتحكمات الدقيقة المختلفة. تعمل ضمن نطاق جهد واسع 3–5 فولت، ما يجعلها متوافقة مع أنظمة 3.3V و5V. كما أن استهلاكها المنخفض للطاقة يجعلها مناسبة للأجهزة المحمولة والتطبيقات التي تعمل بالبطاريات.
The 0.96 Inch 128×64 Yellow & Blue OLED Display Module is a compact and high-performance graphical display designed for microcontroller-based projects such as Arduino, Raspberry Pi, ESP32, and other embedded systems. It offers a crisp 128×64 pixel resolution using OLED technology, which provides superior contrast, fast response time, and wide viewing angles compared to traditional LCD displays.
The module uses the SSD1306 display controller, a widely supported driver known for stable performance and easy software integration. It supports both I2C and SPI serial communication interfaces, allowing flexible connectivity depending on project requirements.

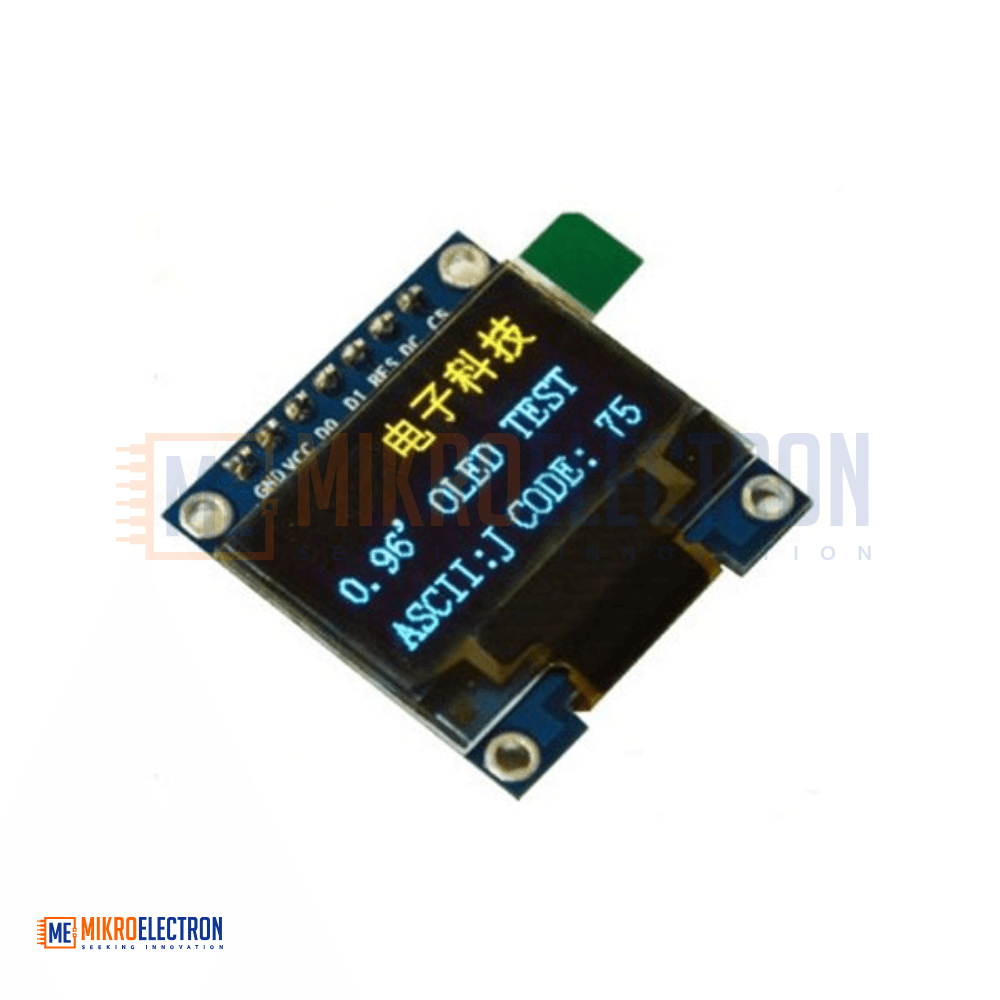

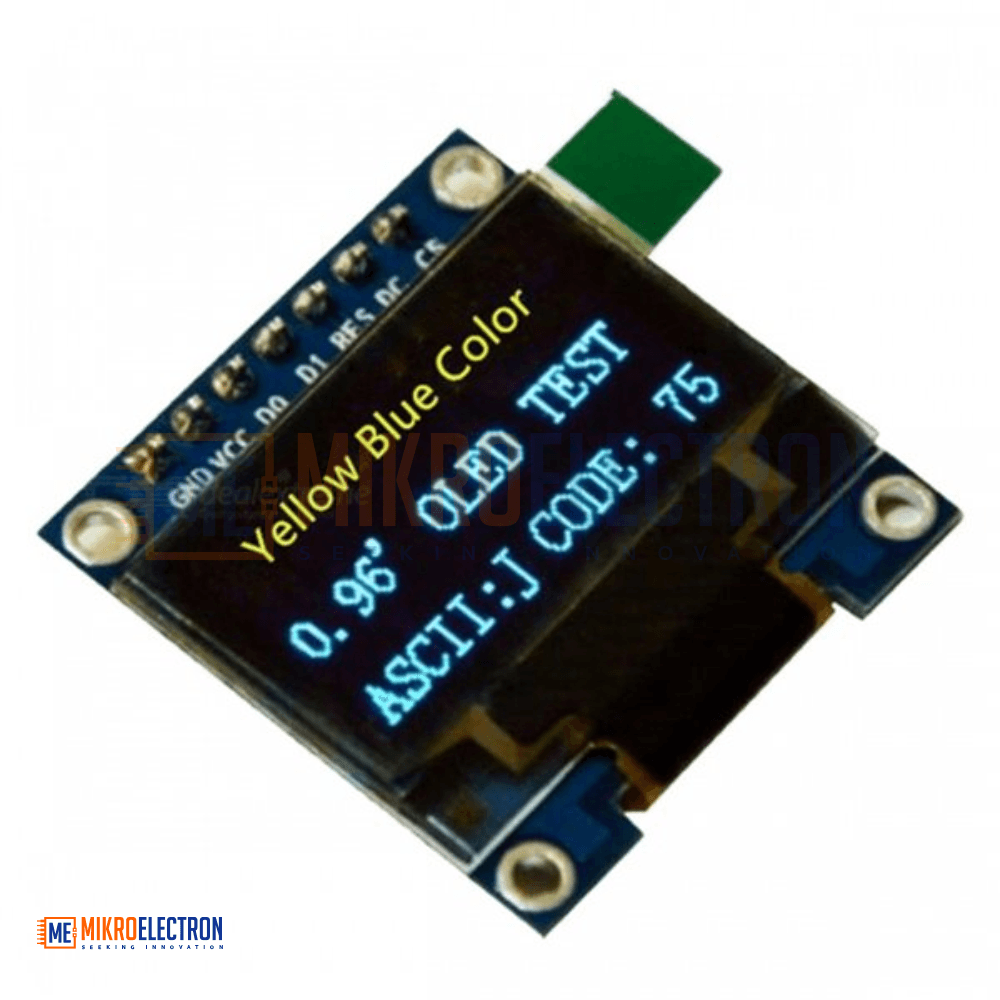

Its dual-color display divides the screen into yellow and blue sections, improving visual organization for text, icons, graphs, and sensor readings. Because OLED pixels emit light independently, no backlight is required, resulting in lower power consumption and deeper blacks.
The module supports a wide supply voltage range and works with both 3.3V and 5V logic levels, making it highly versatile for modern embedded platforms.
Specifications
| Parameter | Specification |
|---|---|
| Display Size | 0.96 Inch |
| Resolution | 128 × 64 Pixels |
| Display Type | OLED |
| Display Color | Yellow & Blue |
| Driver IC | SSD1306 |

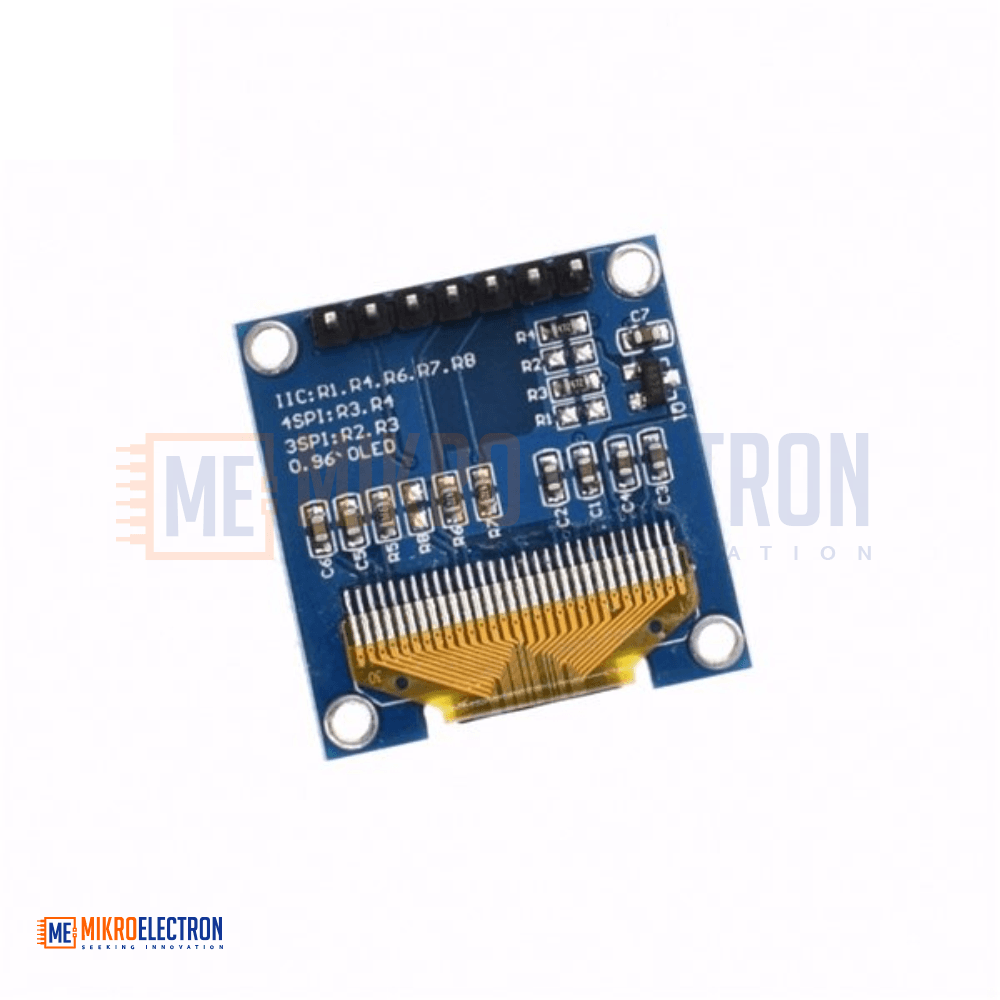

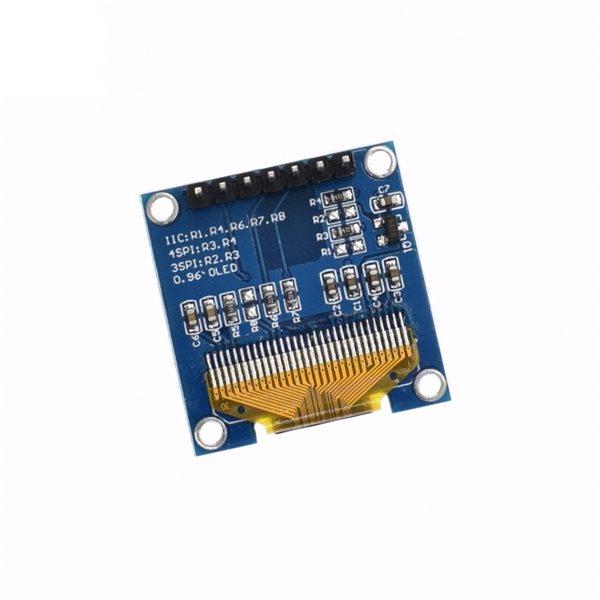

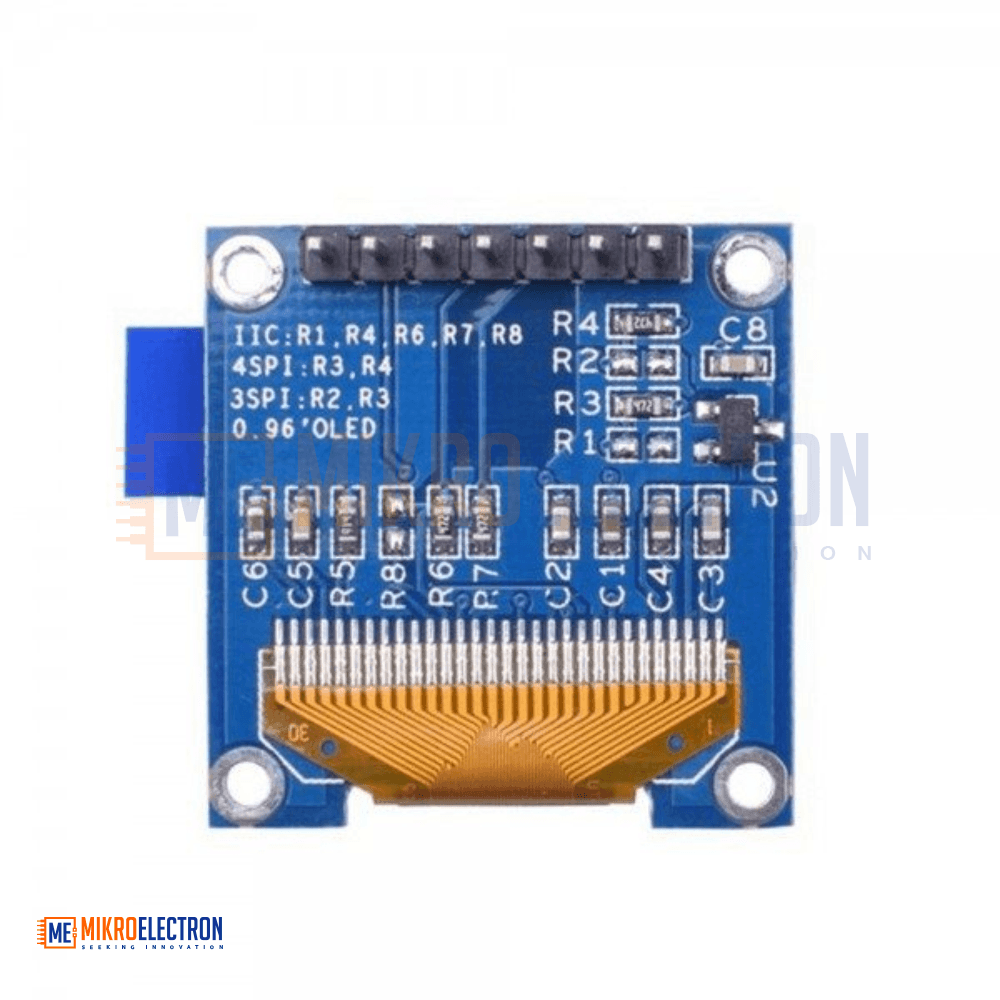

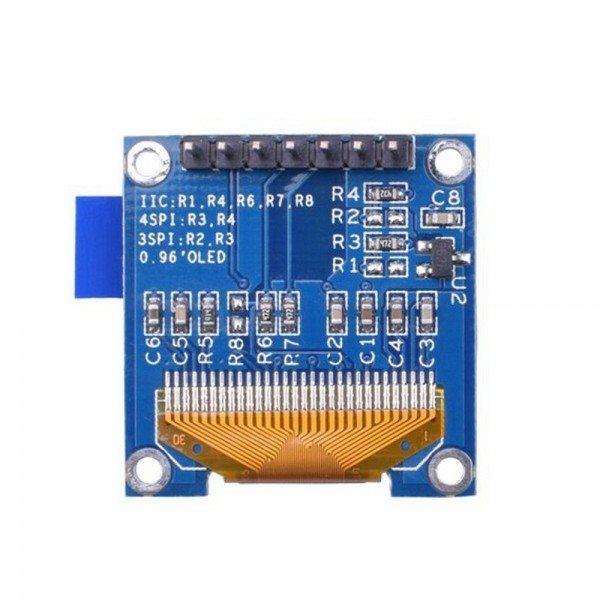

| Communication Interface | I2C / SPI |
| Pins | 7 Pins |
| Operating Voltage | DC 2.8–5.5V |
| Recommended Supply Range | 3V–5V |
| Power Consumption | 0.06 W |
| Operating Temperature | -30°C to 70°C |
| Logic Compatibility | 3.3V / 5V I/O |
| Dimensions | 29.28 × 27.1 mm |
Applications
The OLED Display Module is widely used in:
- Arduino and ESP32 projects
- Sensor data visualization
- IoT monitoring devices
- Smart home control panels
- Wearable electronics
- Battery-powered portable devices
- Industrial monitoring systems
- Digital clocks and timers
- Menu interfaces for embedded systems
- Robotics status displays
- Medical portable devices
- DIY electronics projects
