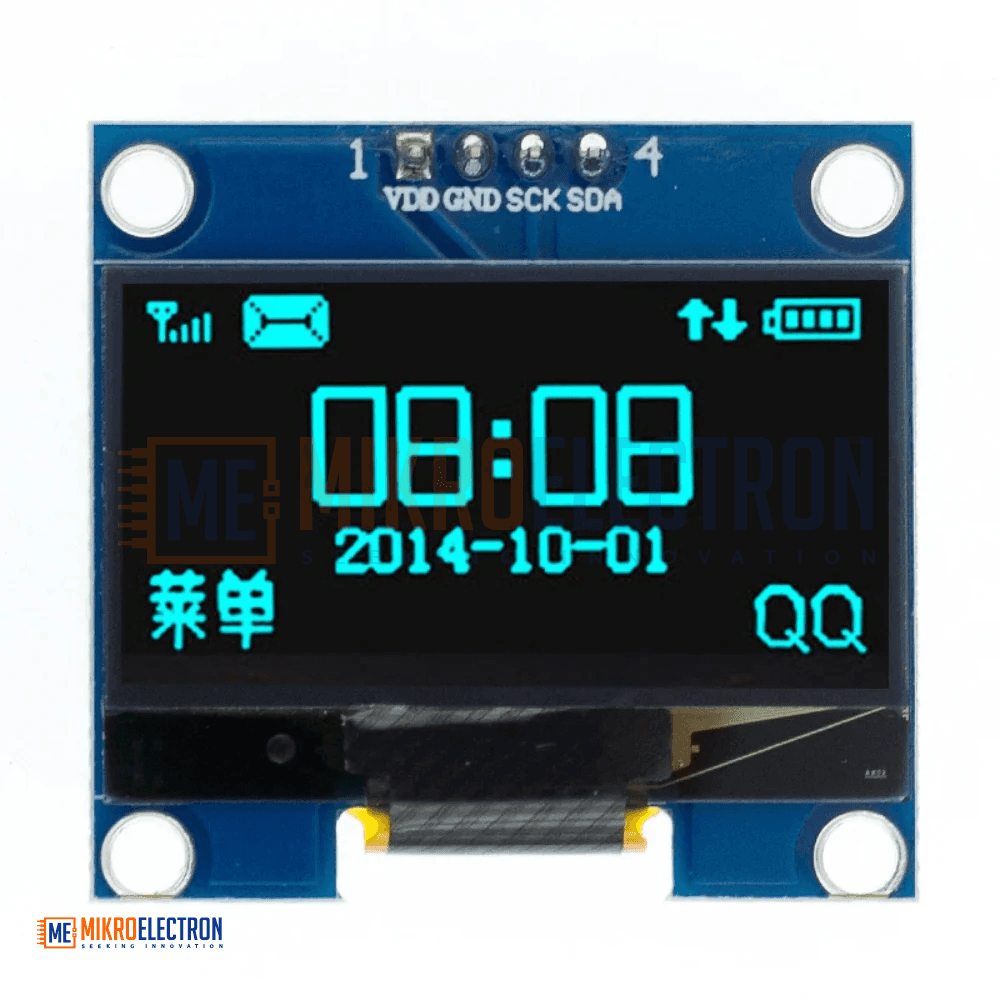

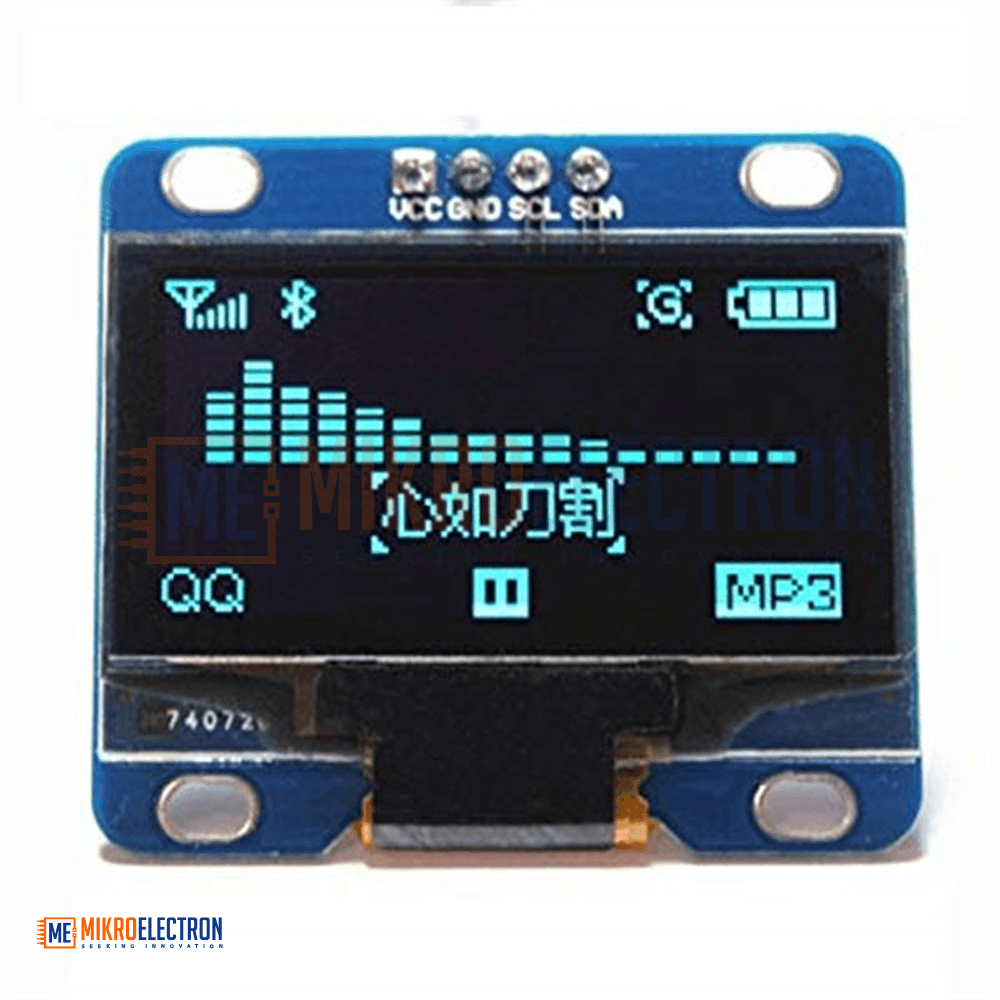

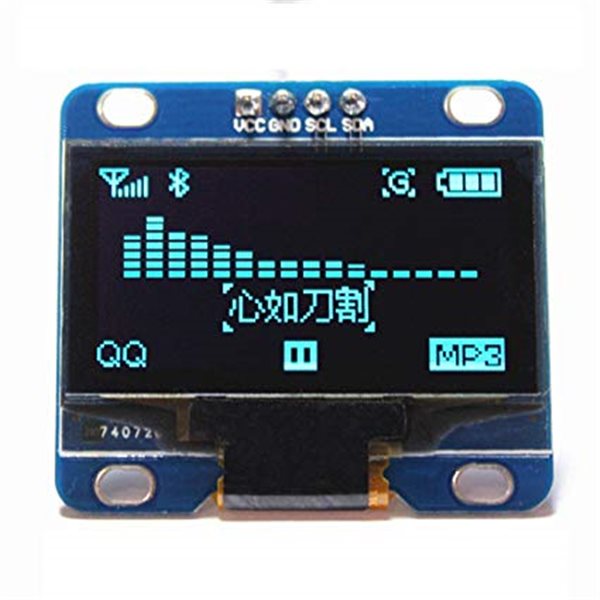

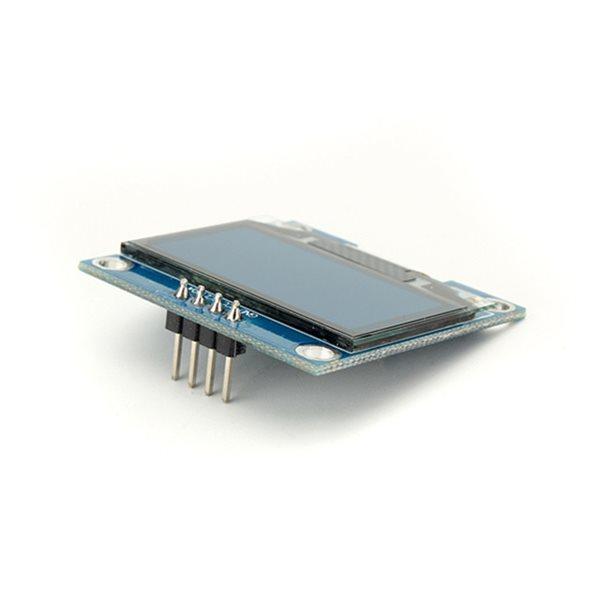

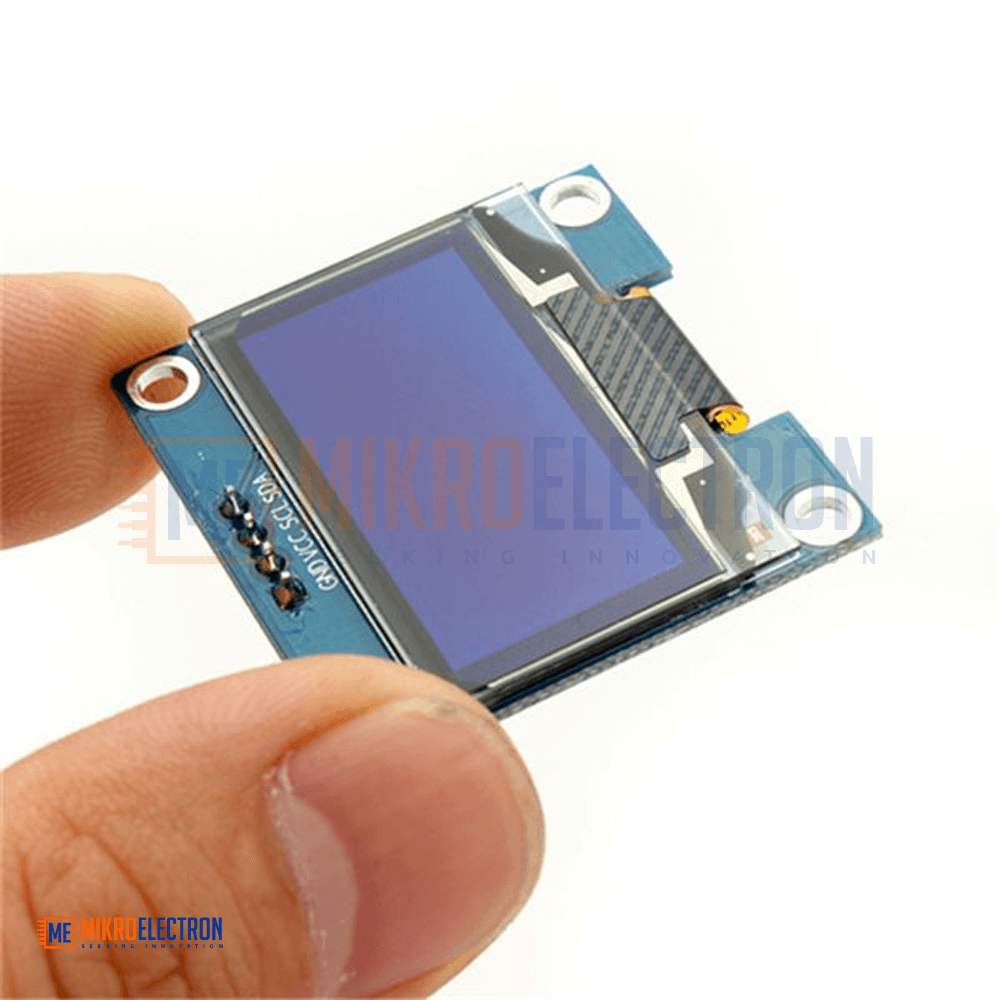

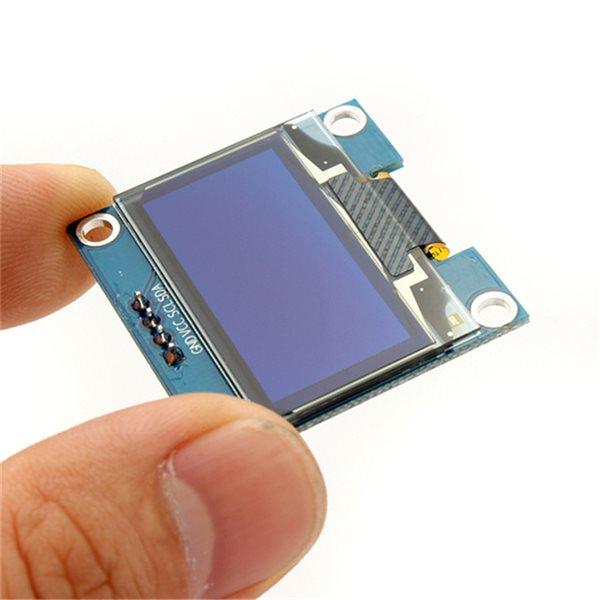

1.3 inch IIC I2C Serial 128x64 OLED LCD Display (Blue)

5.0(1 review)
SKU: ME-3335
JD5.90JD7.00

The 1.3-inch OLED Display Module is a compact, high-contrast display solution featuring a 128 × 64 pixel resolution and an SSH1106 controller. With its I2C serial interface, this module requires only four connections, simplifying integration with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi. Operating from 3.3V to 5V, the blue OLED display delivers sharp visuals, wide viewing angles, and low power consumption, making it ideal for portable devices, sensor monitoring, IoT projects, and embedded systems.

تُعد وحدة شاشة OLED مقاس 1.3 بوصة حلاً مدمجًا وعالي الوضوح للعرض، حيث توفر دقة 128 × 64 بكسل وتعتمد على متحكم SSH1106. بفضل واجهة I2C التسلسلية، تحتاج الشاشة إلى أربعة أسلاك فقط للتوصيل، مما يسهل دمجها مع المتحكمات الدقيقة مثل Arduino وESP32 وSTM32 وRaspberry Pi. تعمل الشاشة بجهد يتراوح بين 3.3 فولت و5 فولت، وتتميز بتباين عالٍ وزاوية رؤية واسعة واستهلاك منخفض للطاقة، مما يجعلها مثالية لتطبيقات إنترنت الأشياء والأجهزة المحمولة والأنظمة المدمجة.

LCDs

The 1.3 Inch I2C OLED Display Module is designed to provide clear and efficient visual output for a wide range of electronic applications.

Equipped with an SSH1106 display controller, this module offers a 128 × 64 pixel resolution, ensuring crisp text, icons, graphics, and sensor data visualization. The OLED technology provides superior contrast ratios and wide viewing angles compared to traditional LCD displays, eliminating the need for a backlight and reducing power consumption.

The module communicates through an I2C interface, requiring only two signal lines (SCL and SDA) in addition to power connections. This simplified wiring reduces the number of microcontroller pins required and makes integration straightforward.

Supporting an operating voltage range of 3.3V to 5V, the display is compatible with most development platforms and embedded systems. Its compact size and wide operating temperature range make it suitable for both indoor and outdoor applications.

The blue OLED screen ensures excellent readability, making it ideal for displaying menus, status indicators, sensor values, and graphical interfaces in compact electronic devices.

Specifications

SpecificationDetails
Product TypeOLED Display Module
Display Size1.3 Inch
Resolution128 × 64 Pixels
Controller ICSSH1106
Display Area29.42 × 14.7mm
Display ColorBlue
Interface TypeI2C (IIC)
Operating Voltage3.3V – 5V DC
Number of Pins4
Operating Temperature-40°C to +70°C

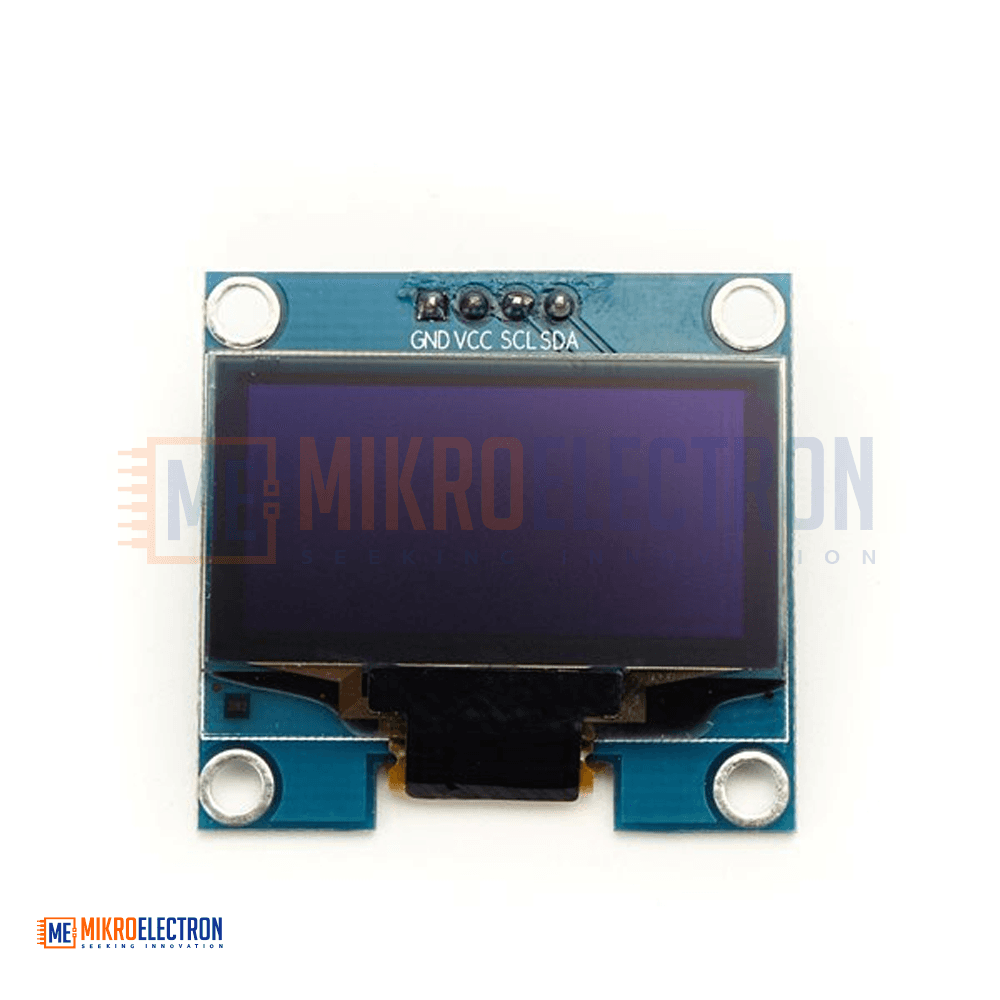

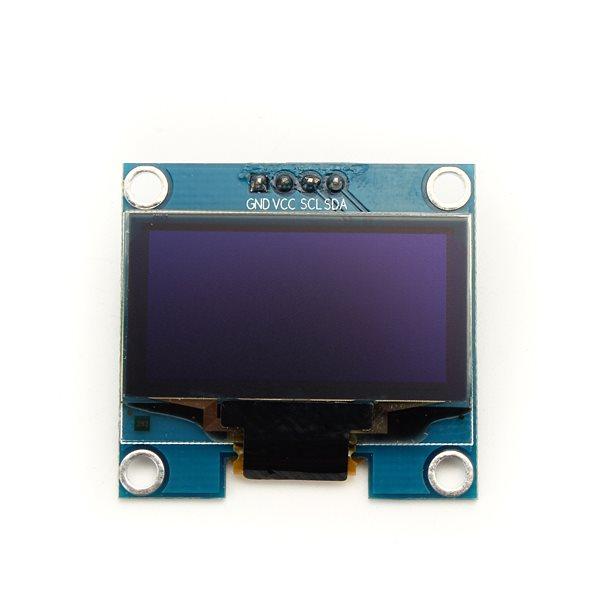

Pin Configuration

PinDescription
GNDPower Ground
VCCPower Supply Input (3.3V–5V)
SCLI2C Clock Signal
SDAI2C Data Signal

Applications

  • Arduino and microcontroller projects
  • IoT devices and smart systems
  • Portable electronic instruments
  • Sensor data display
  • Battery monitoring systems
  • Home automation interfaces
  • Wearable electronics
  • Industrial control panels
  • Robotics and automation projects
  • DIY electronics and prototyping
