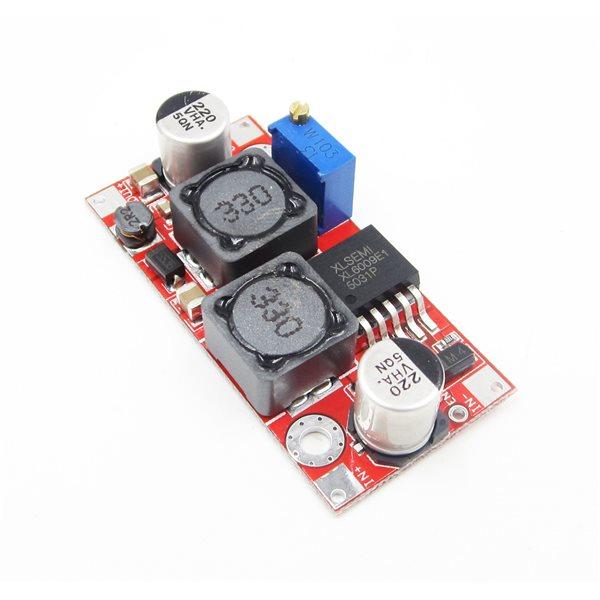

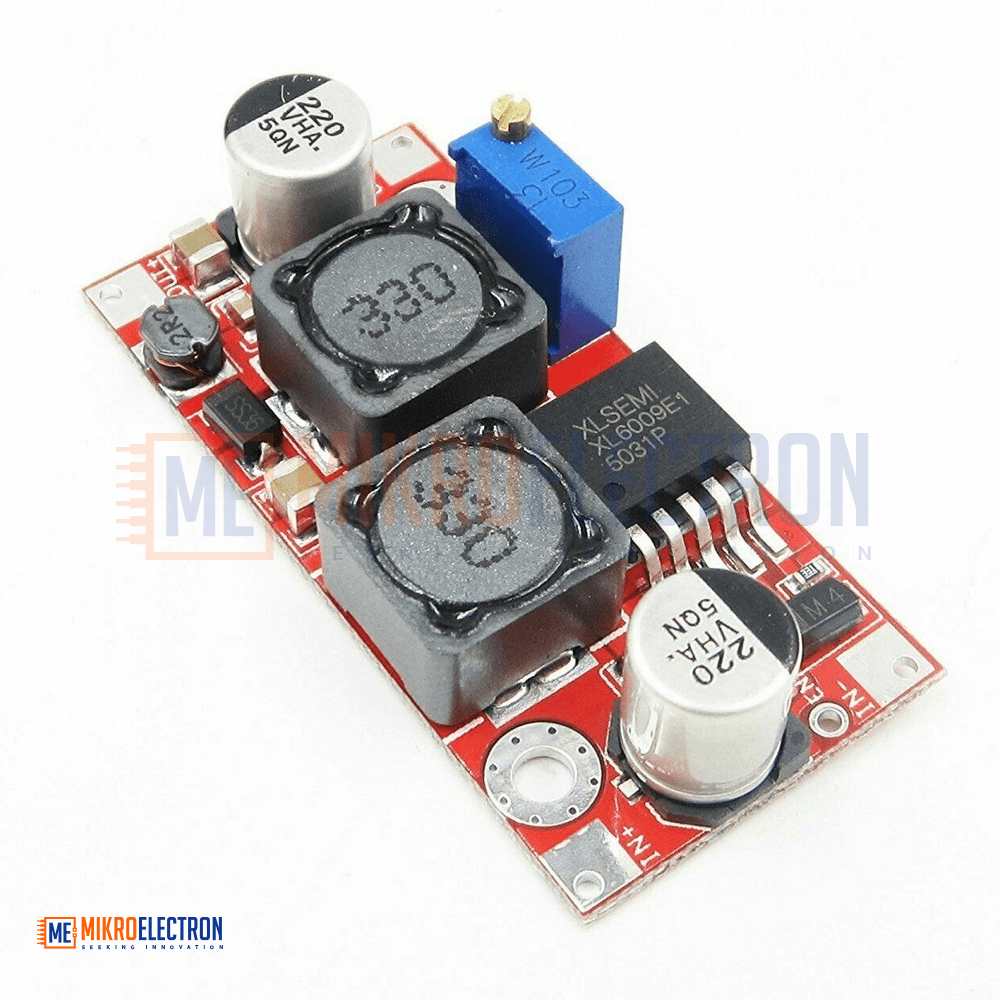

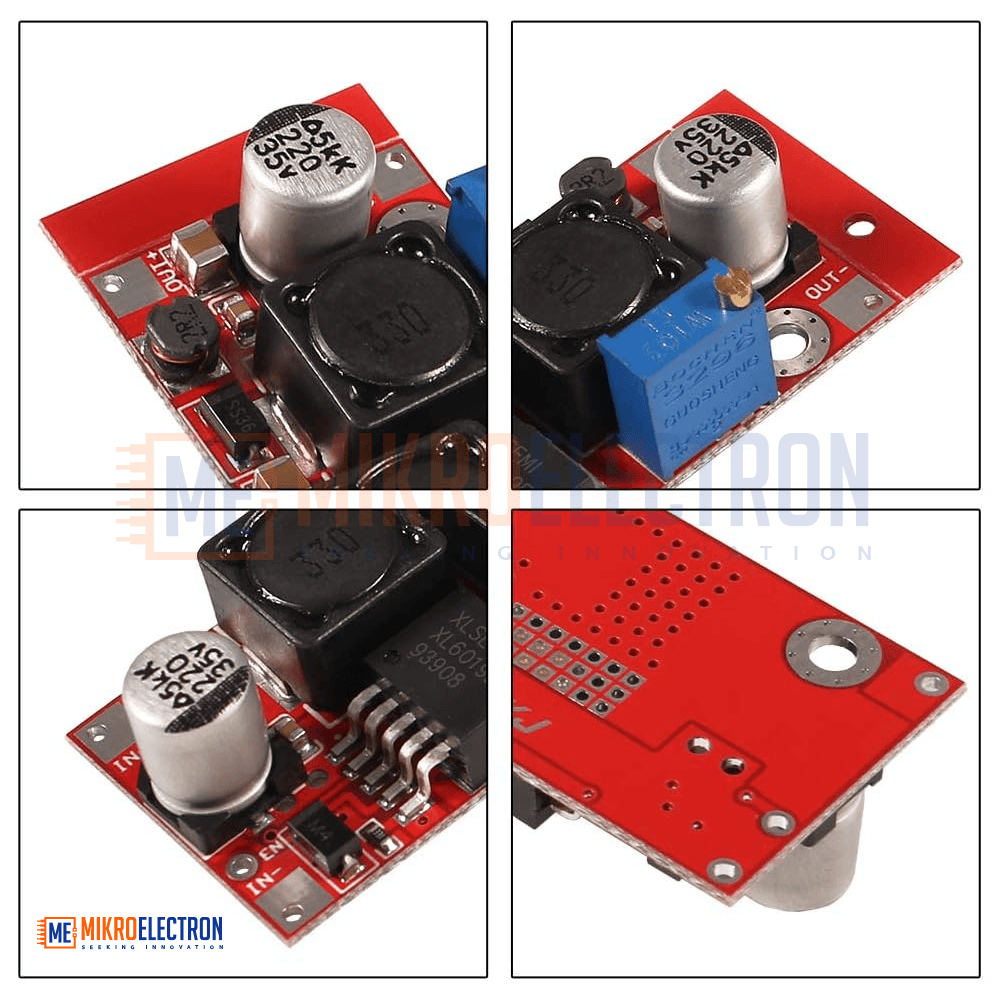

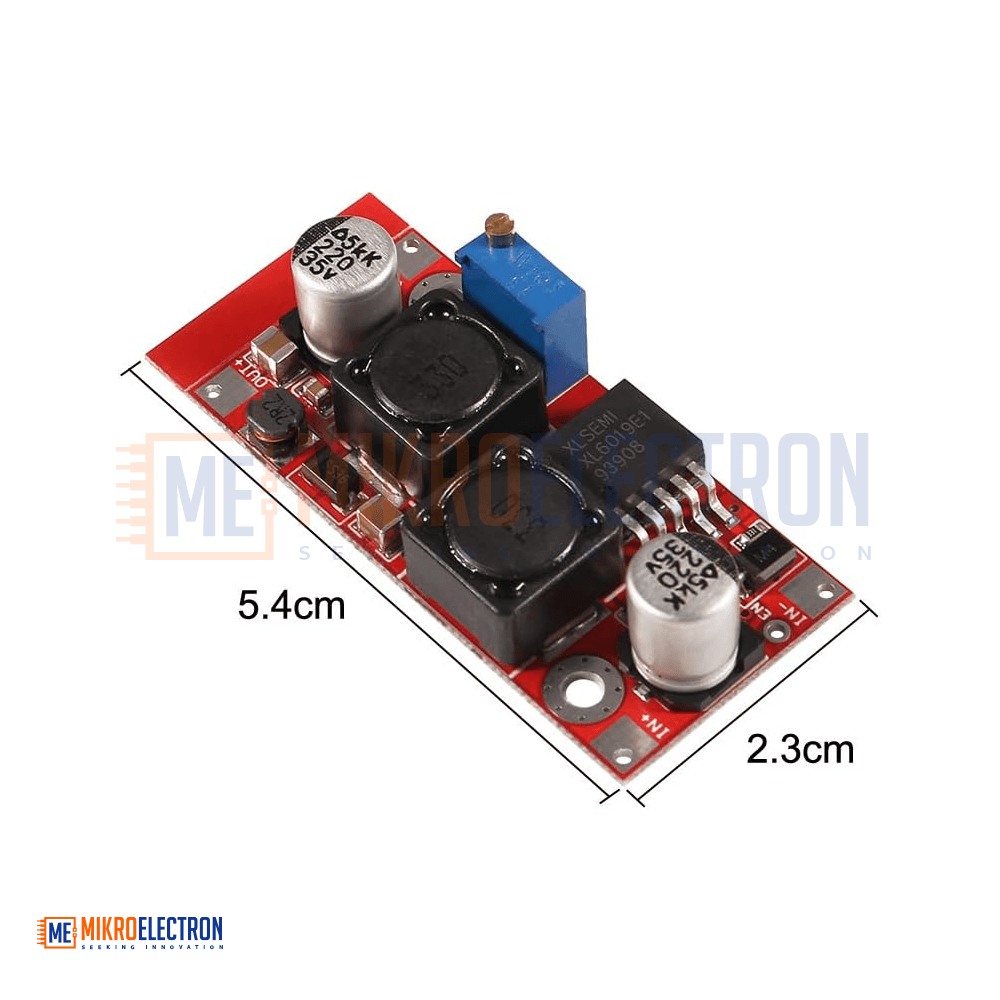

Buck- boost DC-DC Power Supply Module XL6009
The XL6009 Buck-Boost DC-DC Power Supply Module is a high-efficiency adjustable voltage converter designed to both step up and step down DC voltage for various electronic applications. Supporting an input range of 3.8V to 32V and an adjustable output from 1.25V to 35V, it provides flexible power regulation for embedded systems and battery-powered devices. Built with the XL6009 switching regulator, the module delivers up to 3A output current with conversion efficiency reaching 94%. Its compact design and stable performance make it ideal for power management in automation, DIY electronics, and portable devices.
تُعد وحدة XL6009 Buck-Boost DC-DC محول جهد عالي الكفاءة مصممًا لرفع أو خفض الجهد المستمر حسب الحاجة في التطبيقات الإلكترونية المختلفة. تدعم الوحدة جهد دخل يتراوح بين 3.8V و32V مع خرج قابل للتعديل من 1.25V إلى 35V، مما يوفر مرونة كبيرة في تنظيم الطاقة للأجهزة الإلكترونية وأنظمة البطاريات. تعتمد على منظم الجهد XL6009 Switching Regulator القادر على توفير تيار يصل إلى 3 أمبير بكفاءة تحويل تصل إلى 94%. تصميمها المدمج وأداؤها المستقر يجعلها مناسبة لمشاريع الإلكترونيات والطاقة المحمولة.

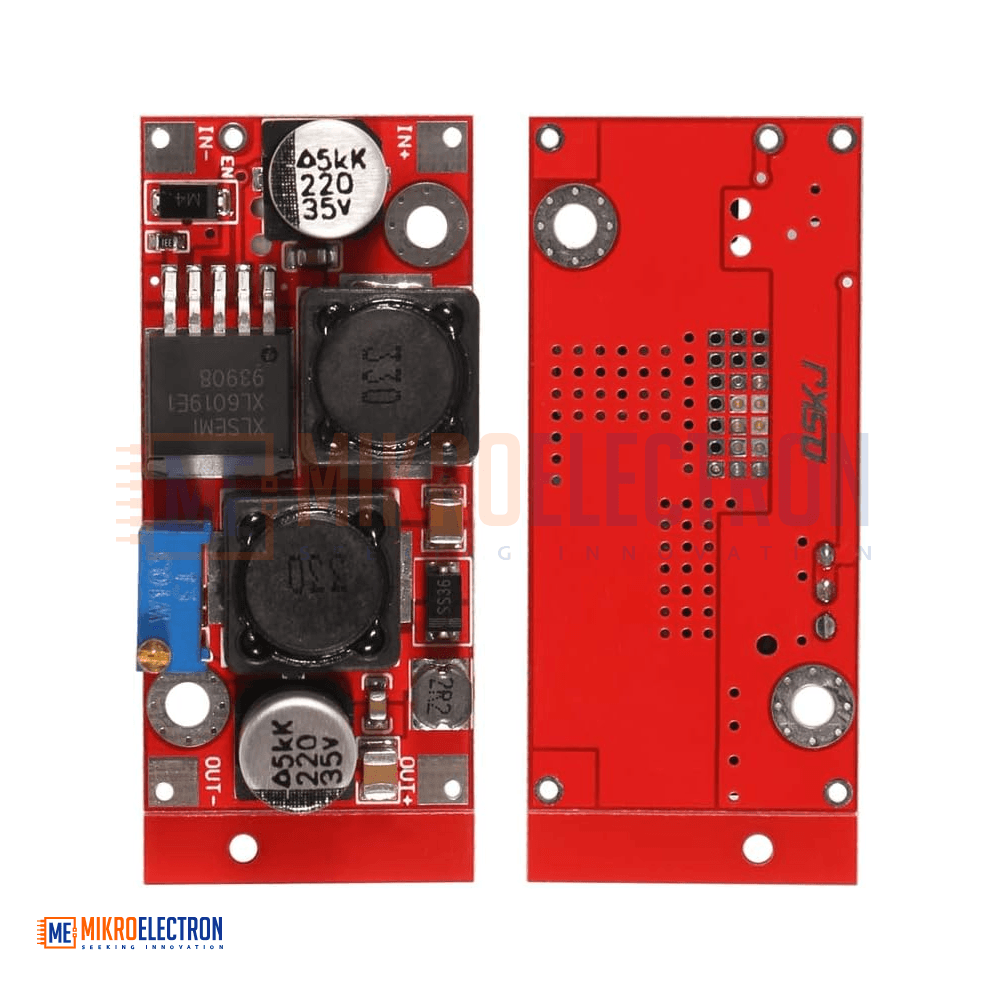

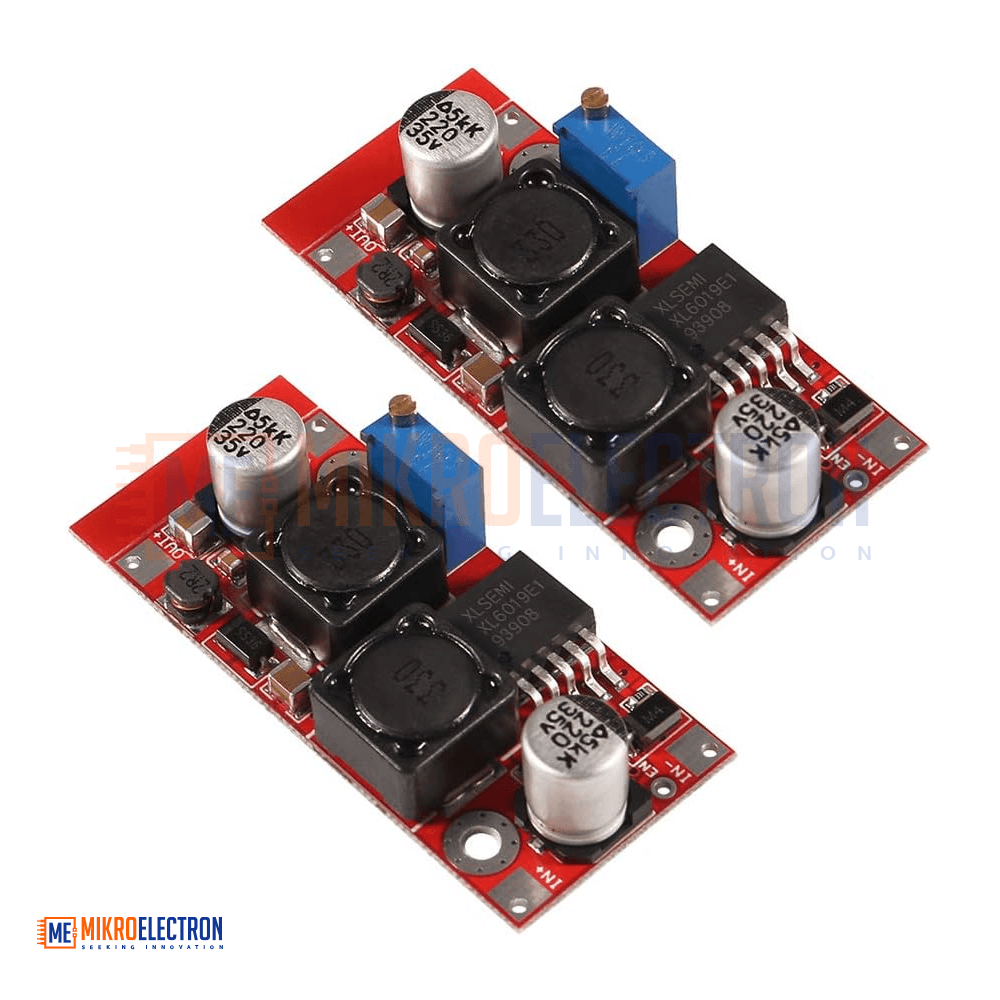

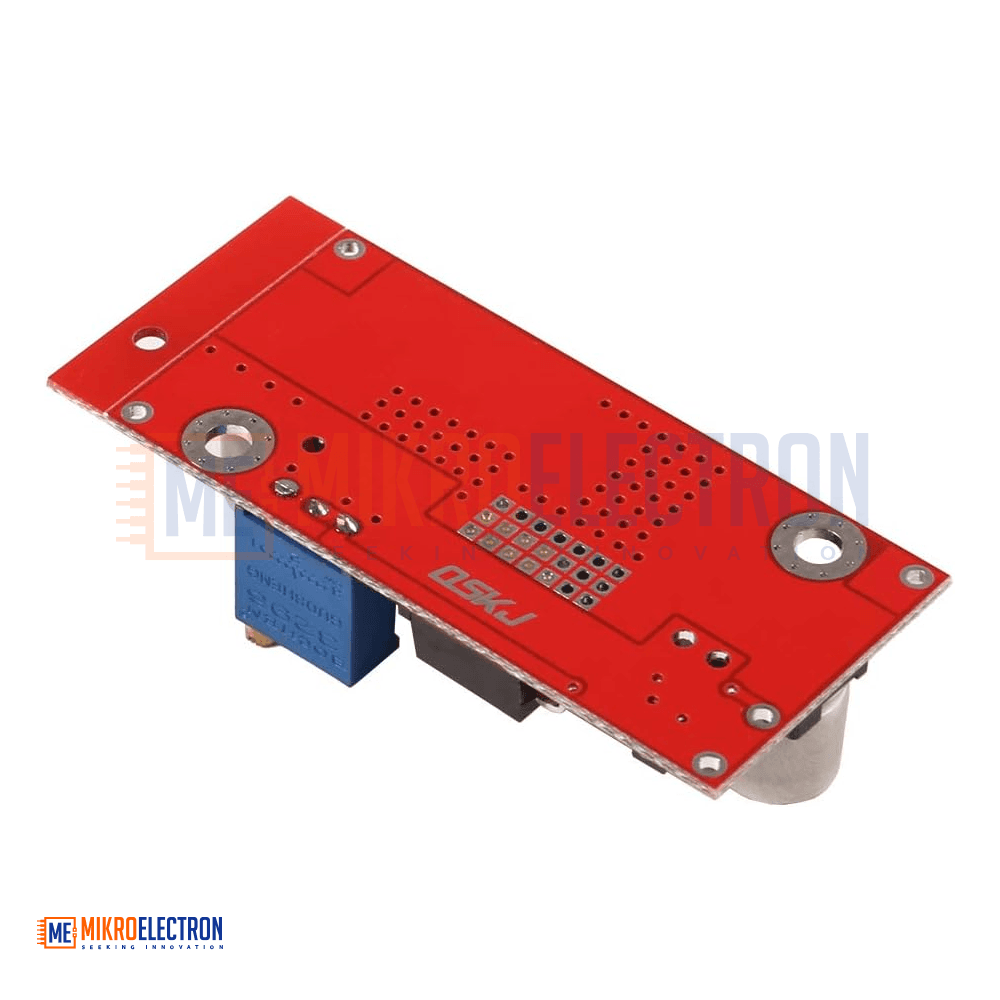

The XL6009 Buck-Boost DC-DC Power Supply Module is an adjustable power conversion module designed for efficient voltage regulation in electronic circuits. It can function as both a step-up (boost) and step-down (buck) converter, making it highly versatile for applications requiring stable output voltage despite changing input conditions.

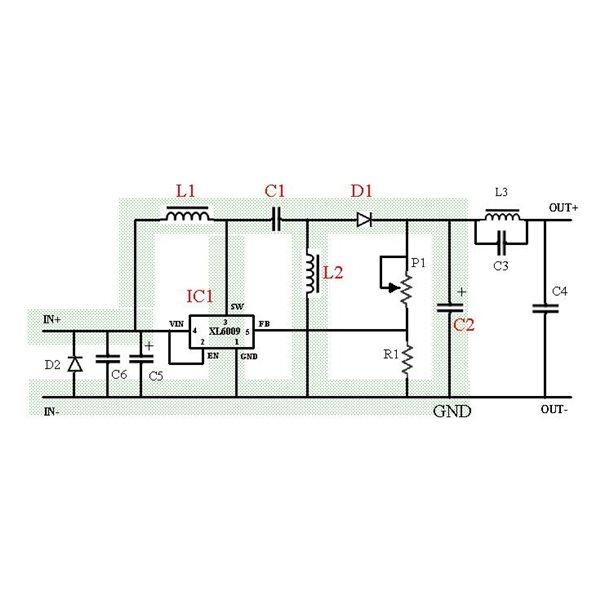

Built around the XL6009 switching regulator IC, the module offers reliable high-frequency power conversion with low energy loss. It supports a wide input voltage range of 3.8V to 32V and provides an adjustable output voltage from 1.25V to 35V, allowing users to configure the module according to specific power requirements.
The module supports a maximum input current of 3A, with no-load current as low as 18mA under standard operating conditions. With conversion efficiency reaching up to 94%, it minimizes heat generation and improves overall system efficiency.
Its compact form factor and easy voltage adjustment make it suitable for battery-powered systems, embedded electronics, LED drivers, robotics, automotive circuits, and industrial control systems.
Specifications
| Specification | Details |
|---|---|
| Model | DSN6000AUD / XL6009 |
| Module Type | Buck-Boost DC-DC Converter |
| Topology | Non-Isolated Boost |
| Rectification | Non-Synchronous |
| Input Voltage Range | 3.8V – 32V |
| Output Voltage Range | 1.25V – 35V (Adjustable) |
| Maximum Input Current | 3A |
| No-Load Current | 18mA Typical |
| Maximum Power | 20W |
| Conversion Efficiency | Up to 94% |
| Voltage Adjustment | Adjustable Potentiometer |
Applications
- Battery voltage regulation
- Portable power systems
- DIY electronics projects
- LED power supply
- Robotics and automation
- Solar energy systems
- Automotive electronics
- Embedded systems
- Industrial control circuits
