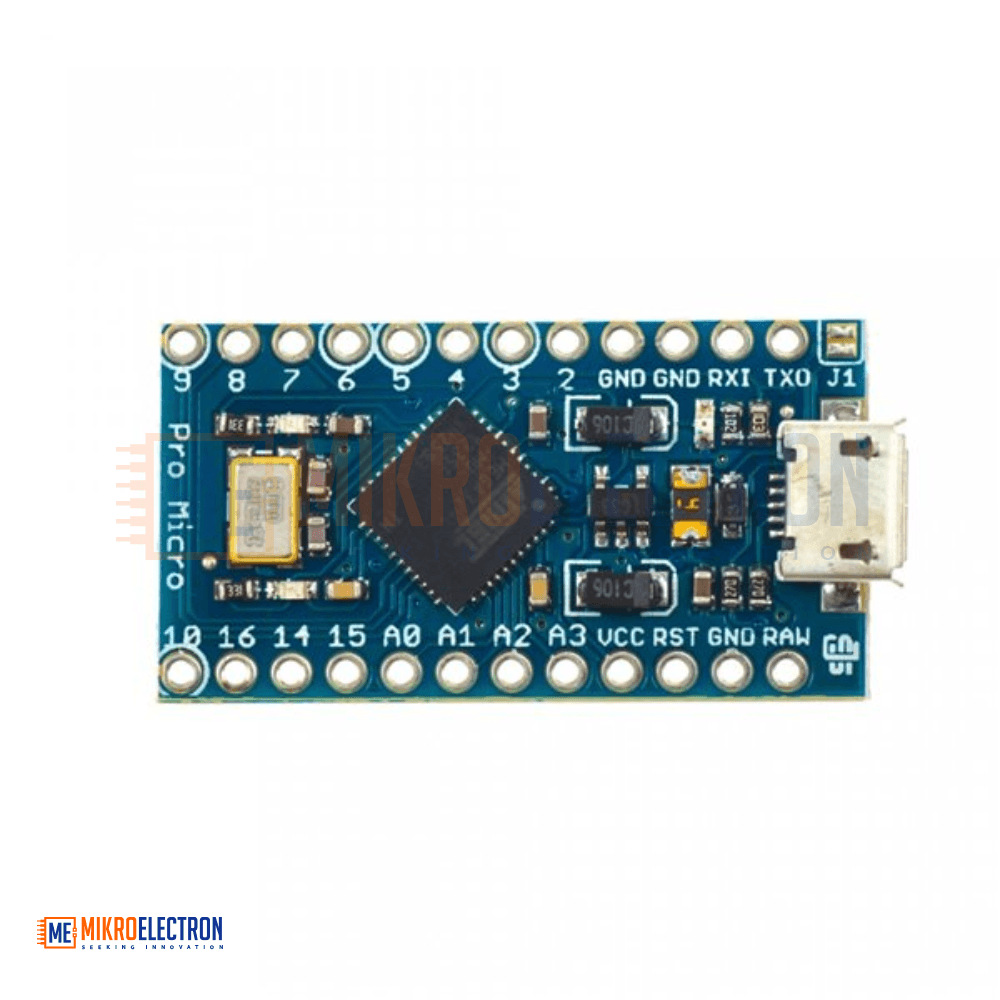

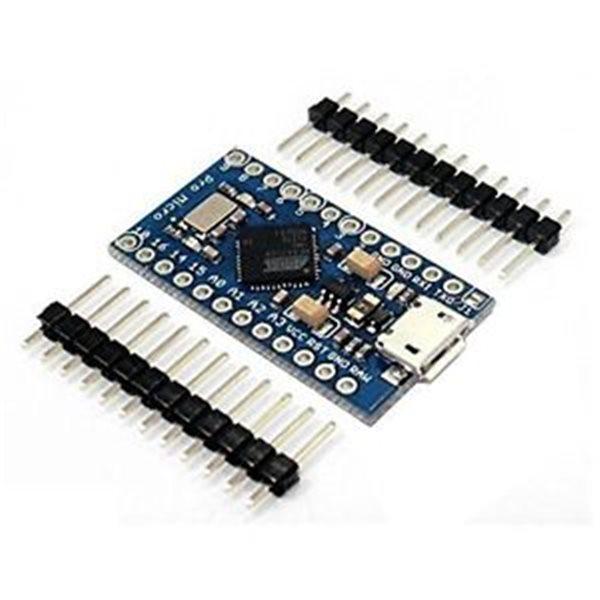

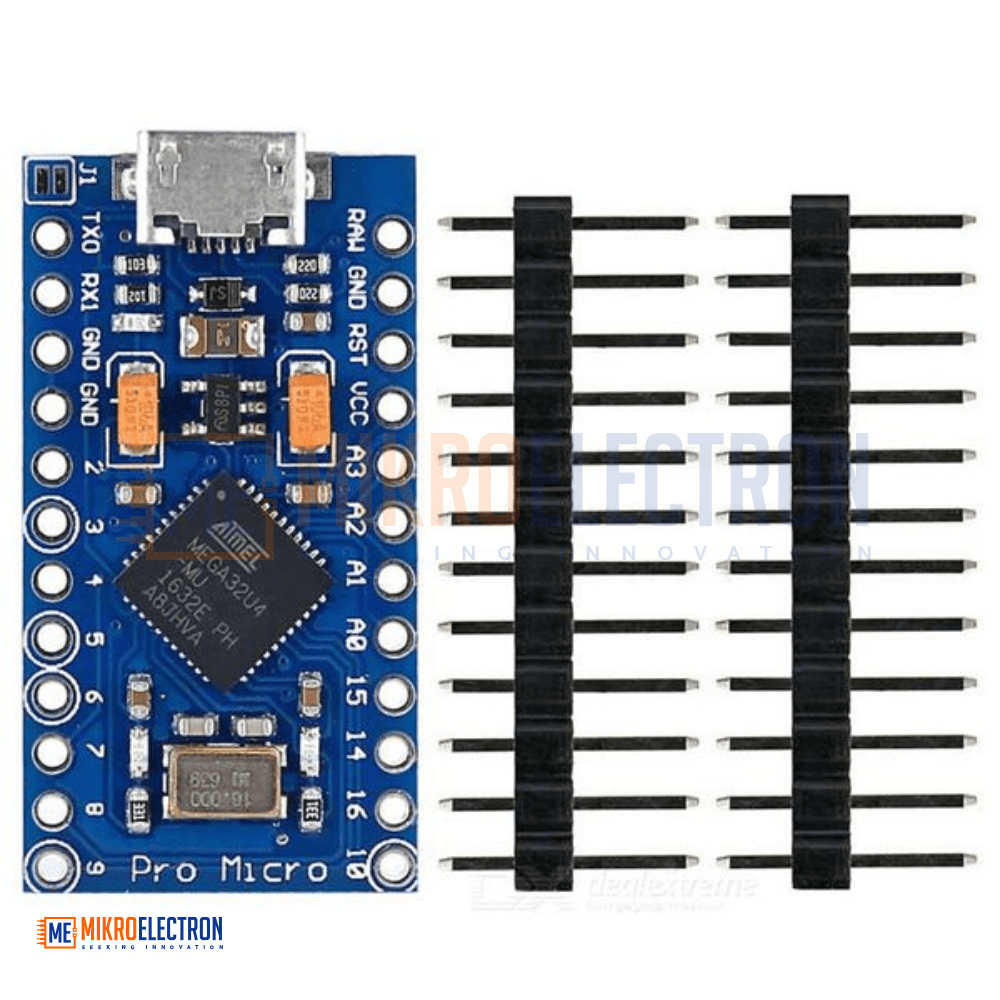

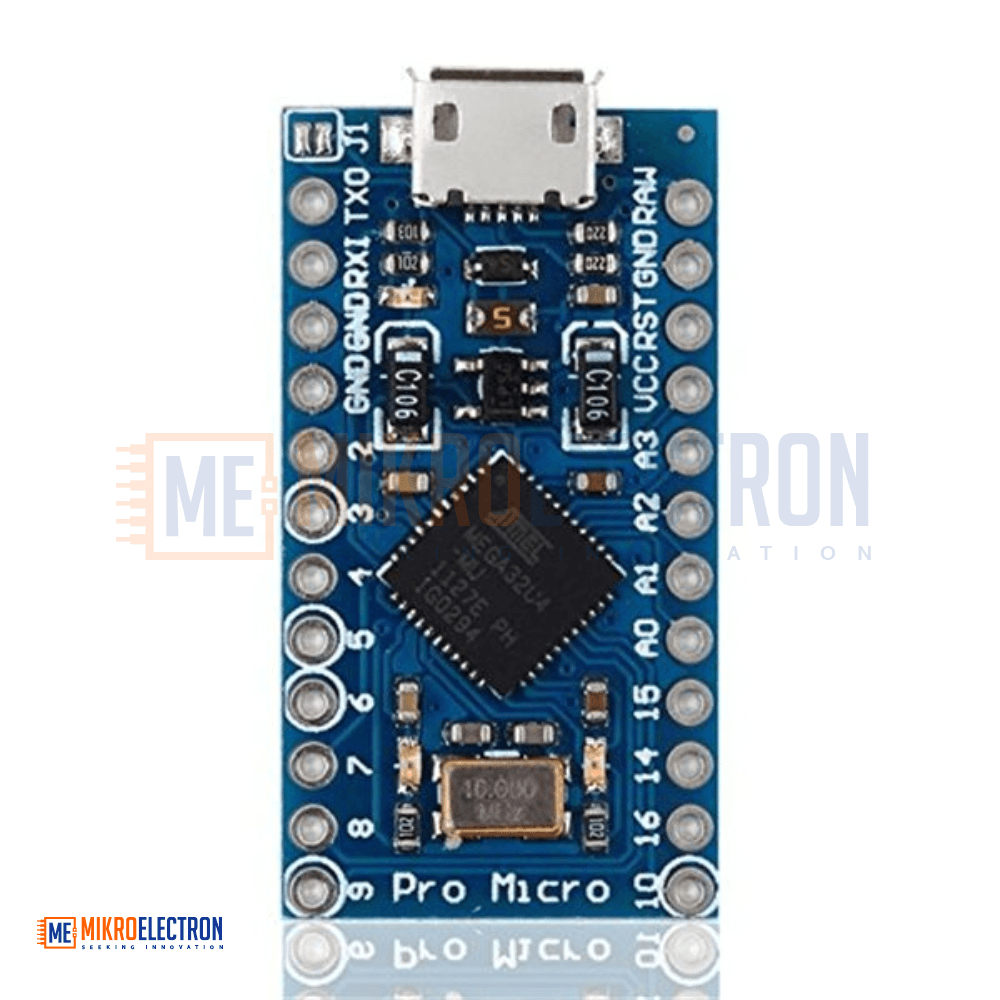

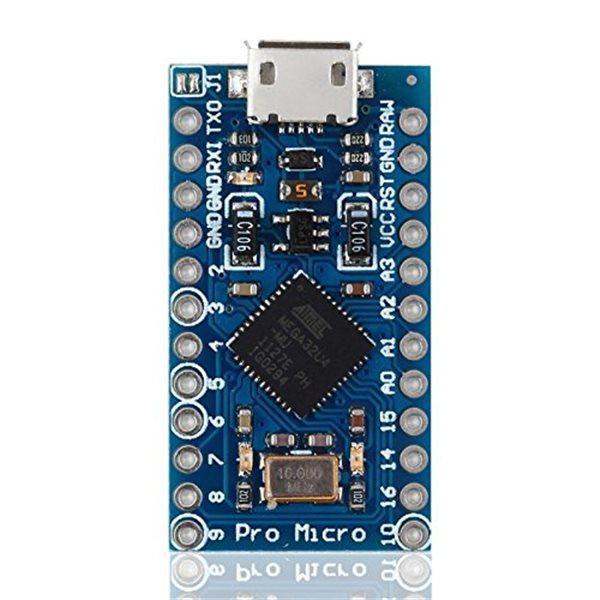

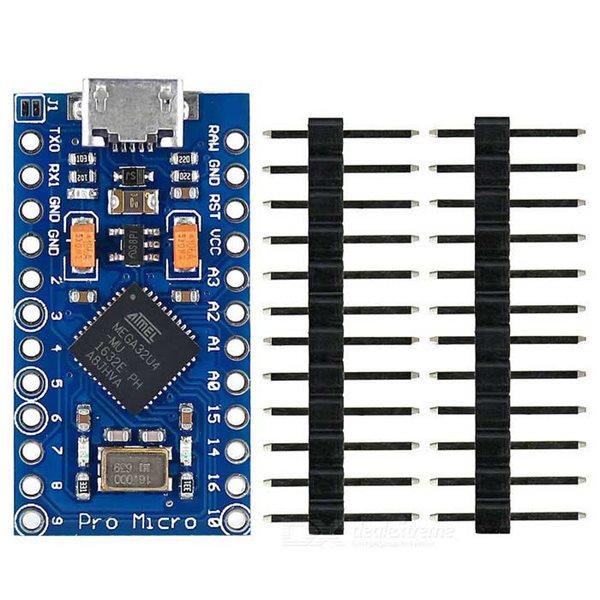

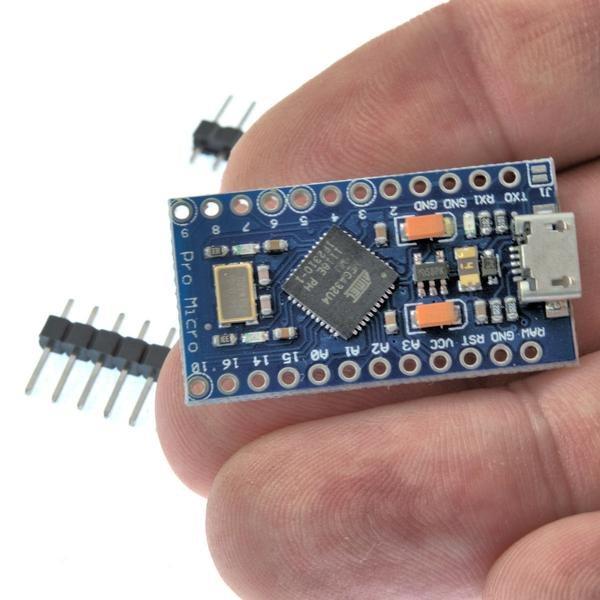

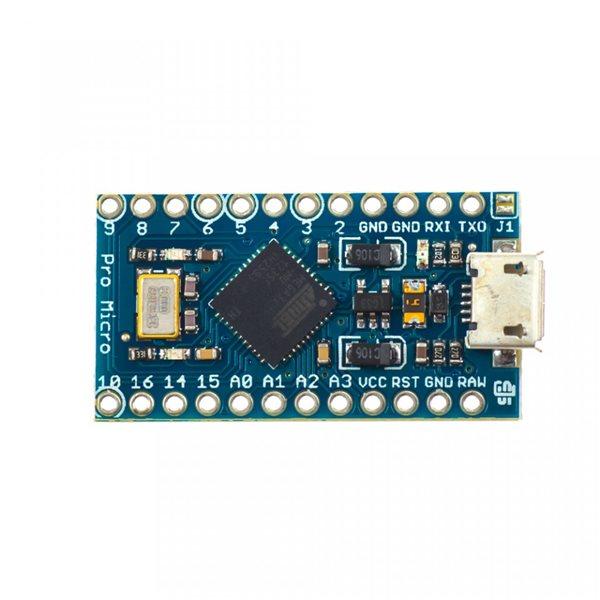

Pro Micro ATmega32U4 5V/16MHz Board for arduino Leonardo Replace
The Pro Micro ATmega32U4 5V/16MHz Board is a compact Arduino-compatible microcontroller board designed as a replacement for the Arduino Leonardo. It is based on the ATmega32U4 MCU, which includes built-in USB communication, eliminating the need for an external USB-to-serial converter. The board operates at 5V and 16MHz and offers multiple I/O options including 12 digital pins (5 PWM), 4 analog inputs, and hardware serial (RX/TX). Its small size makes it ideal for embedded systems, wearable electronics, robotics, and DIY Arduino projects requiring USB functionality in a compact form.
لوحة Pro Micro ATmega32U4 5V/16MHz هي لوحة متوافقة مع Arduino وتُستخدم كبديل لـ Arduino Leonardo. تعتمد على المتحكم ATmega32U4 الذي يحتوي على منفذ USB مدمج، مما يلغي الحاجة إلى محول USB خارجي. تعمل بجهد 5 فولت وتردد 16 ميجاهرتز وتوفر عدة منافذ تشمل 12 منفذ رقمي (5 منها PWM)، و4 مداخل تناظرية، وواجهة تسلسلية RX/TX. تتميز بحجم صغير جدًا مما يجعلها مناسبة للمشاريع المدمجة، الأجهزة القابلة للارتداء، والروبوتات.
The Pro Micro ATmega32U4 5V/16MHz Module Board is a highly compact and versatile microcontroller development board designed for embedded electronics and Arduino-based projects. It is based on the ATmega32U4 microcontroller, which integrates a built-in USB transceiver, allowing the board to communicate directly with a computer without requiring an external USB-to-serial adapter.
This feature makes the Pro Micro ideal for projects where space is limited but USB functionality is required. It is fully compatible with the Arduino IDE and behaves similarly to the Arduino Leonardo in terms of programming and functionality.
The board operates at 5V logic level and 16MHz clock speed, providing stable performance for a wide range of applications. It includes multiple digital and analog input/output pins, PWM outputs, and hardware serial communication, making it suitable for sensor interfacing, motor control, and communication projects.
A built-in voltage regulator allows the board to accept input voltages up to 9V DC, typically via the RAW pin. The latest version includes improved power protection (PTC fuse and diode protection) and corrected LED circuitry for RX and TX indicators.

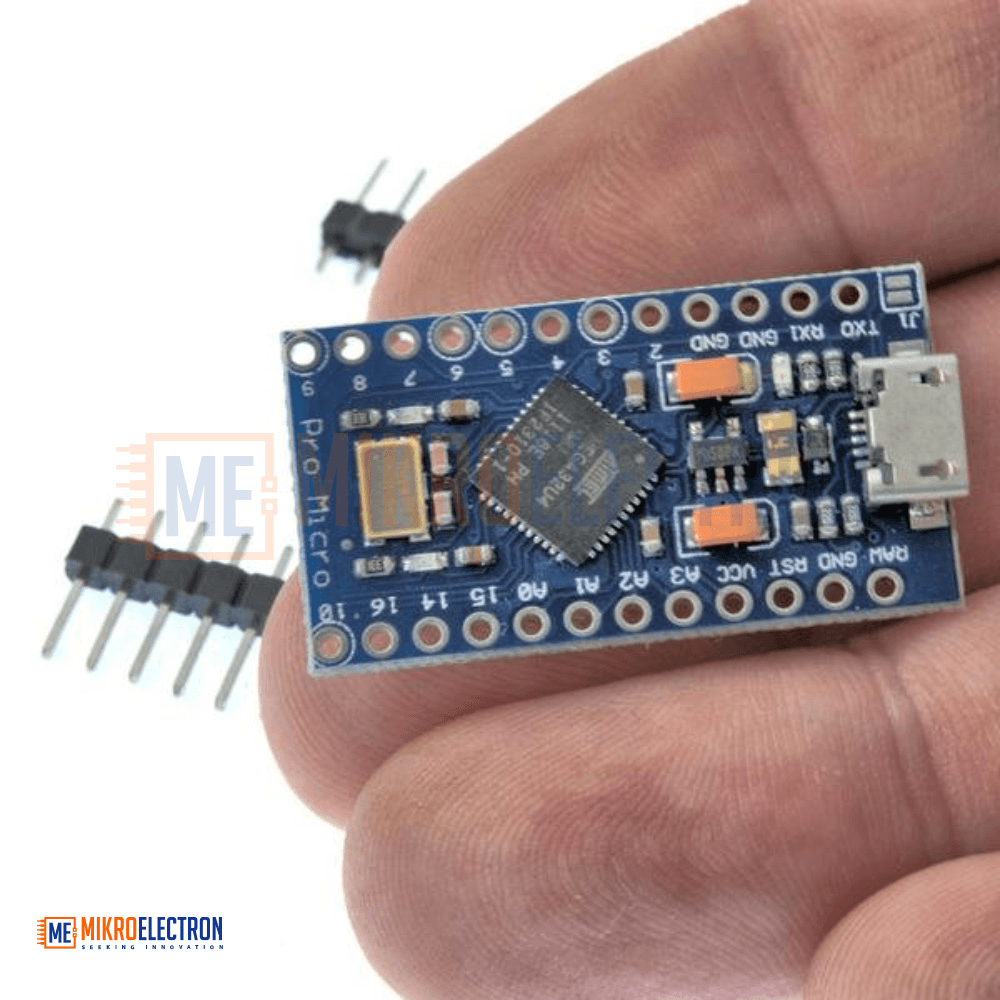

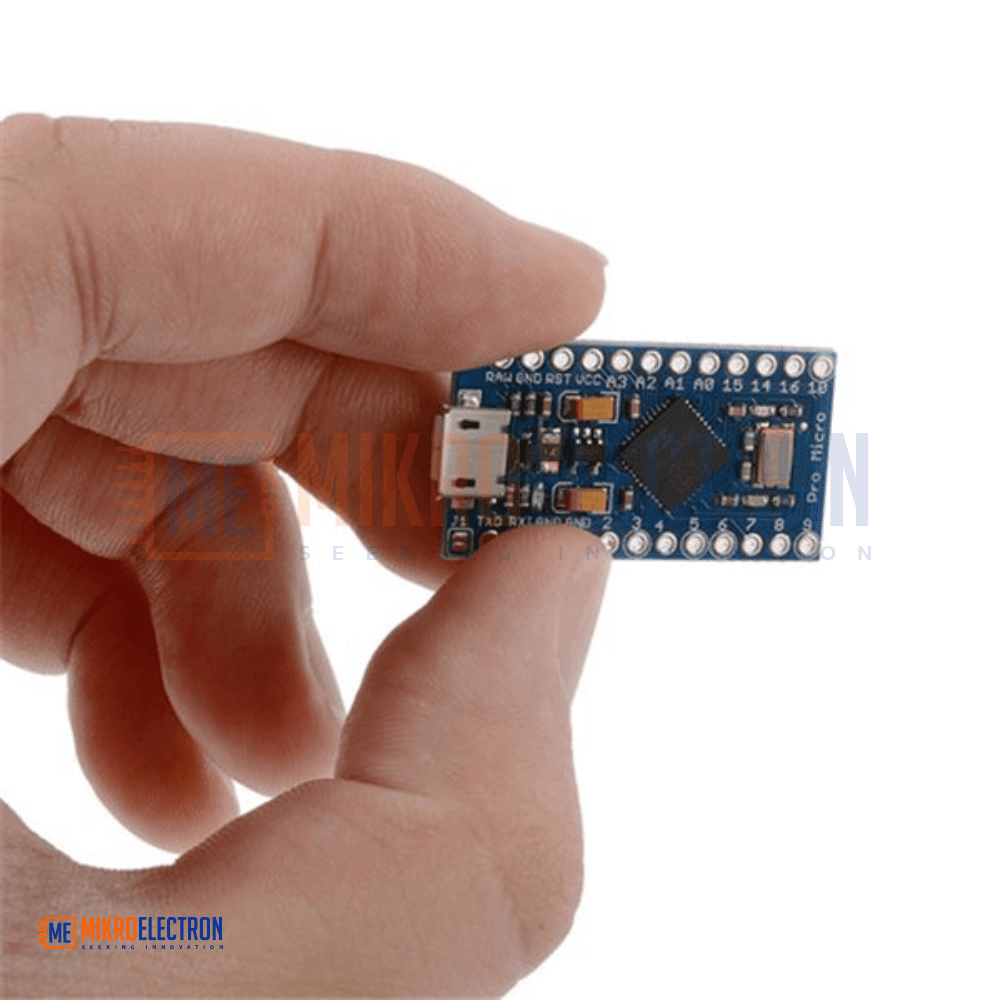

Due to its extremely small size, the Pro Micro is widely used in compact embedded systems, wearable electronics, HID devices (like custom keyboards and mice), robotics, and automation systems.
Specifications
| Parameter | Specification |
|---|---|
| Microcontroller | ATmega32U4 |
| Operating Voltage | 5V |
| Clock Speed | 16 MHz |
| USB Interface | Built-in USB (Micro-USB connector) |
| Digital I/O Pins | 12 (5 PWM capable) |
| Analog Input Pins | 4 (10-bit ADC) |
| Serial Communication | RX / TX Hardware Serial |
| Input Voltage (RAW) | Up to 9V DC |
| Board Type | Arduino Leonardo compatible |
| Programming Support | Arduino IDE |
| Protection Features | PTC fuse + diode protection |
| Board Size | Ultra-compact (smallest Arduino-class board) |
Applications
- Wearable electronics projects
- Custom USB devices (HID keyboards, mice)
- Robotics control systems
- Sensor interfacing projects
- DIY Arduino automation systems
- Miniature embedded systems
- Game controllers and input devices
- IoT prototyping
- Motor and servo control systems
- Educational electronics projects
